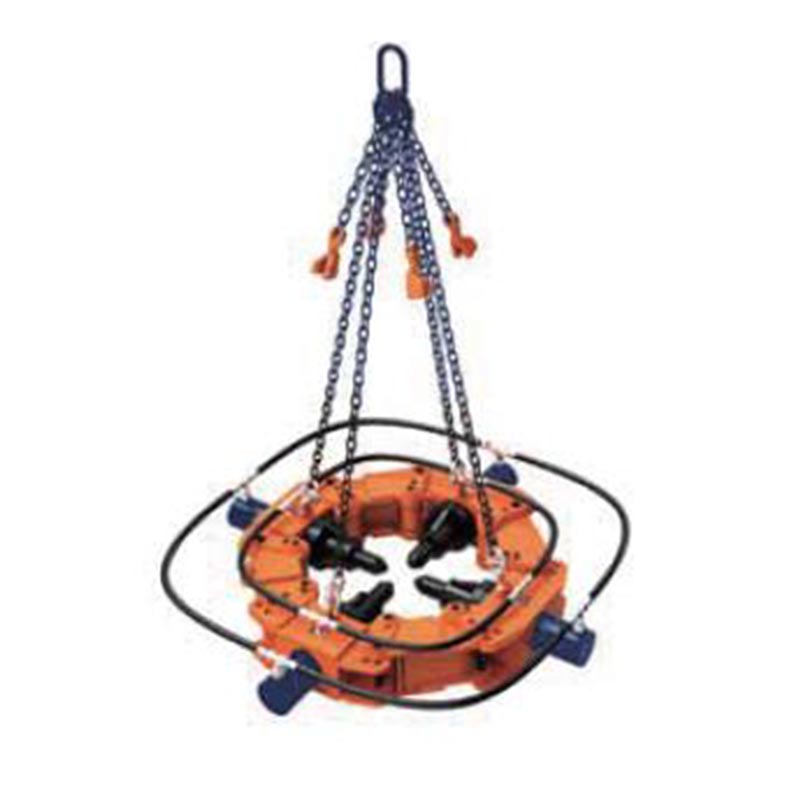

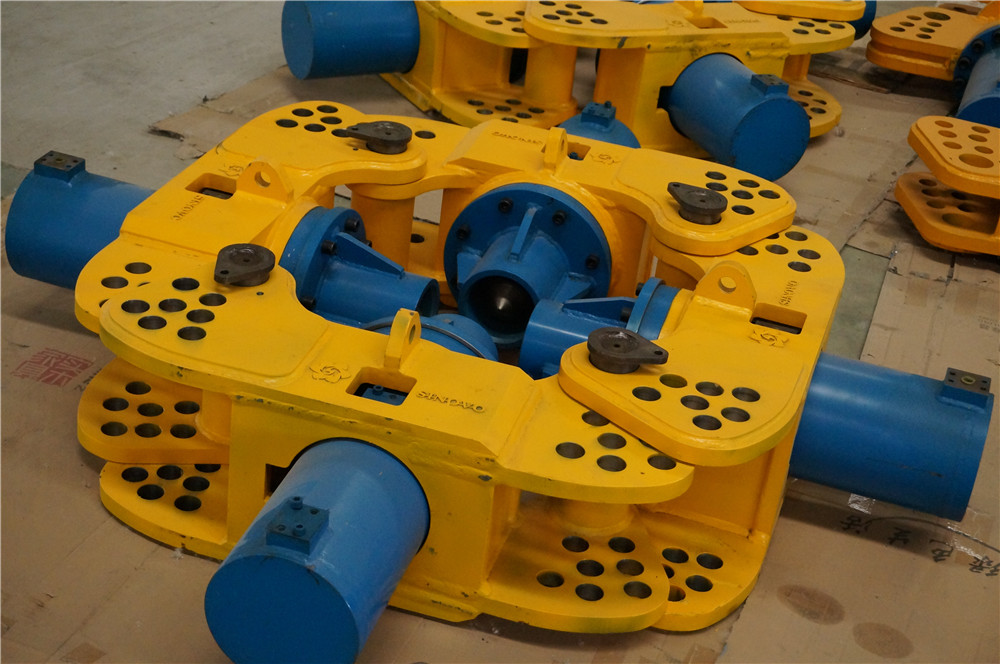

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design the pile breaker can be used for breaking different sizes of piles. Equipped with the chains, it can work with different equipment to break piles.
Key Advantages
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
Module generalization is realized with our SPF400A square pile machine. It can be used for both circular piles and square piles by changing the module combination.
It's light for convenient transportation.
Contact-free operation is enabled and it can be applied for construction on complex land form.
It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.
It is made of military material by first-class suppliers with reliable quality, extending its service life.
It’s small for convenient transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.
The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
Operation Steps
1
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector.
2
The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc.
3
Move the pile breaker to the working pile head section.
4
Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut.
5
Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure.
6
After the pile is crushed, hoist the concrete block.
7
Move the crushed pile to the designated position.
Media Gallery & Configurations
| Length of drill rod (mm) |
Pile Diameter (mm) |
Remark |
| 170 |
300-400 |
Standard Configuration |
| 206 |
200-300 |
Optional Configuration |
Technical Specifications
| Model / Parameter |
SPF400A Detail |
| Model |
SPF400A |
| Range of Pile diameter (mm) |
300-400 |
| Maximum Drill rod pressure |
325kN |
| Maximum stroke of hydraulic cylinder |
150mm |
| Maximum pressure of hydraulic cylinder |
34.3MPa |
| Maximum flow of single cylinder |
25L/min |
| Cut the number of pile/8h |
160 |
| Height for cutting pile each time |
<= 300mm |
| Supporting the digging machine Tonnage(excavator) |
>= 7t |
| Work status dimensions |
1600X1600X2000mm |
| Total pile breaker weight |
750kgs |
Frequently Asked Questions
What types of piles can the SPF400A pile breaker process?
The SPF400A square pile machine features module generalization. It can be used for both circular piles and square piles simply by changing the module combination.
What compatible power sources can be used with this equipment?
It is highly universal and can be driven by diverse power sources. It is compatible with excavators, lifting devices, crawler cranes, truck cranes, or hydraulic pump stations depending on site conditions.
Does the breaking process damage the main body of the pile?
No. The hydraulic pile breaker imposes no impact force on the parent body of the pile and has no influence on the overall bearing capacity of the pile.
What is the construction efficiency of the pile breaker within an 8-hour shift?
The system is highly efficient and capable of cutting up to 160 piles within an 8-hour shift under normal operating parameters.
How many operators are required, and is it easy to maintain?
The operating system is designed to be easy and convenient. Fewer operating workers are required, which significantly reduces labor costs and machine maintenance expenses.
What is the weight and dimension configuration of the equipment?
The SPF400A model has a total weight of 750kgs with working status dimensions of 1600X1600X2000mm. Its lightweight and small volume allow for highly convenient transportation and fast modular assembly.
