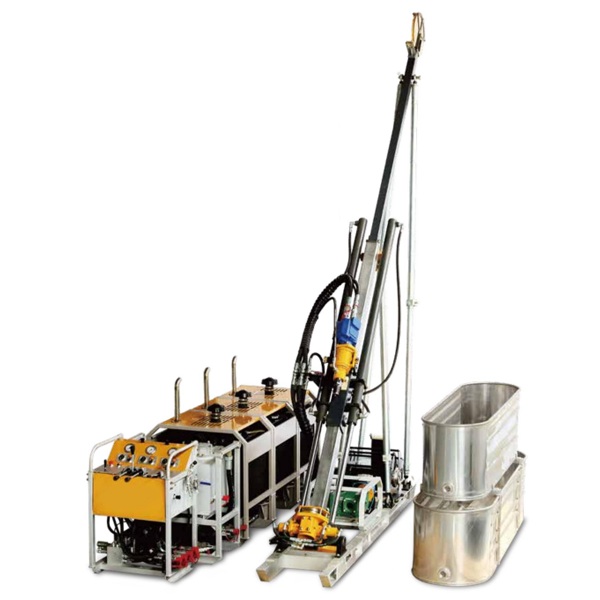

The fully hydraulic portable rock core drilling rig introduces advanced Canadian portable drilling rig technology, combining imported and domestically assembled original core components. Adopting a lightweight modular design, it features an integrated power unit control and a patented sliding frame. It is engineered to drill at constant pressure with high drilling speeds. This high-performance drilling rig aligns perfectly with national policies for green mine development and green exploration. The series includes the F300D, F600D, F800D, and F1000D hosts.
Widely applied in geological prospecting and exploration, basic engineering, water conservancy, hydropower, and tunnel strip engineering exploration, it excels in rock core drilling and exploration within mountainous areas, forests, plateaus, and other complex terrains with limited transportation access.
Uses minimally invasive drilling technology, eliminating the need for road construction. This reduces damage to vegetation and the surrounding landscape. Environmentally friendly mud materials maximize construction site protection.
Lightweight modular design allows easy disassembly. Over 80% of structural components are made of high-strength aluminum alloy. A single module weighs up to 160kg and can be transported by four people, making it safer and more convenient.
Equipped with international high-end hydraulic components. Integrated systems offer high reliability, smooth operations, and continuous day-and-night performance. Built to withstand severe working conditions with reduced maintenance costs.
Mast-type drilling frame eliminates the need for tower-top operations, raising safety margins. Standard features include an automatic hydraulic overload protector and a 12V DC power supply for daily electric controls. Constant pressure drilling enables fast footage.
Utilizes direct-connected drill pipes and full-hole drilling to retrieve undisturbed rock cores from complex, fractured, weathered, or collapsed formations. Achieves a core recovery rate of over 97% to guarantee project quality.
Rapid site access, quick disassembly, and simple installation. Relies on manual portage without road construction requirements. Foundation setup takes only 1-2 hours on a compact 4x4 meter footprint, reducing overhead expenses.
Equipped with a Kubota turbocharged diesel engine imported from Japan, providing robust power output. Paired with original German KTR couplings to guarantee consistent and reliable power transmission.
Features high-quality international components, including imported multi-channel directional control valves from Canada, integrated hydraulic circuit blocks, and Italian-made quick-connect couplings.
Includes a hydraulically driven Italian BOTOLINI mud pump. A 10-position control valve manages flow rates. An aluminum mixer frame circulates the mixture evenly to reduce material waste.

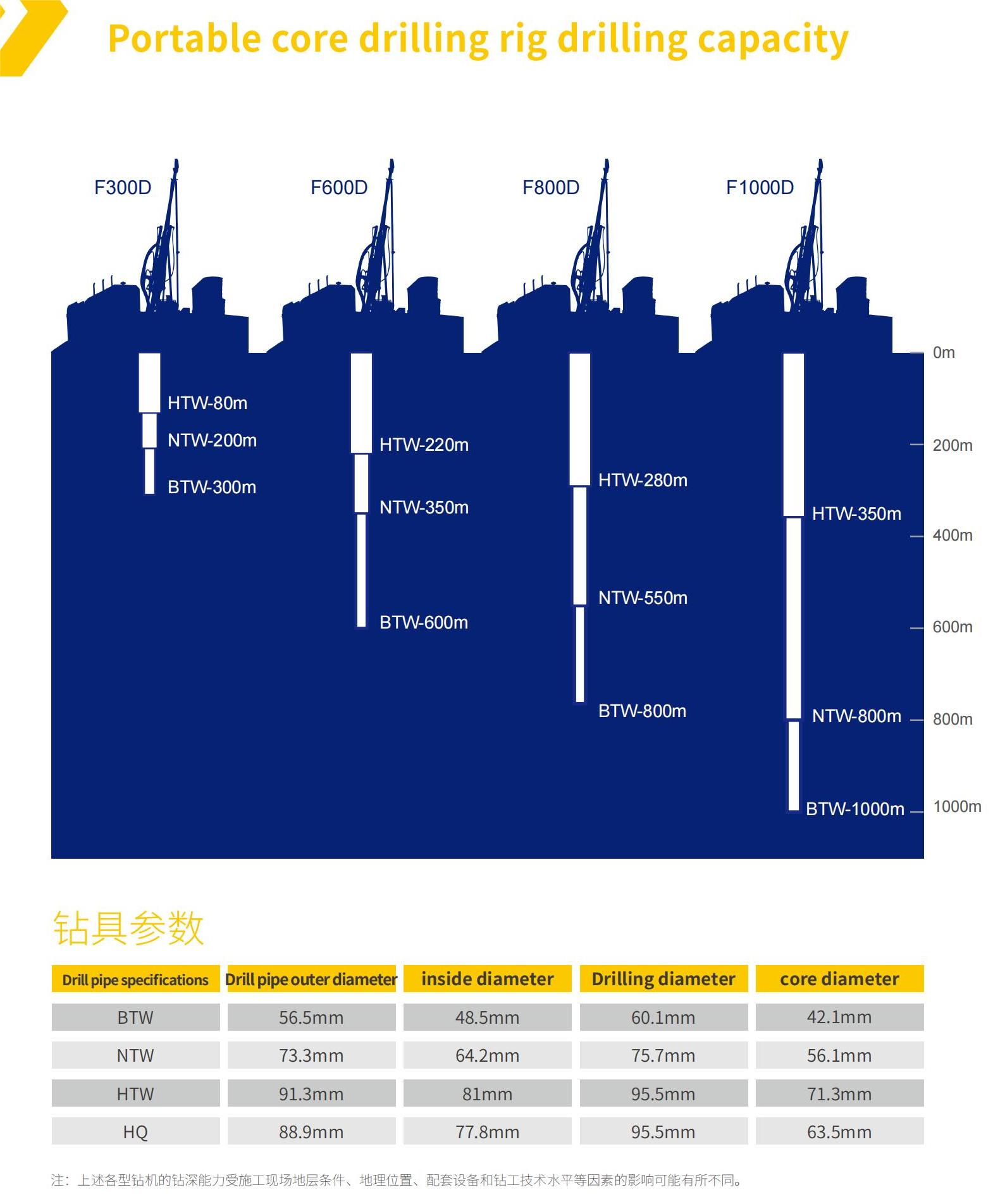

| Module | Project Parameter | F300D | F600D | F800D | F1000D |
|---|---|---|---|---|---|
| Drilling Unit | Give progress | 1.8M | 1.8M | 1.8M | 1.8M |
| Lift force | 70KN | 120KN | 130KN | 150KN | |
| Power head | ZK200 top drive | ZK600 top drive | ZK800 top drive | ZK1000 top drive | |
| Weight | 80Kg | 120Kg | 120Kg | 130Kg | |
| L×W×H (mm) | 2000×520×4200 | 2750×520×5200 | 2750×520×5200 | 3000×680×5500 | |
| Power Unit | Engine | Kubota V1505T | Kubota D1105T | Kubota V1505T | Kubota V1505T |
| Power | 1×33KW | 3×24KW | 3×33KW | 4×33KW | |
| Weight | 180Kg/unit | 160Kg/unit | 180Kg/unit | 180Kg/unit | |
| L×W×H (mm) | 910×620×940 | 910×600×840 | 910×620×940 | 910×620×940 | |
| Operational Unit | Weight | 150Kg | 130Kg | 140Kg | 140Kg |
| L×W×H (mm) | 508×762×1010 | 508×762×1010 | 508×762×1010 | 508×762×1010 | |
| Fuel Tank Unit | Capacity | 55L water-cooling | 100L water-cooling | 100L water-cooling | 120L water-cooling |
| Weight (empty) | 28kg | 45kg | 45kg | 50kg | |
| Weight (full) | 70Kg | 120Kg | 120Kg | 140Kg | |
| L×W×H (mm) | 630×257×303 | 876×559×940 | 876×559×940 | 892×572×980 | |
| Rope Winding | Rope capacity | 300m | 800m | 1000m | 1000m |
| Weight (empty) | 28kg | 45kg | 45kg | 60kg | |
| L×W×H (mm) | 430×260×200 | 500×450×400 | 500×450×400 | 500×450×400 | |
| Drill Pipe Clamp | Max pipe size | PQ(PWL) | PQ(PWL) | PQ(PWL) | PQ(PWL) |
| Clamping force | 5,000kg | 9,000kg | 12,000kg | 15,000kg | |
| Weight | 18kg | 23kg | 23kg | 30kg | |
| Mud Unit | Mode | Botolini | Botolini | Botolini | Botolini |
| Flow & pressure | 110Lpm, 75bar | 110Lpm, 75bar | 110Lpm, 75bar | 110Lpm, 75bar | |
| Transmission | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Weight | 35kg | 35kg | 35kg | 35kg | |
| L×W×H (mm) | 770×553×286 | 770×480×340 | 770×480×340 | 770×480×340 | |
| Overall | Machine Area | 2m × 3m | 4m × 4m | 4m × 4m | 4m × 4m |
| Heaviest Module / Total | 180kg / 800kg | 160kg / 1300kg | 180kg / 1350kg | 180kg / 1550kg |
They are ideal for complex and hard-to-reach terrains such as mountains, forests, plateaus, and tunnels where transportation is limited and heavy machinery cannot access.
By using minimally invasive drilling techniques, they remove the necessity of building transport roads. This preserves local vegetation and soil structure, utilizing eco-friendly mud fluids to protect the surrounding area.
The rig uses a lightweight design with over 80% high-strength aluminum alloy. The heaviest single module weighs 160-180kg, meaning it can be easily transported manually by 4 people along narrow pathways.
Thanks to direct-connected drill pipes and full-hole drilling processes, the rig routinely achieves a core recovery rate of over 97% even in easily collapsed, weathered, or fractured formations.
The modular system is engineered for rapid deployment. Foundation assembly and disassembly can be completed in just 1 to 2 hours, and it only requires a compact 4x4 meter installation footprint.
Key components include Kubota diesel engines from Japan, KTR couplings from Germany, multi-channel directional valves from Canada, and BOTOLINI mud pumps from Italy.
