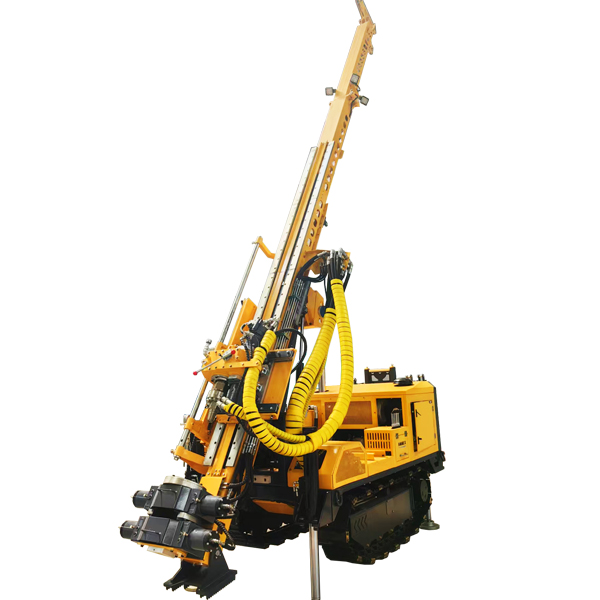

SM75 is a multi-purpose hydraulic-driven geotechnical drill rig. Built on a track chassis, it offers functions of Rotary and Percussion / RC drilling choices, suitable for ground engineering, geotechnical drilling, geothermal development, mineral exploration, etc.
The specially designed rotary drill mast is compact and foldable/ telescopic. The SPT percussion drill mast is mounted side-by-side and can be positioned sliding.
The high-performance heavy tracks are remote controlled for walk, as well as for lifting and lowering. The rig is easy for moving and positioning, highly maneuverable.
Equipped with hydraulic rotary top drive, it is capable for core drill or soil drill, single pipe drill or wireline drill as needed.
By up-to-date technology, the rig is capable for automated Standard Penetration Test (SPT), with a sampling depth of up to 50 meters and an SPT layer depth of more than 20 meters. The hammering frequency can reach 50 times/m, and the automatic counter makes instant test recording.
Telescopic mast system is capable for drill rods of 1.5-3 meters long.
The crawler chassis can be remotely controlled for walking, lifting and levelling, with high maneuverability. The rig can move freely by itself on the drill site with multiple tools loaded on it.
The soil sampling system can maintain the original state of the soil sample while performing SPT and gravity survey tests.
Options
Mud pump
Mud mixing system
Sampling device
Automatic hydraulic rod wrench
Automatic Standard Penetration Test Device (SPT)
Reverse Circulation Drilling System (RC)
Technical Data
Capacity (Core Drilling)
BQ
400m
NQ
300m
HQ
80m
The actual drilling depth is subject to the earth formation and drilling methods.
General
Weight
5580 KG
Dimension
2800x1600x1550mm
Pull up
130 KN
Drill rods
OD 54mm - 250mm
Speed of rotary head
0-1200 rpm
Maximum torque
4000 Nm
Power Unit
Engine power
75 KW
Type
Water-cool, turbo

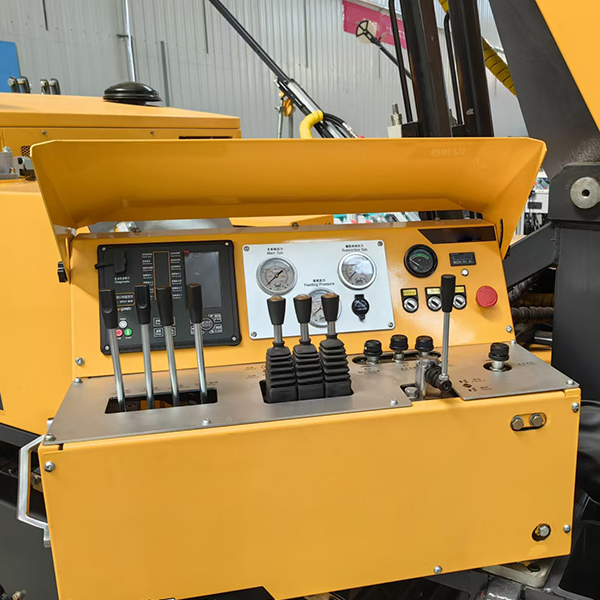

Control Unit
Main valve flow
100L/m
System pressure
21 Mpa
Fuel Tank Unit
Volume
100 L
Cooling method
Air / water
Hydraulic Winch
Wireline length
400m, max
Hydraulic motor
160cc
Clamps
Type
Hydraulic open & close
Clamping force
13,000 KG
Hydraulic rod wrench
55 KN (optional)
Mud Pump Unit (Optional)
Drive
Hydraulic
Flow & pressure
100 Lpm, 80 bar
Weight
2x60 KG
Tracks (Optional)
Drive
Hydraulic
Max gradeability
30°
Control method
Wireless remote control
Dimension
1600x1200x400mm
Frequently Asked Questions
Q1: What is the maximum core drilling depth for this rig?
A: The drilling capacity varies by size: BQ core drilling can reach up to 400 meters, NQ up to 300 meters, and HQ up to 80 meters. Note that actual depth depends on earth formation and drilling methods.
Q2: How deep can the automated Standard Penetration Test (SPT) reach?
A: The rig is equipped with automated SPT technology capable of reaching a sampling depth of up to 50 meters, and an SPT layer depth of more than 20 meters. It features a hammering frequency of up to 50 times/minute with an automatic counter for instant recording.
Q3: How is the crawler chassis controlled for movement on site?
A: The crawler chassis can be operated via wireless remote control, allowing you to manage walking, lifting, and levelling. This allows the rig to move freely on site even when loaded with multiple tools.
Q4: What engine specifications power this drilling rig?
A: The power unit is equipped with a 75 KW water-cooled, turbo engine, ensuring reliable performance in demanding environments.
Q5: What are the clamping features of this equipment?
A: It features a hydraulic open and close clamping system with a clamping force of 13,000 KG. Additionally, an automatic hydraulic rod wrench (55 KN) is available as an option.
Q6: What optional systems can be integrated into the rig?
A: Optional equipment includes a mud pump unit, mud mixing system, sampling device, automatic hydraulic rod wrench, automatic SPT device, and a Reverse Circulation (RC) drilling system.
