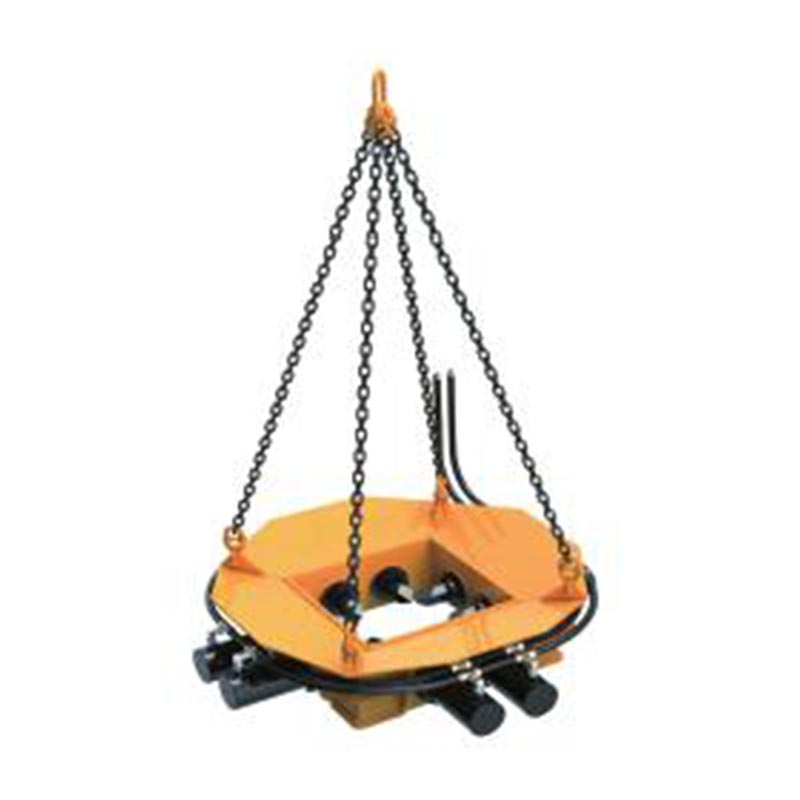

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies.
The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles.
Length of drill rod
Pile Diameter (mm)
Remark
170
400-500
Standard Configuration
206
300-400
Optional Configuration

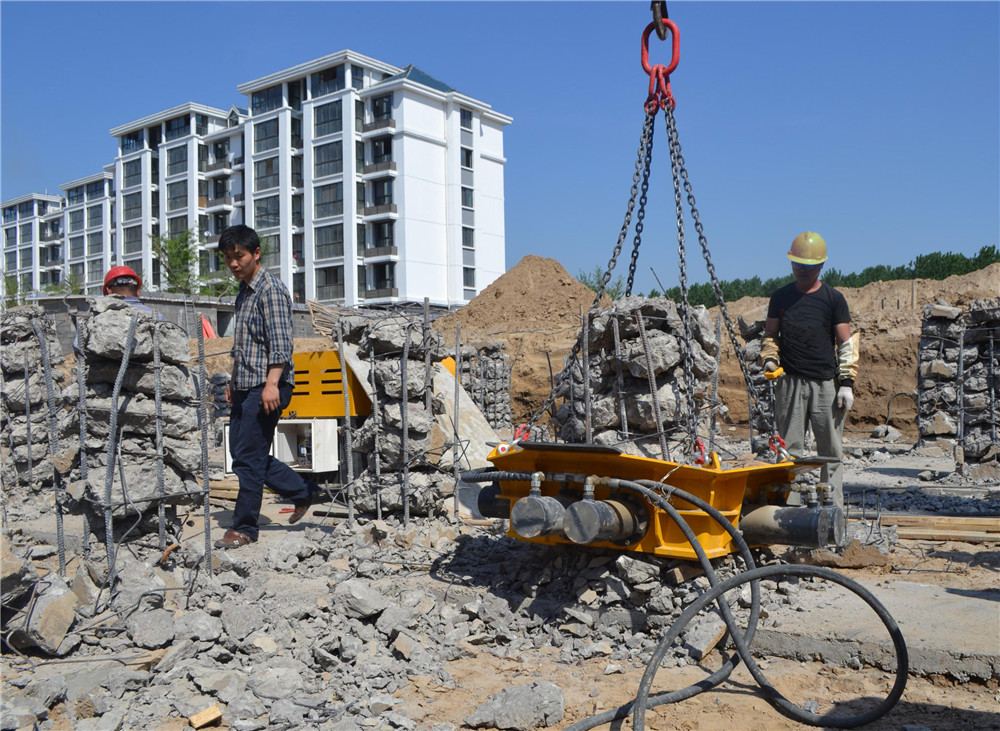

Operation Steps
1
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector.
2
The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc.
3

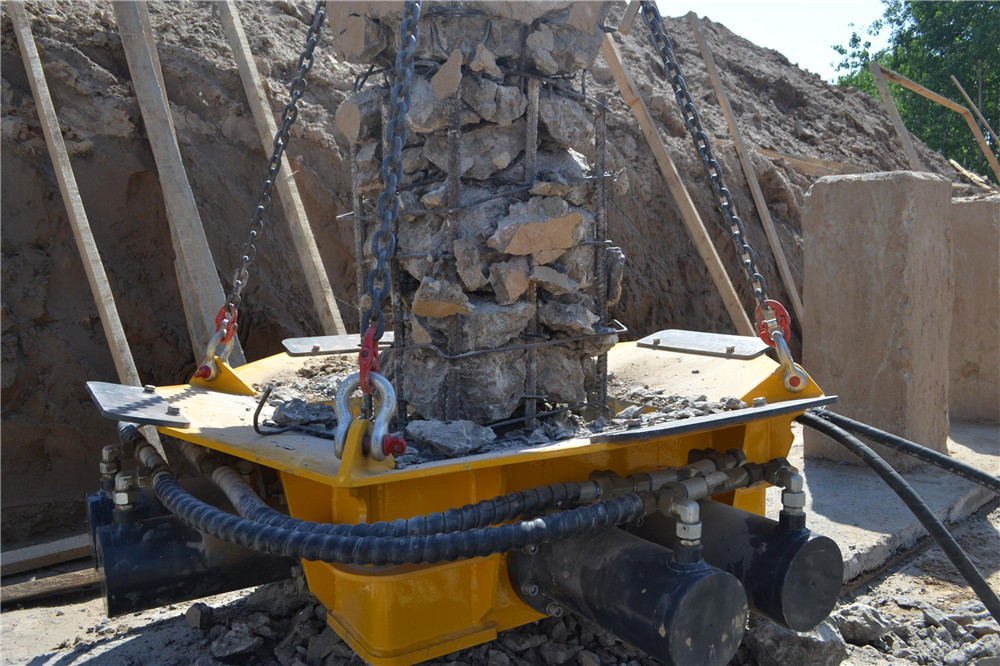

Move the pile breaker to the working pile head section.
4
Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut.
5
Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure.
6
After the pile is crushed, hoist the concrete block.
7
Move the crushed pile to the designated position.
The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
Key Features
Environment-friendly
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
Low-cost
The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
Small volume
It's light for convenient transportation.
Safety
Contact-free operation is enabled and it can be applied for construction on complex land form.
Universal property
It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to construction conditions. Telescopic sling lifting chains meet various land forms requirements.
Long service life
It is made of military material by first-class suppliers with reliable quality, extending its service life.
Specification
Model
SPF500B
Range of Pile diameter (mm)
400-500
Maximum Drill rod pressure
325kN
Maximum stroke of hydraulic cylinder
150mm
Maximum pressure of hydraulic cylinder
34.3MPa
Maximum flow of single cylinder
25L/min
Cut the number of pile/8h
120
Height for cutting pile each time
<= 300mm
Supporting the digging machine Tonnage(excavator)
>= 12t
Work status dimensions
1710X1710X2500mm
Total pile breaker weight
960kgs
Frequently Asked Questions (FAQ)
What are the compatible pile diameters for the SPF500B pile breaker?
The SPF500B model supports pile diameters ranging from 400mm to 500mm under its standard configuration, and 300mm to 400mm under its optional configuration.
How many concrete piles can the equipment crush in an 8-hour shift?
The hydraulic pile breaker is highly efficient and capable of cutting up to 120 piles within an 8-hour working shift, depending on construction site conditions.
What kind of machinery or power sources can drive the pile breaker?
It features universal compatibility and can be driven by excavators (tonnage >= 12t), lifting devices like truck or crawler cranes, and hydraulic pump station combinations.
Does the pile breaking process damage the main structure of the foundation?
No. The hydraulic pile breaker applies static pressure that imposes no impact force on the parent body of the pile, ensuring no negative influence on the overall bearing capacity.
Why is this hydraulic pile breaker considered environment-friendly?
It relies on a full hydraulic drive system which operates with very low noise levels, minimizing environmental disturbance on construction sites and urban surroundings.
