The 80mm BW200 mud pump is mainly used to supply flushing fluid for drilling in geology, geothermal, water source, shallow oil and coalbed methane. The medium can be mud, clean water, etc. it can also be used as the above infusion pump.
The 80mm BW200 mud pump is mainly used to supply flushing fluid for drilling in geology, geothermal, water source, shallow oil and coalbed methane. The medium can be mud, clean water, etc. It can also be used as the above infusion pump.

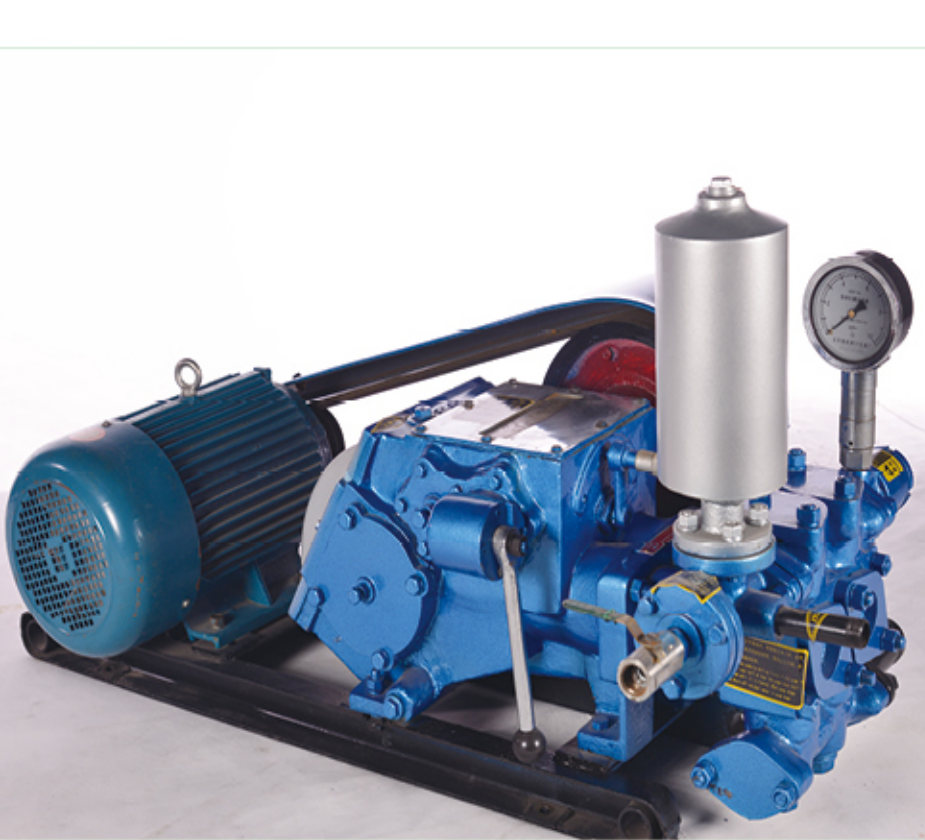

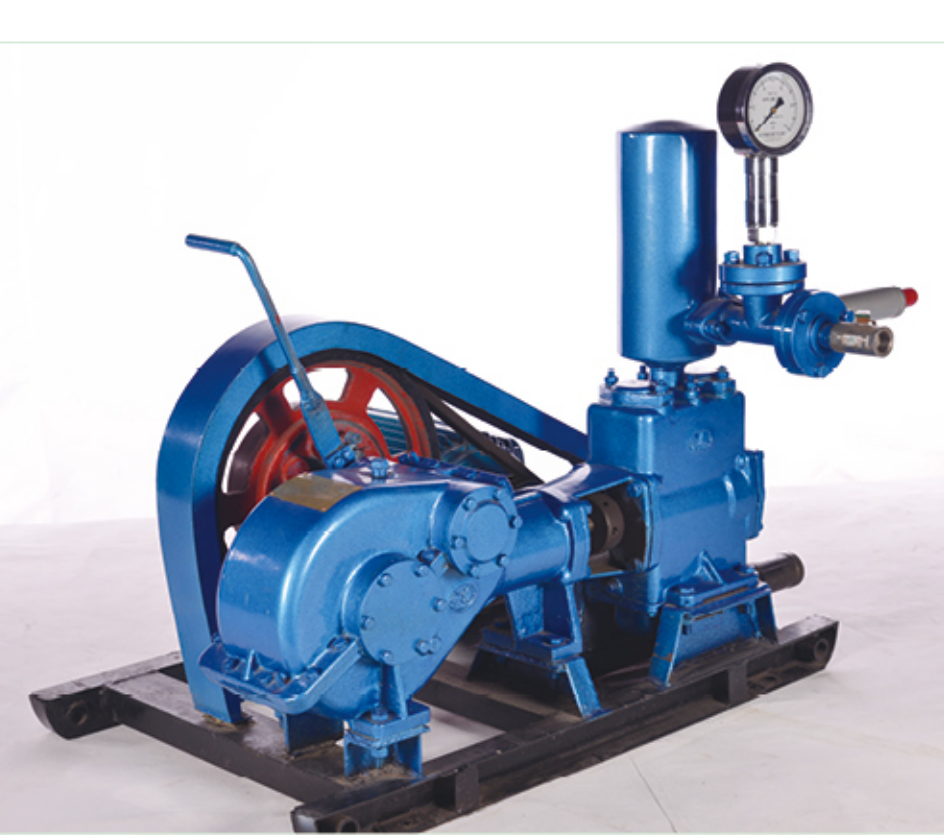

80mm BW200 Mud pump is a kind of machinery that transports mud or water and other flushing fluid to the borehole during drilling, which is an important part of drilling equipment.
The commonly used mud pump is piston type or plunger type. The power engine drives the crankshaft of the pump to rotate, and the crankshaft drives the piston or plunger to do reciprocating motion in the pump cylinder through the crosshead. Under the alternate action of suction and discharge valves, the purpose of pressing and circulating flushing liquid is realized.
Key Features & Advantages
1. Solid Structure and Good Performance
The structure is firm, compact, small in volume and good in performance. It can meet the requirements of high pump pressure and large displacement drilling technology.
2. Long Stroke and Reliable Use
Long stroke, keep in a low number of strokes. It can effectively improve the water feeding performance of mud pump and prolong the life of vulnerable parts. The structure of the suction air case is advanced and reliable, which can buffer the suction pipeline.
3. Reliable Lubrication and Long Service Life
The power end adopts the combination of forced lubrication and splash lubrication, which is reliable and increases the service life of the power end.
Technical Specifications
Parameter Item
Specification details
Pump type
horizontal
Action type
double action
Number of cylinders
2
Cylinder liner diameter (mm)
80; 65
Stroke (mm)
85
Reciprocation times (times / min)
145
Displacement (L / min)
200; 125
Working pressure (MPA)
4; 6
Transmission shaft speed (RPM)
530
V-belt pulley pitch diameter (mm)
385
Type and groove number of V-belt pulley
type B × 5 slots
Transmission power (HP)
20
Suction pipe diameter (mm)
65
Drainage pipe diameter (mm)
37
Overall dimension (mm)
1050 × 630 × 820
Weight (kg)
300
Frequently Asked Questions
What are the primary applications of the 80mm BW200 mud pump?
The 80mm BW200 mud pump is designed to supply flushing fluid during drilling projects related to geology, geothermal energy, water sources, shallow oil fields, and coalbed methane. It can handle mud, clean water, and similar media.
How does the reciprocating motion design benefit this mud pump?
Driven by the power engine, the crankshaft rotates and drives the piston or plunger in a reciprocating motion inside the pump cylinder. Through the alternate actions of the suction and discharge valves, it ensures high-efficiency fluid circulation and reliable pressure output.
What is the advantage of the long stroke feature?
The long stroke configuration allows the pump to operate at a lower frequency of strokes. This enhances the water feeding capability and reduces wear and tear on vulnerable components, extending their operational lifespan.
How does the lubrication system function in the BW200 mud pump?
The power end utilizes a combined system of forced lubrication and splash lubrication. This design delivers reliable lubrication to all internal moving components, significantly prolonging the pump's service life.
What is the weight and structural footprint of this mud pump?
The BW200 mud pump has a compact, firm structure with overall dimensions of 1050 × 630 × 820 mm and a total weight of approximately 300 kg, making it easy to integrate with various drilling setups.
