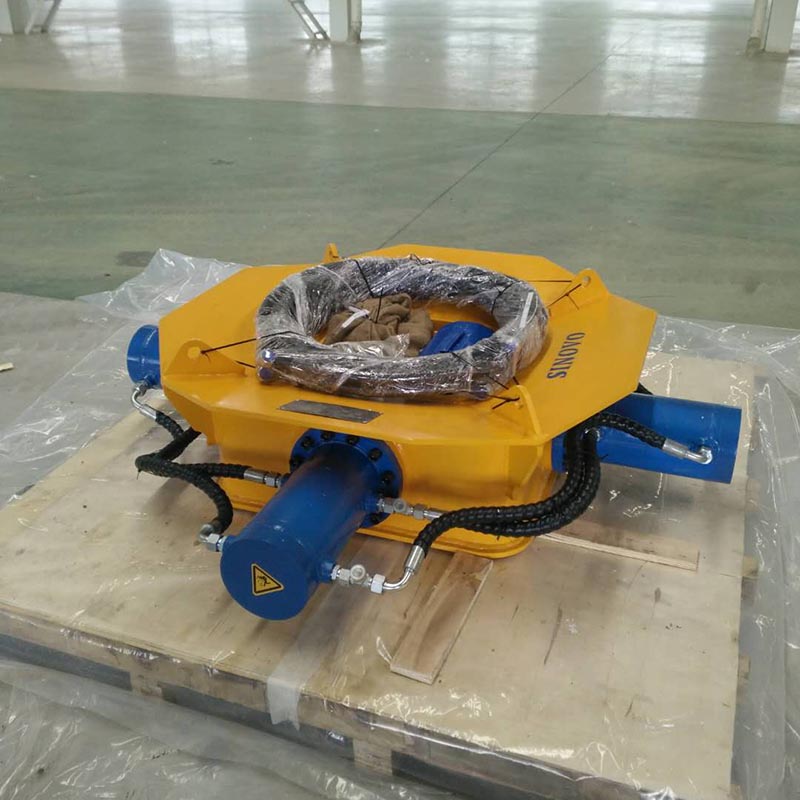

CE Certification SPF400B Hydraulic Pile Breaker Manufacturers, Factories
The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies.
The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies.
1. Environment-friendly
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.
2. Low-cost
The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.
3. Small volume
It's light for convenient transportation.
4. Safety
Contact-free operation is enabled and it can be applied for construction on complex land form.
5. Universal property

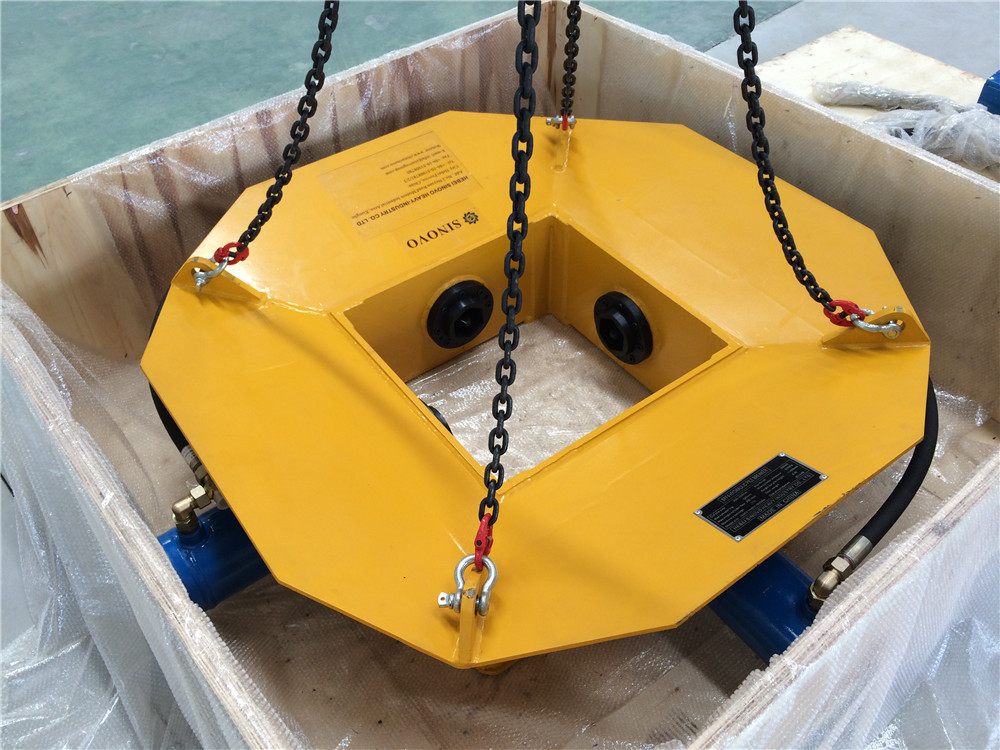

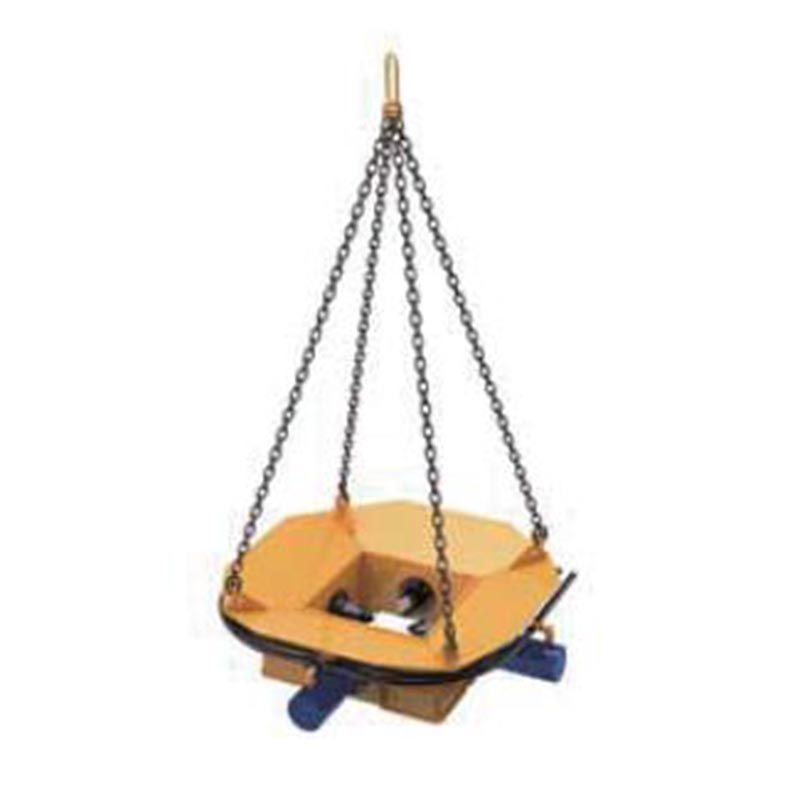

It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.
6. Long service life
It is made of military material by first-class suppliers with reliable quality, extending its service life.
Operation Guide (Steps 1-4)
1
According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector;
2
The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc;
3
Move the pile breaker to the working pile head section;
4
Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut;
Length of drill rod
Pile Diameter (mm)
Remark
170
300-400
Standard Configuration
206
200-300
Optional Configuration
The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.
Operation Guide (Steps 5-7)
5
Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure;
6
After the pile is crushed, hoist the concrete block;
7
Move the crushed pile to the designated position.
Specification
Parameter
Details (SPF400B)
Model
SPF400B
Range of Pile diameter (mm)
300-400
Maximum Drill rod pressure
325kN
Maximum stroke of hydraulic cylinder
150mm
Maximum pressure of hydraulic cylinder
34.3MPa
Maximum flow of single cylinder
25L/min
Cut the number of pile/8h
160
Height for cutting pile each time
≦300mm
Supporting the digging machine Tonnage(excavator)
≧7t
Work status dimensions
1600X1600X2000mm
Total pile breaker weight
650kgs
Frequently Asked Questions
What are the main advantages of using a hydraulic pile breaker?
The hydraulic pile breaker offers easy operation, high efficiency, low operating costs, low noise, and enhanced safety. It shortens construction periods significantly without impacting the pile's parent body or bearing capacity.
How many piles can the SPF400B model break in a typical 8-hour shift?
The SPF400B model can cut approximately 160 piles within an 8-hour working shift, with a maximum pile cutting height of ≦300mm per cycle.
What equipment is compatible to run the pile breaker?
It is highly compatible and can be driven by excavators (minimum 7-ton capacity recommended for SPF400B), lifting devices like truck cranes or crawler cranes, and hydraulic pump stations.
Is this equipment environmentally friendly?
Yes. The full hydraulic drive ensures minimal noise levels during operation and causes no negative impact on the surrounding environments, making it ideal for urban and restricted construction zones.
What are the supported pile diameters for this equipment?
Under standard configuration (drill rod length 170mm), it breaks pile diameters ranging from 300 to 400mm. With the optional configuration (drill rod length 206mm), it can handle diameters between 200 and 300mm.
How does the breaker adapt to complex land forms?
It enables contact-free operation and is equipped with telescopic sling lifting chains that dynamically meet the alignment requirements of various land forms and terrains.
