OEM SPA8 Hydraulic Pile Breaker Manufacturers, Exporter

The fully hydraulic pile breaker, adopting advanced modular design, the pile breaker can be used to break piles of different sizes by adjusting the number of modules. Equipped with an adjustable chain, it can work with different equipment to break piles,, is the most effective equipment for breaking foundation piles.

Send Inquiry

Product Description

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design the pile breaker can be used for breaking different sizes of piles. Equipped with the chains, it can work with different equipment to break piles.

Key Features

1. Low-cost

The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.

2. Environment-friendly

Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.

3. Safety

Contact-free operation is enabled and it can be applied for construction on complex land form.

4. Small volume

It's light for convenient transportation.

5. Universal property

It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.

Operating Steps (Part 1)

According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector;

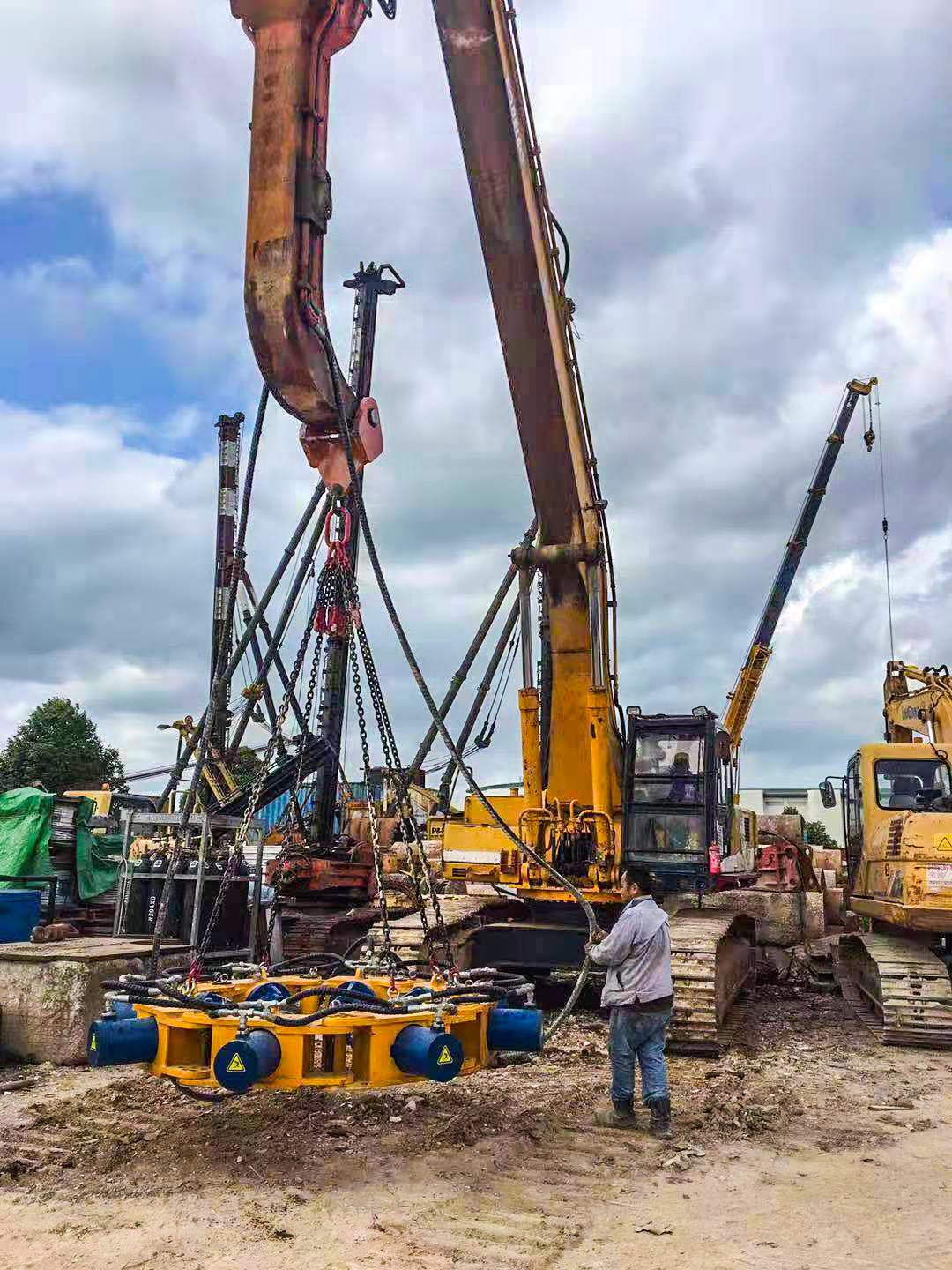

The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc;

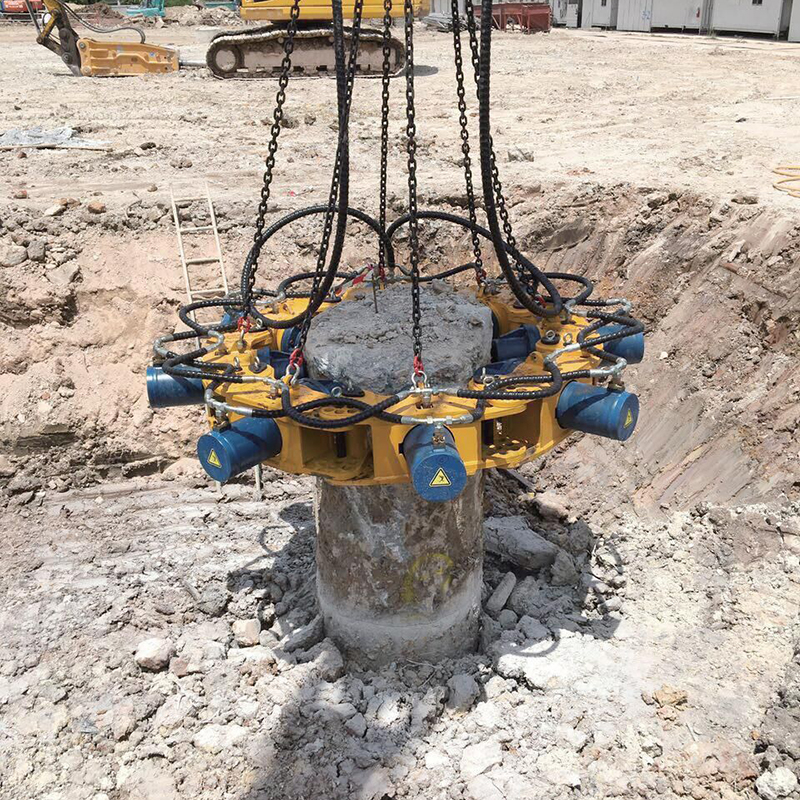

Move the pile breaker to the working pile head section;

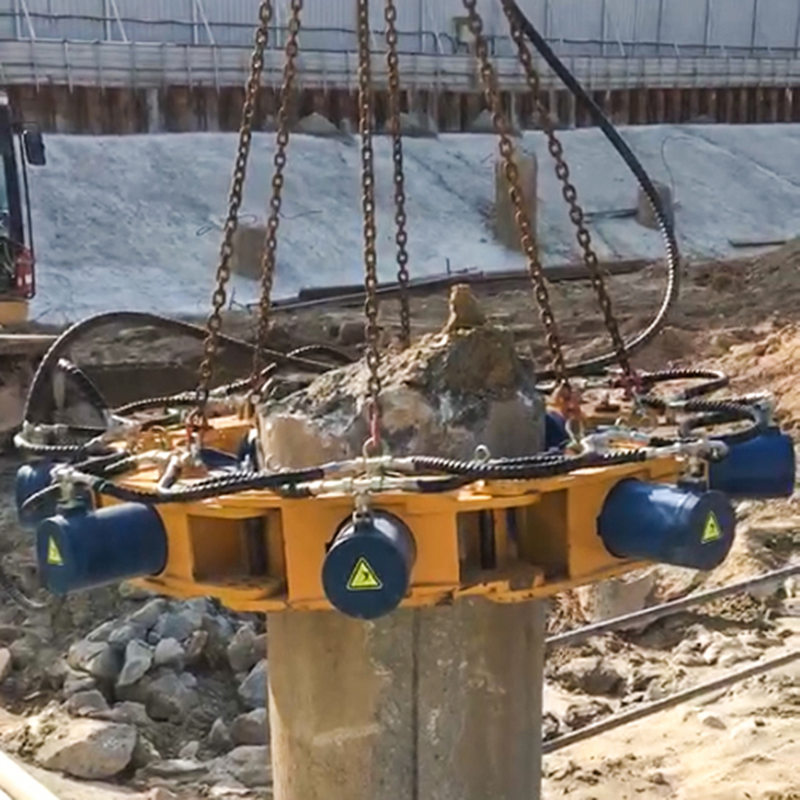

Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut;

Construction Reference Parameters

Module numbers	The diameter range (mm)	Platform weight(t)	Total pile breaker weight(kg)	Height of single crush pile(mm)
6	450-650	20	2515	300
7	600-850	22	2930	300
8	800-1050	26	3345	300
9	1000-1250	27	3760	300
10	1200-1450	30	4175	300
11	1400-1650	32.5	4590	300
12	1600-1850	35	5005	300
13	1800-2000	36	5420	300

Operating Steps (Part 2)

Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure;

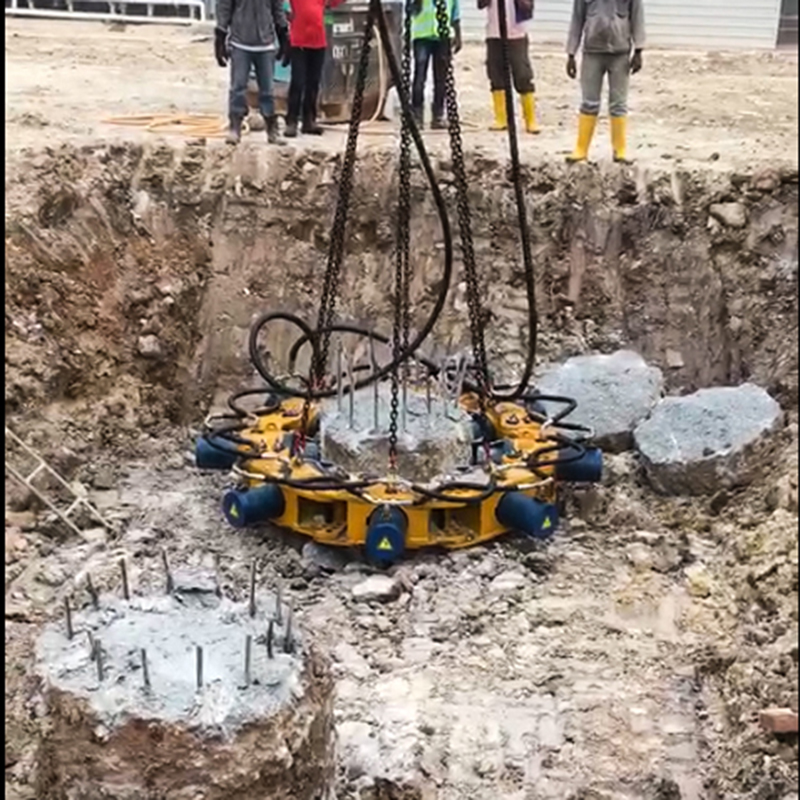

After the pile is crushed, hoist the concrete block;

Move the crushed pile to the designated position.

The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.

Additional Advantages

6. Convenience

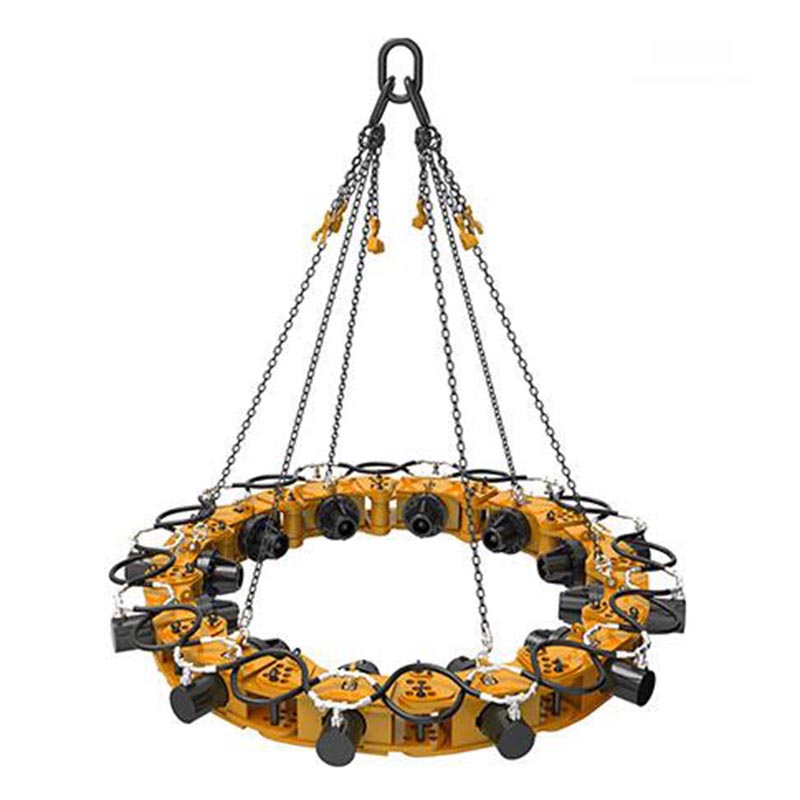

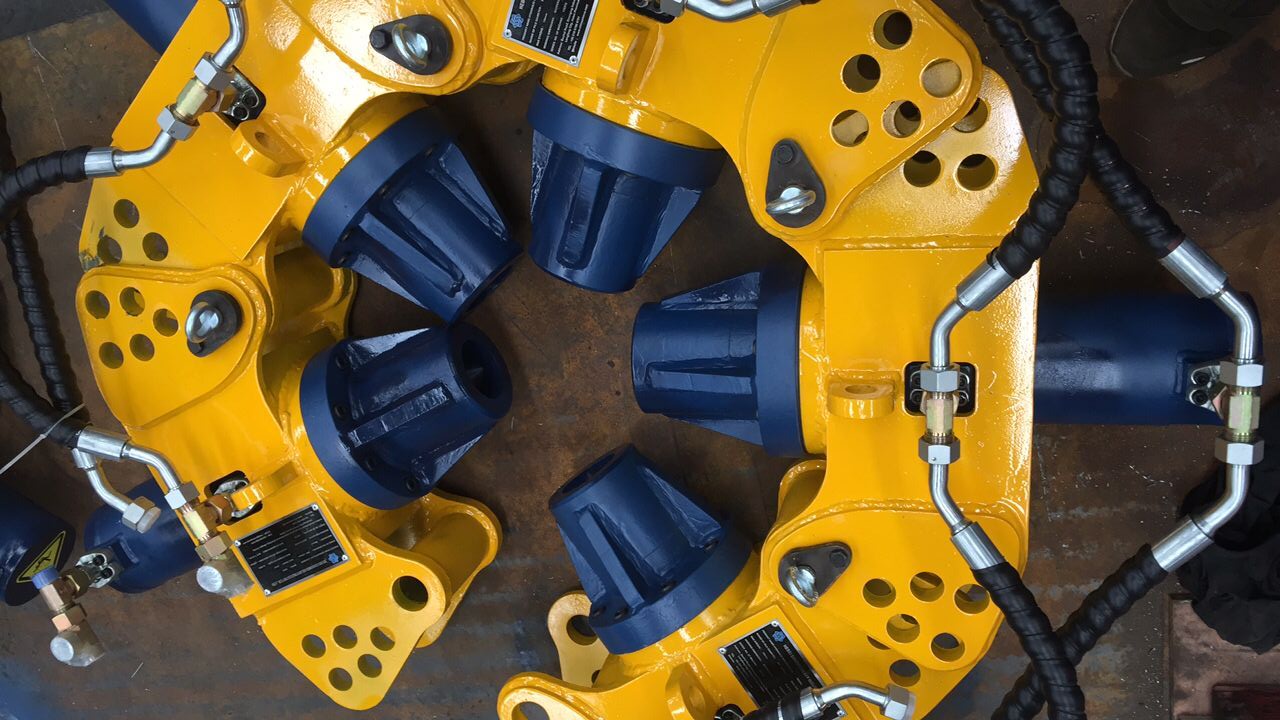

It’s small for convenient transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.

7. Long service life

It is made of military material by first-class suppliers with reliable quality, extending its service life.

Specification (Group of 13 Modules)

Model	SPA8
Range of Pile diameter (mm)	Ф1800-Ф2000
Maximum Drill rod pressure	790kN
Maximum stroke of hydraulic cylinder	230mm
Maximum pressure of hydraulic cylinder	31.5MPa
Maximum flow of single cylinder	25L/min
Cut the number of pile/8h	30-100 pcs
Height for cutting pile each time	≦300mm
Supporting the digging machine Tonnage (excavator)	≧36t
One-piece module weight	410kg
One-piece module size	930x840x450mm
Work status dimensions	Ф3560x3000
Total pile breaker weight	5.0t

Frequently Asked Questions

Q1: How does the modular design benefit pile breaking for different pile sizes?

The modular design allows modules to be easily combined, assembled, and disassembled. This flexibility makes the pile breaker adjustable to handle concrete piles of various diameters.

Q2: Does the hydraulic pile breaker cause damage to the pile's parent body?

No. The equipment imposes no impact force on the parent body of the pile and has no influence on the bearing capacity of the pile during the crushing process.

Q3: What type of construction machinery can drive the pile breaker?

It has a universal connection design and can be powered by excavators, crawler cranes, truck cranes, or customized hydraulic pump stations depending on site conditions.

Q4: How efficient is the SPA8 pile breaker in a standard shift?

The SPA8 configuration can cut and break between 30 to 100 pieces of concrete piles within a typical 8-hour shift, significantly reducing construction time.

Q5: Is the operation noisy or disruptive to urban areas?

No, the full hydraulic system drive ensures minimal noise levels during operation, making it highly suitable for construction in noise-sensitive urban environments.

Q6: What materials are used to ensure the durability of the equipment?

The pile breaker is constructed from high-grade military materials supplied by first-class manufacturers, ensuring high reliability and a long working service life.
