China SPF500A Hydraulic Pile Breaker Factories, Company

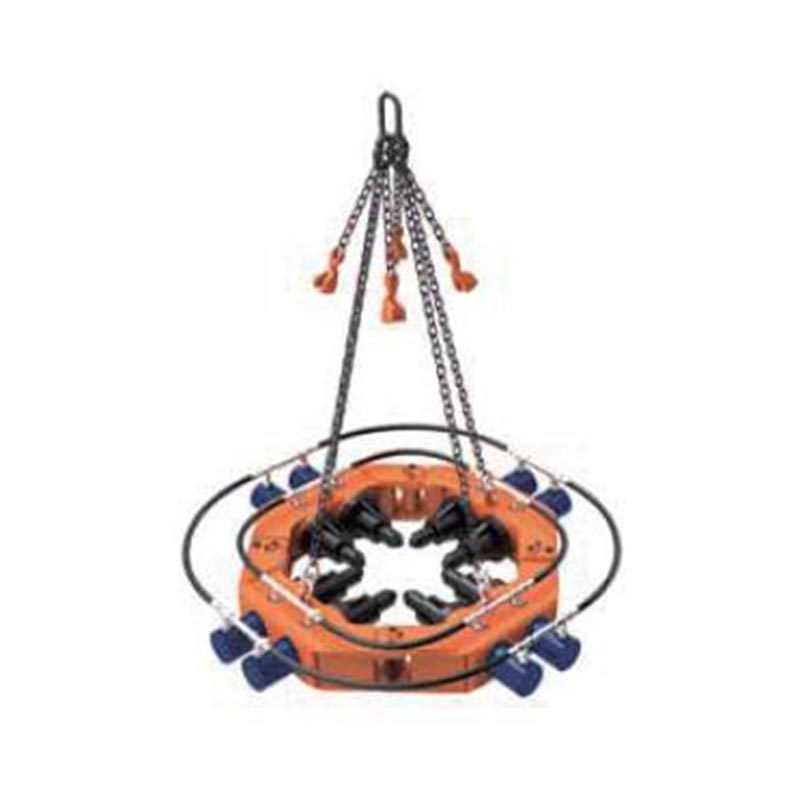

This modular, fully hydraulic pile breaker features a double-chisel rod on each module, specifically designed for breaking large-diameter concrete square piles with high hardness. Equipped with an adjustable lifting chain and hydraulic hoses, it can be directly used with the hydraulic power of excavators, crawler cranes, and other equipment, saving costs and simplifying operation.

Send Inquiry

Product Description

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design the pile breaker can be used for breaking different sizes of piles. Equipped with the chains, it can work with different equipment to break piles.

Key Features

1. Low-cost

The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.

2. Environment-friendly

Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.

3. Small volume

It's light and small for convenient transportation. Replaceable and changeable module combination makes it applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.

4. Multi-function

Module generalization is realized with our SPF500A square pile machine. It can be used for both circular piles and square piles by changing the module combination.

5. Safety

Contact-free operation is enabled and it can be applied for construction on complex land form.

6. Universal property

It can be driven by diverse power sources and is compatible with excavators or hydraulic systems according to construction site conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.

7. Long service life

It is made of military material by first-class suppliers with reliable quality, extending its service life.

Operation Steps

1According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector;
2The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc;
3Move the pile breaker to the working pile head section;
4Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut;
5Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure;
6After the pile is crushed, hoist the concrete block;
7Move the crushed pile to the designated position.

Configuration Parameters

Length of drill rod (mm)	Pile Diameter (mm)	Remark
170	400-500	Standard Configuration
206	300-400	Optional Configuration

Note: The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile, has no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.

Technical Specifications

Model	SPF500A
Range of Pile diameter (mm)	400-500
Maximum Drill rod pressure	325kN
Maximum stroke of hydraulic cylinder	150mm
Maximum pressure of hydraulic cylinder	34.3MPa
Maximum flow of single cylinder	25L/min
Cut the number of pile/8h	120
Height for cutting pile each time	≦300mm
Supporting the digging machine Tonnage(excavator)	≥12t
Work status dimensions	1710X1710X2500mm
Total pile breaker weight	960kgs

Frequently Asked Questions (FAQ)

What range of pile diameters can the SPF500A hydraulic pile breaker handle?

The standard configuration handles pile diameters from 400mm to 500mm. With an optional configuration (using a 206mm drill rod length), it can handle pile diameters from 300mm to 400mm.

Can this pile breaker work on both circular and square piles?

Yes, module generalization is realized with our SPF500A. It can easily switch between circular and square piles by changing the module combinations.

What machine is required to support and drive the SPF500A?

It requires a supporting digging machine (excavator) with a tonnage of 12 tons or greater, or compatible hydraulic pump stations and lifting systems.

How does the equipment impact the surrounding environment and the pile's structure?

The full hydraulic drive produces very little noise during operation. Additionally, it imposes no impact force on the parent body of the pile and has no influence on the structural bearing capacity of the pile.

What is the typical working efficiency of the SPF500A pile breaker?

The SPF500A is highly efficient, capable of cutting up to 120 piles within an 8-hour shift, with a maximum cutting height limit of 300mm for each pass.

How durable is the hydraulic pile breaker?

The breaker is manufactured using military-grade materials sourced from first-class suppliers, ensuring high structural integrity and a long service life.
