SD1000 full hydraulic crawler core drilling rig is drilling rig is a full hydraulic jacking driven drilling rig. It is mainly used for diamond drilling and cemented carbide drilling, which can meet the construction of diamond rope core drilling process.

Send Inquiry

Product Description

Key Features & Advantages

The power head of SD1000 core drill is designed by French technology. The structure is in the form of double motor and mechanical gear change. It has a large speed change range and large torque at the low-speed end, which can meet the requirements of different drilling methods.
The power head of SD1000 core drill has high transmission accuracy and stable operation, which can better reflect its advantages in deep hole drilling.
The feeding and lifting system of SD1000 core drilling rig adopts oil cylinder chain multiplication mechanism, which has long feeding distance and high operation efficiency.
SD1000 core drilling rig has fast lifting and feeding speed, saves a lot of auxiliary time and improves drilling efficiency.
The guide rail of the main tower of SD1000 core drilling rig adopts V-shaped structure, the connection between the power head and the main tower is rigid, and the high-speed rotation is stable. Full hydraulic core drill.
The power head of SD1000 core drill adopts the mode of automatic opening.

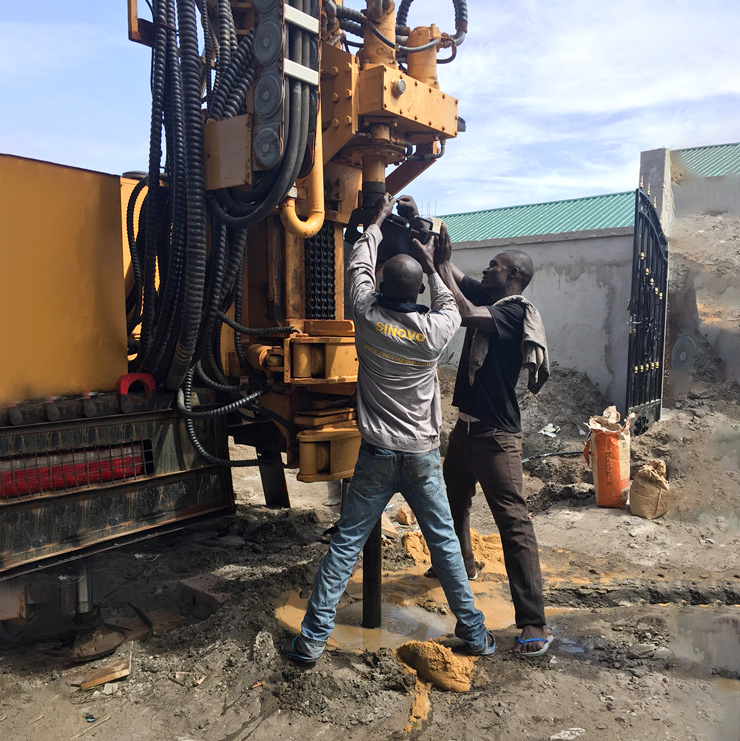

SD1000 core drill is equipped with gripper and shackle, which is convenient and fast to disassemble drill pipe and reduce labor intensity.
The hydraulic system of SD1000 core drilling rig is designed according to French technology. The rotary motor and main pump are plunger type, which is safe and reliable.

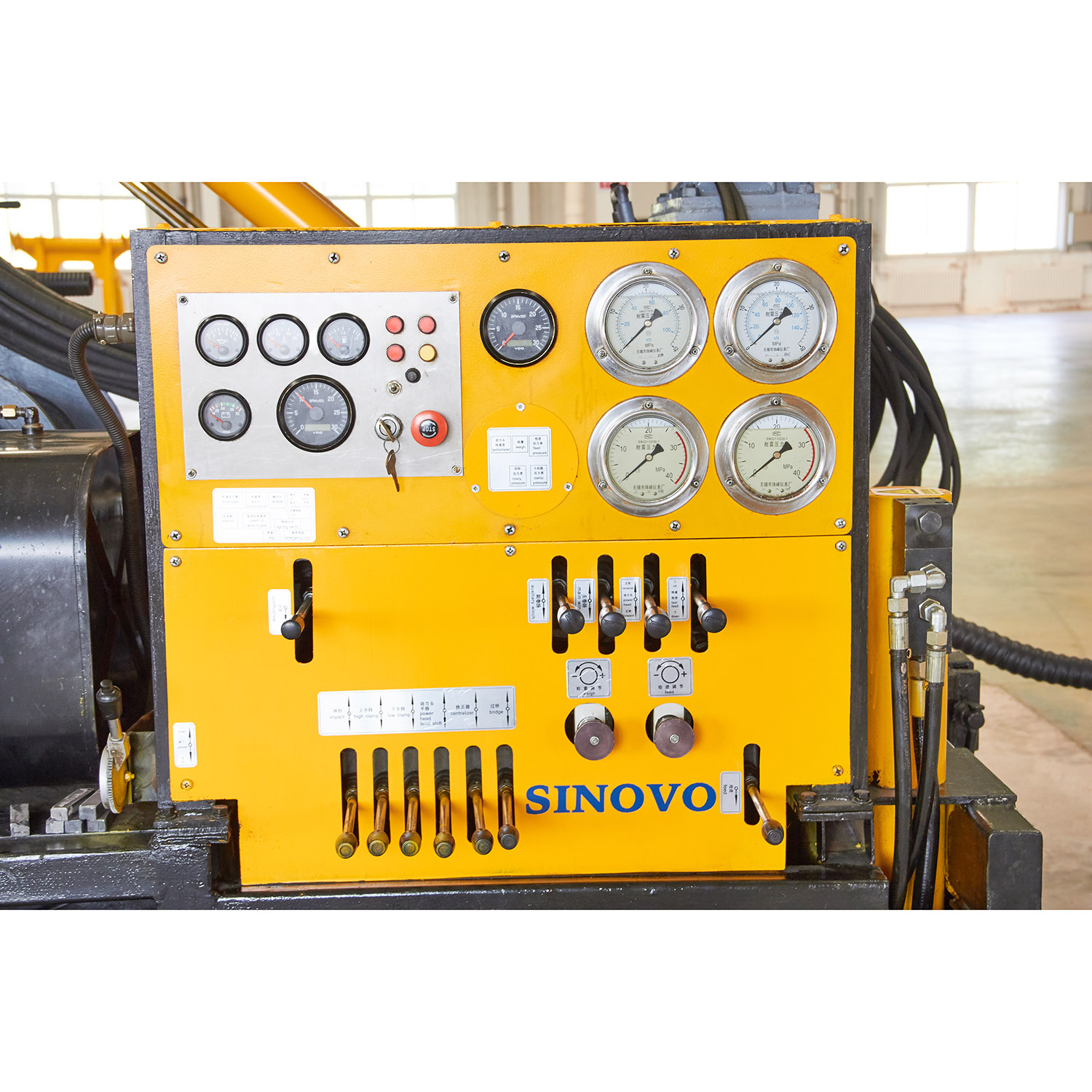

The mud pump of SD1000 core drilling rig is hydraulically controlled, and various operations of the drilling rig are centralized, which is convenient to deal with various downhole accidents.

Technical Specifications

Model	SD1000
Fundamental Parameters	Drilling capacity	Ф56mm(BQ)	1000m
		Ф71mm(NQ)	600m
		Ф89mm(HQ)	400m
		Ф114mm(PQ)	200m
	Drilling angle		60°-90°
	Overall dimension		660023803360mm
	Total weight		11000kg
Rotation unit	Rotation speed		145,203,290,407,470,658,940,1316rpm
	Max. torque		3070N.m
Hydraulic driving head feeding distance			4200mm
Hydraulic driving head feeding system	Type		Single hydraulic cylinder driving the chain
	Lifting force		70KN
	Feeding force		50KN
	Lifting speed		0-4m/min
	Rapid lifting speed		45m/min
	Feeding speed		0-6m/min
	Rapid feeding speed		64m/min
Mast displacement system	Distance		1000mm
	Lifting force		80KN
	Feeding force		54KN
Clamp machine system	Range		50-220mm
	Force		150KN
Unscrews machine system	Torque		12.5KN.m
Main winch	Lifting capacity (single wire)		50KN
	Lifting speed (single wire)		38m/min
	Rope diameter		16mm
	Rope length		40m
Secondary winch (used for taking core)	Lifting capacity (single wire)		12.5KN
	Lifting speed (single wire)		205m/min
	Rope diameter		5mm
	Rope length		600m

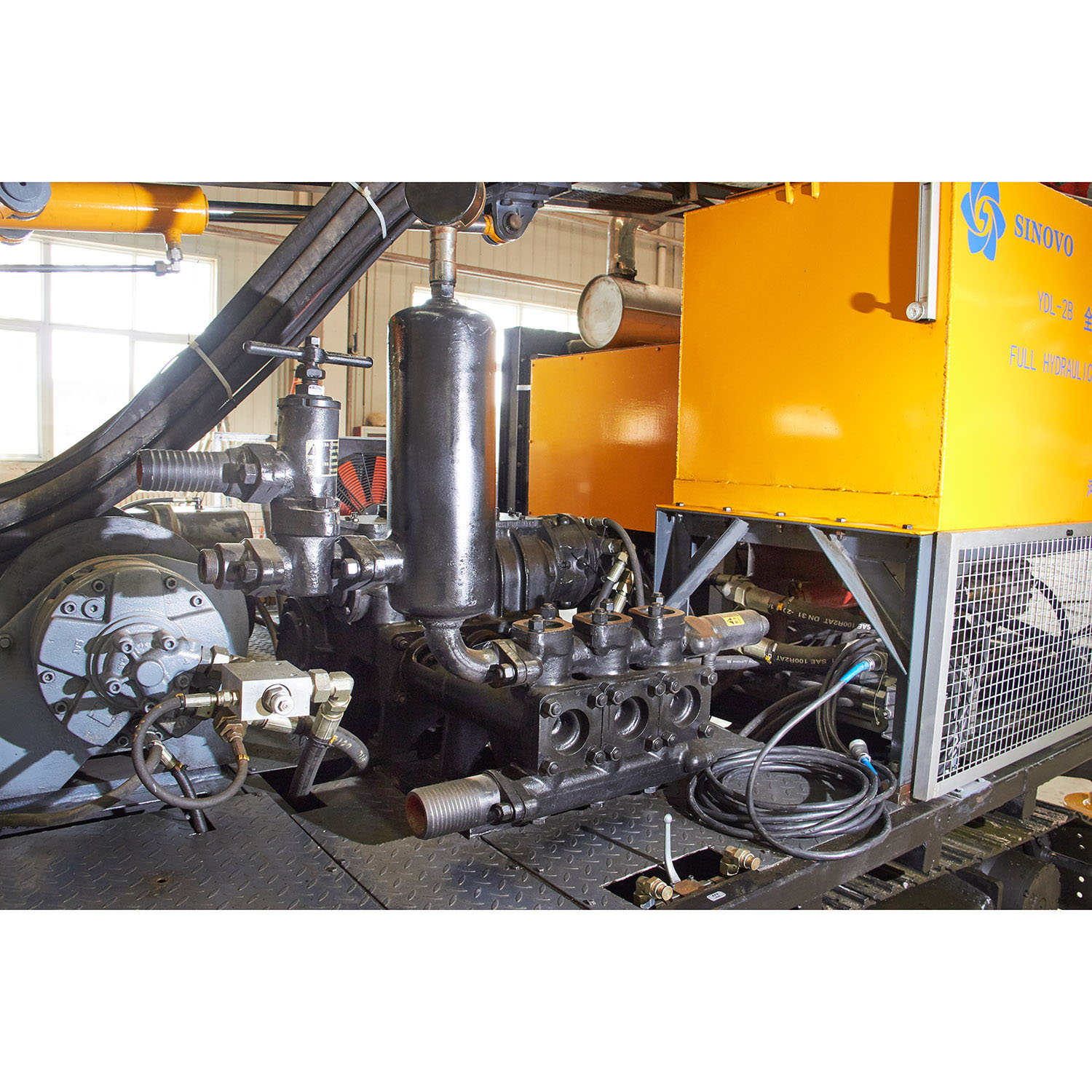

Mud pump (Three cylinder reciprocating piston style pump)	Type		BW-250
	Volume		250,145,100,69L/min
	Pressure		2.5, 4.5, 6.0, 9.0MPa
Power Unit (Diesel engine)	Model		6BTA5.9-C180
	Power/speed		132KW/2200rpm

Product Gallery

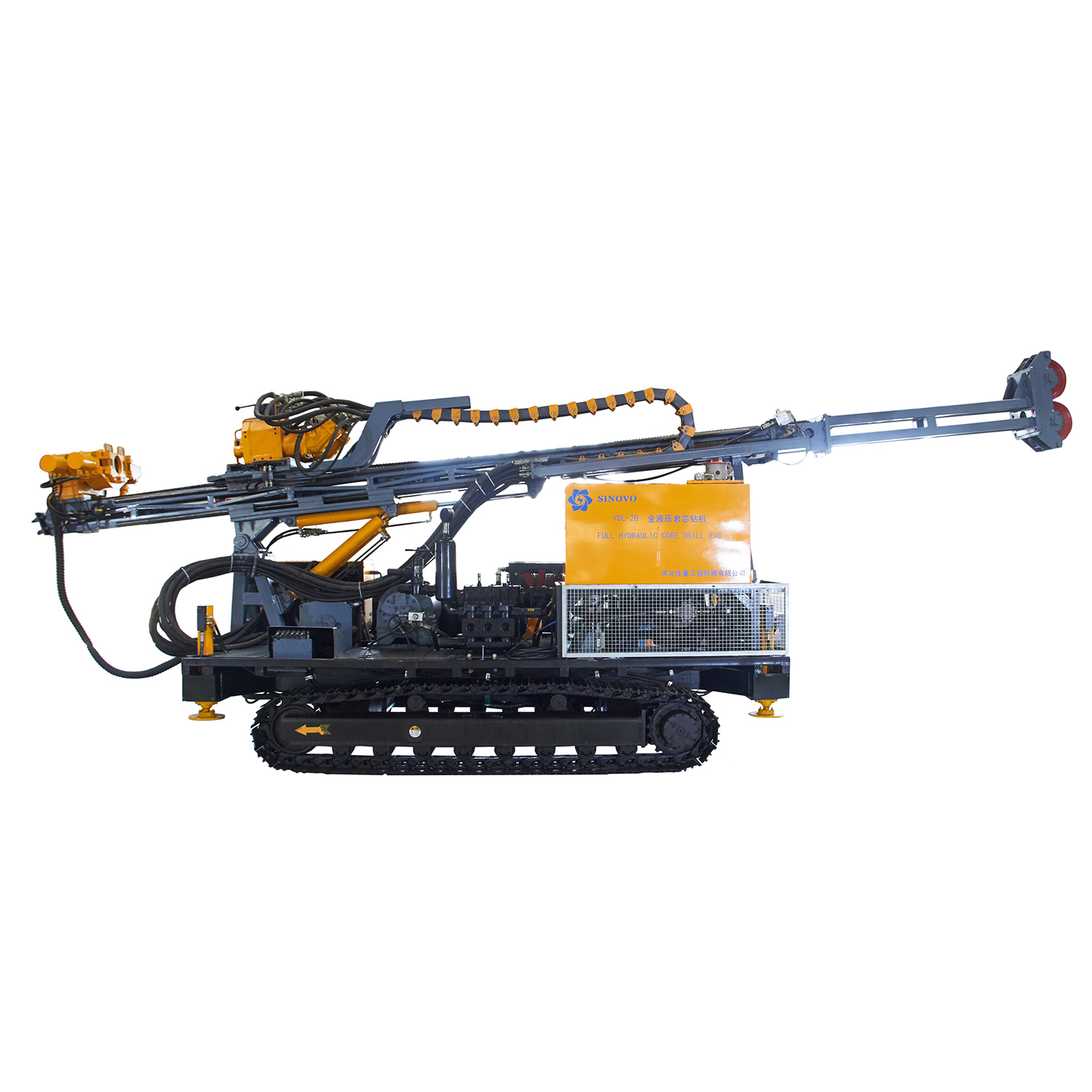

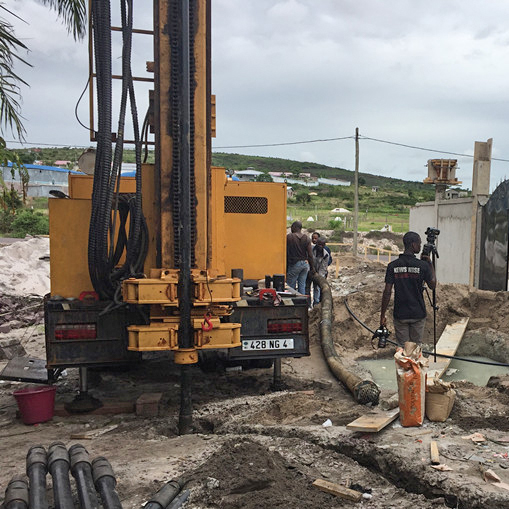

SD1000 full hydraulic crawler core drilling rig layout

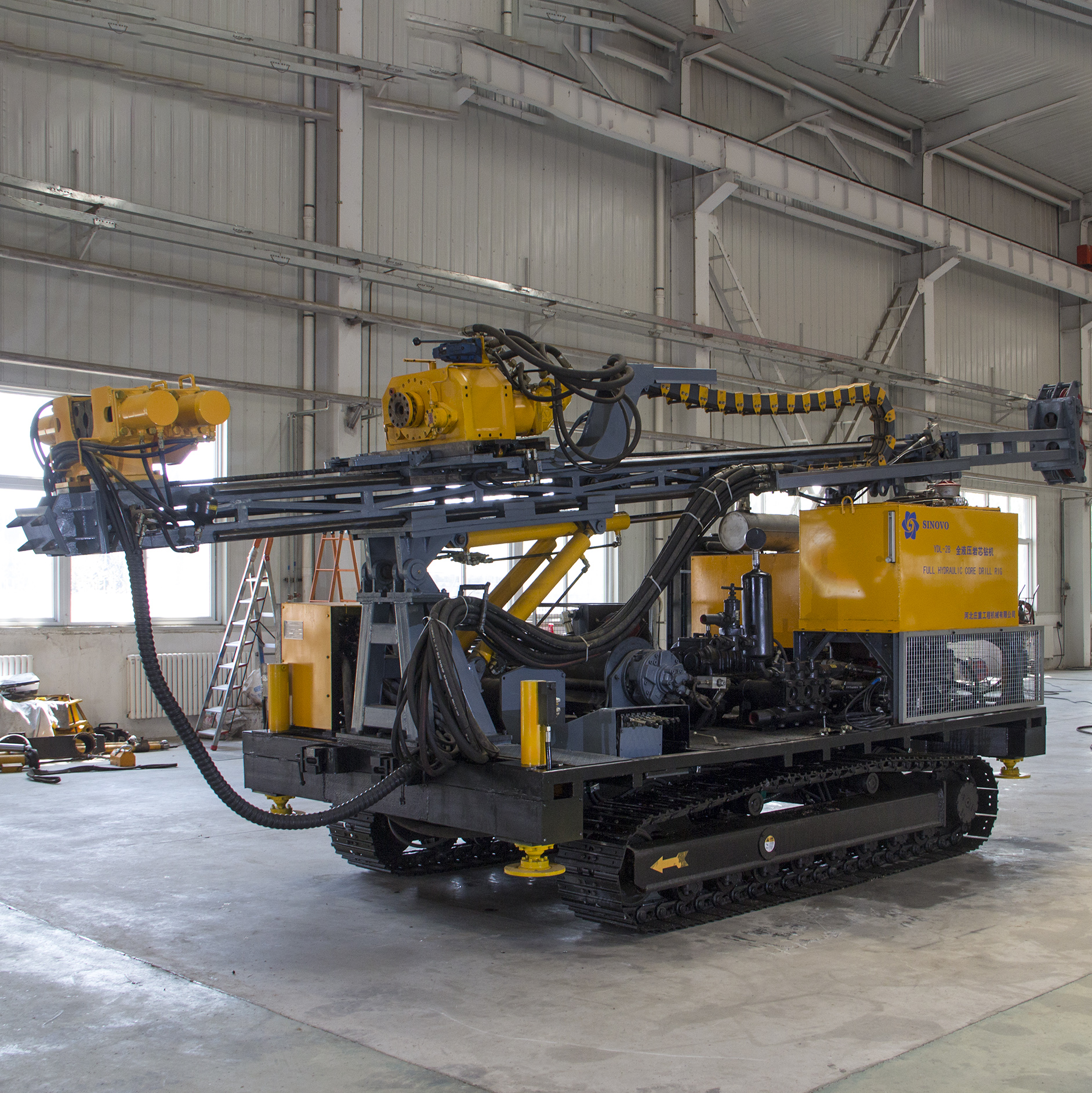

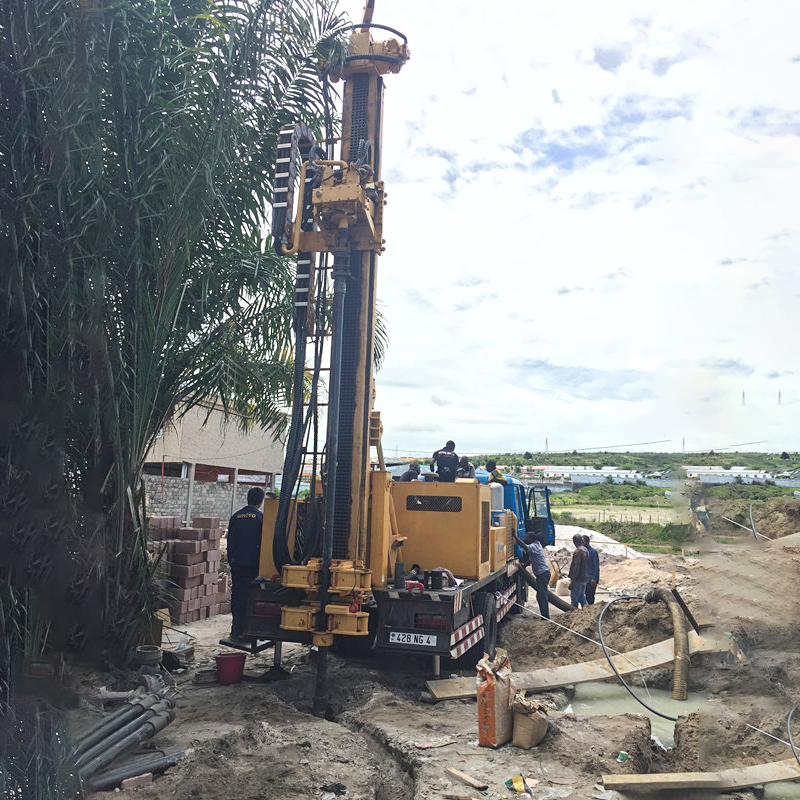

SD1000 crawler core drilling rig side view
