| Model Details | |

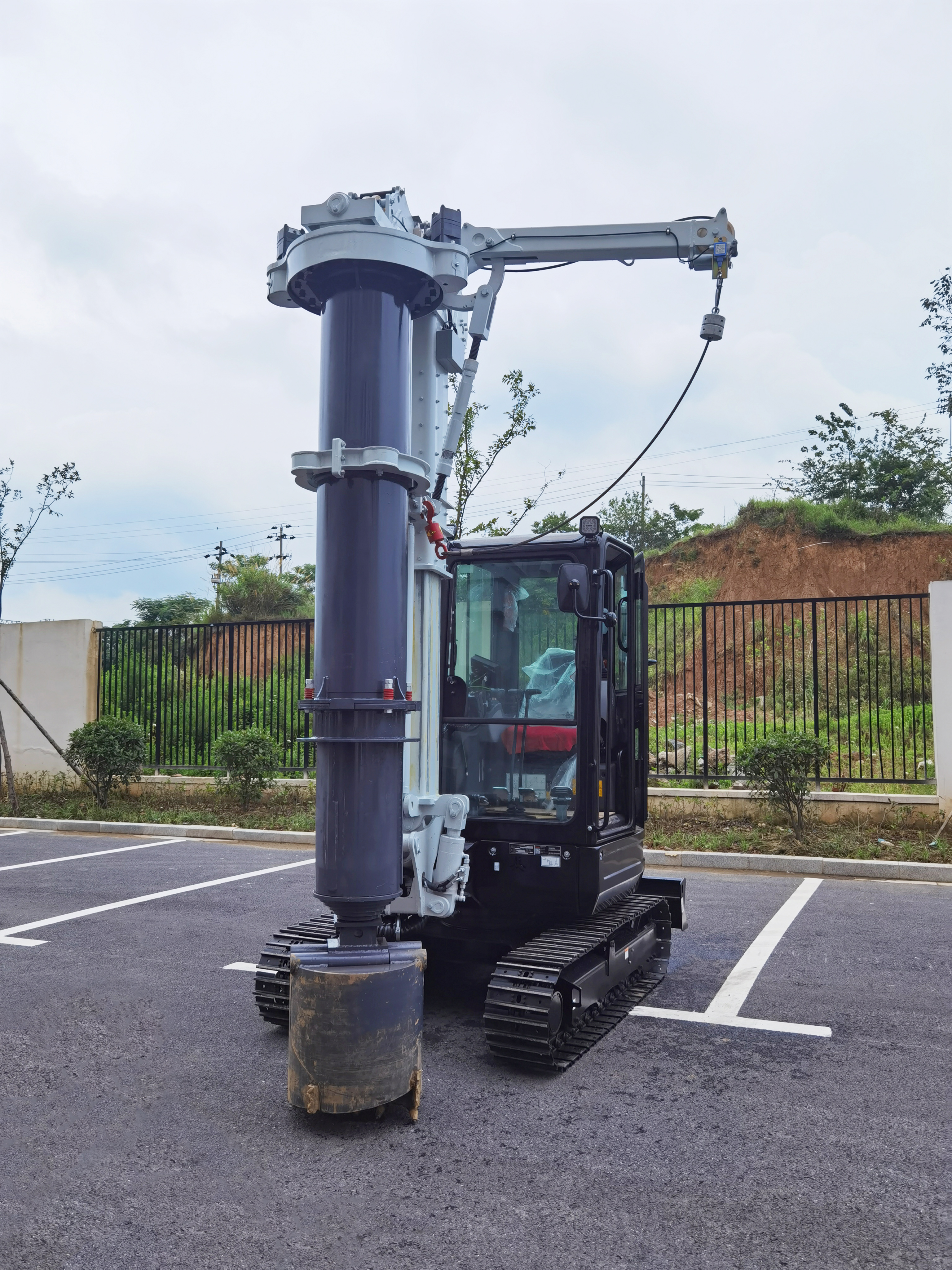

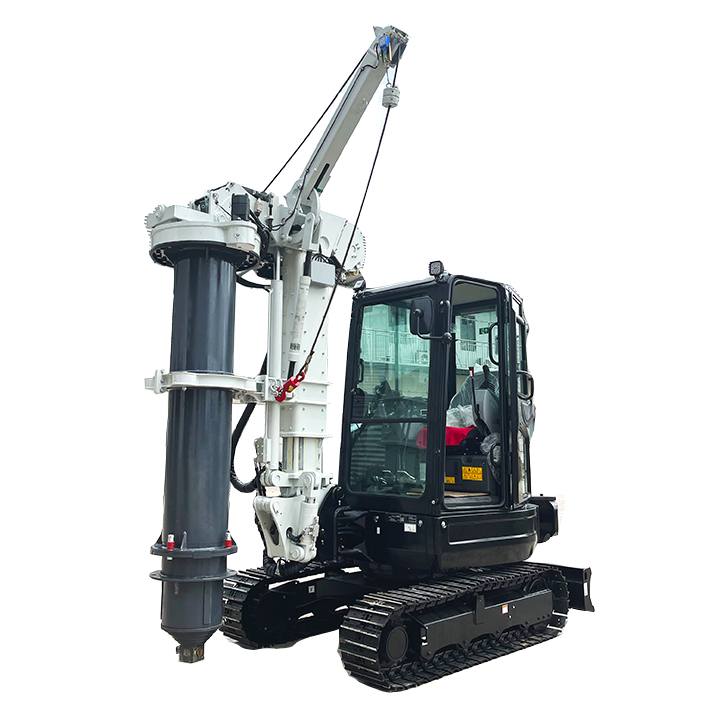

| Model | TR10 |
| Kelly Bar size | - |
| Max diameter of drilling hole | 800mm |
| Maximum depth | 12m |
| Min diameter of drilling hole | 400mm |
| Diameter | Ø377mm |
| Chassis Spec | |
| Chassis type | Sany (base weight 3.5T) |
| Engine | Yanmar 3TNV88 |
| Rated power / rpm | 20.4KW / @2000rpm |
| Fuel tank capacity | 50L |
| Inside of Cab noise level | 69(dB) |
| Noise level | 98(dB) |
| Hydraulic System | |
| Main pump flow | 88L/min |
| Hydraulic system working pressure | 280bar |
| Max pressure of hydraulic system | 315bar |
| Hydraulic tank capacity | 40L |

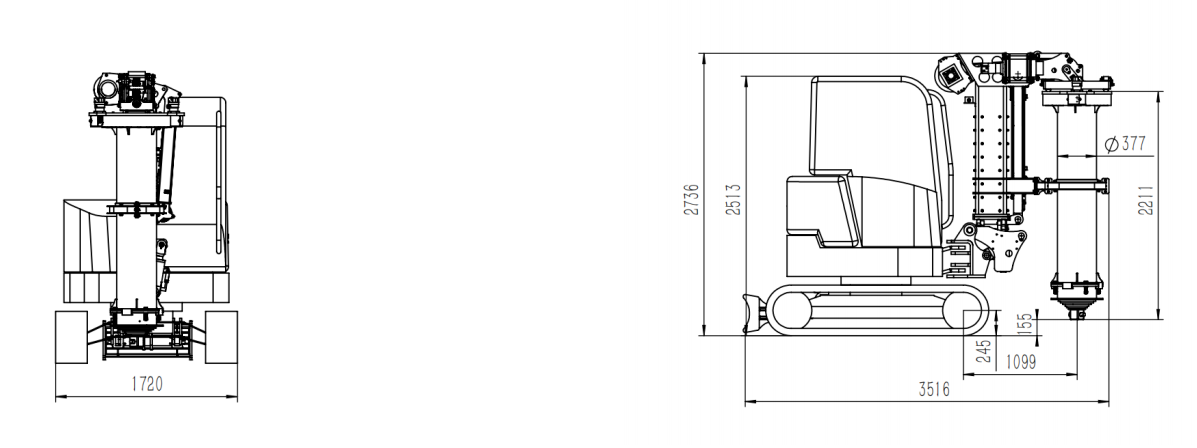

| Whole Machine Dimension & weight | |
| Whole | 1680mm |
| Length of machine | 3516mm |

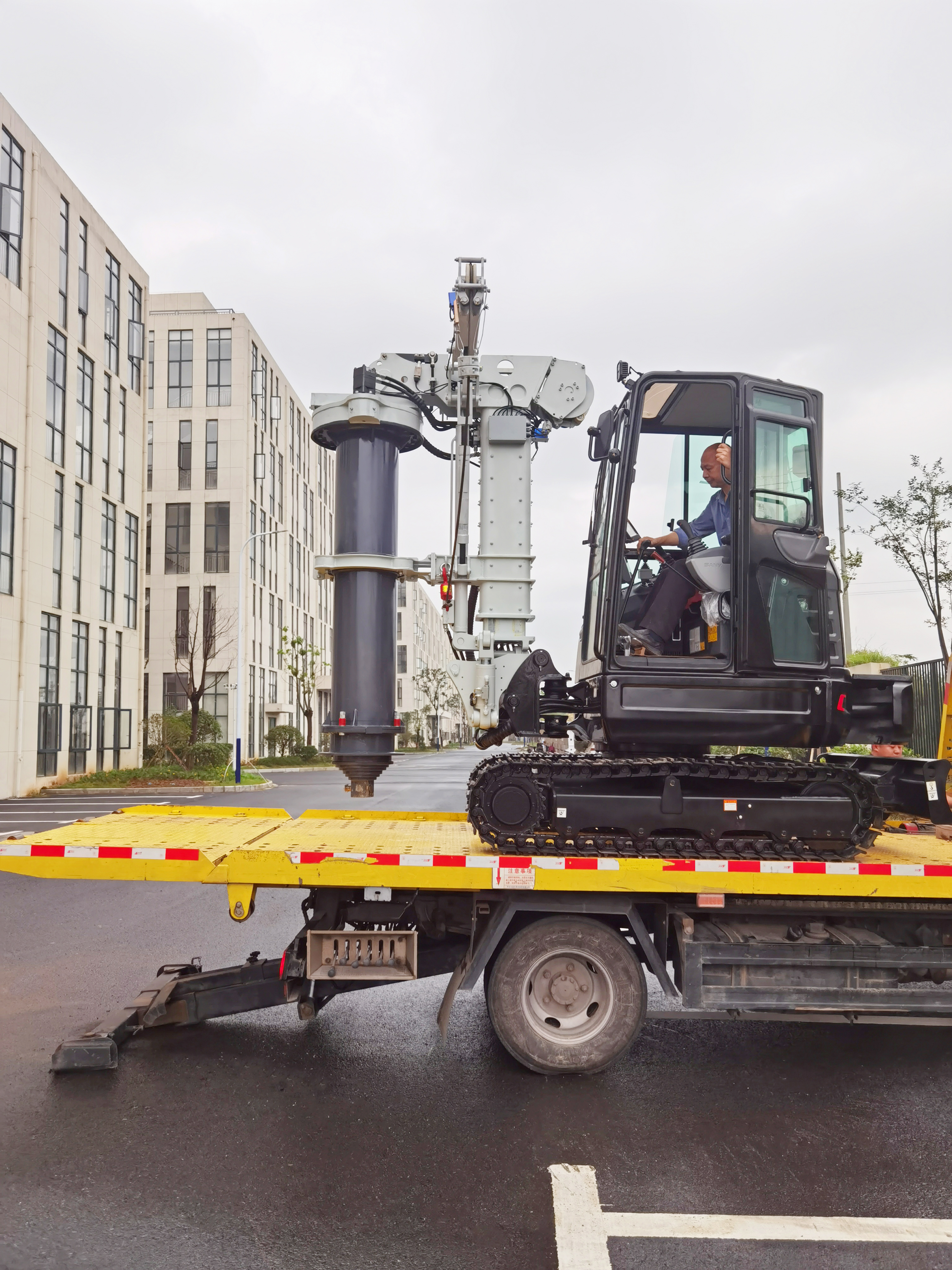

| Transport height | 2736mm |
| Track length | 2155mm |
| Track plate width | 300mm |
| Total weight (excluding bucket) | 6T |
| Travel speed | 4.4Km/h |
| Traction | 36.8kN |
| Rotary Head | |
| Rotary head | Double motors |
| Maximum torque | 10kNm |
| Maximum rotation speed | 26 rpm |
| Spinoff speed | 48rpm |
| Main Winch | |
| Pull force of 1st layer | 20kN |
| Maximum lifting and lowering speed | 40m/min |
| Wire rope diameter | 12mm |
| Auxiliary Winch | |
| Pull force of 1st layer | 10kN |
| Maximum lifting and lowering speed | 40m/min |
| Wire rope diameter | 12mm |
| Deflection Cylinder & Mast | |
| Deflection cylinder | Deflection cylinder |
| Tension | 60kN |
| Thrust | 50kN |
| Stroke | Right deviation 550mm Left deviation 800mm |
| Mast expansion | Mast telescopic cylinder two sections |
| Feeding force | 30KN |
| Pull up force | 35KN |
| Swing Angle of mast | Front 4°Back 2° Left and right Angle 5° |
| Stroke | 1100mm |

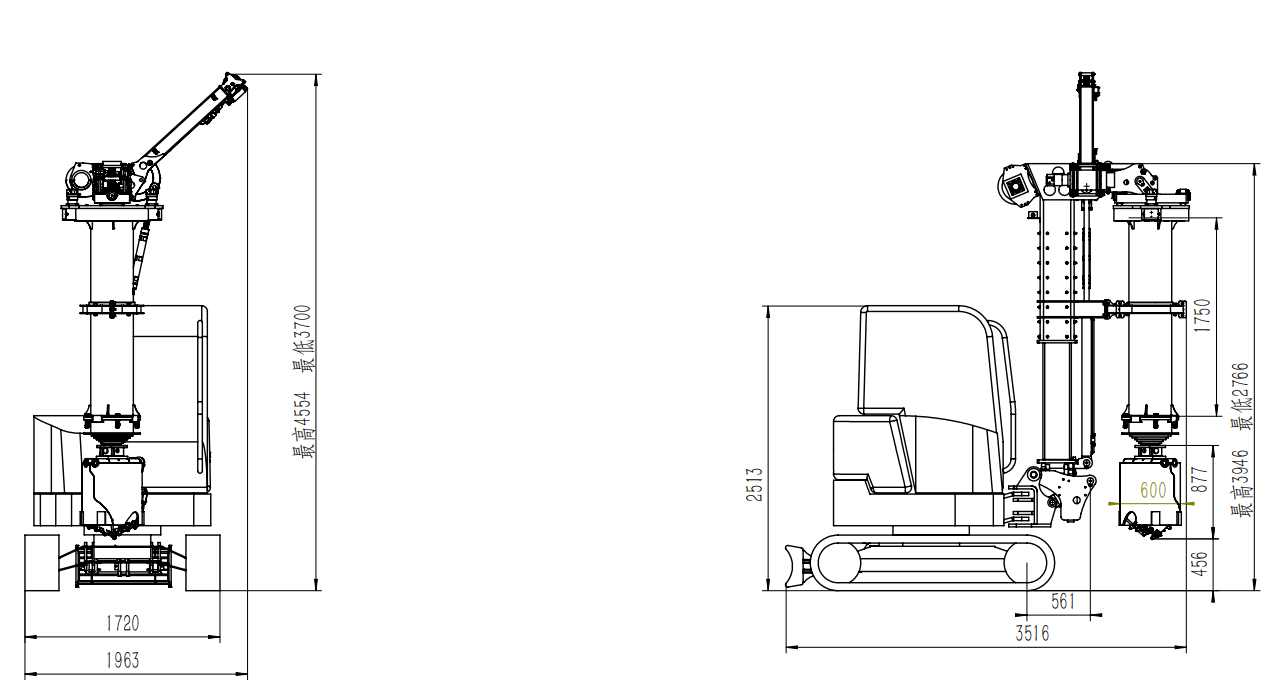

| Ultra-low headroom | Ultra-low headroom |
| Maximum working height | 3950mm |
| Minimum working height | 3500mm |
