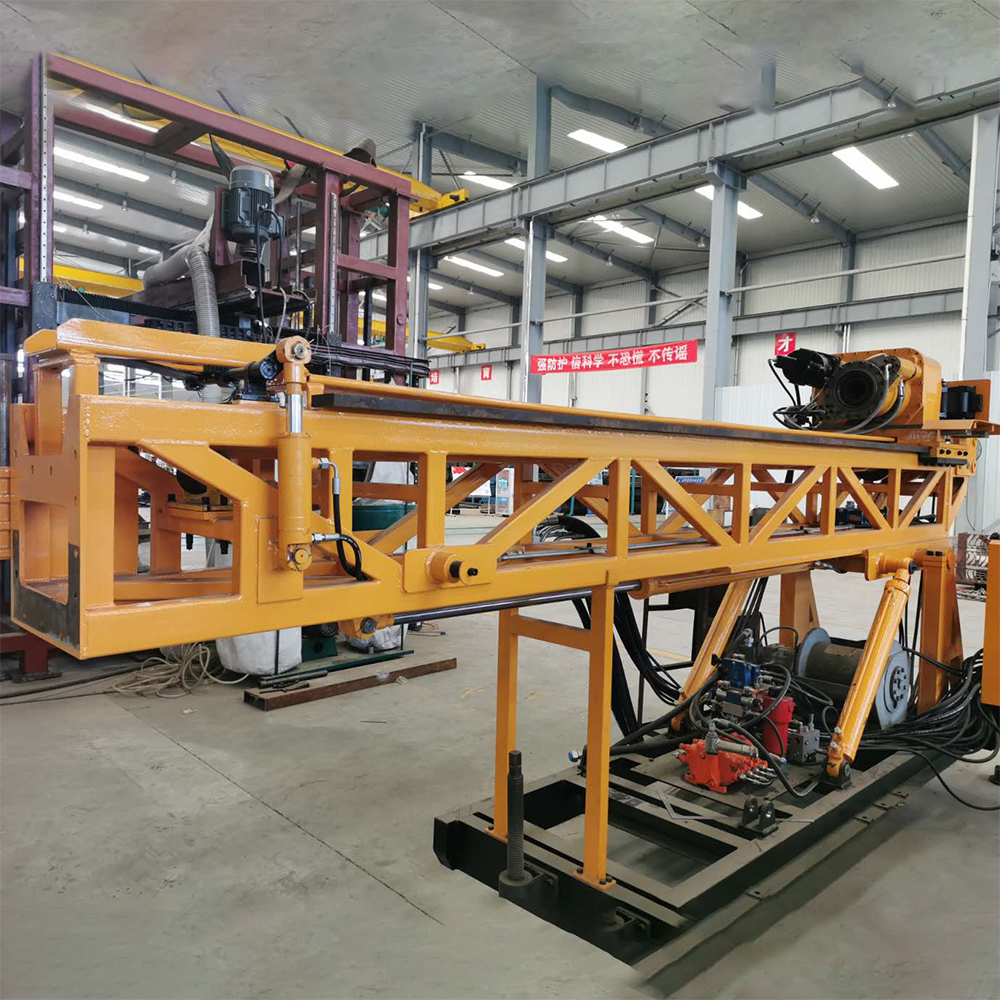

The SHY-5C full hydraulic core drilling rig adopts modular design, which designs the power and hydraulic station, console, power head, drill tower and chassis into relatively independent units, which is convenient for disassembly and minimizes the transportation weight of a single piece. It is especially suitable for site relocation under complex road conditions such as plateau and mountainous areas.The SHY-5C full hydraulic core drilling rig is suitable for diamond rope coring, percussive rotary drilling, directional drilling, reverse circulation continuous coring and other drilling techniques; It can also be used for water well drilling, anchor drilling and engineering geological drilling. It is a new type of full hydraulic power head core drill.

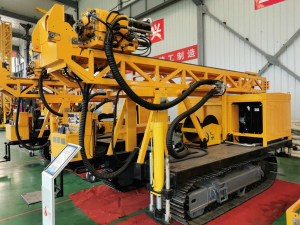

The SHY-5C full hydraulic core drilling rig adopts modular design, which designs the power and hydraulic station, console, power head, drill tower and chassis into relatively independent units, which is convenient for disassembly and minimizes the transportation weight of a single piece. It is especially suitable for site relocation under complex road conditions such as plateau and mountainous areas.
Modular design, can be disassembled for transportation, and the maximum weight of a single piece is 500kg / 760kg, which is convenient for manual handling.

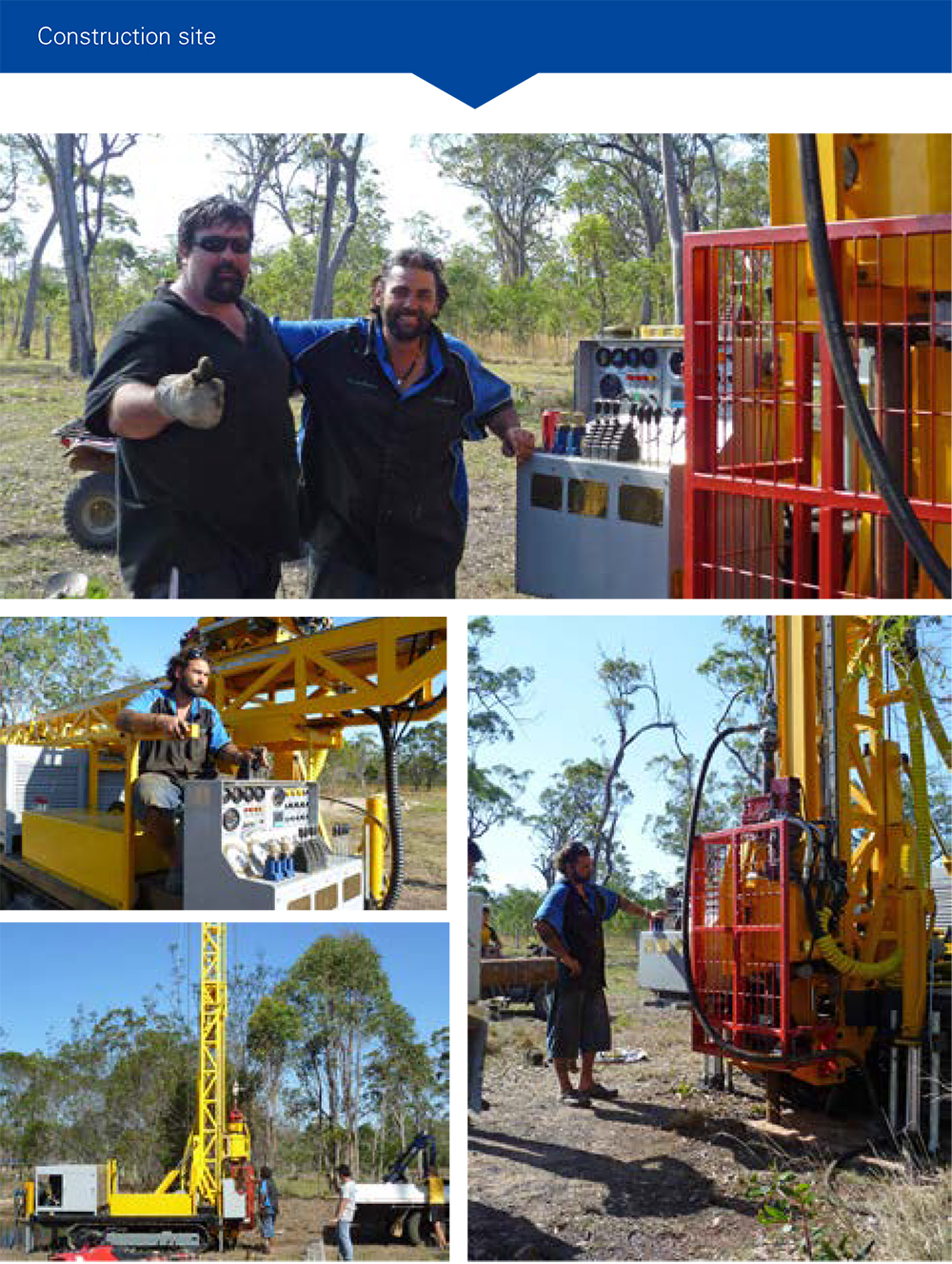

The SHY-5C full hydraulic core drilling rig can match the two power modules of diesel engine and motor. Even on the construction site, the two power modules can be exchanged quickly and easily.
Full hydraulic transmission realizes the integration of mechanical, electrical and hydraulic, with stable transmission, light noise, centralized operation, convenience, labor saving, safety and reliability.

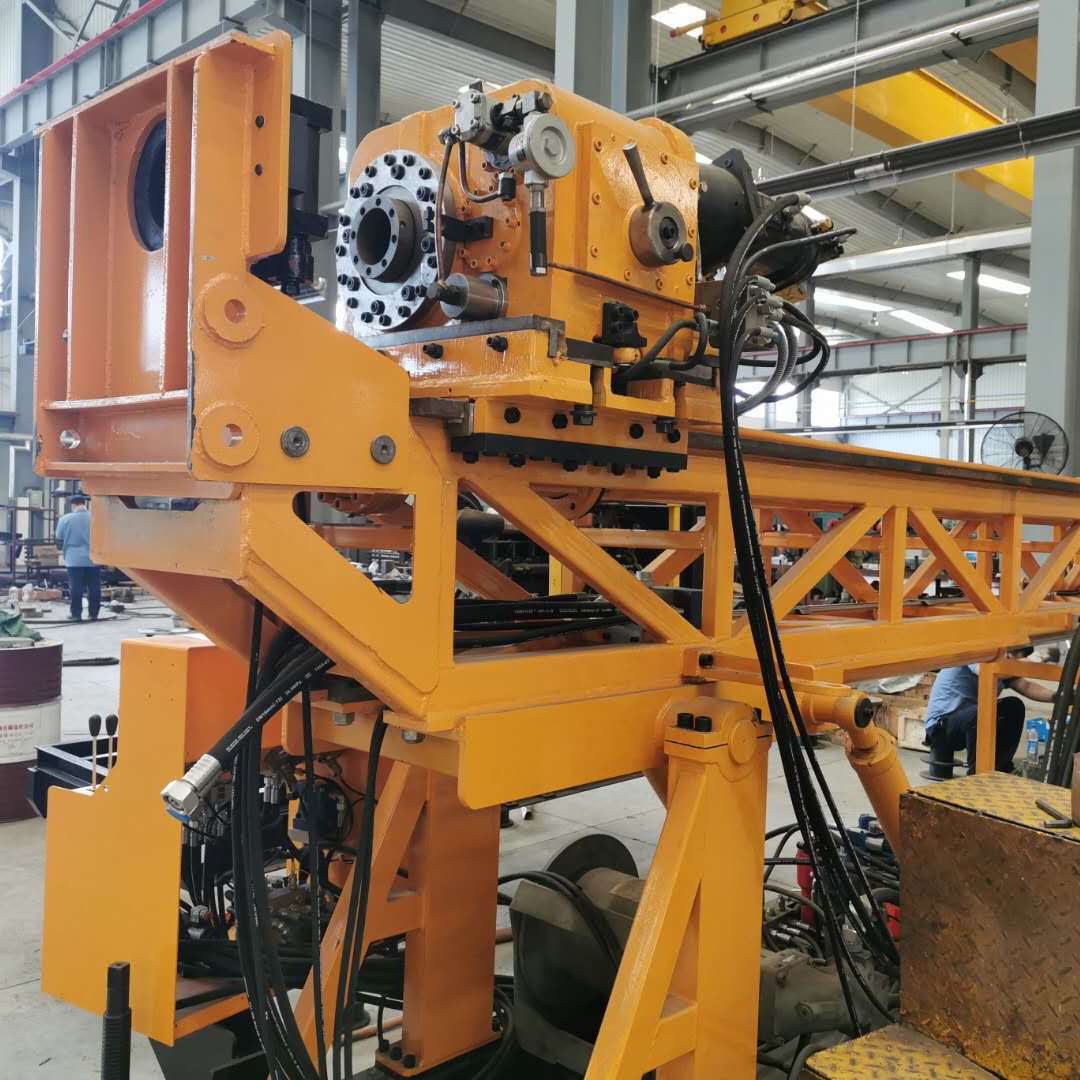

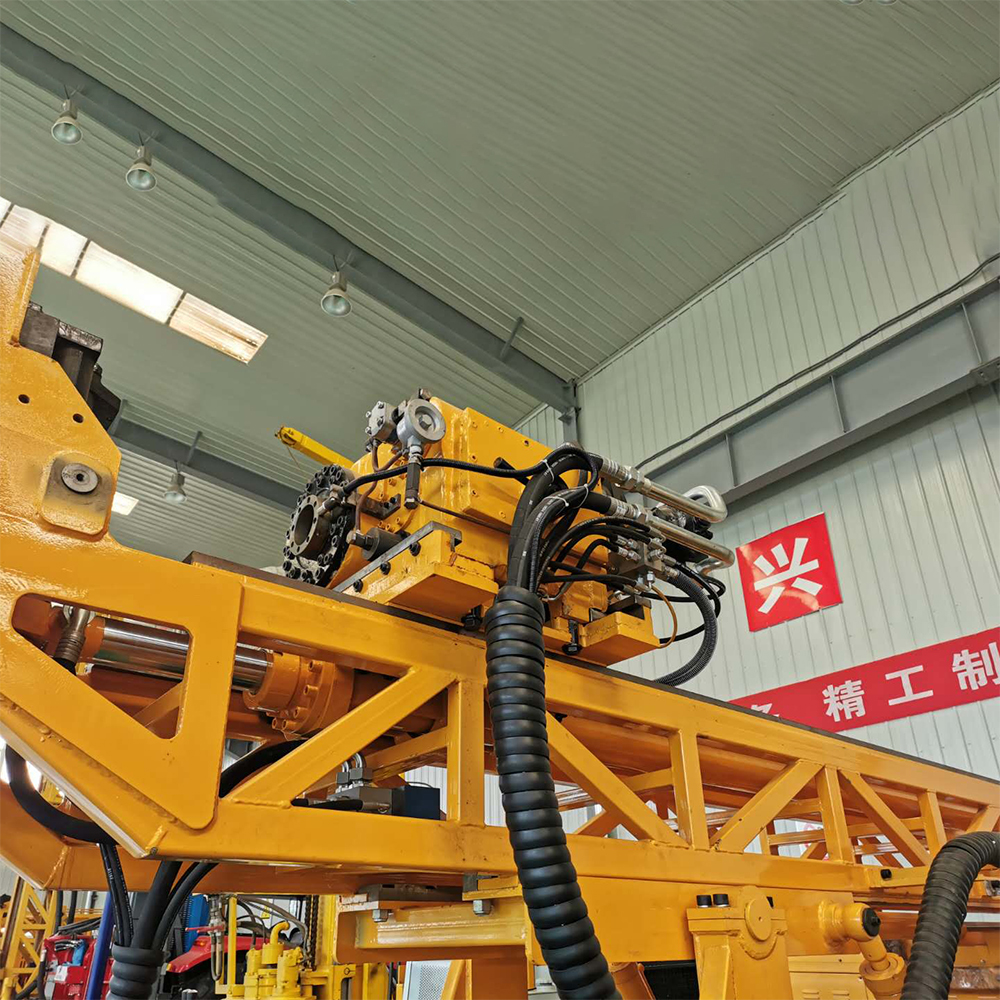

The power head gearbox has stepless speed regulation, wide speed range and 2-gear / 3-gear torque output, which can be applicable to the requirements of various drilling processes for speed and torque in different drilling diameters. The power head can be shifted laterally to give way to the orifice, which is convenient and labor-saving.
Equipped with hydraulic chuck and hydraulic gripper, the drill pipe can be clamped quickly and reliably with good alignment. The slip can be replaced for clamping Φ 55.5, Φ 71, Φ 89 various specifications of rope coring drill pipe, large drift diameter and easy to use.
The drilling distance of SHY-5C full hydraulic core drilling rig is up to 3.5m, which can effectively reduce the auxiliary working time, improve the drilling efficiency and reduce the core blockage caused by stopping and reversing the rod.
It is equipped with imported winch, stepless speed regulation, and the maximum single rope lifting force is 6.3t/13.1t.
Stepless speed regulation rope coring hydraulic winch with wide speed change range and flexible operation; Mast derrick can lift drilling tools 3-6M at a time, which is safe and labor-saving.
It is equipped with all the essential gauges, including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque gauge, Water pressure gauge.
SHY-5C Core Drilling Rig Applications
Diamond core drilling
Directional drilling
Reverse circulation continuous coring
Percussion rotary
Geo-tech
Water bores
Anchorage
The SHY-5C full hydraulic core drilling rig is suitable for diamond rope coring, percussive rotary drilling, directional drilling, reverse circulation continuous coring and other drilling techniques; It can also be used for water well drilling, anchor drilling and engineering geological drilling. It is a new type of full hydraulic power head core drill.
Frequently Asked Questions
QWhat is the drilling capacity of the SHY-5C core drilling rig?
The drilling capacity of the SHY-5C depends on the drill rod size: it can reach up to 1500 meters using BQ, 1300 meters with NQ, 1000 meters with HQ, and 680 meters with PQ.
QHow does the modular design benefit transportation?
The SHY-5C utilizes a modular design which separates the power and hydraulic station, console, power head, drill tower, and chassis into independent units. The maximum weight of a single disassembled piece is only 500kg / 760kg, making manual handling and relocation convenient in complex areas like mountains and plateaus.
QCan the power source of the SHY-5C be switched?
Yes. The SHY-5C full hydraulic core drilling rig supports both diesel engine (145kw) and motor power modules. These modules can be interchanged quickly and easily directly on the construction site.
QWhat are the key rotator specifications for this model?
The rotator features a rotation speed range of 0-1100 rpm, a maximum torque of 4600Nm, a maximum lifting capacity of 15000kg, and a maximum feeding power of 7500kg.
QWhat drilling applications is the SHY-5C best suited for?
The rig is highly versatile and suited for diamond core drilling, directional drilling, reverse circulation continuous coring, percussion rotary, geotechnical projects, water bores, and anchorage tasks.
QWhat visual indicators and gauges are equipped on the rig?
The console is equipped with essential diagnostic gauges, including rotation speed, feed pressure, ammeter, voltmeter, main pump/torque gauge, and water pressure gauge to ensure precise operation.
