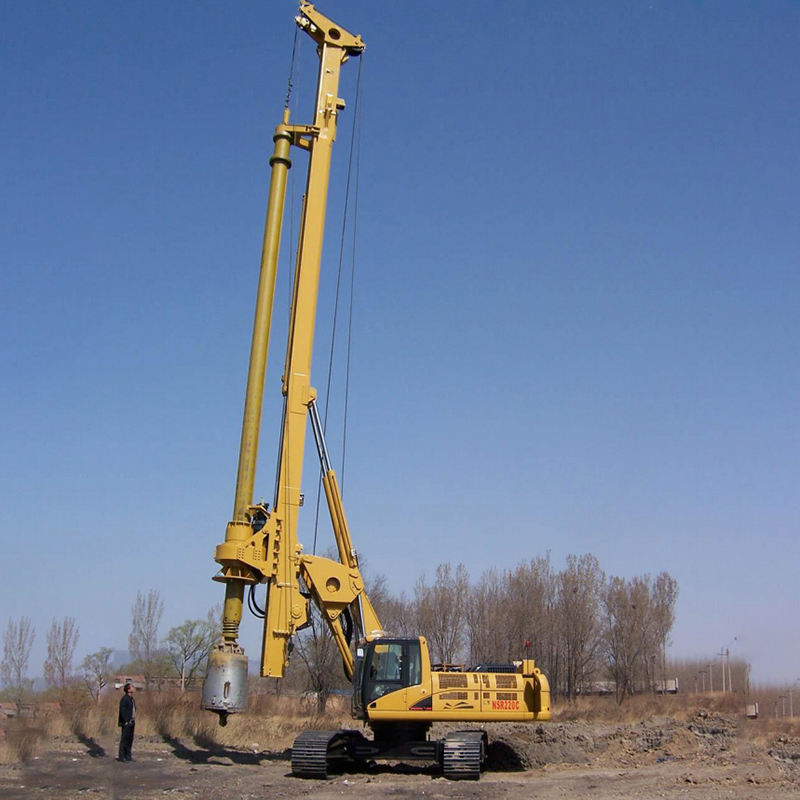

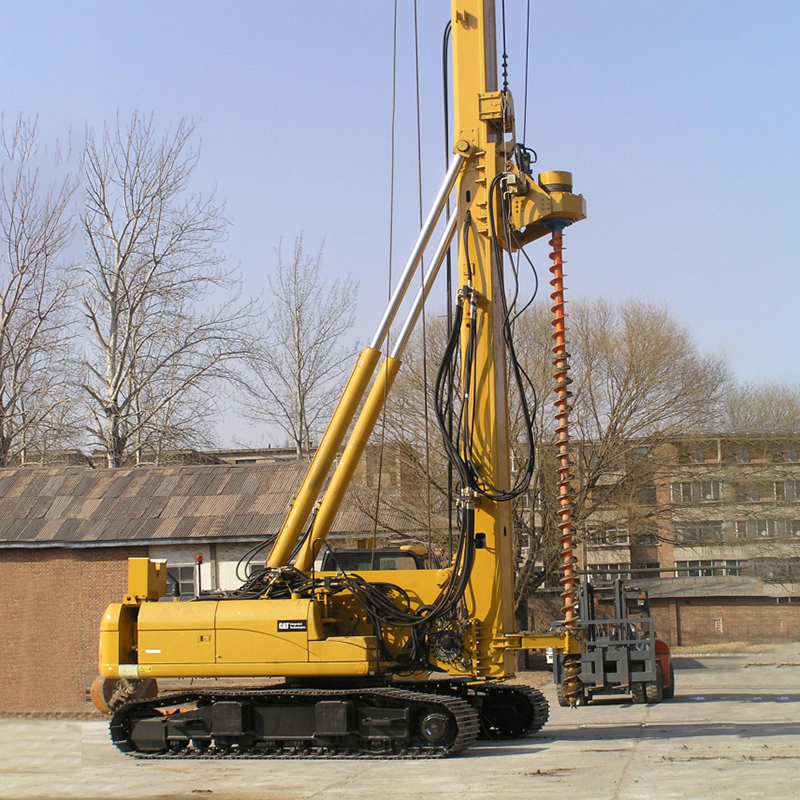

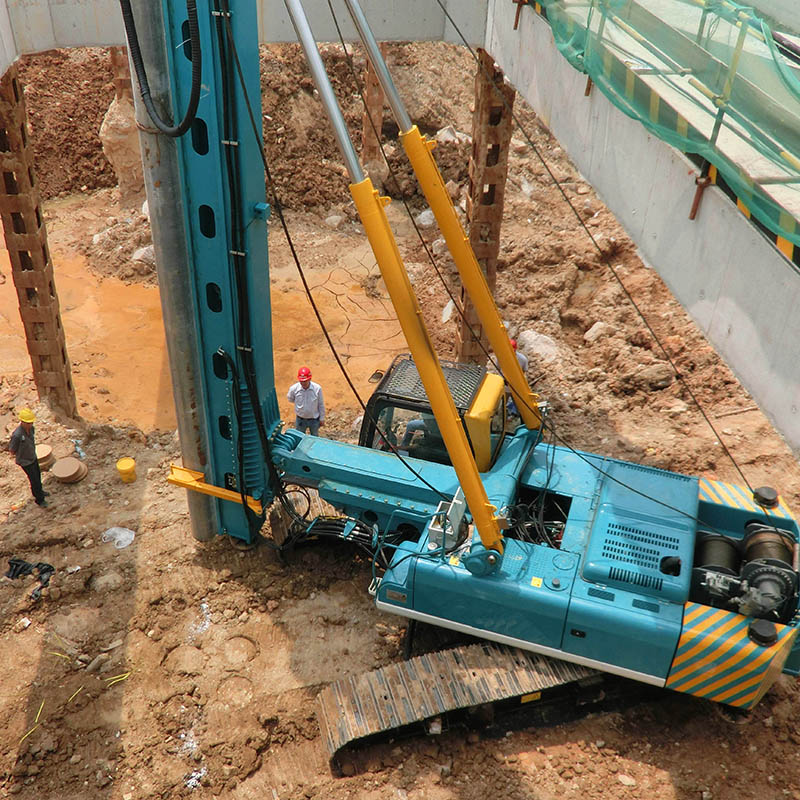

Best TH-60 Hydraulic piling rig Factory, Exporter

As a reliable pilling rig manufacturer in China, SINOVO International Company mainly produces hydraulic pilling rigs, which can be used together with hydraulic pile hammer, multi-purpose pile hammer, rotary pilling rig, and CFA pile drilling equipment. Our TH-60 hydraulic pilling rig is a newly-designed construction machine that is widely used in the construction of highways, bridges, and building etc. It is based on Caterpillar undercarriage and consist of hydraulic impact hammer which includes hammer, hydraulic hoses, power pack, bell driving head.

Send Inquiry

Product Description

As a reliable piling rig manufacturer in China, we mainly produce hydraulic piling rigs, which can be used together with hydraulic pile hammers, multi-purpose pile hammers, rotary piling rigs, and CFA pile drilling equipment.

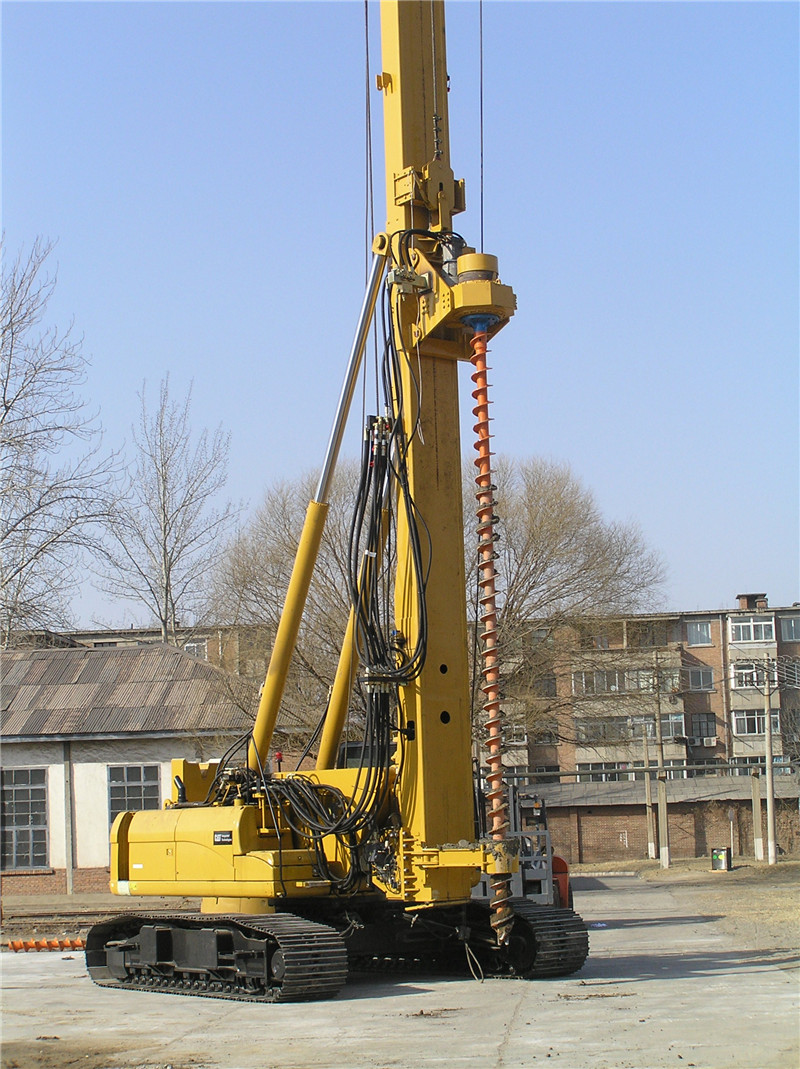

TH-60 Hydraulic Piling Rig

Our TH-60 hydraulic piling rig is a newly-designed construction machine that is widely used in the construction of highways, bridges, and buildings, etc. It is based on a Caterpillar undercarriage and consists of a hydraulic impact hammer which includes the hammer, hydraulic hoses, power pack, and bell driving head.

This hydraulic piling rig is a reliable, versatile, and durable machine. Its max pile hammer is 300mm and the max pile depth is 20m per impacting, which allows our piling rig to suit the requirements of many foundation engineering projects.

Modular Component Applications

As a result of the modular design of their components, our hydraulic piling rigs can be used in a variety of applications when fitted with the following devices:

Different types of mast, each with different extension pieces and components.

Different models of rotary heads with optional hydraulic rotary drilling pile hammer, auger.

Service winch integration.

Key Performance Highlights

High Automation

Advanced self-regulation & simplified control workflows.

Digital Surveillance

Digitalization surveillance & integrated control system.

World Class

World's leading performance built for tough conditions.

Multifunction

Compatible with Tube Pile, Square Pile, In Situ Pile, Steel Tube, H-pile, Steel Board, CFA & Bore pile.

Technical Specifications

Parameter / Construction Method	TH-60 Specification
Construction method of the pile drummer	CFA construction method
The weight of hammer core	5000kg
The journey of hammer body (adjustable)	200-1200mm
Max beat power	60KJ
Beat frequency (adjustable)	30-80 times/minute
Max pile driving length	16m
Max pile driving	400*400mm
Max drilling depth	30m
Drilling diameter	400mm
Max drilling torque	60KN.m
Drilling speed	6-23rpm
Max pull-down force	170kn
Undercarriage	CAT/ self undercarriage
Engine model	C7 / Cummins
Rated power	186KW
Main winch pull force (the first layer)	170kn
Auxiliary winch pull force (the first layer)	110kn
Chassis length	4940mm
Track shoe width	800mm
Undercarriage Type	CAT325D
Total weight	39T

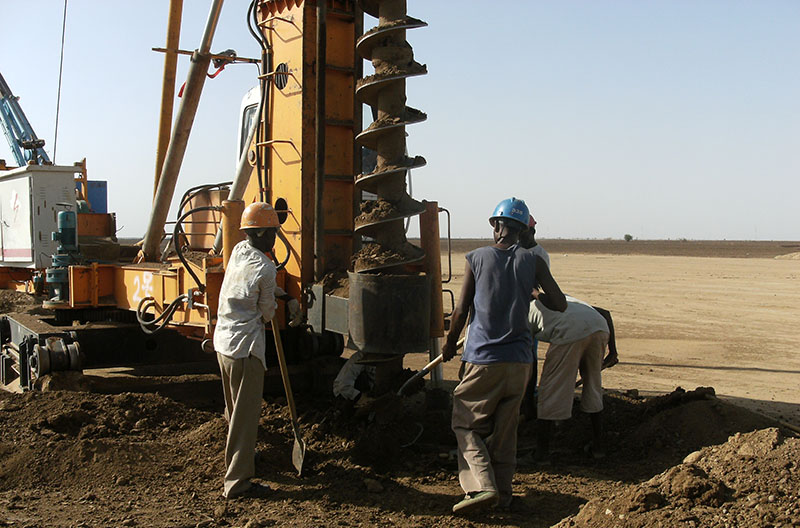

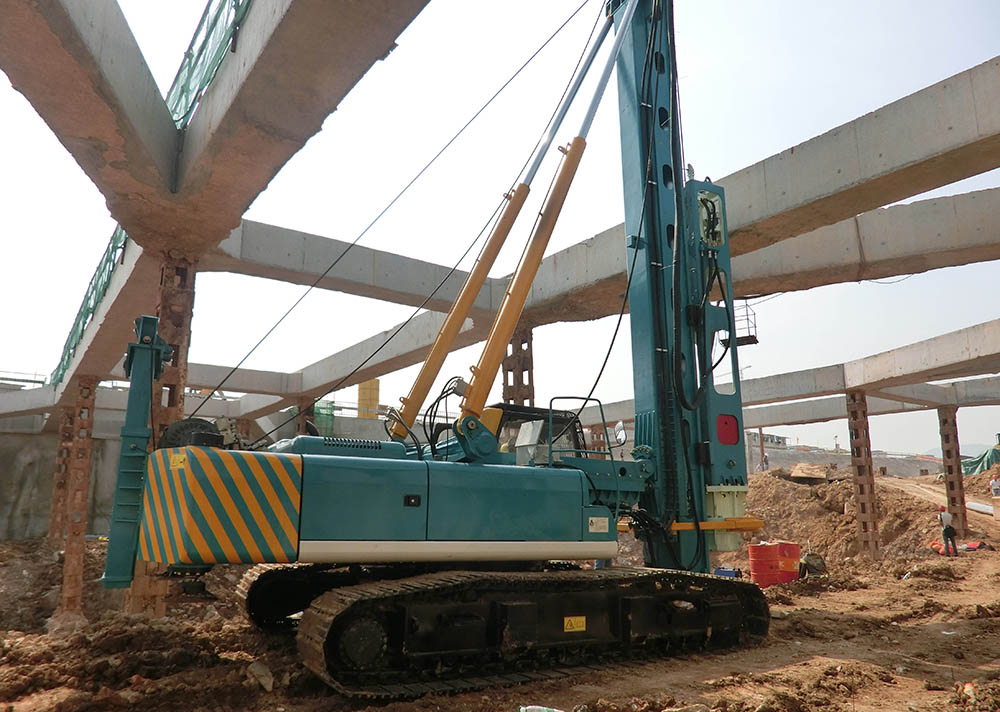

Equipment Details

Frequently Asked Questions

What construction projects is the TH-60 piling rig suitable for?

The TH-60 hydraulic piling rig is highly versatile and widely used in the construction of highways, bridges, and building foundations.

What type of undercarriage does the TH-60 use?

The rig utilizes a Caterpillar CAT325D undercarriage, offering robust stability, durability, and reliable mobility across challenging terrains.

What is the maximum drilling depth and diameter for the TH-60?

It supports a maximum drilling depth of 30 meters and a standard drilling diameter of 400mm when configured for CFA construction operations.

Which types of piles can be driven by this machine?

Due to its versatile system, it is compatible with Tube Piles, Square Piles, In Situ Steel Tube Piles, H-piles, Steel Boards, CFA piles, and Bore piles.

How does the modular design benefit operation options?

The modular design of components allows users to fit different mast lengths, extensions, rotary head models with optional hydraulic rotary hammers/augers, and service winches for various tasks.
