Best SNR300 Water Well Drilling Rig Manufacturers, Factory

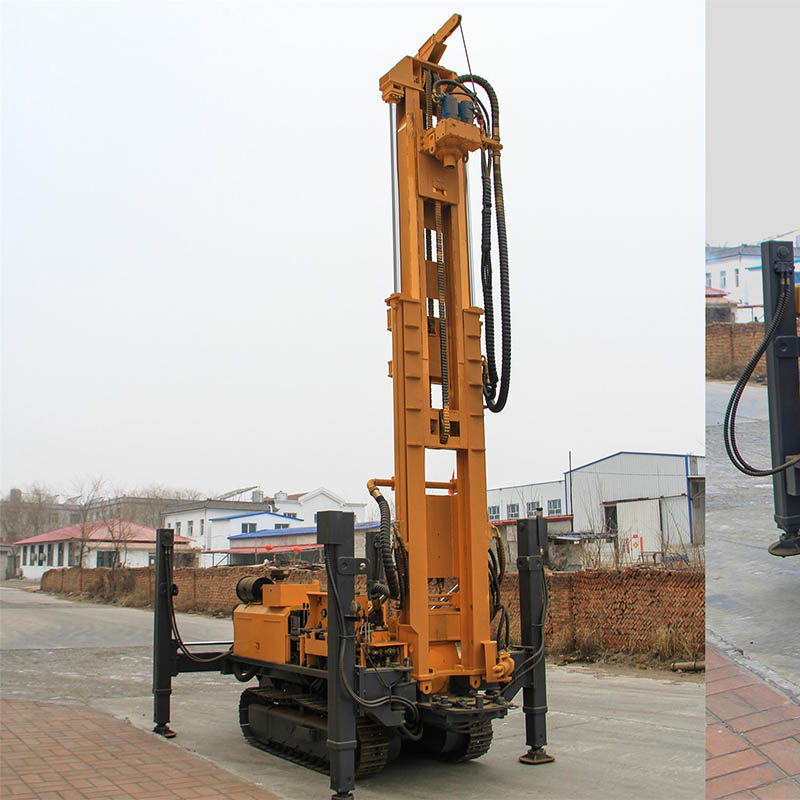

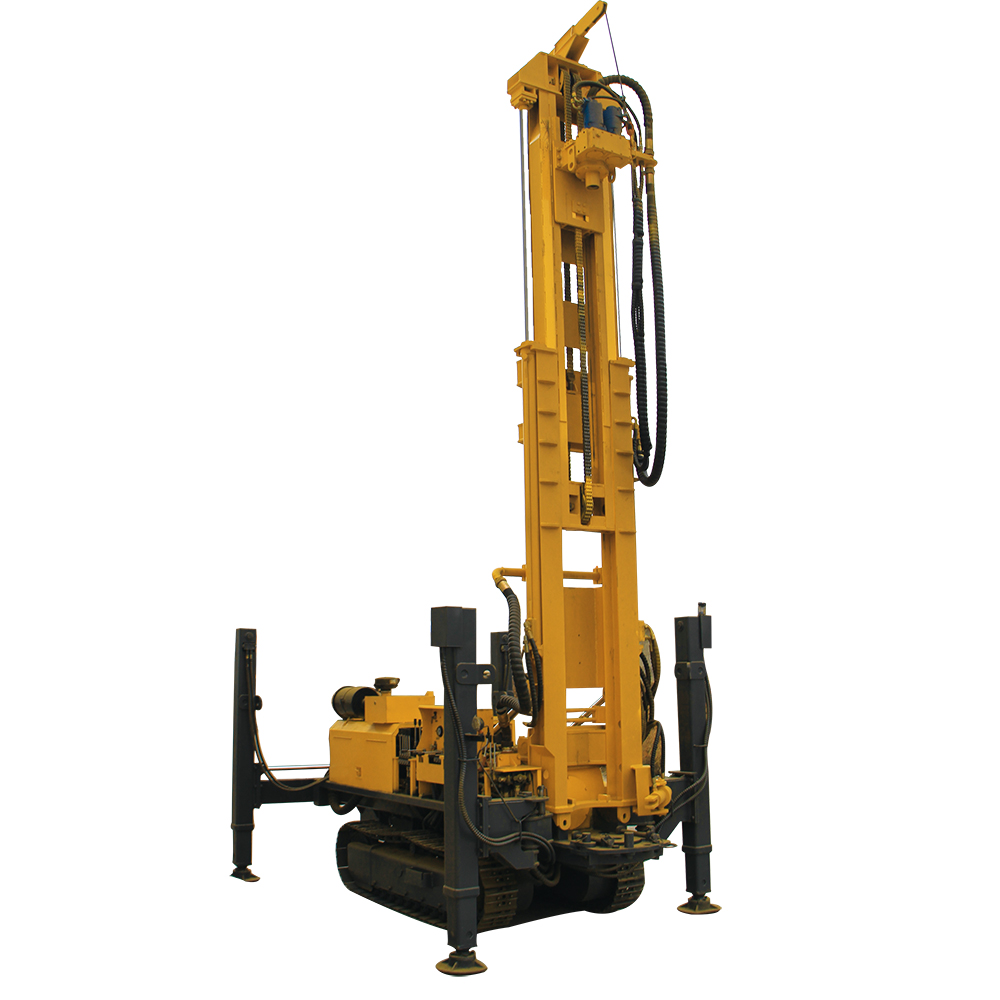

SNR300 drilling rig is a kind of medium and high efficient full hydraulic multifunctional water well drill rig for drilling up to 300m and is used for water well, monitoring wells, engineering of ground-source heat pump air-conditioner, blasting hole, bolting and anchor cable, micro pile etc. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. It can meet the drilling demand in different geological conditions and other vertical holes.
SNR300 drilling rig is a kind of medium and high efficient full hydraulic multifunctional water well drill rig for drilling up to 300m and is used for water well, monitoring wells, engineering of ground-source heat pump air-conditioner, blasting hole, bolting and anchor cable, micro pile etc. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. It can meet the drilling demand in different geological conditions and other vertical holes.

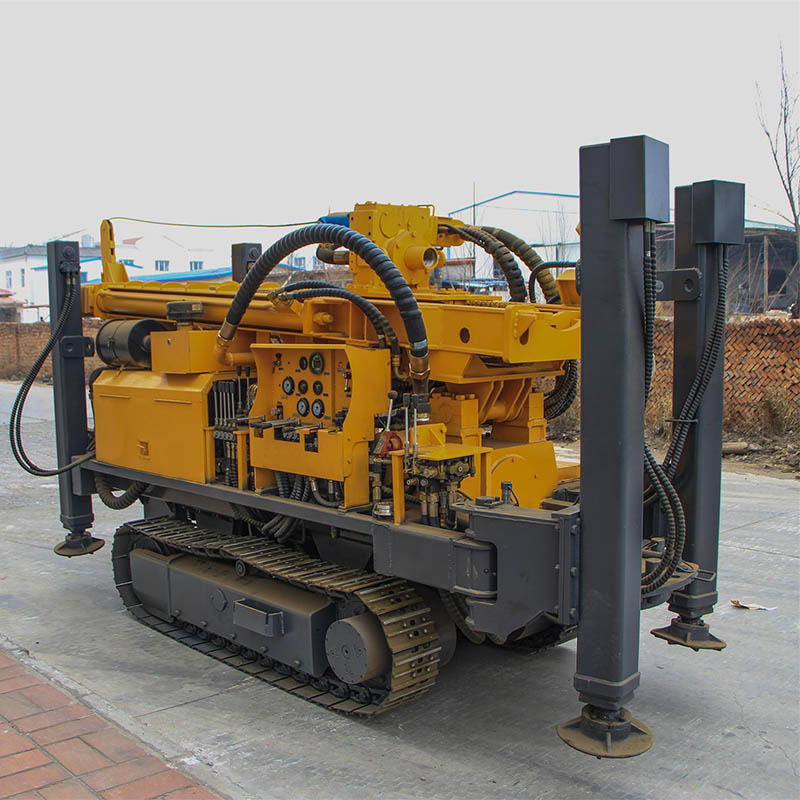

The rig can be either crawler, trailer or truck mounted and it can be personalized according to the various customers’ requirements. The drilling machine is driven by diesel engine, and rotary head is equipped with international brand low-speed and large-torque motor and gear reducer, feeding system is adopted with advanced motor -chain mechanism and adjusted by double speed. Rotating and feeding system are controlled by hydraulic pilot control which can achieve step-less speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.
Key Features & Technical Advantages
The machine is equipped with Cummins engine or electric power as the client’s special request.
Hydraulic rotary head and break in-out clamp device, advanced motor- chain feeding system, and hydraulic winch are reasonable matched.
This rig can be used by two drilling method in set covering layer and stratum soil condition.
The rig can be either crawler, trailer or truck mounted, optional 6*4 or 6*6 heavy truck.
Conveniently equipped with air compressor and DTH hammer, it can be used to drill the hole in rock soil condition by air drilling method.
The rig is adopted with patent technology hydraulic rotating system, mud pump, hydraulic winch, which can be work with circulation drilling method.
Two-speed hydraulic regulation is used in rotating, thrusting, lifting system, which shall make drilling specification more match with well working situation.
Hydraulic system is equipped with separate air-cooled hydraulic oil cooler, also can install water cooler as client's optional in order to ensure hydraulic system work continuously and efficiently under the high temperature weather conditions in different regions.
Four hydraulic support jacks can level rapidly undercarriage to ensure the drilling accuracy. The support jack extension as optional can be easy to make the rig load and unload on truck as Self-loading by itself, which save more transportation cost.
Technical Specifications
Item
Unit
SNR300 Specifications
Max drilling depth
m
350
Drilling diameter
mm
105-305
Air pressure
Mpa
1.2-3.5
Air consumption
m³/min
16-55
Rod length
m
6
Rod diameter
mm
89
Main shaft pressure
T
4
Lifting force
T
20
Fast lifting speed
m/min
24
Fast forwarding speed
m/min
47
Max rotary torque
N.m
8000/4000
Max rotary speed
r/min
60/120
Big secondary winch lifting force
T
－
Small secondary winch lifting force
T
1.5
Jacks stroke
m
1.6/1.4
Drilling efficiency
m/h
10-35
Moving speed
Km/h
2
Uphill angle
°
21
Weight of the rig
T
8.6
Dimension
m
6.4*1.85*2.55 / 6.2*1.85*2.2
Working condition
Unconsolidated formation and Bedrock
Drilling method
Top drive hydraulic rotary and pushing, hammer or mud drilling
Suitable hammer
Medium and high air pressure series
Optional accessories
Mud pump, Centrifugal pump, Generator, Foam pump
Frequently Asked Questions
What is the maximum drilling depth of the SNR300 drilling rig?
The SNR300 drilling rig has a maximum drilling depth capability of up to 350 meters.
What mounting options are available for the SNR300?
The rig is highly versatile and can be configured as crawler, trailer, or truck-mounted (supporting optional 6*4 or 6*6 heavy trucks) depending on client requirements.
Which drilling methods does this machine support?
It is designed to work with multiple drilling methods, including reverse circulation by mud and by air, down the hole (DTH) hammer drilling, and conventional circulation.
How does the cooling system function under high temperature conditions?
The hydraulic system is equipped with a separate air-cooled hydraulic oil cooler, and a water cooler can also be installed as an option to ensure continuous and efficient work in hot regions.
Does the rig support self-loading features?
Yes, four hydraulic support jacks can level the undercarriage rapidly. Optional support jack extensions allow for easy self-loading and unloading on trucks, saving transportation costs.
