TR460 Rotary Drilling Rig is large pile machine . Currently , the large tonnage rotary drilling rig is widely used by the customers in the complex geology area . What s more , the large and deep hole piles are required in the across sea and across river bridge . Thus , according to the above two reasons , we researched and developed TR460 rotary drilling rig which has the advantages of high stability , large and deep pile and easy for transportation.

Send Inquiry

Product Description

TR460 Rotary Drilling Rig is a large pile machine. Currently, the large tonnage rotary drilling rig is widely used by customers in complex geology areas. What's more, large and deep hole piles are required in across-sea and across-river bridges. Thus, according to these crucial needs, we researched and developed the TR460 rotary drilling rig, which has the advantages of high stability, large and deep pile capabilities, and easy transportation.

Triangle support structure reduces turning radius and increases the stability of the rotary drilling rig.

Rear-mounted main winch uses double motors, double reducers, and single-layer drum design which avoids rope winding.

Crowd winch system with 9m stroke provides larger crowd force & stroke than cylinder systems, facilitating casing embedment. Optimized hydraulic and electrical systems improve response speed.

Authorized utility model patent of depth measuring device improves the accuracy of depth measurement.

Unique design of one machine with double working conditions can meet the requirements of large piles and rocketry.

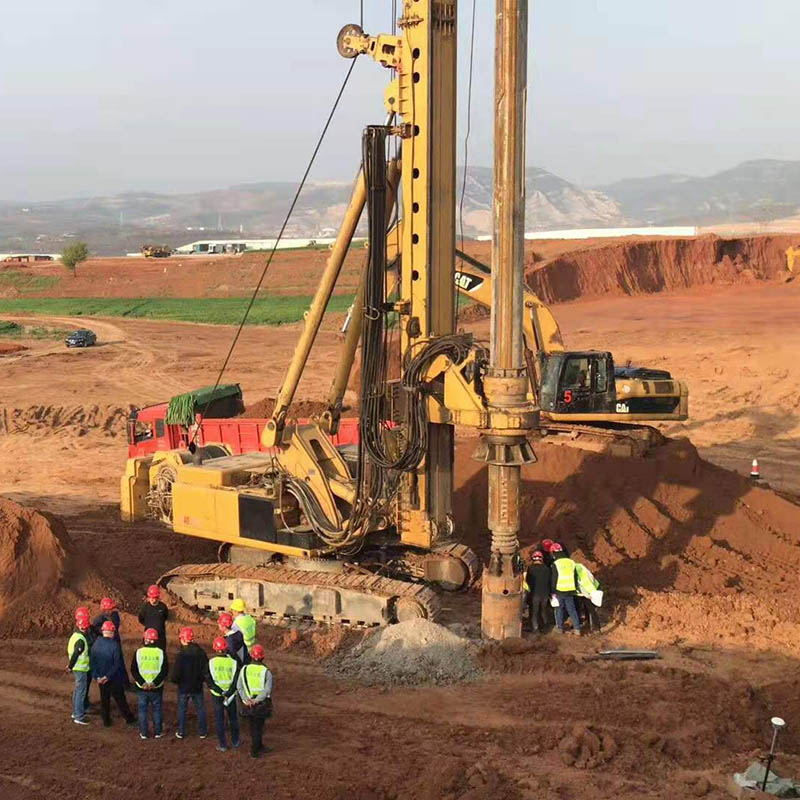

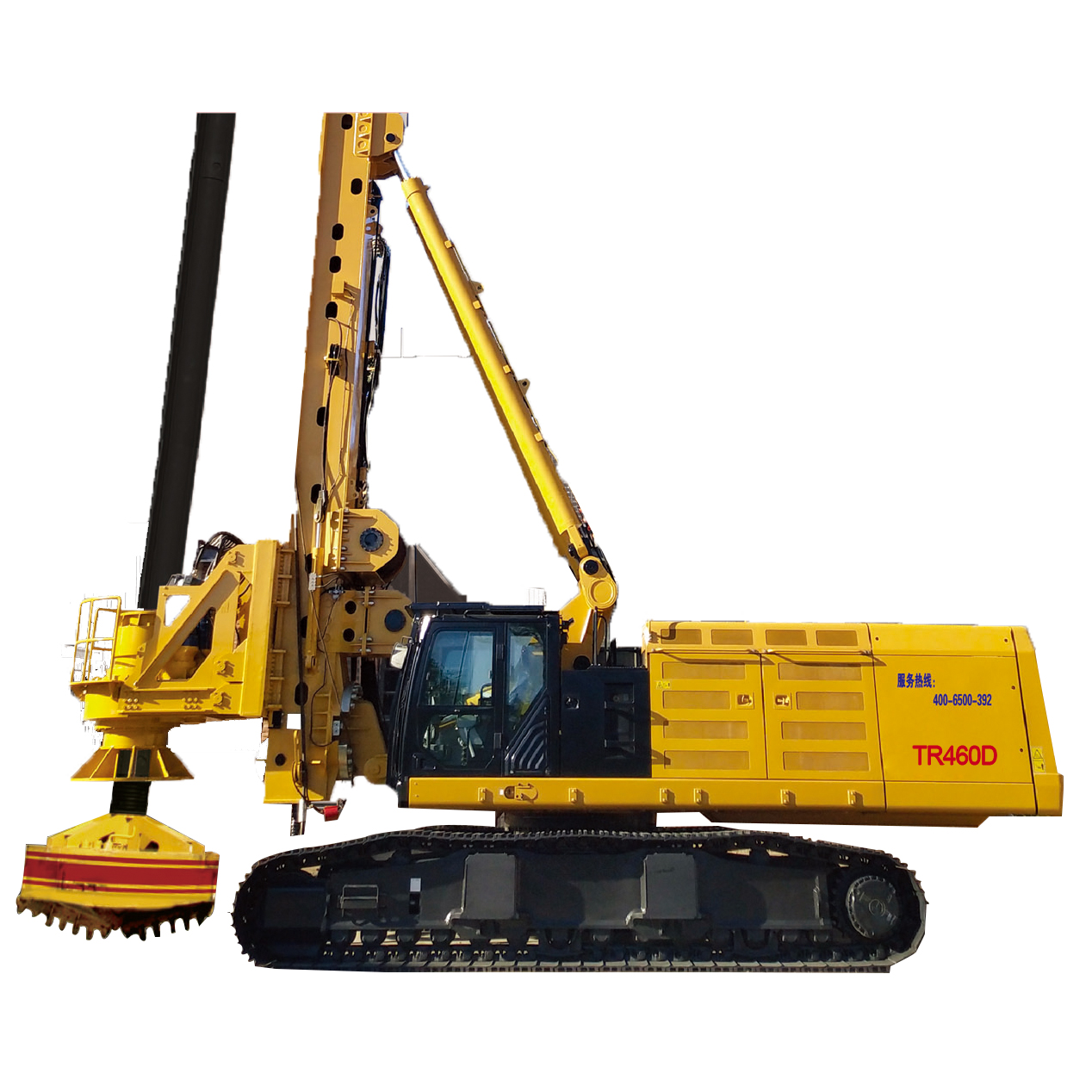

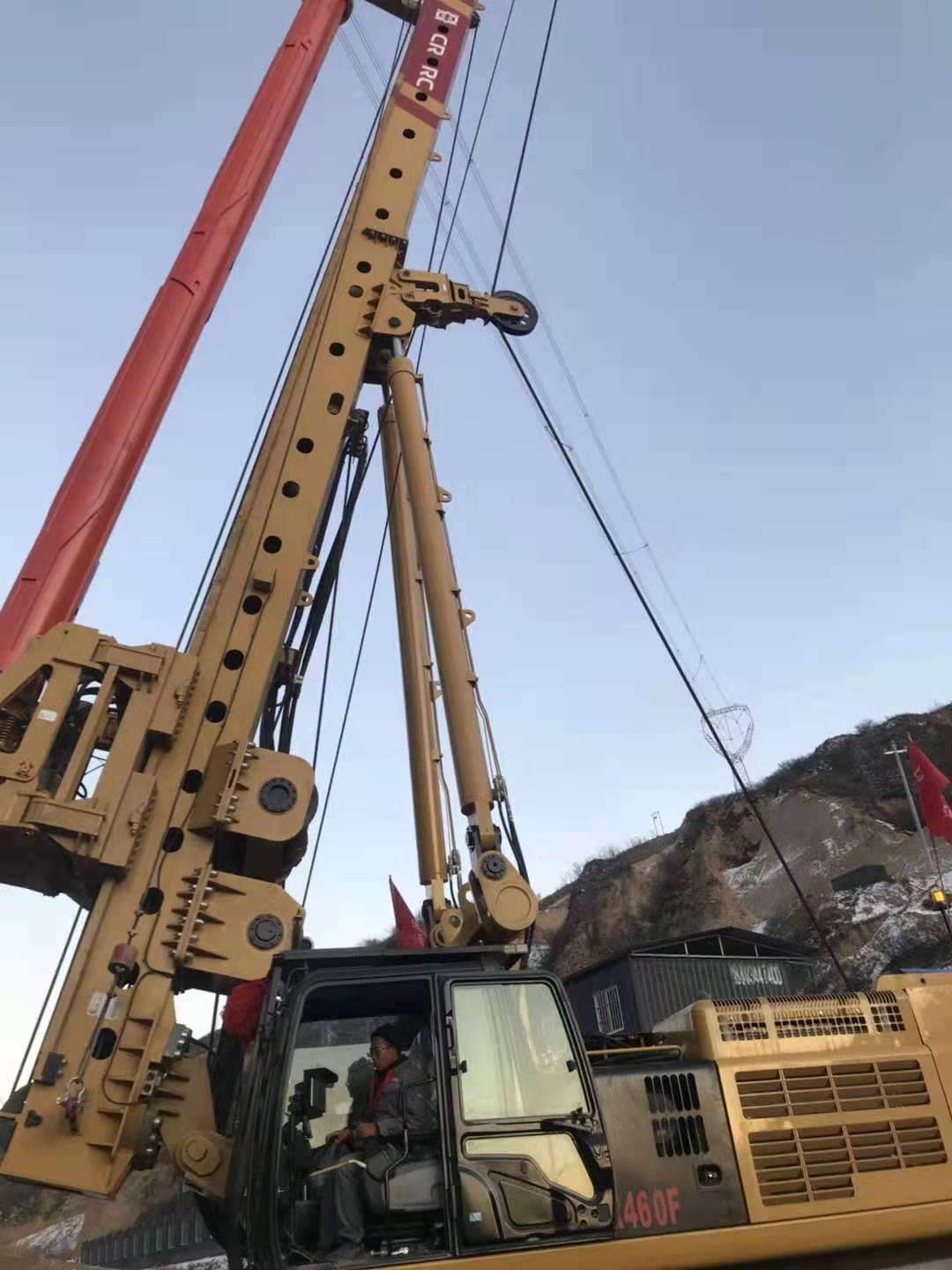

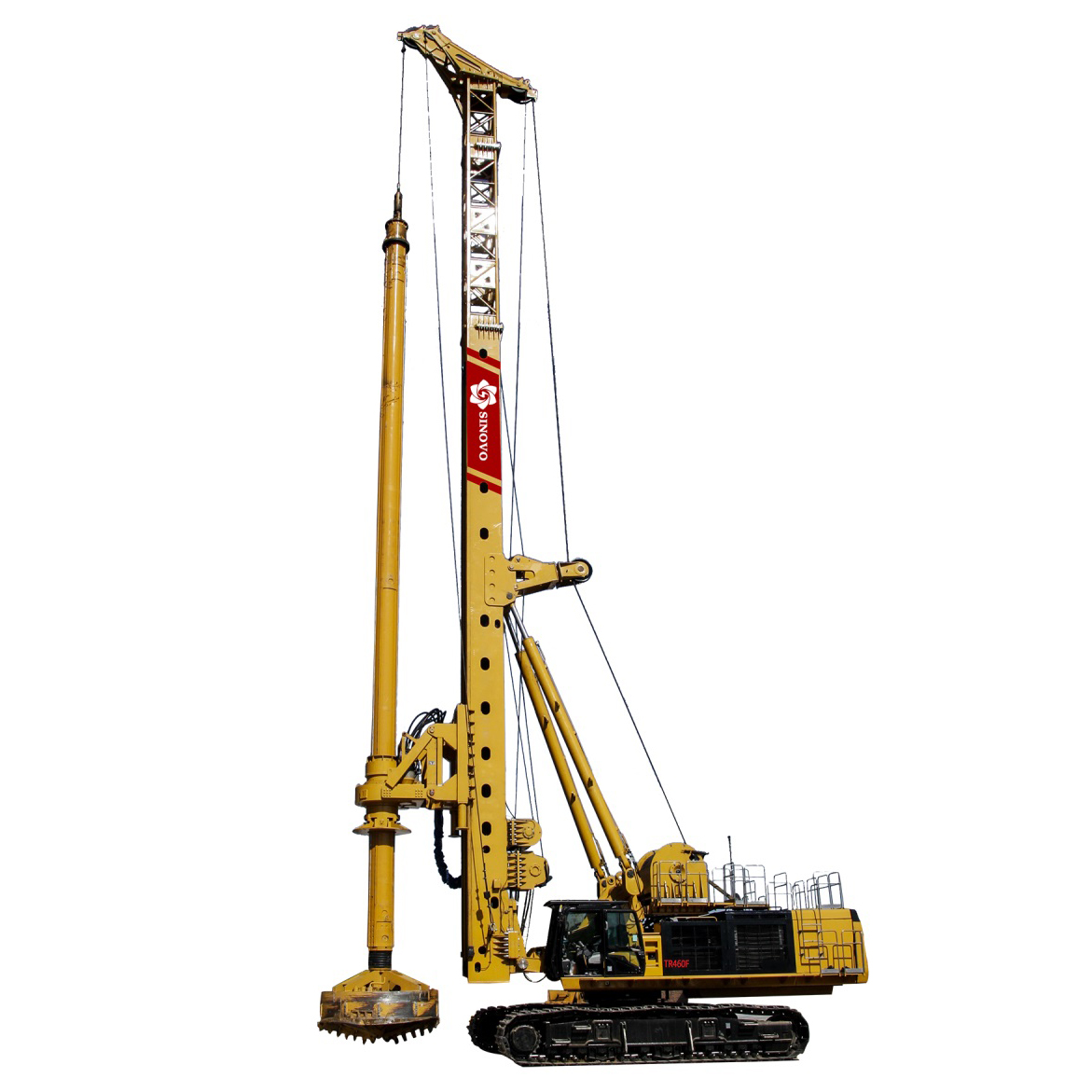

TR460D Rotary drilling rig
Engine	Model		CAT
	Rated power	kw	367
	Rated speed	r/min	2200
Rotary head	Max.output torque	kN·m	450
Rotary head	Drilling speed	r/min	6-21
Max. drilling diameter		mm	3000
Max. drilling depth		m	110
Crowd cylinder system	Max. crowd force	Kn	440
	Max. extraction force	Kn	440
	Max. stroke	mm	12000
Main winch	Max. pull force	Kn	400
	Max. pull speed	m/min	55
	Wire rope diameter	mm	40
Auxiliary winch	Max. pull force	Kn	120
	Max. pull speed	m/min	65
	Wire rope diameter	mm	20
Mast inclination Side/ forwards/ backwards		°	±6/10/90
Interlocking Kelly bar			Φ580420.3m
Friction Kelly bar (optional)			Φ580620.3m
	Traction	Kn	896
	Tracks width	mm	1000
	Caterpillar grounding Length	mm	6860
Working Pressure of Hydraulic System		Mpa	35
Total weight with kelly bar		kg	138000
Dimension	Working (Lx Wx H)	mm	9490x5500x28627
Dimension	Transportation (Lx Wx H)	mm	17250x3900x3500

Frequently Asked Questions

What are the main advantages of the TR460 Rotary Drilling Rig?

The TR460 offers high stability, large and deep pile capabilities, and is designed for easy transportation, making it ideal for complex geological conditions and large-scale bridge constructions.

What engine powers the TR460D and what is its output?

The TR460D is equipped with a high-performance CAT engine, delivering a rated power of 367 kW at a rated speed of 2200 r/min.

What is the maximum drilling depth and diameter of this rig?

The TR460D can achieve a maximum drilling diameter of 3000 mm and reaches a maximum drilling depth of 110 meters.

How does the main winch design prevent rope winding issues?

The rear-mounted main winch incorporates a single-layer drum design along with double motors and double reducers, which effectively prevents rope overlapping and winding.

What type of Kelly bars can be used with the TR460D?

It supports an interlocking Kelly bar sized at Φ580*4*20.3m, and also offers an optional friction Kelly bar sized at Φ580*6*20.3m to meet different working requirements.

How does the triangle support structure improve performance?

The triangle support structure reduces the overall turning radius of the machine, which substantially increases operational stability while working on site.
