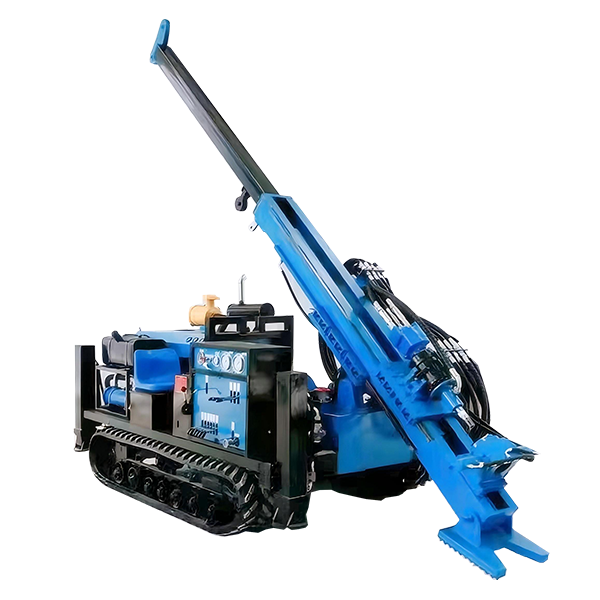

Buy SD-400 Core Drilling Rig - Hydraulic Powered Company, Products

Wireless remote control walking, automatic lifting of hydraulic mast, and automatic movement of rotary head to lift the drill are one of the major features of this drilling rig. The automatic lifting of mast and automatic movement of rotary head greatly alleviate the difficulty of on-site construction, effectively reduce the number of construction people, and save costs. The drilling rig adopted a 78KW engine with strong power and large torque, which is suitable for metal mining in various complex formations. This SD-400 Full Hydraulic Core Drilling Rig is a new type of track type multifunctional fully hydraulic drilling rig, which is connected with hydraulic oil pump by a diesel engine, providing power for the hydraulic impact rotary head and hydraulic rotating rotary head. Using the hydraulic impact rotary head inside the drilling rig, high-frequency impact is applied to the top of the core drilling tube, and the core drilling tube is drilled by impact, achieving fast drilling speed. Hydraulic impact can maintain the core as it is, meeting the requirements of environmentally friendly core extraction operations. The hydraulic rotary head inside the drilling rig can be used to meet the requirements of exploration, rotary coring and rotary drilling. Thus, the drilling rig can be used for three purposes, greatly reducing the purchasing cost for users while meeting their various operational needs.

Send Inquiry

Product Description

Product Features

Efficient, lightweight, mast touching tracked fully hydraulic drilling rig.
Can meet the drilling requirements of 45°-90° inclined holes.
Geological drilling, rope core retrieval, exploration, engineering survey.
Thin-walled diamond rope core drilling technology, thin-walled drill bit.
The core diameter is large, the torque resistance is small, and the core extraction efficiency is high.

Technical Specifications

Drilling Capacity
Caliber	HTW-NTW-BTW
Depth	200-400-500(M)
Hydraulic System
Rated pressure	20(MPA)
Rated flow rate	160(L/min)
Heat dissipation method	forced air cooling
Engine
Brand	Yuchai
Type	Turbo
Rated speed	2400(RPM)
Rated power	70(kw)
Drilling System
Torque	350-700(N.M)
Speed	1300(RPM)
Tower type	Integrated ground contact type
Go ahead with the process	1900(MM)
Drilling tower angle	45-90°
Boosting power	14(T)
Give in strength	7(T)
Transmission type	Direct connection box
Rope Hoist
Boosting power	600(KG)
Speed	100-300(RPM)
Diameter of steel wire rope	6(MM)
Rope capacity	600(M)
Walking System
Operation type	Manual+Remote control
Walking speed	3.5(KM/H)
Climbing angle	40°
Mud Pump
Model	BW-100
Flow	0-100(L/MIN)
Pressure	0-7(MPA)
Size and Weight
Transport size	4200×2050×2300(MM)
Whole machine weight	4.3(T)

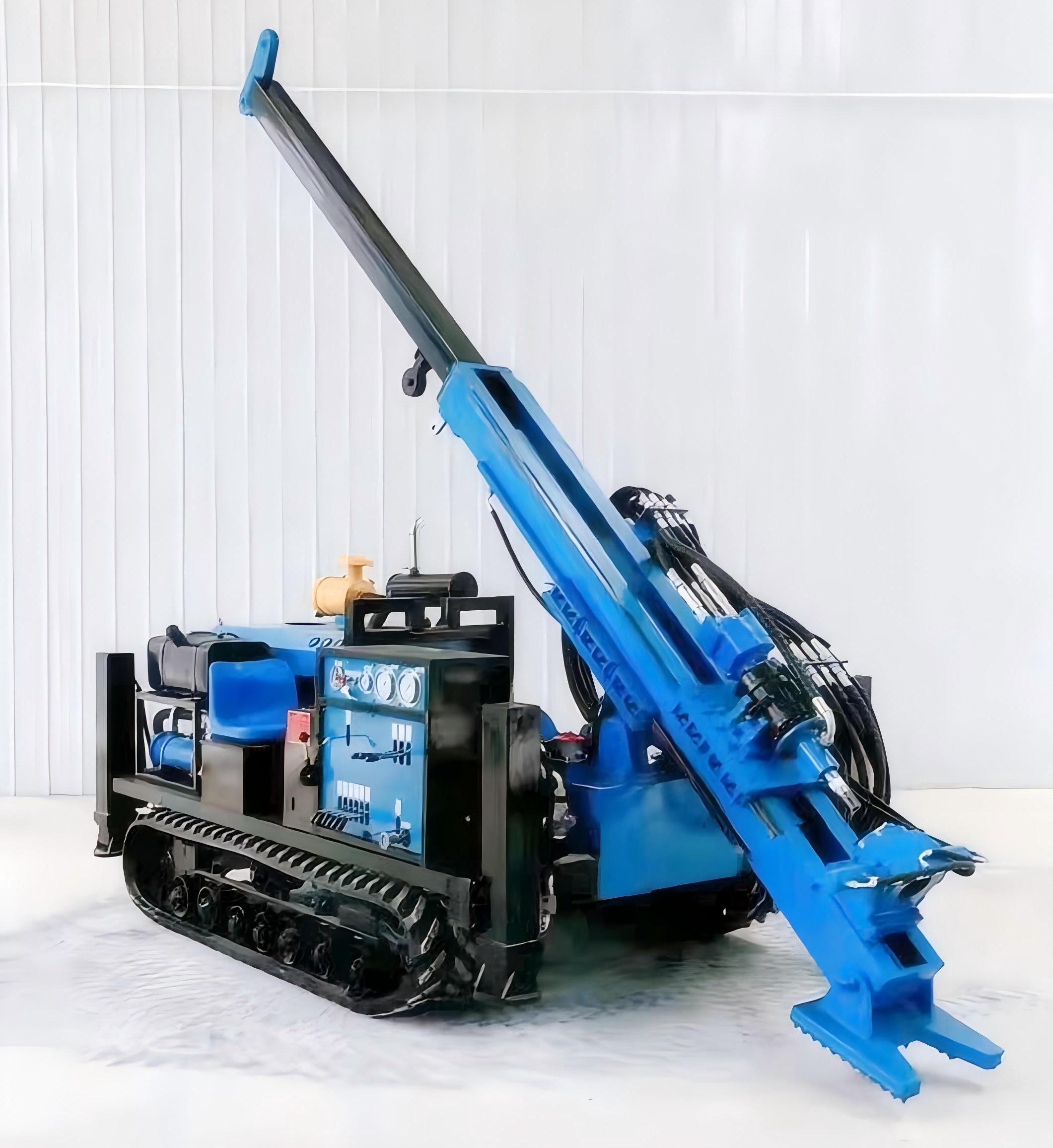

Tracked fully hydraulic core drilling rig

Frequently Asked Questions

What are the primary applications for this fully hydraulic drilling rig?

This drilling rig is ideal for geological drilling, rope core retrieval, exploration projects, and detailed engineering surveys.

What drilling depth and caliber capacities does this machine support?

It supports HTW, NTW, and BTW calibers, reaching depths of 200, 400, and 500 meters respectively.

What is the drilling angle range of the mast?

The integrated ground-contact type drilling tower can support drilling requirements for inclined holes ranging from 45° to 90°.

What kind of engine and power unit does the rig utilize?

It features a powerful Yuchai Turbo engine with a rated speed of 2400 RPM and a rated power output of 70 kW.

How is the walking system operated, and what is its climbing capability?

The tracked walking system supports both manual and remote control operations, featuring a maximum speed of 3.5 KM/H and a climbing angle capability of 40°.

What are the dimensions and total weight for transport?

The transport size of the rig is 4200×2050×2300 mm, and the total weight of the complete machine is 4.3 tons.
