Famous SM1100 Hydraulic crawler drill Companies, Products

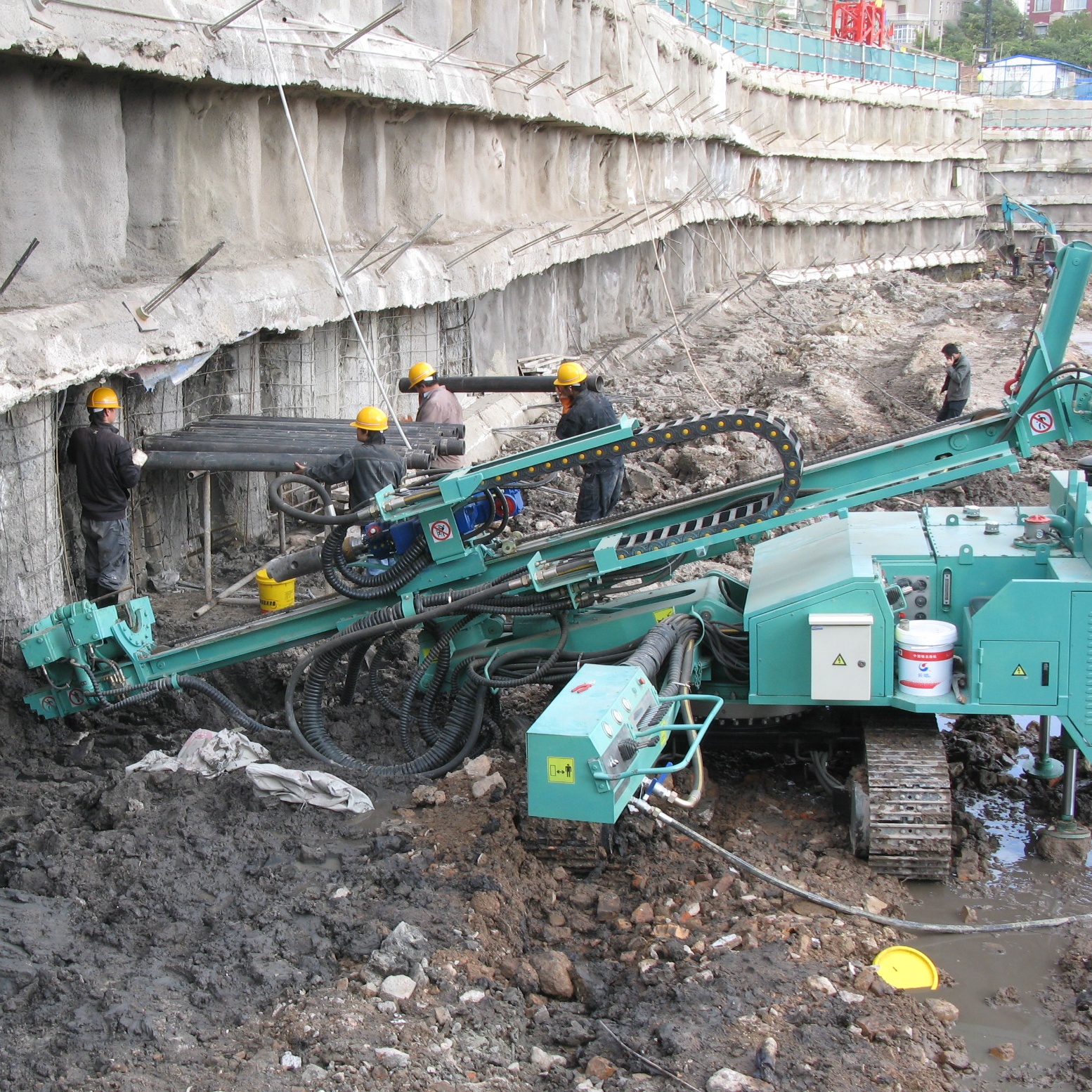

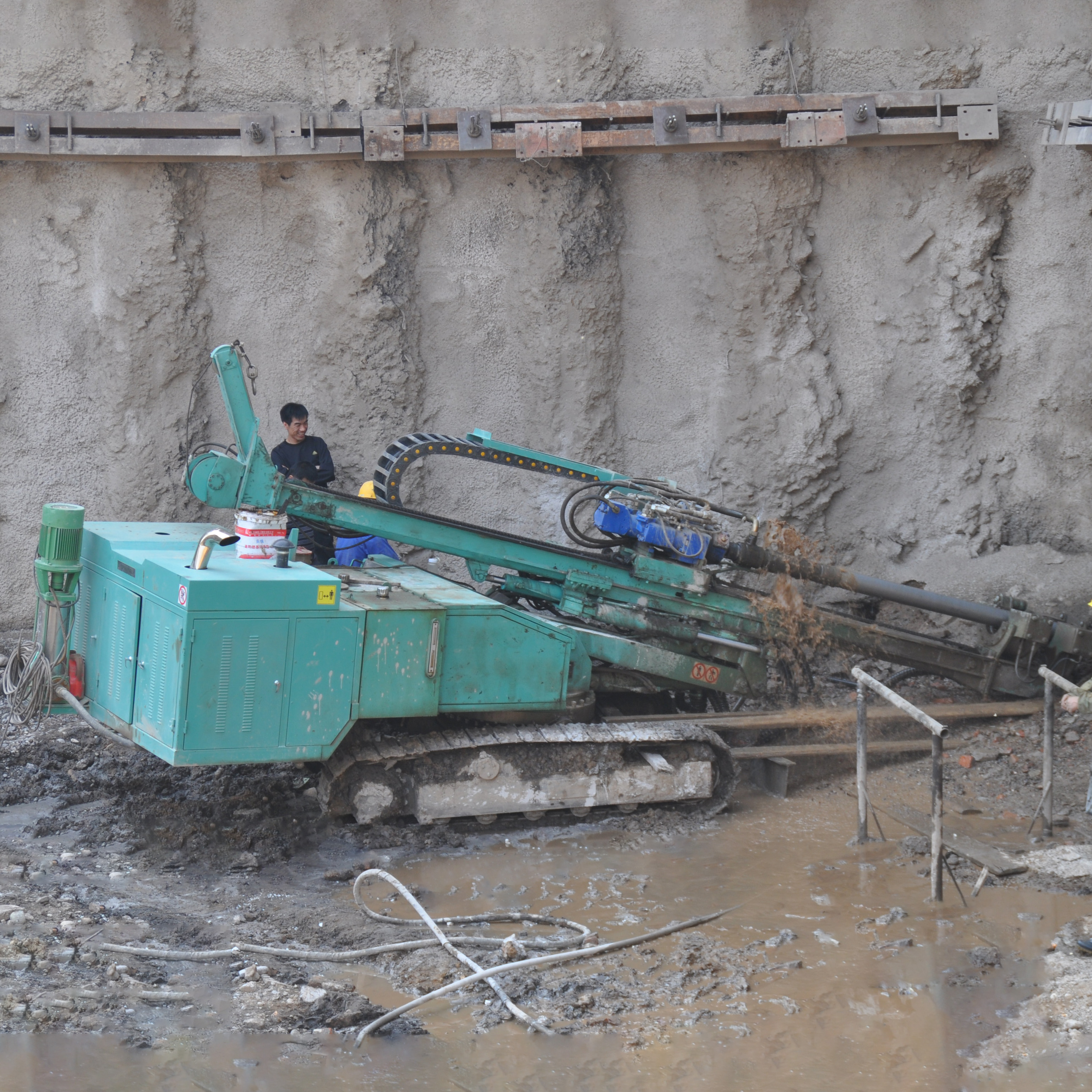

SM1100 full hydraulic crawler drilling rigs are configured with rotation-percussion rotary head or large torque rotation type rotary head as alternative, and equipped with down-the-hole hammer, which is designed for various hole forming operation. It is suitable for different soil condition, for example gravel layer, hard rock, aquifer, clay, sand flow etc. This rig is mainly used for rotation percussion drilling and normal rotation drilling in the project of bolt supporting, slope supporting, grouting stabilization, precipitation hole and underground micro piles, etc.

Send Inquiry

Product Description

Key Features

Top hydraulic head driver is droved by two high speed hydraulic motor. It can supply the great torque and the wide range of the rotation speeds.

Feeding and the lifting system adopt the hydraulic cylinders driving and chain transmission. It have the long feeding distance and giving the convenient for the drilling.

The V style orbit in the mast can sure the enough rigidity between the top hydraulic head and the mast and give the stability at the high rotation speed.

Rod unscrew system make the operation simply.

Hydraulic winch for lifting have the better lifting stability and good braking ability.

Rotation unit driving system is controlled by the Variable Flux Pump .it has the high efficiency.

Steel Crawlers drive by the hydraulic motor, so the rig has a wide maneuverability.

Specifications

Specification		Unit	SM1100A	SM1100B
Power	Diesel Engine Model	—	Cummins 6BTA5.9-C150
	Rated Output & Speed	kw/rpm	110/2200
	Hydraulic sys. Pressure	Mpa	20
	Hydraulic sys. Flow	L/min	85, 85, 30, 16
Rotary Head	Work Model	—	Rotation, percussion	Rotation
	Type	—	HB45A	XW230
	Max Torque	N.m	9700	23000
	Max Rotating Speed	r/min	110	44
	Percussion Frequency	min-1	1200 1900 2500	/
	Percussion Energy	Nm	590 400 340	—
Feed Mechanism	Feeding Force	KN	53
	Extraction Force	KN	71
	Max Feeding Speed	m/min	40.8
	Max Pipe Extract Speed	m/min	30.6
	Feed Stroke	mm	4100
Traveling Mechanism	Grade Ability	—	27°
	Traveling Speed	km/h	3.08
Winch Capacity		N	20000
Clamp Diameter		mm	Φ65-215	Φ65-273
Clamp Force		kN	190
Slide Stroke of Mast		mm	1000
Total Weight		kg	11000
Overall Dimensions (LWH)		mm	655022002800

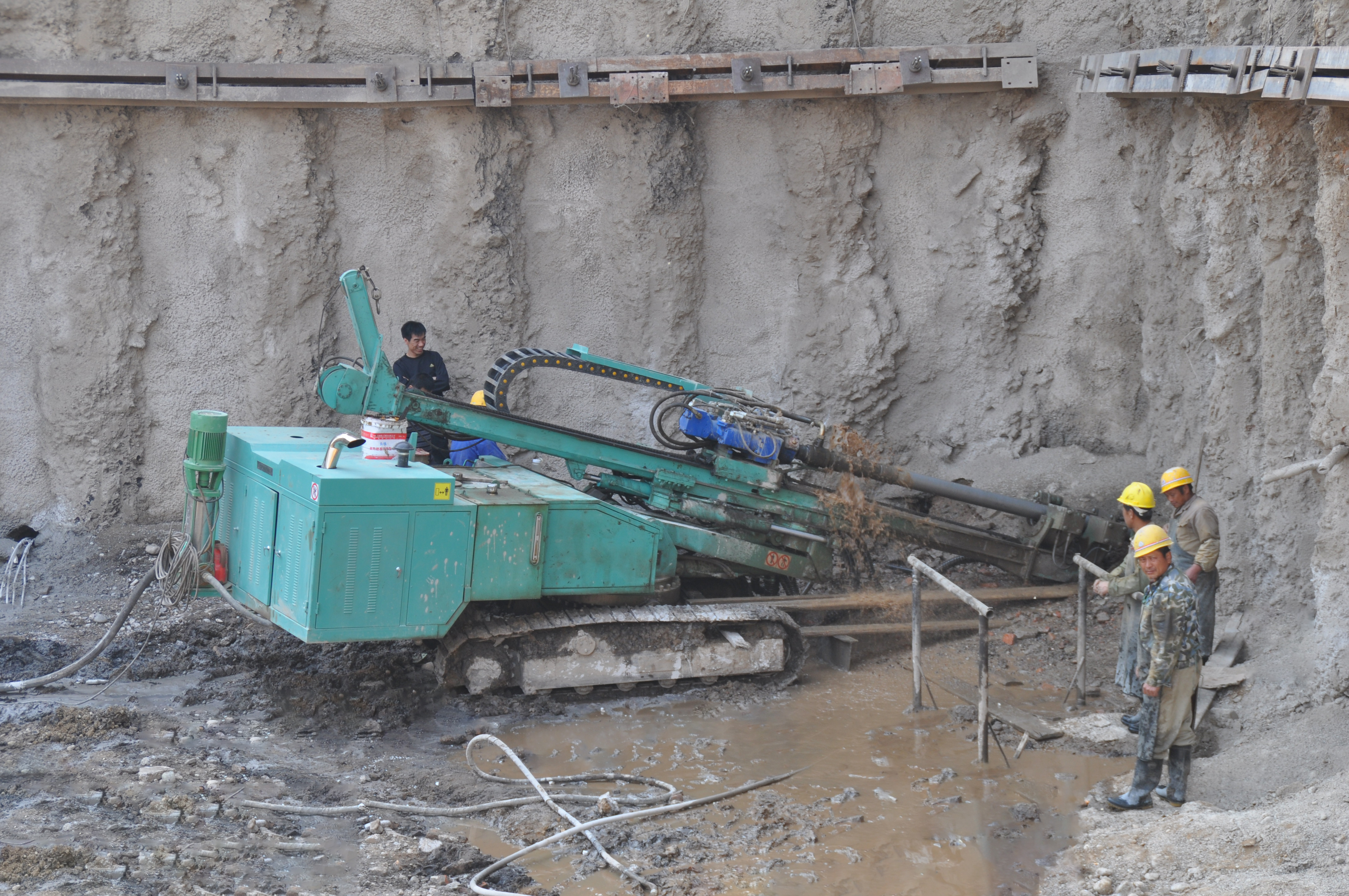

SM1100 Full Hydraulic Crawler Drilling Rig

Frequently Asked Questions

Q1: Are you a factory or a trading company?

A1: We are a factory. And we have our own trading company to provide seamless services.

Q2: What are the warranty terms for the machine?

A2: We offer a one-year warranty for the machine along with dedicated technical support based on your actual needs.

Q3: Do you provide spare parts for the machines?

A3: Yes, of course. We provide essential spare parts to support maintenance and continuous operation.

Q4: What about the voltage of the products? Can it be customized?

A4: Yes, the voltage can be customized according to your specific local electricity requirements.

Q5: What geological formations is the SM1100 drilling rig suitable for?

A5: It is highly suitable for various geological conditions, including gravel layers, hard rock, aquifers, clay, and sand flow.

Q6: What are the primary applications of this drilling rig?

A6: This rig is mainly utilized for rotation percussion drilling and normal rotation drilling in bolt supporting, slope supporting, grouting stabilization, precipitation holes, and underground micro piles.
