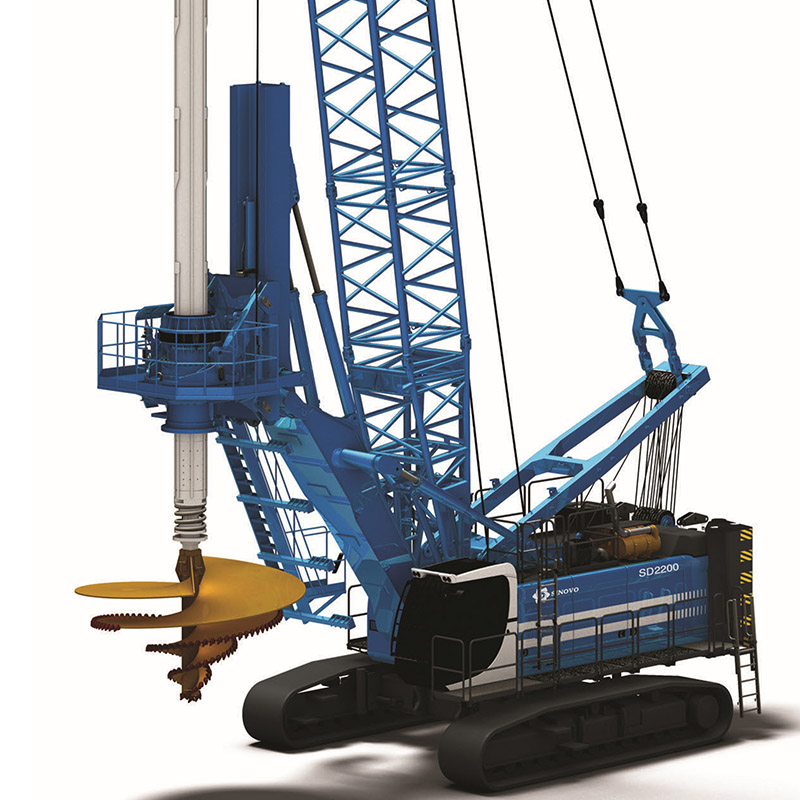

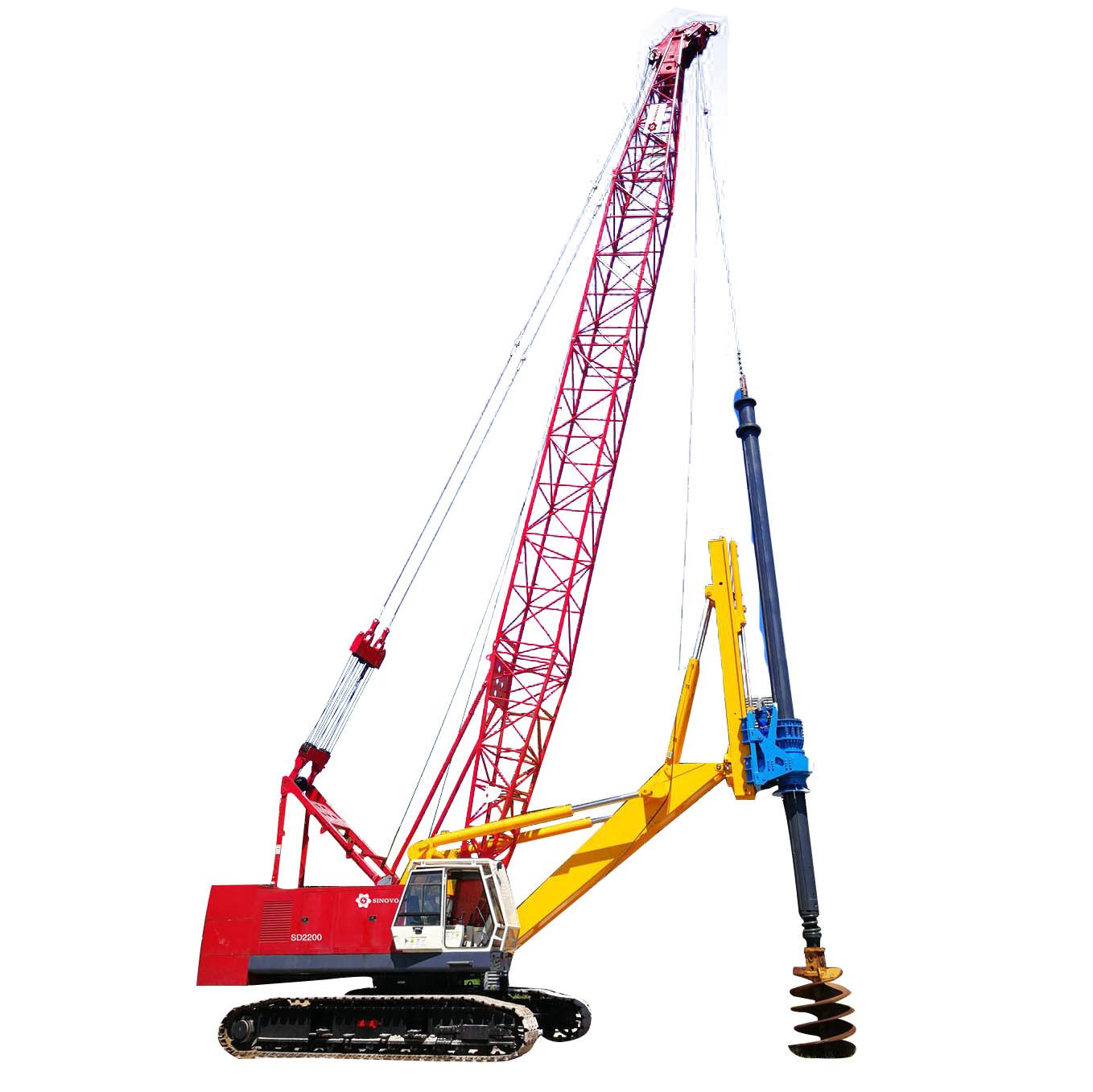

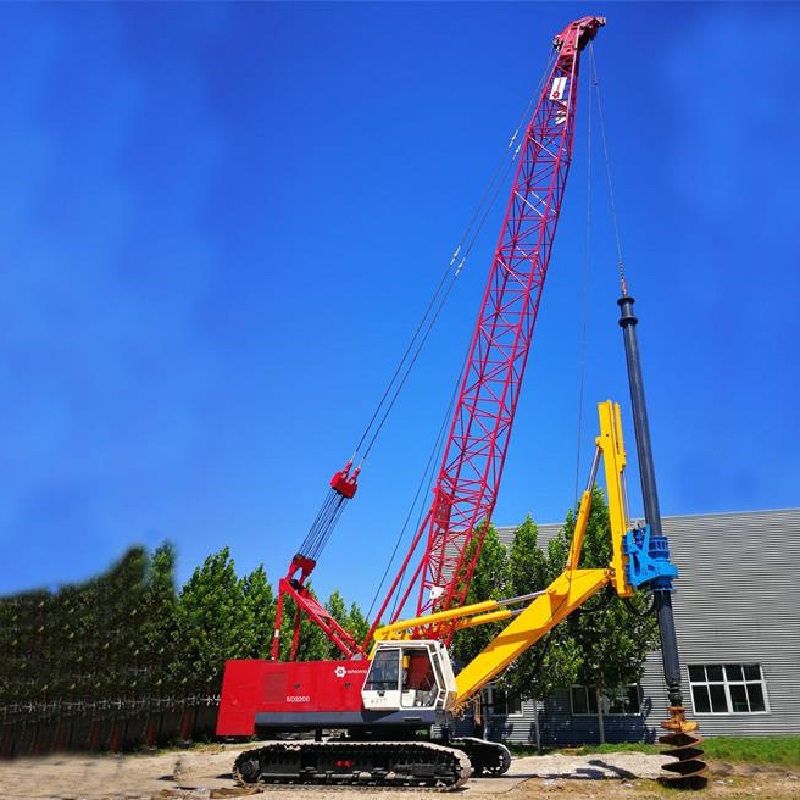

High-Quality SD2200 Attachment drilling Rig Factories, Companies

SD2200 is a multi-functional full-hydraulic pile machine with advanced international technology. It can not only drill bored piles, percussion drilling, dynamic compaction on soft foundation, but also has all the functions of rotary drilling rig and crawler crane. It also surpasses the traditional rotary drilling rig, such as ultra-deep hole drilling, perfect combination with full casing drilling rig to carry out complex work.

Send Inquiry

Product Description

This machine is multi-functional, can use all kinds of rotary drilling buckets and drilling tools for rotary drilling. At the same time, it makes use of its own advantages by combining a variety of equipment in one. Powered by a single engine, it provides excellent energy saving and green economic operations.

Key Functions

Rotary drilling function
Extruding and expanding function of expanded pile
Impact hammer function
Drive casing, wall protection and casing drilling function
Caterpillar crane hoisting function
Reinforcing cage of pile driver and lifting function of drilling tool

Full hydraulic multifunctional drilling rig SD2200 Specification

Parameter	Specification Data
Model	SD2200
Undercarriage	HQY5000A
Engine power	199 kw
Rotating speed	1900 rpm
Main pump flow	2X266 L/min
Nominal torque	220 kN.m
Speed of rotation	6~27 rpm
Spin off speed	78 rpm
Max drilling depth	75 m
Max drilling diameter	2200 mm
Max crowd force	180 kN
Max pull force	180 kN
Crowd stroke	1800 mm
Rope diameter	26 mm
Line pull (force 1st layer) of main winch	200 kN
Line speed max of main winch	95 m/min
Rope diameter of auxiliary winch	26 mm
Line pull (force 1st layer) of auxiliary winch	200 kN
Outer pipe diameter of kelly bar	Φ406
Kelly bar (Standard)	5X14m (Friction) / 4X14m (Interlocking)
Kelly bar (Extension)	5X17m (Friction) / 4X17m (Interlocking)

HQY5000A Crane Technical Data (Lifting Capacity: 70 Ton)

Item		Data
Max rated lifting capacity		70 t
Boom length		12-54 m
Fixed jib length		9-18 m
Boom+jib max length		45+18 m
Boom derricking angle		30-80°
Hook		70/50/25/9 t
Working Speed (Rope Speed)	Main winch hoist/lower (Rope Dia 26)	*High speed 116/58 m/min, Low speed 80/40 m/min (4th layer)
	Auxiliary winch hoist/lower (Rope Dia 26)	*High speed 116/58 m/min, Low speed 80/40 m/min (4th layer)
	Boom hoist (Rope Dia 20)	52 m/min
	Boom lower (Rope Dia 20)	52 m/min
Slewing speed		2.7 r/min
Traveling speed		1.36 km/h
Gradeability (with basic boom, cab in the rear)		40%
Diesel engine rated output power/rev		185/2100 KW/r/min
Whole crane mass (without grab bucket)		88 t (with boom foot 70 ton hook)
Grounding pressure		0.078 Mpa
Counterweight		30 t

Noted: Speed with * may vary with the load.

HQY5000A Technical Data (Tamper)

Item		Data
Tamper grade		5000 KN.m (Max 12000 KN.m)
Rated hammer weight		25 t
Boom length (angle steel boom)		28 m
Boom working angle		73-76°
Hook		80/50 t
Working Speed (Rope Speed)	Main winch hoist (Rope Dia 26)	0-95 m/min
	Main winch lower (Rope Dia 26)	0-95 m/min
	Boom hoist (Rope Dia 16)	52 m/min
	Boom lower (Rope Dia 16)	52 m/min
Slewing speed		2.7 r/min
Traveling speed		1.36 km/h
Gradeability (with basic boom, cab in the rear)		40%
Engine power/rev		199/1900 KW/r/min
Single rope pull		20 t
Hoisting height		28.8 m
Working radius		8.8-10.2 m
Main crane transportation dimension (Lx Wx H)		7800x3500x3462 mm
Whole crane weight		88 t
Grounding pressure		0.078 Mpa
Counter weight		30 t
Max single transport quantity		48 t

Casing Rotator (Optional - 1500MM Dia) Specifications

Main Specification of Casing Rotator	Data Value
Drilling diameter	800-1500 mm
Rotating torque	1500/975/600 kN.m (Max 1800 kN.m)
Rotating speed	1.6/2.46/4.0 rpm
Lower pressure of casing	Max 360KN + self weight 210KN
Pull force of casing	2444 kN (Max 2690 kN)
Pressure-pulling stroke	750 mm
Weight	31 ton + (crawler optional) 7 ton

Main Specification of Power Station	Data Value
Engine model	(ISUZU) AA-6HK1XQP
Engine power	183.9/2000 kw/rpm
Fuel consumption	226.6 g/kw/h (max)
Weight	7 t
Control model	Wired remote control

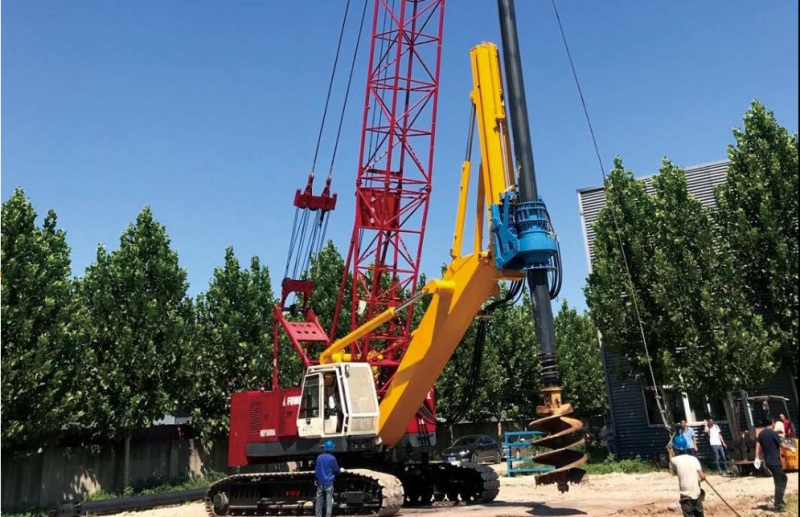

Multifunctional drilling rig SD2200 working view

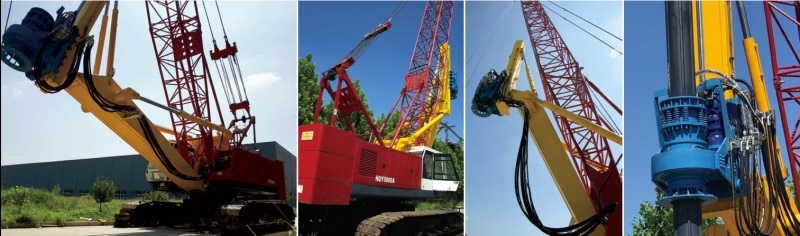

Multifunctional drilling rig SD2200 structural view

Key Features & Technical Advantages

Low fuel consumption and high construction efficiency; the drill pipe can be quickly raised and lowered.

One machine can be used for rotary drilling, as well as a crawler crane and a dynamic compaction machine.

Heavy crawler crane chassis with super stability, suitable for large torque drilling as well as ultra-deep hole drilling.

Perfect combination of full casing drilling rig for large torque casing drive, delivering multi-functional integration of drilling machinery, casing drive drilling, rotary excavation, heavy hammer impact hard rock, rock grab, and breaking old piles.

The super drilling rig features high integration and a small construction area, suitable for high density urban municipal infrastructure projects, marine/river platform foundation construction, greatly saving auxiliary construction costs.

The AI technology module can be loaded to realize the intellectualization of the equipment.

SD2200 is a multi-functional full-hydraulic pile machine with advanced international technology. It can not only drill bored piles, percussion drilling, and perform dynamic compaction on soft foundations, but also possesses all the functions of a rotary drilling rig and a crawler crane. It surpasses traditional rotary drilling rigs in tasks like ultra-deep hole drilling and functions in perfect combination with full casing drilling rigs to carry out complex work. It is especially suitable for the construction of occlusive piles, bridge piles, sea and river port foundation piles, and high-precision pile foundations for subways. The new super drilling rig has the advantages of high construction efficiency, low energy consumption, green advantages, and features options for intellectualization and multi-purpose use. The super drilling rig can be used in all kinds of complex terrain, such as cobble and boulder stratums, hard rock stratums, karst cave stratums, and thick quicksand stratums, and can also be used to break old piles and waste piles.

Frequently Asked Questions (FAQ)

What are the main functions of the SD2200 multi-functional drilling rig?

The SD2200 is a highly versatile machine. It supports rotary drilling, extruding and expanding of expanded piles, impact hammer function, casing drive drilling, caterpillar crane hoisting, and dynamic compaction. It effectively combines multiple equipment functions into a single system powered by one engine.

What are the maximum drilling specifications of the SD2200?

The SD2200 features a maximum drilling depth of 75 meters and a maximum drilling diameter of 2200 mm, driven by a nominal torque of 220 kN.m.

What types of terrains and geological conditions is the SD2200 suitable for?

It is designed to handle complex terrains and difficult stratums, including cobble and boulder stratums, hard rock stratums, karst cave stratums, and thick quicksand stratums. It can also be utilized to break old and waste piles.

Can the SD2200 be converted into a crawler crane, and what is its capacity?

Yes, the SD2200 undercarriage (HQY5000A) serves as a heavy crawler crane. In this configuration, it offers a maximum rated lifting capacity of 70 tons, with a boom length of 12-54 meters.

What is the dynamic compaction capacity of the HQY5000A undercarriage when configured as a tamper?

In its tamper configuration, it offers a tamper grade of 5000 KN.m (up to a maximum of 12000 KN.m) with a rated hammer weight of 25 tons.

Does the SD2200 support smart technology or automation?

Yes, the SD2200 can be loaded with an AI technology module to realize the intellectualization and smart operation of the equipment.
