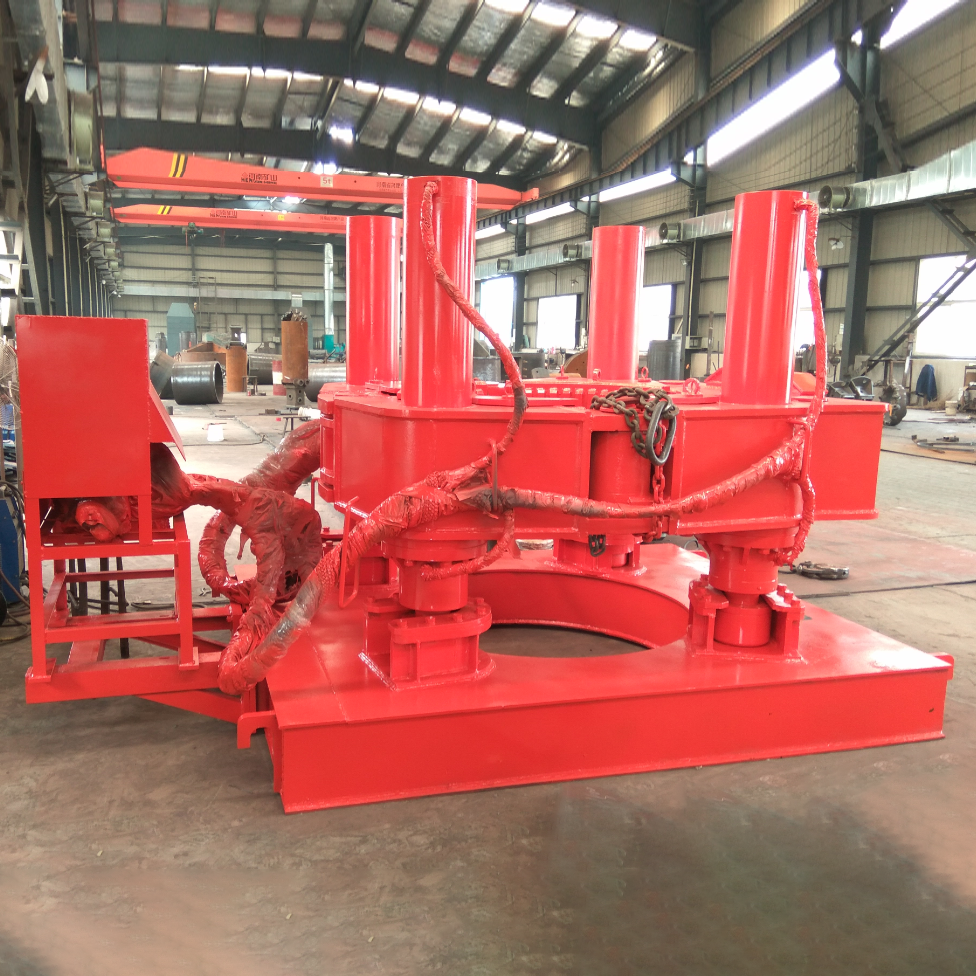

ODM B1500 Full Hydraulic Casing Extractor Factory, Exporters

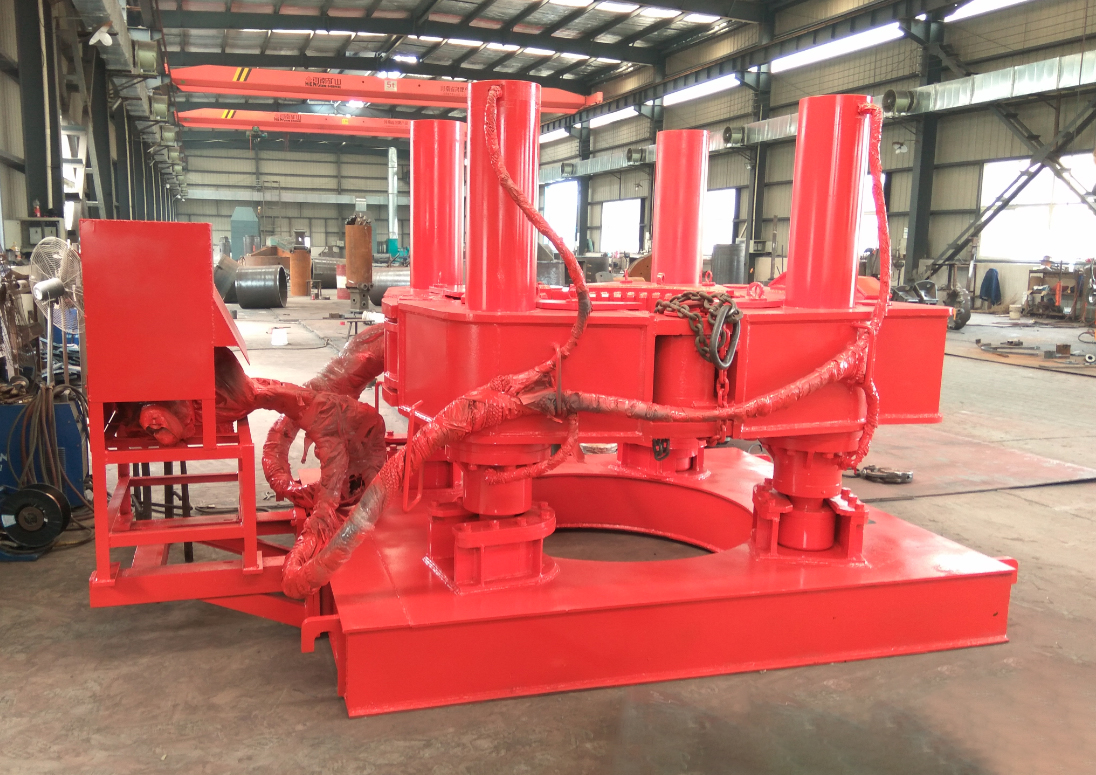

The B1500 full hydraulic extractor is used for pulling the casing and drill pipe. According to the size of the steel pipe, the circular fixture teeth can be customized.
The B1500 full hydraulic extractor is used for pulling the casing and drill pipe. According to the size of the steel pipe, the circular fixture teeth can be customized.
Characteristics
Independent design
Double oil cylinder
Remote control
Integrated pulling

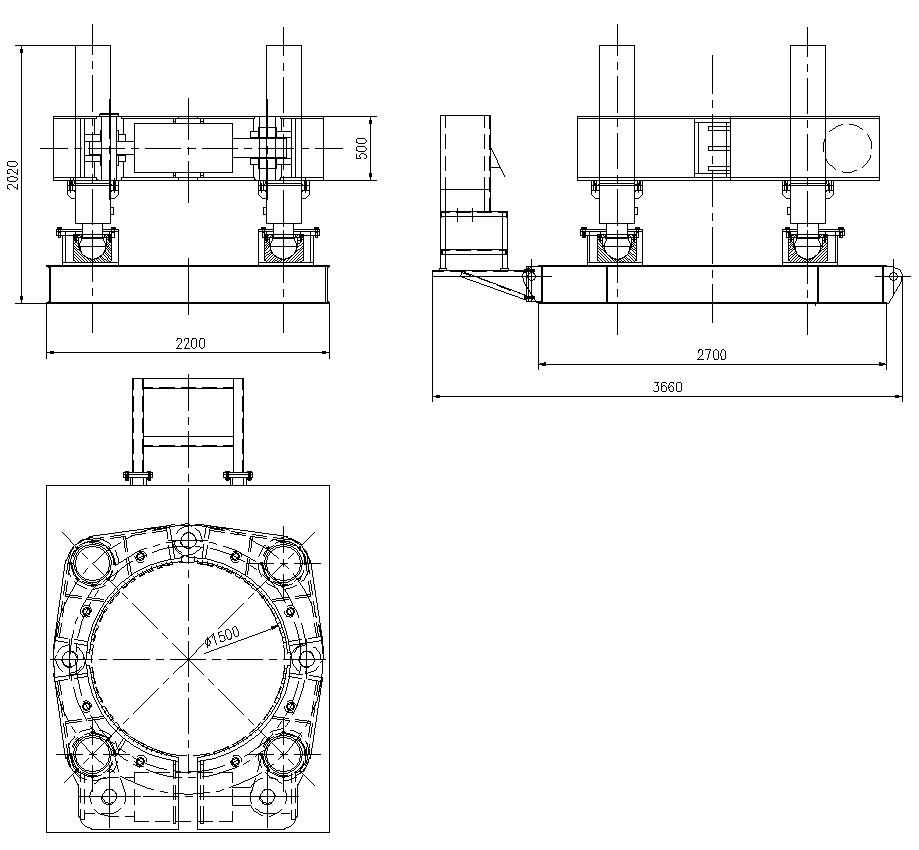

B1500 Technical Specifications
Parameter
Specification Details
Model
B1500
Casing extractor diameter
1500mm
System pressure
30MPa(max.)
Working pressure
30MPa
Four jack stroke
1000mm
Clamping cylinder stroke
300mm
Pull force
500ton
Clamp force
200ton
Total weight
8ton
Oversize
3700x2200x2100mm
Power pack
Motor power station
Rate power
45kw/1500
Motor Power Station Specifications (Option 1)
Item
Unit
Specification
Engine
—
Three-phase asynchronous motor
Power
Kw
45
Rotation speed
rpm
1500
Fuel delivery
L/min
150
Working pressure
Bar
300
Tank capacity
L
850
Overall dimension
mm
1850*1350*1150
Weight (excluding hydraulic oil)
Kg
1200

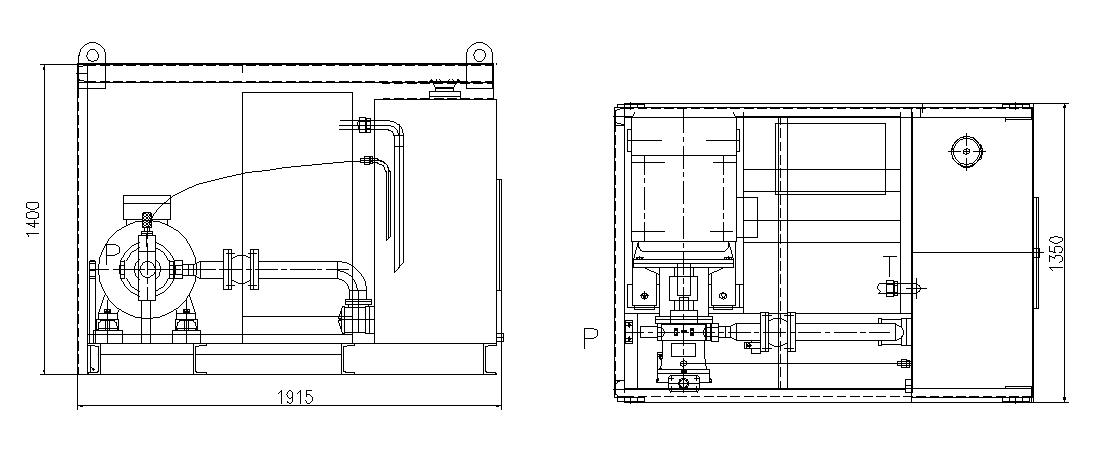

Motor Power Station Specifications (Option 2)
Item
Unit
Specification
Engine
—
Three-phase asynchronous motor
Power
Kw
45
Rotation speed
rpm
1500
Fuel delivery
L/min
150
Working pressure
Mpa
25
Tank capacity
L
850
Overall dimension
mm
1920*1400*1500
Weight (excluding hydraulic oil)
Kg
1500
Frequently Asked Questions (FAQ)
What is the primary application of the B1500 full hydraulic extractor?
The B1500 extractor is specifically designed for pulling casing and drill pipes during various drilling operations.
Can the fixture components be adapted for different steel pipe sizes?
Yes, the circular fixture teeth can be fully customized according to the outer diameter and specifications of your steel pipe.
What are the core design characteristics of the B1500 extractor?
Key design characteristics include an independent design concept, a robust double oil cylinder system, remote control operations, and an integrated pulling setup.
What are the maximum pulling and clamping forces of this unit?
The B1500 hydraulic extractor delivers up to 500 tons of pulling force and a secure clamping force of 200 tons.
What power station options are available for the B1500?
It utilizes a 45kw motor power station running at 1500 rpm. Option configurations vary in dimension and weight (ranging from 1200kg to 1500kg dry weight) with system working pressures of either 300 Bar or 25 Mpa.
