ODM B1200 Full Hydraulic Casing Extractor Manufacturers, Suppliers

Although the hydraulic extractor is small in volume and light in weight, it can easily, steadily and safely pull out the pipes of different materials and diameters such as condenser, rewaterer and oil cooler without vibration, impact and noise.

Send Inquiry

Product Description

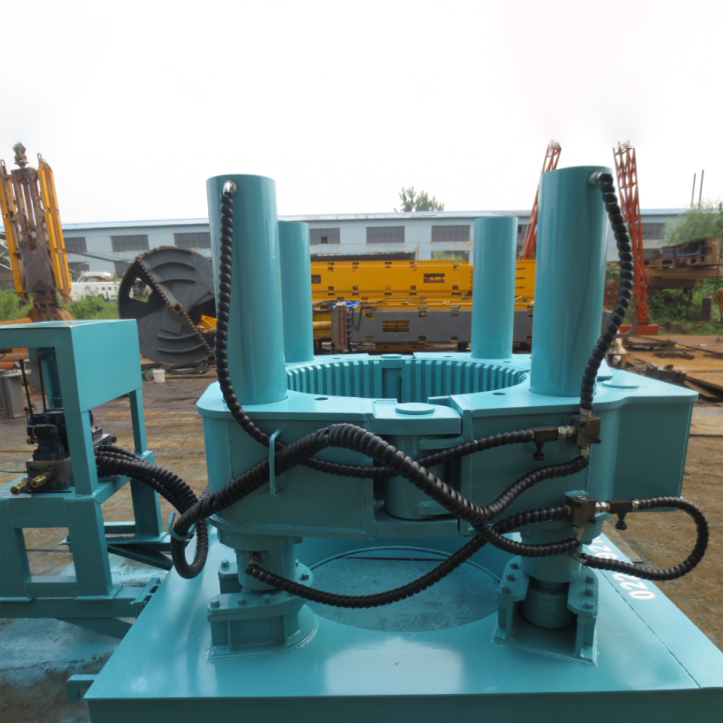

The B1200 full hydraulic extractor is used for pulling the casing and drill pipe. Although the hydraulic extractor is small in volume and light in weight, it can easily, steadily and safely pull out the pipes of different materials and diameters such as condenser, rewaterer and oil cooler without vibration, impact and noise. It can replace the old time-consuming, laborious and unsafe methods.

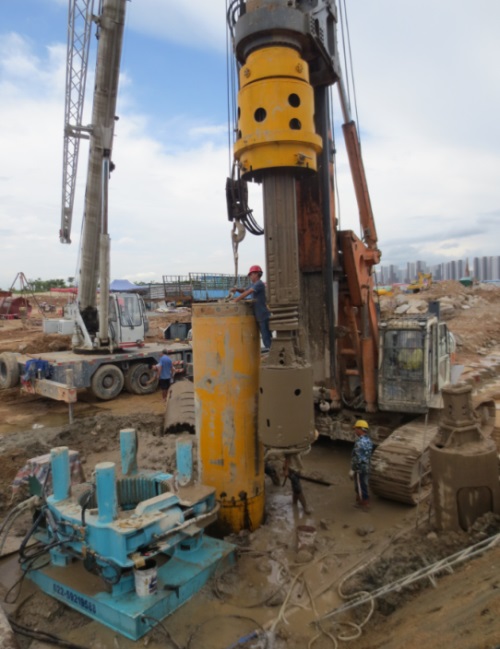

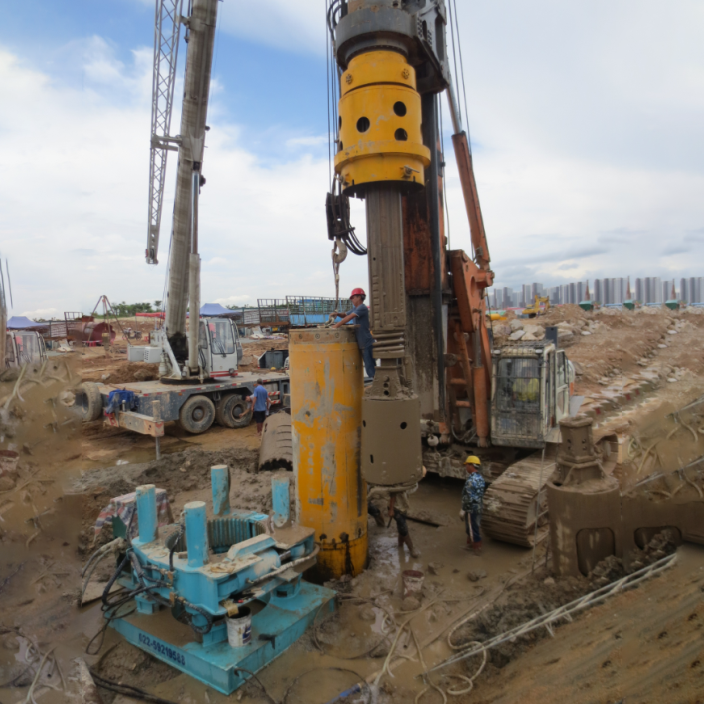

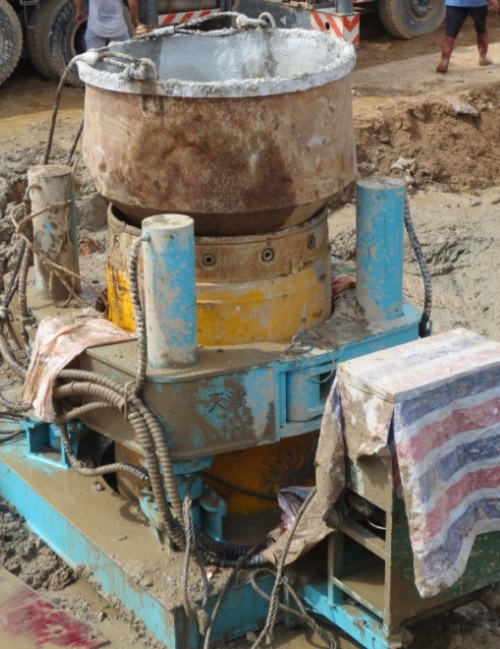

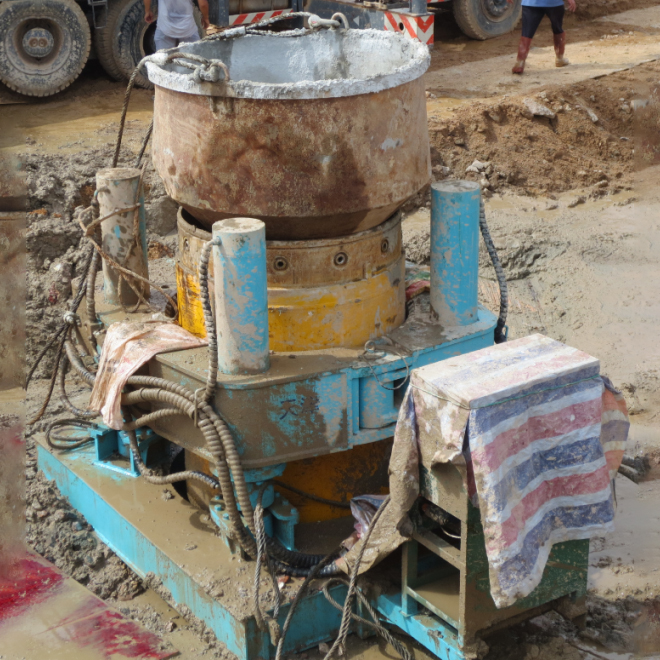

The B1200 full hydraulic extractor is the auxiliary equipment for drilling rigs in various geotechnical drilling projects. It is suitable for cast-in-place pile, rotary jet drilling, anchor hole and other projects with pipe following drilling technology, and is used for pulling out drilling casing and drill pipe.

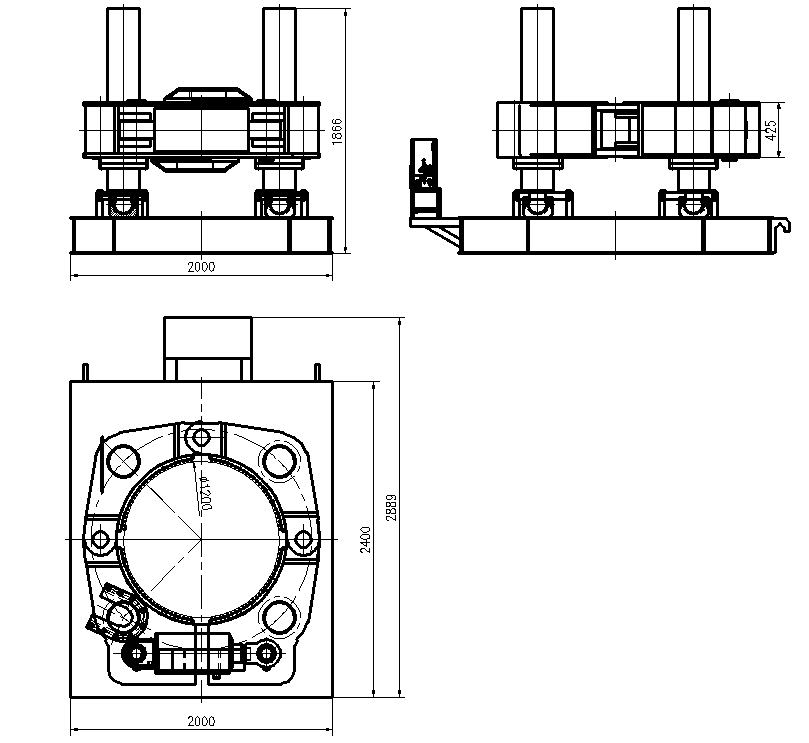

B1200 Extractor Specifications

Model	B1200
Casing extractor diameter	1200mm
System pressure	30MPa(max.)
Working pressure	30MPa
Four jack stroke	1000mm
Clamping cylinder stroke	300mm
Pull force	320ton
Clamp force	120ton
Total weight	6.1ton
Oversize	3000x2200x2000mm
Power pack	Motor power station
Rate power	45kw/1500

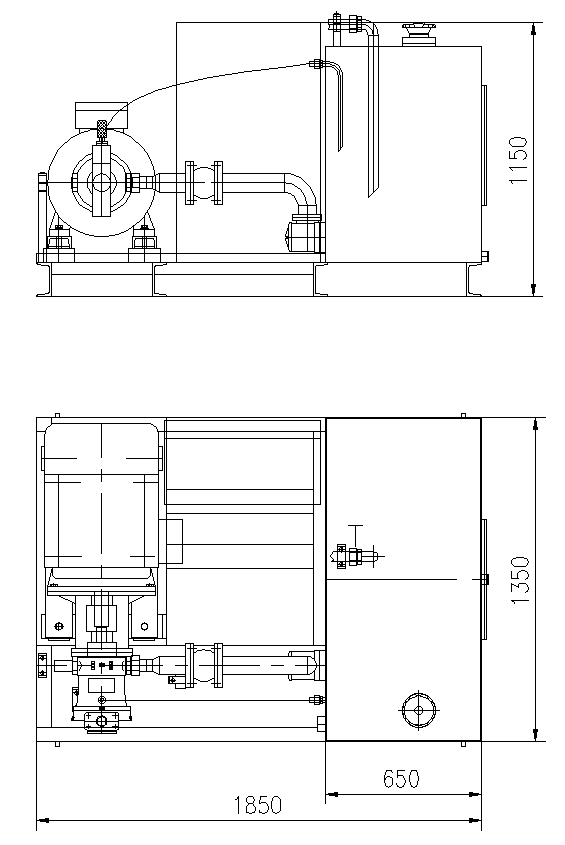

Power Station Specifications

Item		Motor power station
Engine		Three-phase asynchronous motor
Power	Kw	45
Rotation speed	rpm	1500
Fuel delivery	L/min	150
Working pressure	Bar	300
Tank capacity	L	850
Overall dimension	mm	185013501150
Weight (excluding hydraulic oil)	Kg	1200

Frequently Asked Questions

What is the primary function of the B1200 full hydraulic extractor?

The B1200 full hydraulic extractor is specifically designed for pulling drilling casings and drill pipes in various geotechnical projects, serving as essential auxiliary equipment for drilling rigs.

What types of projects are suitable for the B1200 extractor?

It is ideal for cast-in-place piles, rotary jet drilling, anchor holes, and other projects utilizing pipe following drilling technology.

What are the pull force and clamping force capacities of this equipment?

The B1200 delivers a powerful pulling force of 320 tons and a clamping force of 120 tons to ensure steady performance on demanding jobs.

What kinds of pipes can the hydraulic extractor handle?

It can smoothly and safely extract pipes of various materials and diameters (up to 1200mm casing extractor diameter) including condenser, rewaterer, and oil cooler pipes.

What type of power pack drives the B1200 system?

The unit is driven by a motor power station powered by a 45kW three-phase asynchronous motor running at 1500 rpm with a 850L tank capacity.

Does the machine generate significant noise or vibration during operation?

No, the B1200 is designed to operate easily and steadily without vibration, impact, or noise, offering a much safer and quieter alternative to traditional time-consuming methods.
