CE Certification ZF40 Loader-Type Piling Machine Manufacturers, Pricelist

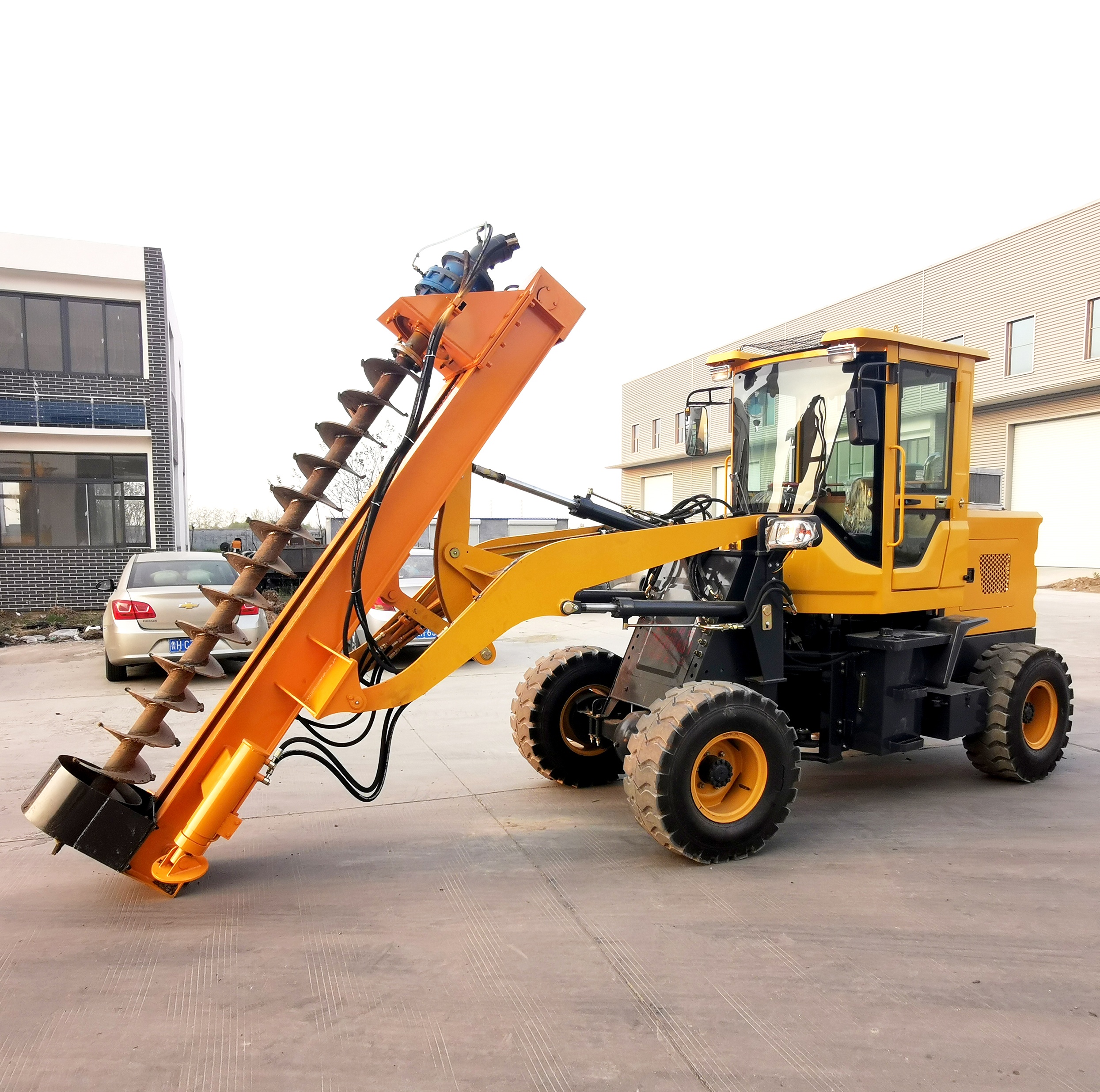

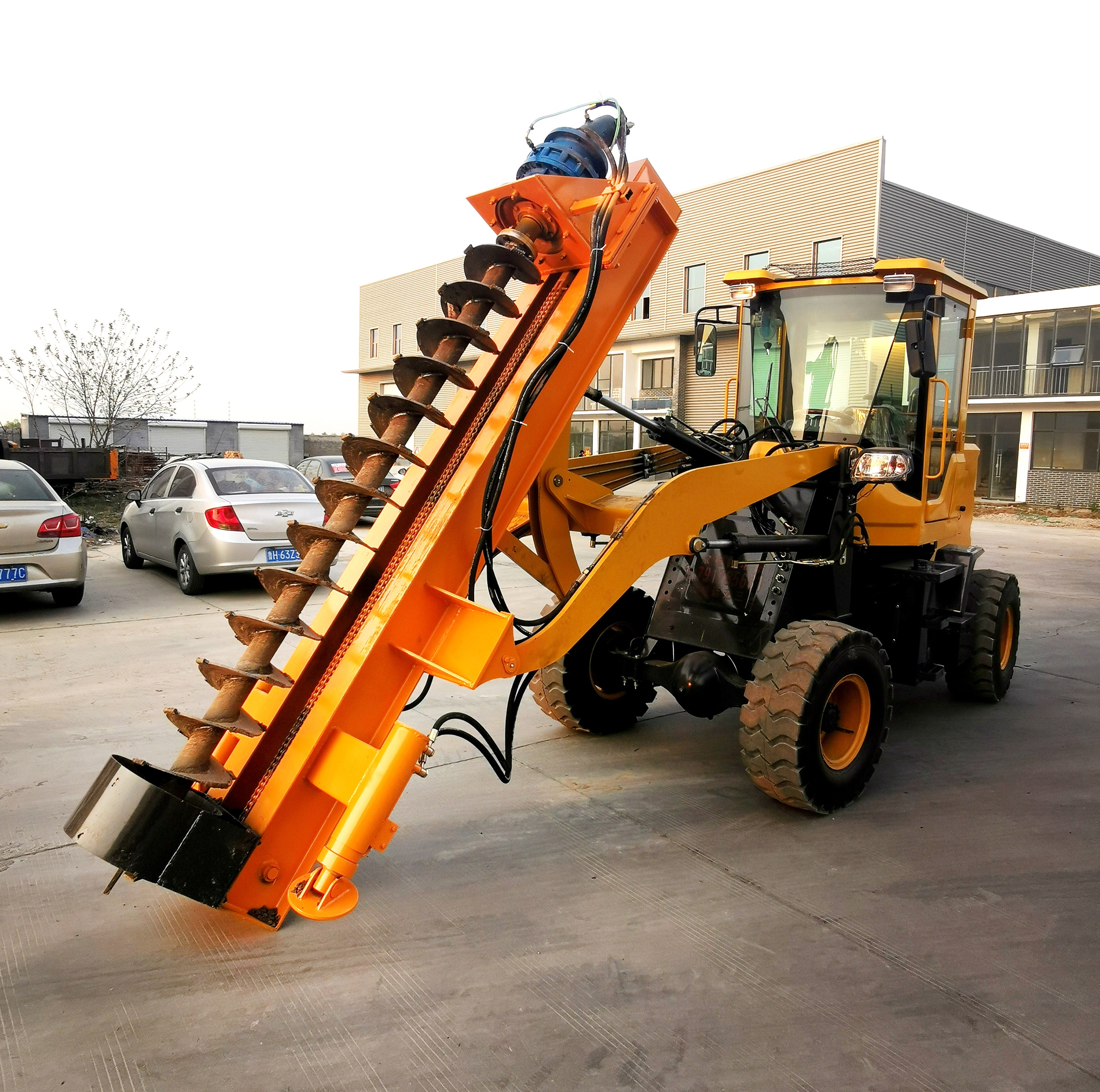

The loader-type piling machine is modified from a loader chassis and is primarily used for small-diameter, shallow-depth foundation projects, especially suitable for drilling and installing utility poles, photovoltaic piles, etc.

Send Inquiry

Product Description

The drilling system can be equipped with adjustable outriggers at the front to adapt to various terrains. When fitted with an alloy drill bit, it can penetrate laterite (red soil), frozen soil, highly weathered rock, and other geological conditions.

Working Principle

1
Rotate the Hydraulic Rotary Head
- The operator pushes the hydraulic control lever (for rotation) in the cab, driving the rotary head to rotate (clockwise or counterclockwise).
2
Apply Feed Pressure
- While the rotary head rotates, the operator pushes the feed pressure control lever to advance the drill.
3
Control the Rotary Motor
- The feed pressure lever regulates the slewing motor at the top of the pile frame.
4
Raise/Lower the Rotary Head
- The motor rotation drives the ascending and descending motion of the rotary head.

Technical Specifications

Engine model	4102 diesel engine
Engine power	73kw
Fuel consumption	10-12L/h
Undercarriage	Four-Wheel Drive
Drilling speed	1200mm/min
Max. drilling diameter	800mm
Drilling depth	3000mm
Hydraulic system flow	52-63ml/r
Braking method	Air-Release Spring Brake
Rotary head torque	6800 N.M（ Optional ）
Tyre	20.5-16
Cabin	Single-person cockpit with air conditioning
Outrigger	2
Transportation dimensions	650019002500mm
Total Weight	5T

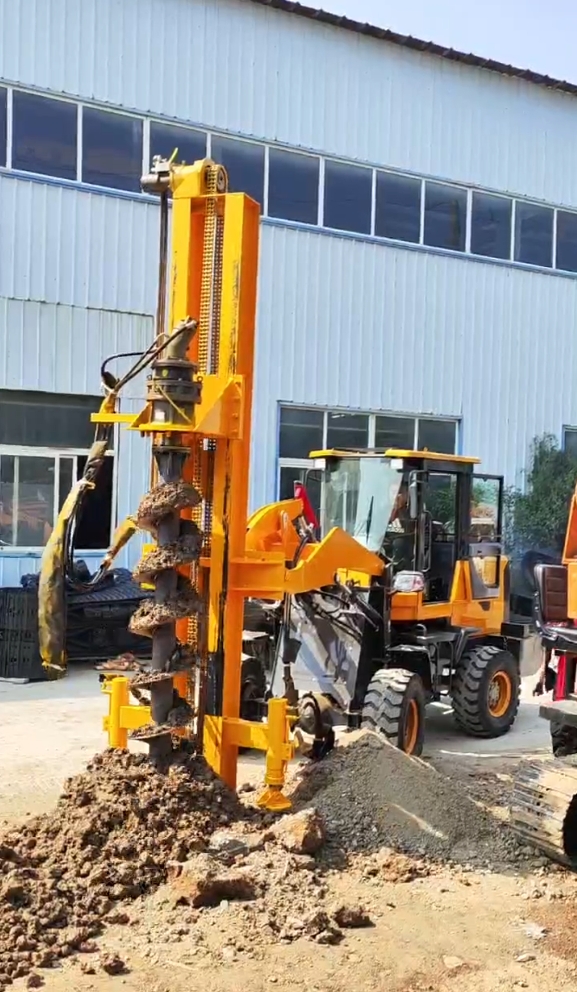

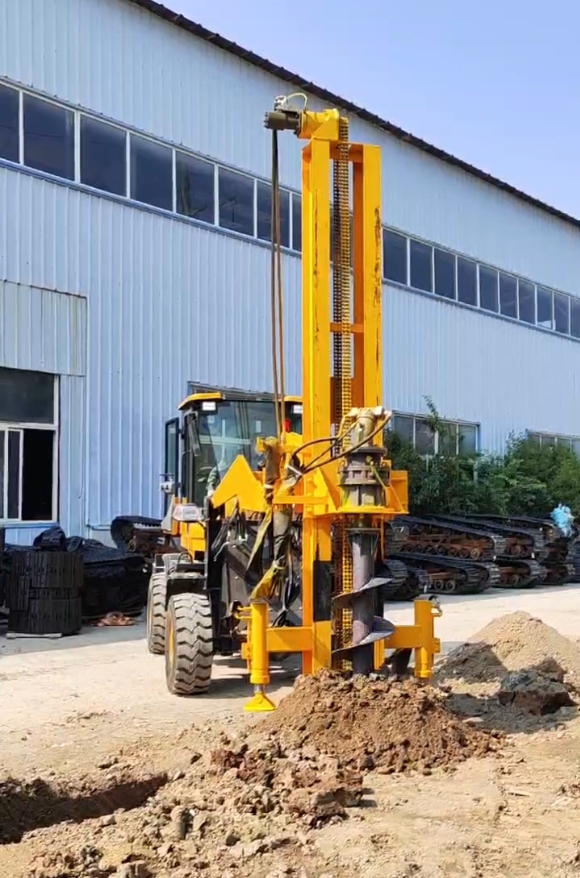

Product Gallery

Frequently Asked Questions

Q: Which engine is equipped in this drilling system?

A: The drilling system is powered by a high-efficiency 4102 diesel engine, which delivers a power output of 73kw.

Q: What is the drilling speed and maximum capability of the machine?

A: It features a drilling speed of 1200mm/min, reaching a maximum drilling depth of 3000mm and a maximum drilling diameter of 800mm.

Q: What types of ground conditions can this drilling rig handle?

A: With an alloy drill bit, it can easily penetrate laterite (red soil), frozen soil, highly weathered rock, and other challenging geological formations.

Q: What are the cabin features and undercarriage specifications?

A: The machine is built on a Four-Wheel Drive undercarriage and features a comfortable single-person cockpit equipped with air conditioning.

Q: What is the fuel consumption rate of the engine?

A: The 4102 diesel engine runs with an average fuel consumption of approximately 10 to 12 liters per hour.

Q: How is the drilling rotary head controlled?

A: The operator uses the hydraulic control levers inside the cab to rotate the rotary head, apply feed pressure, and regulate the slewing motor to control its ascending and descending motions.
