Using for urban construction, mining and multiple purpose, including side slope support bolt to deep foundation, motorway, railway, reservoir and dam construction. To consolidate underground tunnel, casting, pipe roof construction, and pre-stress force construction to large scale bridge. Replace foundation for ancient building. Work for mine exploding hole.

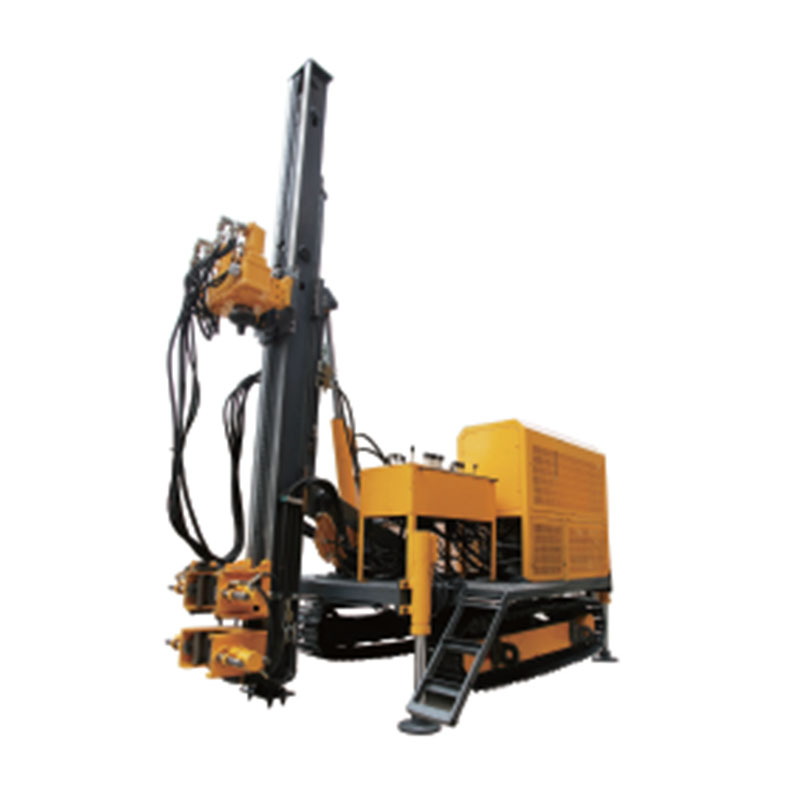

QDGL-2B anchor drilling rig is used for urban construction, mining and multiple purpose, including side slope support bolt to deep foundation, motorway, railway, reservoir and dam construction. To consolidate underground tunnel, casting, pipe roof construction, and pre-stress force construction to large scale bridge. Replace foundation for ancient building. Work for mine exploding hole.
| Model | Hydraulic drive drilling head rig | |||
|---|---|---|---|---|
| Fundamental parameters | Drilling depth | 20-140m | ||
| Drilling diameter | 300-110mm | |||
| Overall dimension | 4300*1700*2000mm | |||
| Total weight | 4400kg | |||
| Rotation unit speed and torque | High speed | 0-84rpm | 3400Nm | |
| 0-128rpm | 2700Nm | |||
| Low speed | 0-42rpm | 6800Nm | ||
| 0-64rpm | 5400Nm | |||
| Rotation unit feeding system | Type | single cylinder, chain belt | ||
| Lifting force | 63KN | |||
| Feeding force | 35KN | |||
| Lifting speed | 0-4.6m/min | |||
| Rapid lifting speed | 32m/min | |||
| Feeding speed | 0-6.2m/min | |||
| Rapid feeding speed | 45m/min | |||
| Feeding stroke | 2700mm | |||
| Mast displacement system | Mast move distance | 965mm | ||
| Lifting force | 50KN | |||
| Feeding force | 34KN | |||
| Clamp holder | Clamping range | 50-220mm | ||
| Chuck power | 100KN | |||
| Unscrew machine system | Unscrew torque | 7000Nm | ||
| Crawler chaise | Crawler side driving force | 5700N.m | ||
| Crawler travel speed | 1.8km/h | |||
| Transit sloping angle | 25° | |||
| Power (electric motor) | Model | Y250M-4-B35 | ||
| Power | 55KW | |||
Full hydraulic control, easy to operate, easy to move, good mobility, time-saving and labor-saving.
The rotary device of the drilling rig is driven by double hydraulic motors with large output torque, which improves the drilling stability of the drilling rig.
It can be equipped with a new angle changing mechanism to make the hole more convenient and the adjustment range larger, which can reduce the requirements of the working face.
The cooling system is optimized to ensure the working temperature of the hydraulic system is between 45 and 70 ℃.
It is equipped with a pipe following drilling tool, which is used to protect the wall of casing in unstable formation, and the conventional ball tooth bit is used to finish the hole. High drilling efficiency and good hole forming quality.
In addition to the crawler chassis, clamping shackle and rotary table, the rotary jet module can be selected to make the rig more suitable for engineering construction.
Main drilling methods: DTH hammer conventional drilling, spiral drilling, drill pipe drilling, casing drilling, drill pipe casing compound drilling.

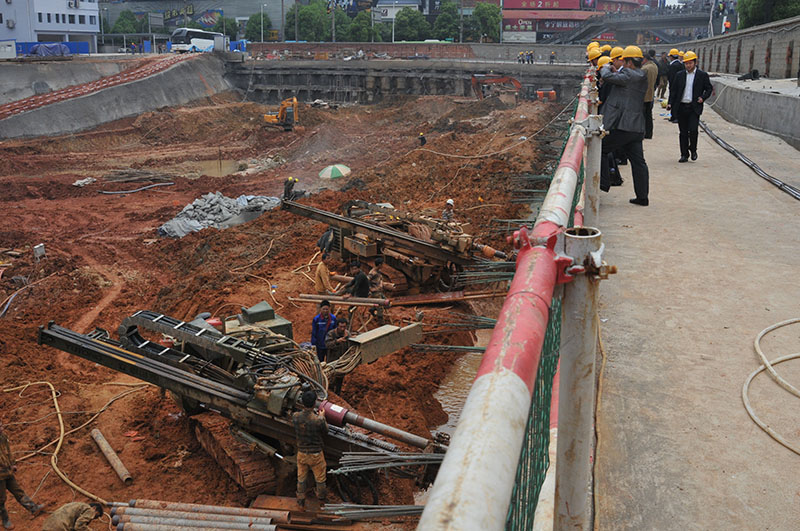

This rig is designed for multiple purposes including urban construction, mining, side slope support bolt to deep foundation, motorway, railway, reservoir, dam construction, consolidating underground tunnels, casting, pipe roof construction, pre-stress force construction for large scale bridges, replacing foundations for ancient buildings, and mine exploding holes.
The QDGL-2B supports a drilling depth range of 20 to 140 meters and a drilling diameter range of 110mm to 300mm, depending on geological conditions and specific drilling setups.
It supports multiple drilling methods including DTH (Down-The-Hole) hammer conventional drilling, spiral drilling, drill pipe drilling, casing drilling, and drill pipe casing compound drilling.
The hydraulic cooling system is optimized to dynamically control temperatures, ensuring that the working temperature of the hydraulic fluid consistently remains stable between 45℃ and 70℃ during continuous operation.
The rig is powered by an electric motor (Model Y250M-4-B35) with a rated power of 55KW. The total weight of the equipment is 4400kg, and its overall dimensions are 4300*1700*2000mm.
