China SPA5 Plus 2650mm Concrete Pile Head Cutter machine Quotes, Companies

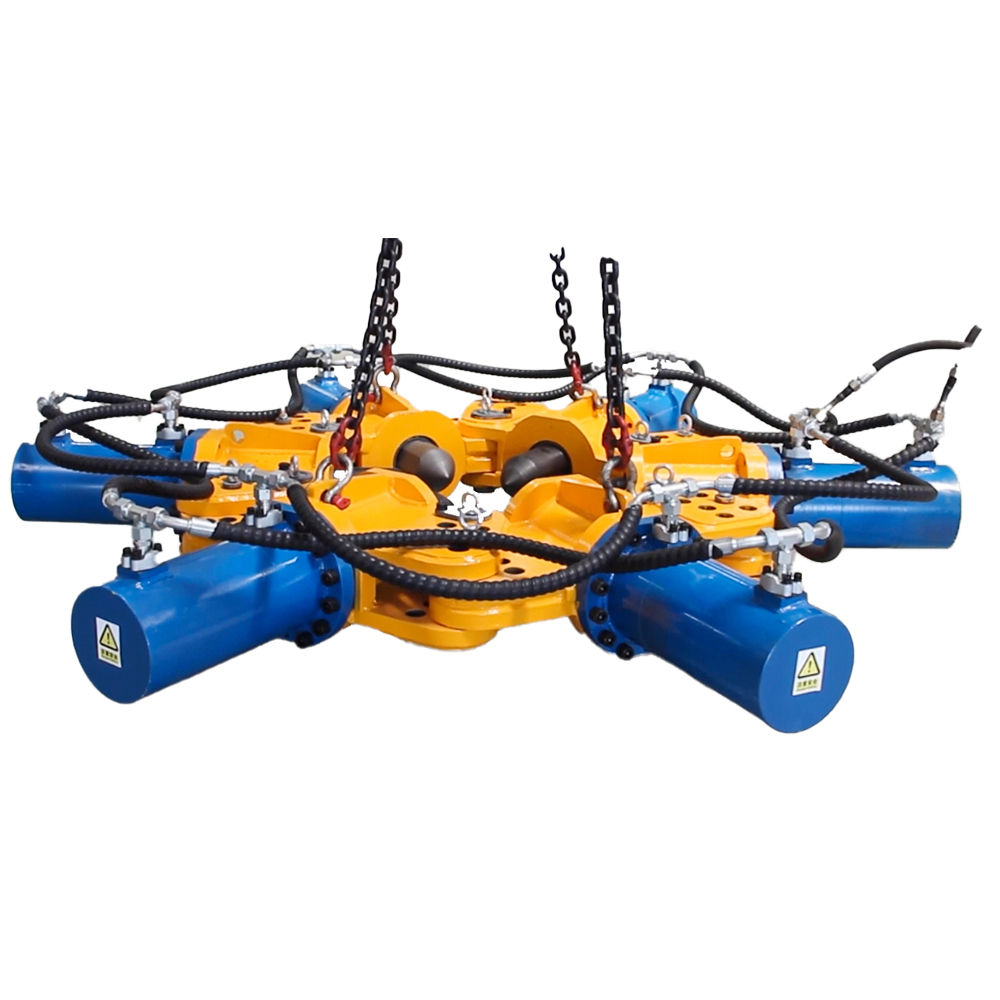

SPA5 Plus pile cutter is fully hydraulic, the diameter range of pile cutting is 250-2650mm, its power source can be hydraulic pump station or mobile machinery such as excavator. The SPA5 Plus pile cutter is modular and easy to assemble, disassemble and operate.

Send Inquiry

Product Description

Specification of SPA5 Plus hydraulic pile cutter (a group of 12 modules)

Model	SPA5 Plus
Range of Pile diameter (mm)	Φ 250 - 2650
Maximum Drill rod pressure	485kN
Maximum stroke of hydraulic cylinder	200mm
Maximum pressure of hydraulic cylinder	31.5MPa
Maximum flow of single cylinder	25L/min
Cut the number of pile/8h	30-100
Height for cutting pile each time	≤300mm
Supporting the digging machine Tonnage (excavator)	≥15t
One-piece module weight	210kg
One-piece module size	895x715x400mm
Work status dimensions	Φ2670x400
Total pile breaker weight	4.6t

Key Features & Advantages

High pile cutting efficiency

A piece of equipment can break 40~50 pile heads in 8 hours of continuous operation, while a worker can only break 2 pile heads in 8 hours, and for pile foundations with concrete strength greater than C35, at most 1 pile per day can be broken.

Low-carbon and environmentally friendly

The pile cutting operation is fully hydraulically driven, presenting low noise, no disturbance to local areas, and minimal dust hazard during construction.

High versatility

The modular design adapts to various pile diameters and concrete strength changes by adjusting the number of modules and hydraulic strength. Connected by simple pins, they are easy to maintain. Diversified power sources allow operation via excavator or hydraulic pump system, with a retractable hanging chain design meeting multi-terrain demands.

Easy operation and high safety

Operations are managed mainly via remote control of the construction manipulator, keeping workers safely away from the pile cutting zone. Operators require only simple training to begin work.

Description: SPA5 Plus pile cutter machine is fully hydraulic with a pile cutting diameter range of 250-2650mm. Its power source can be a hydraulic pump station or mobile machinery such as an excavator. The SPA5 Plus pile cutter is modular, making it easy to assemble, disassemble, and operate.

Applications Suitable for chiseling of various round and square pile heads with pile diameters of 0.8~2.5m and concrete strength ≤ C60, especially for projects with high requirements for construction periods, dust control, and noise reduction.

Process principle The power source of the hydraulic pile cutting machine generally adopts a fixed pump station or movable construction machinery (such as an excavator).

With economic development, traditional manual piling using air picks can no longer meet the efficiency demands of modern foundation construction for bridges and roadbeds. The hydraulic pile cutter construction method offers major advantages in saving labor, ensuring safety, and enhancing output quality. Implementing this construction method reduces noise and dust hazards, safeguarding workers and meeting modern industry development standard requirements.

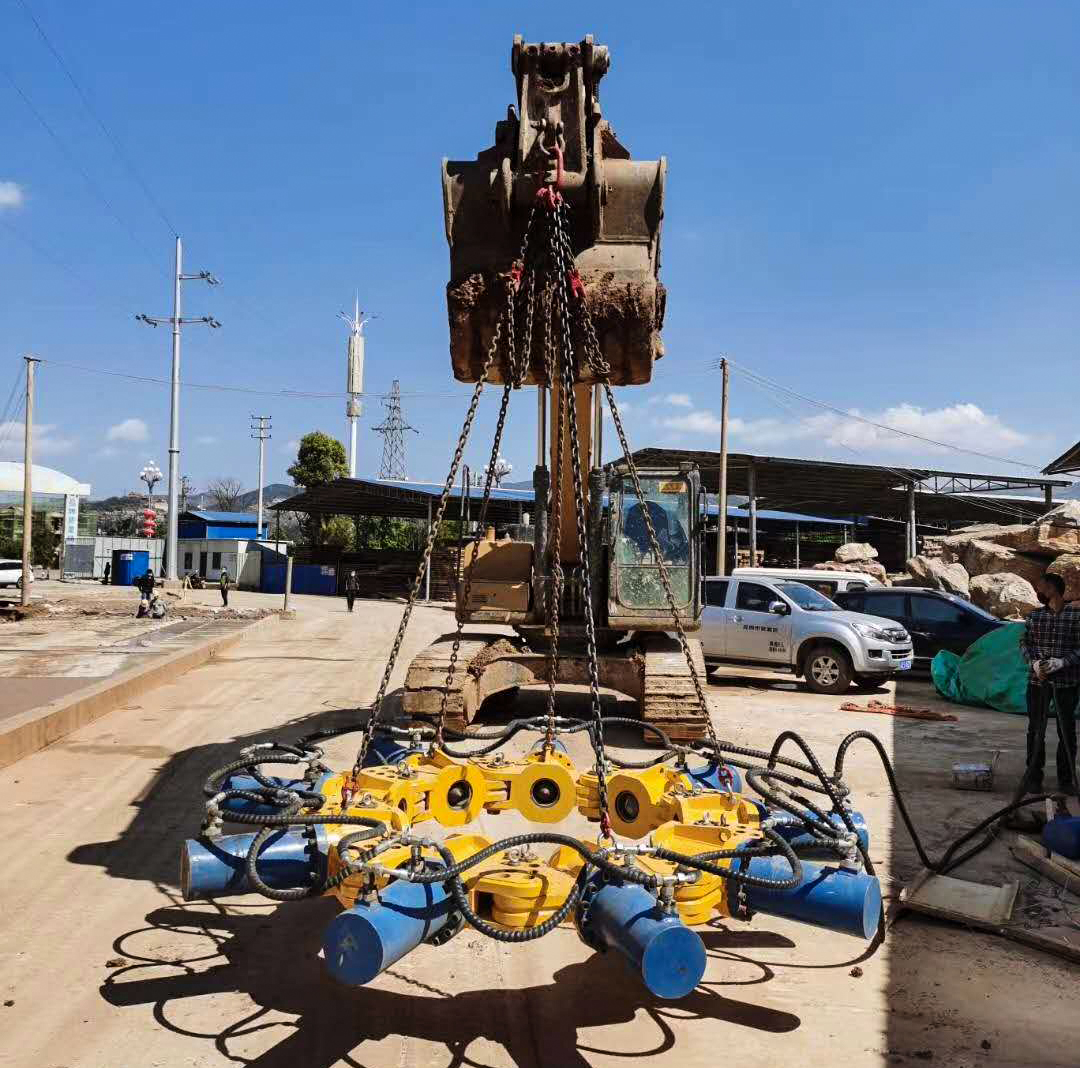

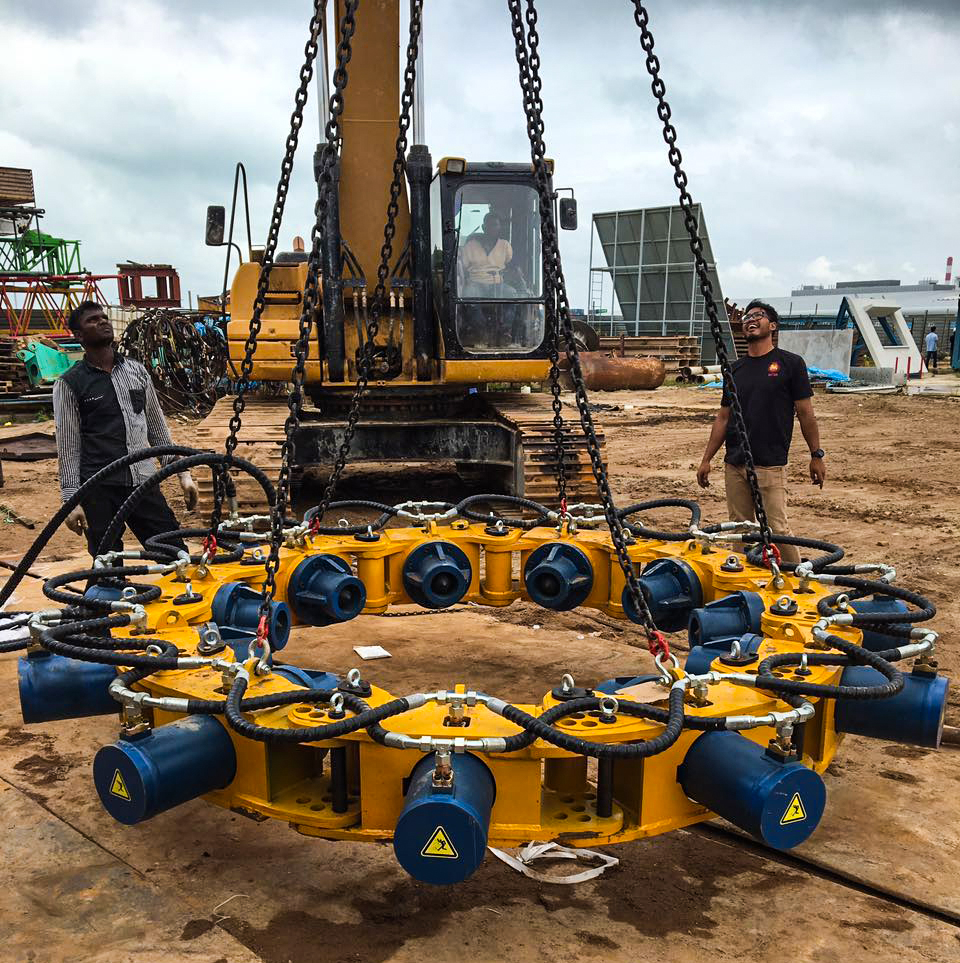

Operational Showcase

Construction Parameters

Module numbers	The diameter range (mm)	Platform weight	Total pile breaker weight (kg)	Outline size(mm)
7	250 - 450	15	1470	Φ1930×400
8	400 - 600	15	1680	Φ2075×400
9	550 - 750	20	1890	Φ2220×400
10	700 - 900	20	2100	Φ2370×400
11	900 - 1050	20	2310	Φ2520×400
12	1050 - 1200	25	2520	Φ2670×400
13	1200-1350	30	2730+750	3890 (Φ2825) ×400
14	1350-1500	30	2940+750	3890 (Φ2965)×400
15	1500-1650	35	3150+750	3890 (Φ3120)×400
16	1650-1780	35	3360+750	3890 (Φ3245) x400
17	1780-1920	35	3570+750	3890 (Φ3385)×400
18	1920-2080	40	3780+750	3890(Φ3540) ×400
19	2080-2230	40	3990+750	3890(Φ3690) ×400
20	2230-2380	45	4220+750	3890(Φ3850) ×400
21	2380-2500	45	4410+750	Φ3980×400
22	2500-2650	50	4620+750	Φ4150×400

Frequently Asked Questions

What is the pile diameter cutting range of the SPA5 Plus?

The SPA5 Plus hydraulic pile cutter operates within a pile diameter range of Φ 250mm to 2650mm, utilizing modular expansion configurations depending on the project requirements.

What power sources can drive the SPA5 Plus pile cutter?

The pile cutter can be driven either by a fixed hydraulic pump station or via mobile construction equipment, such as an excavator with a minimum tonnage rating of 15 tons.

What are the concrete strength limits for this hydraulic pile cutter?

This equipment is suitable for cutting both round and square pile heads with concrete compressive strength up to and including ≤ C60.

How does the modular design benefit operation and maintenance?

The modular structure lets workers easily adjust module counts to match specific pile sizes. Connected by pins, the units are highly accessible for fast maintenance, onsite adjustments, and transport.

Why is the hydraulic pile cutter preferred over manual breaking?

It features much higher efficiency (breaking 30-100 piles per 8 hours versus only 1-2 piles manually) and offers a low-noise, low-dust operation, which significantly improves site safety and reduces environmental disturbance.

Is special training required to operate the machine?

No, the remote operation setup from a safe distance is straightforward and simple. Manipulator operators require only brief, basic training to handle the controls safely and efficiently.
