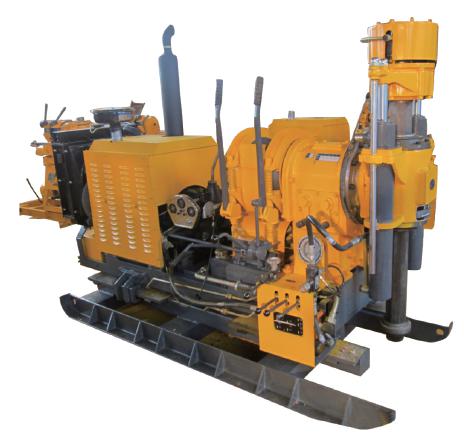

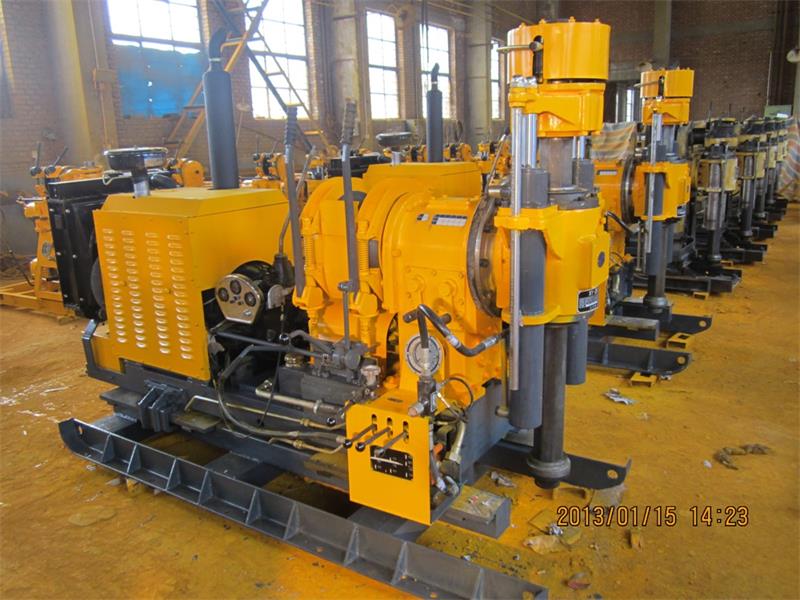

XY-3B drilling rig is type of vertical shaft drill, which can be powered by electric motor or diesel engine. It is mainly used for carbide bit drilling and diamond bit drilling of solid bed. It also can be used in exploring drilling, base or pile hole drilling.

Send Inquiry

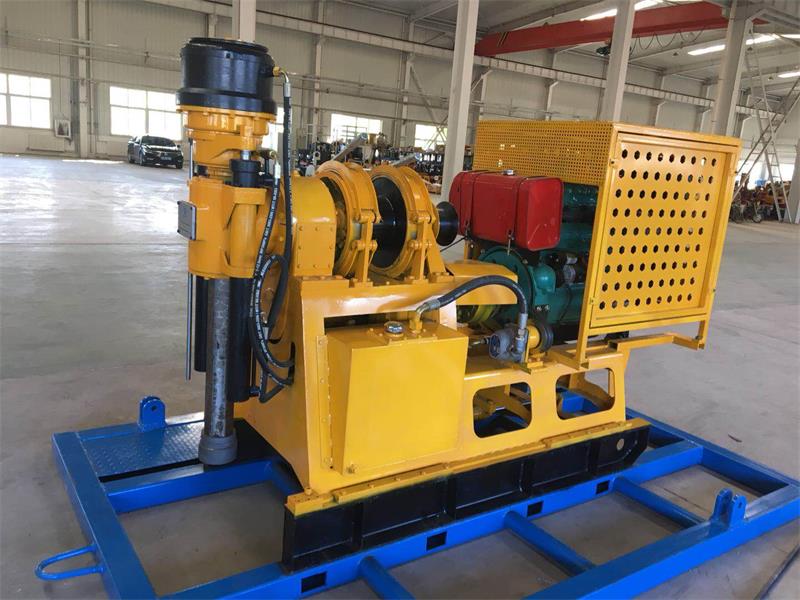

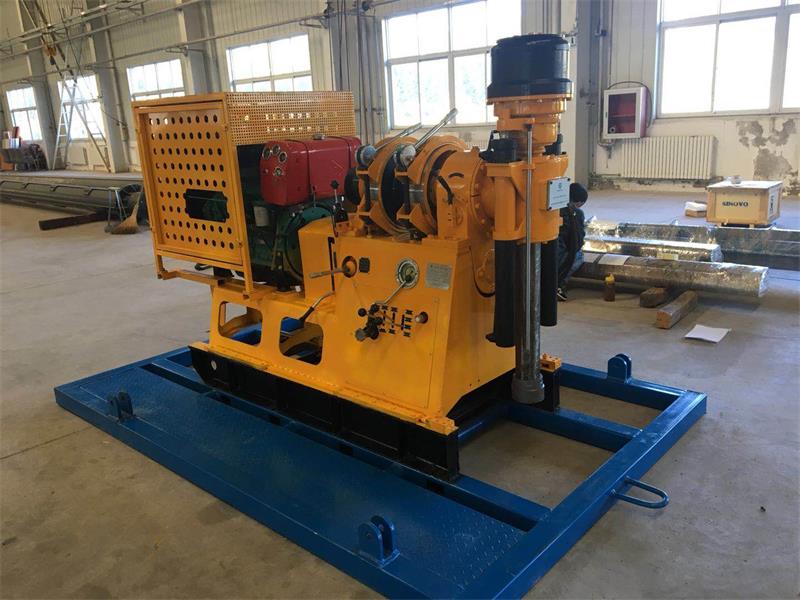

Product Description

Light in weight and compact size of mechanical transmission, major diameter of vertical shaft, long distance of support span and good rigidity, hexagonal Kelly bar ensure the torque transfer.
Through hydraulic oil pressure gauge at the hole-bottom, obtain information about feeding pressure.
Close levers, convenient operation.
High speed and suitable range of speed to meet varies need of small diameter diamond bit drilling, big carbide bit drilling and all kinds of the engineering holes.
Using the transmission and clutch of automobile to achieve the good generalization, and easy repairing and maintenance.
In hydraulic system, feeding pressure and speed can be adjusted while drilling to suitable for various stratums.
The spindle has the octagon section so give more torque.

Fundamental parameters	Drilling depth		Ф76mm	600m
			Ф273mm	150m
			Ф500mm	80m
			Ф800mm	50m
	Diameter of drilling rod			50,60mm
	Angle of drilling			70°-90°
Rotation unit	Co-rotation			75, 135, 160, 280, 355, 495, 615, 1030 r/min
	Reverse rotation			62, 160 r/min
	Spindle stroke			550mm
	Spindle pulling force			68KN
	Spindle feeding force			46KN
	Max. output torque			3550N.m
Hoist	Lifting speed			0.31, 0.62, 1.18, 2.0 m/s
	Lifting capacity			30KN
	Cable diameter			15mm
	Drum diameter			264mm
	Brake diameter			460mm
	Brake band width			90mm
Frame moving device	Frame moving stroke			410mm
	Distance away from hole			300mm
Hydraulic oil pump	Type			CBW-E320
	Rated pressure			8Mpa
	Rated flow			40L/min
Power unit	Type of diesel (CZ4102)	Rated power		35.3KW
		Rated speed		2000r/min
	Type of electrical motor (Y200L-4)	Rated power		30KW
		Rated speed		1450r/min
Overall dimension				250011001700mm
Rig weight	with diesel engine			1650kg
	with electric motor			1550kg

Frequently Asked Questions

Q1: What is the maximum drilling depth capability of this rig?

A: The maximum drilling depth depends on the drilling diameter: it can reach up to 600 meters with a Ф76mm diameter, 150 meters with Ф273mm, 80 meters with Ф500mm, and 50 meters with Ф800mm.

Q2: How does the hydraulic system improve drilling control?

A: The hydraulic system is equipped with a hole-bottom oil pressure gauge to monitor feeding pressure. Furthermore, both feeding pressure and speed can be adjusted during the drilling operation to adapt to different geological strata.

Q3: What are the rotation speed options for the spindle?

A: The spindle offers 8 stages of co-rotation speed ranging from 75 to 1030 r/min, and 2 stages of reverse rotation at 62 and 160 r/min. This wide range meets the needs of small diameter diamond bit drilling, big carbide bit drilling, and various engineering hole applications.

Q4: What power source options are compatible with this drilling rig?

A: You can choose between a CZ4102 diesel engine (rated at 35.3KW / 2000r/min) or a Y200L-4 electric motor (rated at 30KW / 1450r/min) depending on your project requirements.

Q5: What are the dimensions and total weight of the machinery?

A: The overall dimensions of the rig are 2500*1100*1700mm. The total weight is 1650kg when configured with the diesel engine, and 1550kg when configured with the electric motor.

Q6: How does the mechanical design optimize torque transfer and ease maintenance?

A: The rig features a hexagonal Kelly bar and an octagonal section spindle to optimize and increase torque transfer. Additionally, it integrates a standard automobile transmission and clutch system, ensuring easy repairs, convenient maintenance, and excellent components generalization.
