Cheap Used CRRC TR220D Rotary Drilling Rig for Sale Product, Products

There is a used CRRC TR220D rotary drilling rig for sale, with a drilling depth of 65m and a drilling diameter of 2000mm. This rotary drilling rig was manufactured in 2009, working hours are 7200 hours, with 4x440x14m interlocking kelly bar. Complete accessories, original Carter 330DL chassis, C-9 engine, 213kw power and good performance. The rotary drilling rig is currently located in Hebei, China and has been maintained. And the price is negotiable by contacting us.

Send Inquiry

Product Description

Used CRRC TR220D Rotary Drilling Rig for Sale

There is a used CRRC TR220D rotary drilling rig for sale, featuring a drilling depth of 65m and a drilling diameter of 2000mm.

This rotary drilling rig was manufactured in 2009, with 7200 working hours. It comes equipped with a 4x440x14m interlocking kelly bar, complete accessories, original Carter 330DL chassis, C-9 engine, 213kw power output, and delivers exceptional performance.

The rotary drilling rig is currently located in Hebei, China and has been meticulously maintained. The price is negotiable.

CRRC TR220D Rotary Drilling Rig Details 1

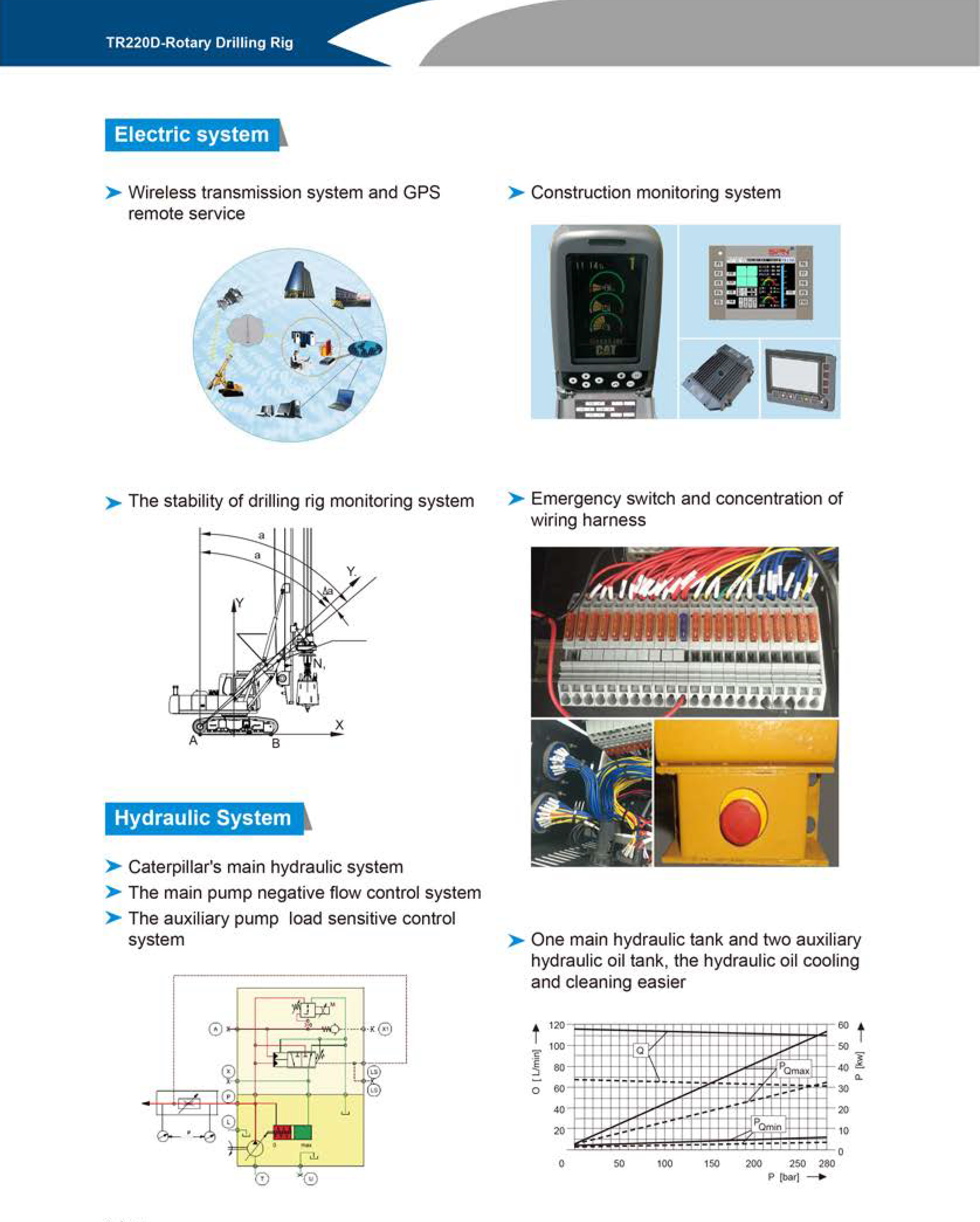

CRRC TR220D Rotary Drilling Rig Details 2

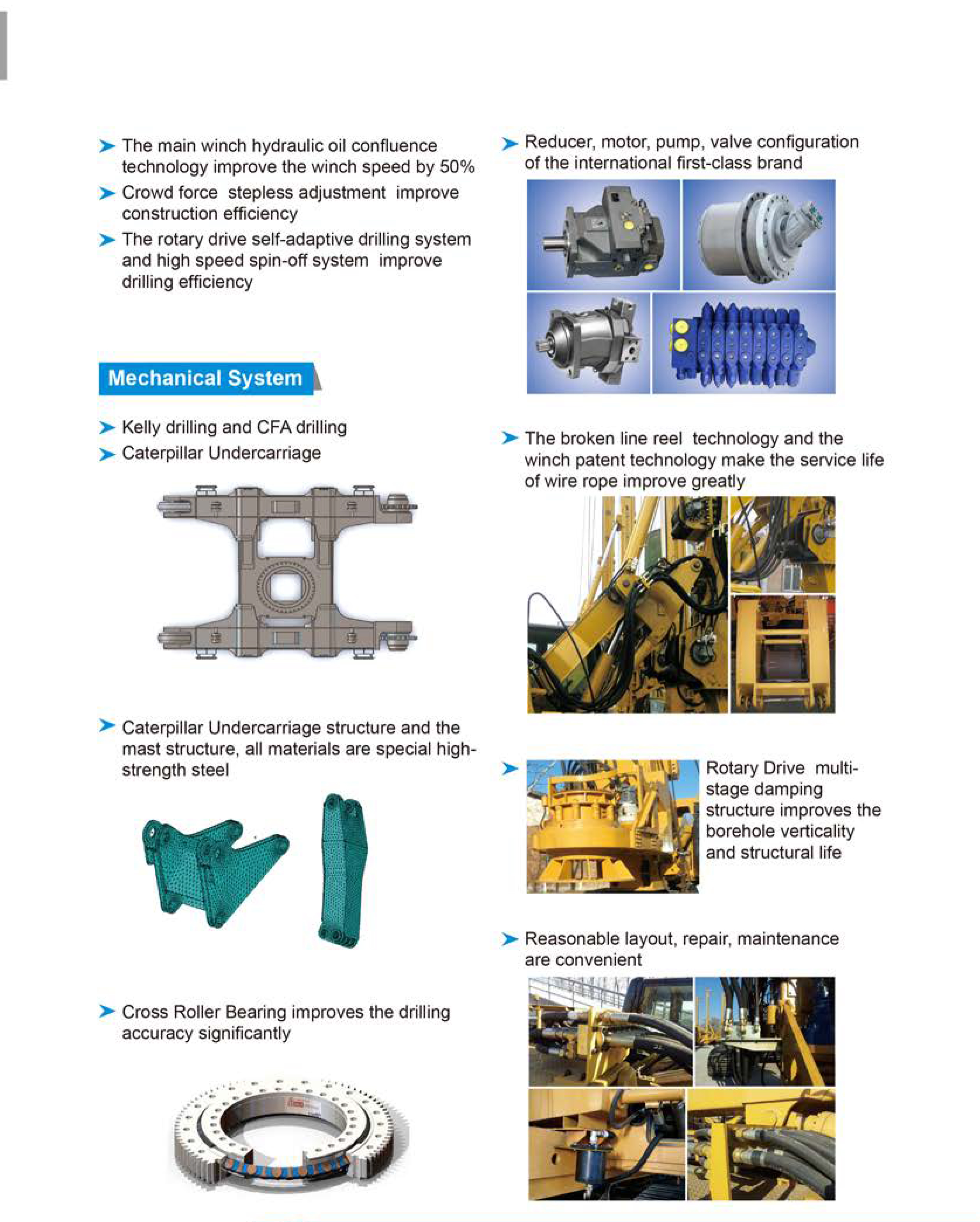

CRRC TR220D Rotary Drilling Rig Details 3

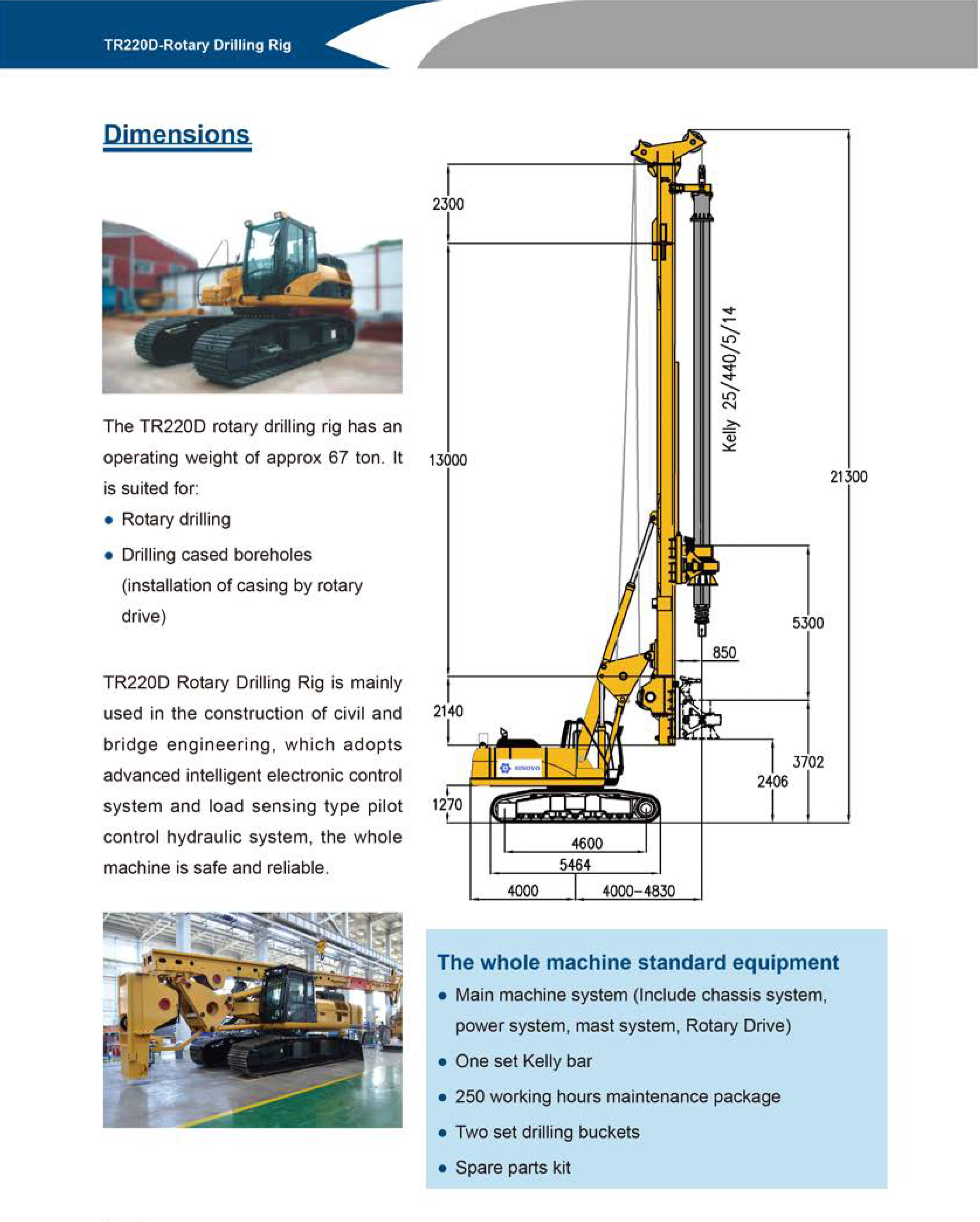

CRRC TR220D Rotary Drilling Rig Details 4

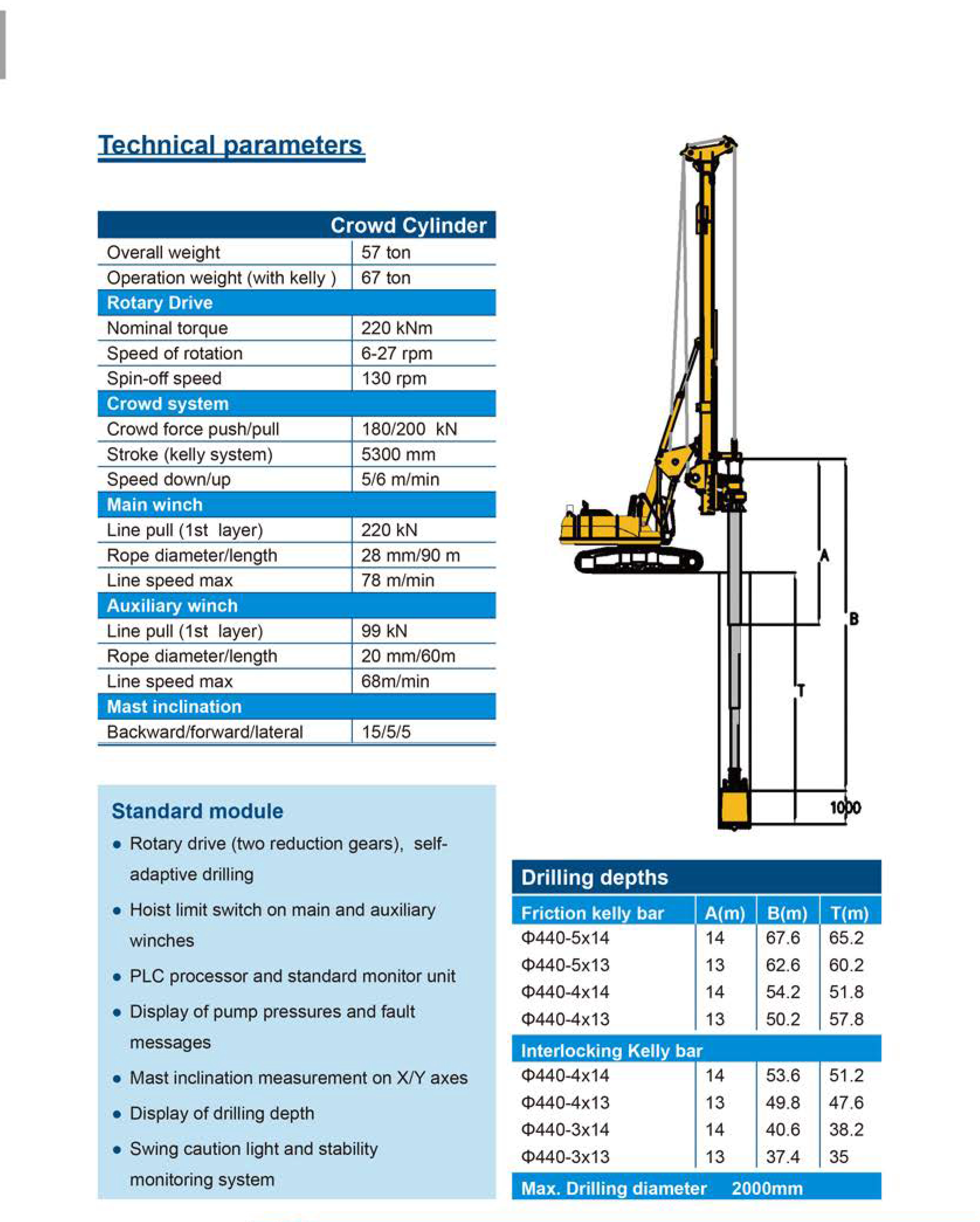

CRRC TR220D Rotary Drilling Rig Details 5

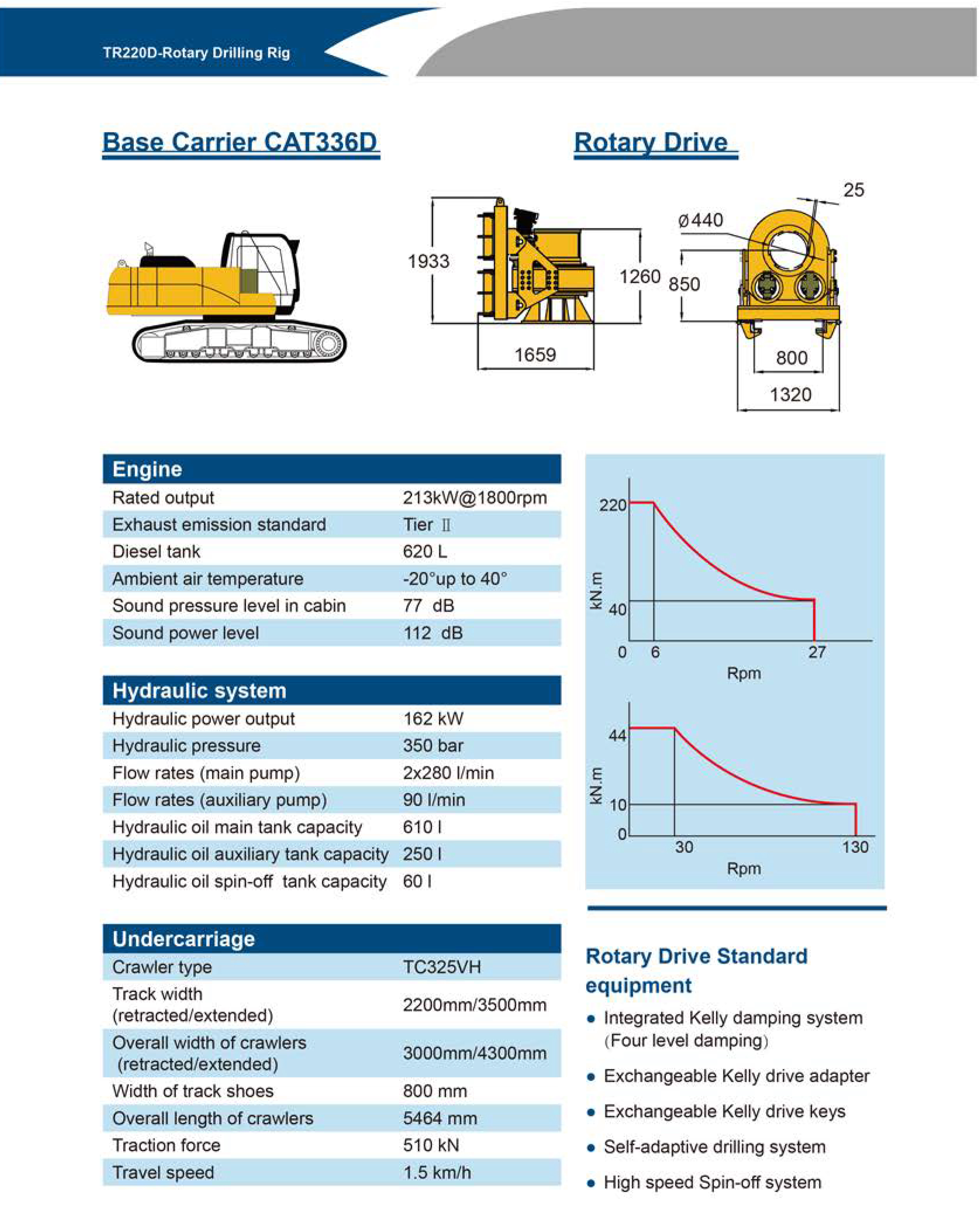

CRRC TR220D Rotary Drilling Rig Details 6

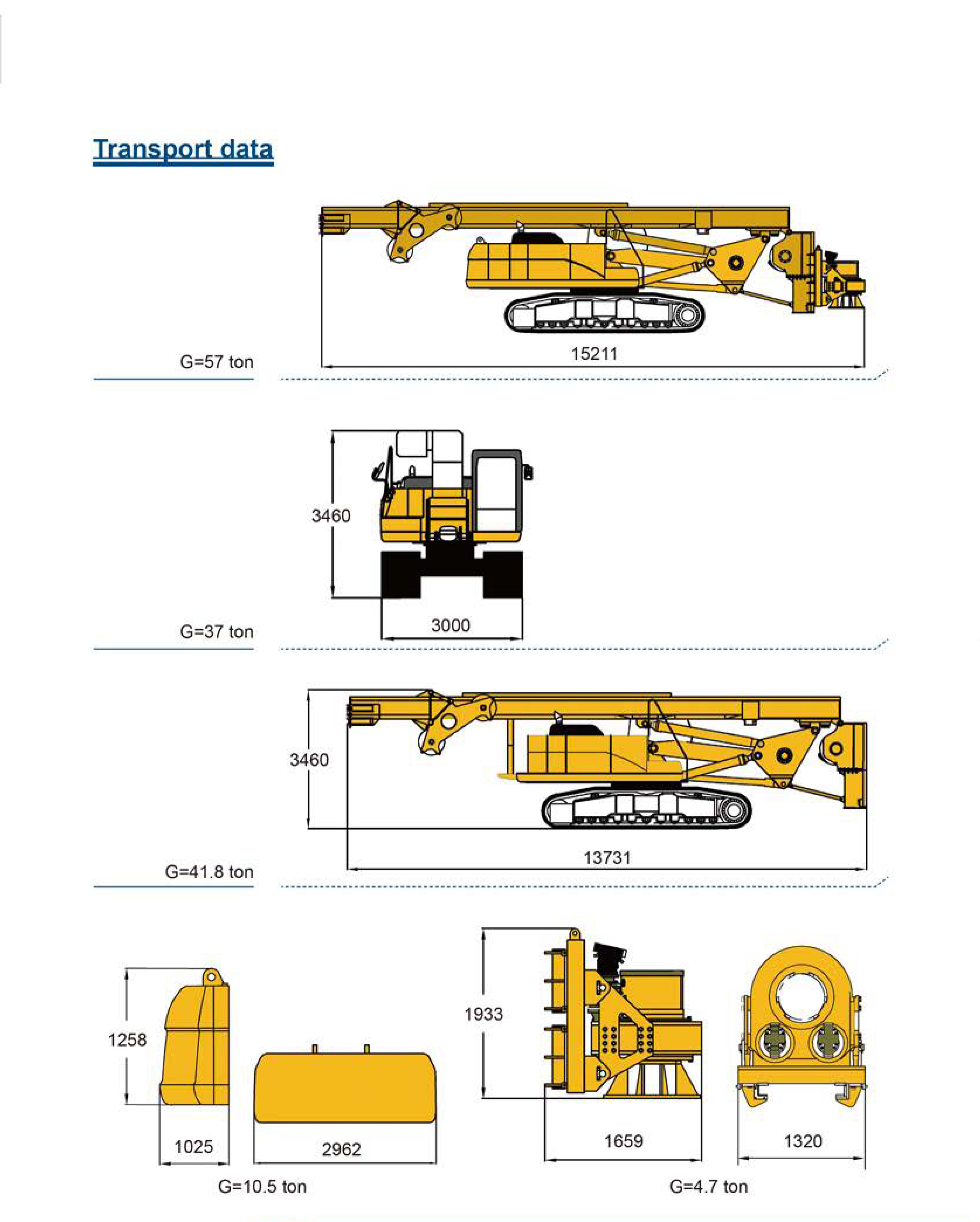

CRRC TR220D Rotary Drilling Rig Details 7

CRRC TR220D Rotary Drilling Rig Details 8

Application and Features

The TR220D rotary drilling rig has an operating weight of approximately 67 tons. It is highly suited for:

Rotary drilling
Drilling cased boreholes (installation of casing by rotary drive)

TR220D Rotary Drilling Rig is mainly used in the construction of civil and bridge engineering, adopting an advanced intelligent electronic control system and load-sensing pilot control hydraulic system. The whole machine is exceptionally safe and reliable.

Standard Equipment

Main machine system (Includes chassis system, power system, mast system, and Rotary Drive)
One set of Kelly bar

Technical Specifications

Parameter	Euro Standards	U.S. Standards
Max drilling depth	65m	217 ft
Max hole diameter	2000mm	79in
Engine model	CAT C-9	CAT C-9
Rated power	213KW	286HP
Max torque	220kN.m	162206lb-ft
Rotating speed	6～27rpm	6～27rpm
Max crowd force of cylinder	180kN	40464lbf
Max extraction force of cylinder	200kN	44960lbf
Max stroke of crowd cylinder	5300mm	209in
Max pulling force of main winch	200kN	44960lbf
Max pulling speed of main winch	78m/min	256ft/min
Wire line of main winch	Φ28mm	Φ1.1in
Max pulling force of auxiliary winch	110kN	24728lbf
Undercarriage	CAT 336D	CAT 336D
Track shoe width	800mm	32in
Width of crawler	3000-4300mm	118-170 in
Whole machine weight	65T	65T

Frequently Asked Questions

What is the drilling capacity of this used CRRC TR220D rotary drilling rig?

This CRRC TR220D model offers a maximum drilling depth of 65 meters (217 ft) and a maximum hole diameter of 2000mm (79 in).

What are the engine specifications of the TR220D rig?

The drilling rig is powered by a reliable CAT C-9 engine with a rated output power of 213 kW (286 HP).

What undercarriage and chassis does this rig use?

The machine features an original Carter 330DL chassis with a CAT 336D undercarriage, ensuring strong stability and off-road mobility on construction sites.

What is the manufacturing year and working hour history of this unit?

This used rotary drilling rig was manufactured in 2009 and has accumulated a total of 7,200 operating hours.

For what construction applications is this rig most suitable?

The TR220D is ideal for civil engineering and bridge construction. It supports standard rotary drilling operations as well as drilling cased boreholes with casing installation.

Where is the equipment currently located and what is included in the package?

The rig is located in Hebei, China, and comes with a 4x440x14m interlocking kelly bar and complete standard accessories. It has been well maintained and is ready for negotiation.
