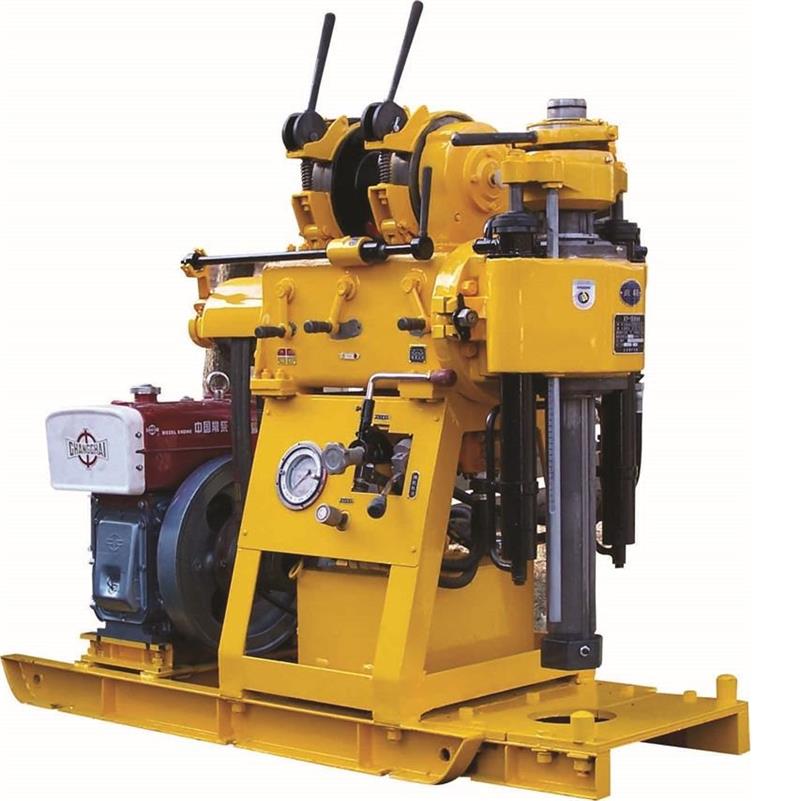

Being equipped with ball type holding device and hexagonal Kelly, it can accomplish no-stopping working while lifting the rods, thus drilling efficiency increase. Operate conveniently, secure and reliable.
Through the pressure indicator of bottom hole, the well condition can be observed easily. Close levers, convenient operation.
The hoist spindle is supported by the ball bearing, it could eliminate the event of the supporting bearing burned-out. Under the spindle head, there is a well top plate for unscrewing the rods conveniently.
Compact size and small weight. Easy to dismantle and transport, adapt to work in plain and mountain areas.
The octagon shape section spindle can give more torque.
| Fundamental Parameters | Drilling depth | 200, 150, 100, 70, 50, 30m |
| Hole diameter | 59, 75, 91, 110, 130, 150mm | |
| Rod diameter | 42mm | |
| Angle of drilling | 90°-75° | |
| Rotation Unit | Spindle speed (4 shift) | 71, 142, 310, 620rpm |
| Spindle stroke | 450mm | |
| Max. feeding pressure | 15KN | |
| Max. lifting capacity | 25KN | |
| Max. Spindle lifting speed without load | 0.05m/s | |
| Max. Spindle downward without load | 0.067m/s | |
| Max. Spindle output torque | 1.25KN.m | |
| Hoist | Lifting capacity (single line) | 15KN |
| Drum speed | 19, 38, 84, 168rpm | |
| Diameter of the drum | 140mm | |
| Drum circumferential velocity (second layers) | 0.166, 0.331, 0.733, 1.465m/s | |
| Diameter of the wire rope | 9.3mm | |
| Brake diameter | 252mm | |
| Brake band broad | 50mm | |
| Hydraulic Oil Pump | Model | YBC-12/80 |
| Rated pressure | 8Mpa | |
| Flow | 12L/min | |
| Rated speed | 1500rpm | |
| Power Unit | Type of diesel (ZS1105) - Rated power | 12.1KW (2200rpm) |
| Type of diesel (ZS1105) - Rated rotating speed | 2200rpm | |
| Type of electrical motor (Y160M-4) - Rated power | 11KW (1460rpm) | |
| Type of electrical motor (Y160M-4) - Rated rotating speed | 1460rpm | |
| Overall Dimension | XY-1B | 1433*697*1273mm |
| XY-1B-1 | 1750*780*1273mm | |
| XY-1B-2 | 1780*697*1650mm | |
| Total Weight (not include power unit) |
XY-1B | 525kg |
| XY-1B-1 | 595kg | |
| XY-1B-2 | 700kg |

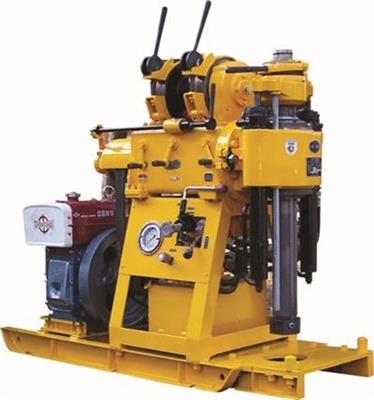

This equipment is designed for engineering geological explorations (for railways, highways, bridges, dams, etc.), geologic core drilling, and geophysical exploration. It is also suitable for drilling holes for small grouting, blasting operations, and small water wells.
The rated drilling depth of the rig is 150 meters, with support for levels of 200m, 150m, 100m, 70m, 50m, and 30m. The supported hole diameter ranges from 59mm to 150mm depending on the application.
The rig features a ball-type holding device and a hexagonal Kelly. This combination allows for continuous non-stop operation while lifting the drill rods, which significantly optimizes workflow and increases drilling efficiency.

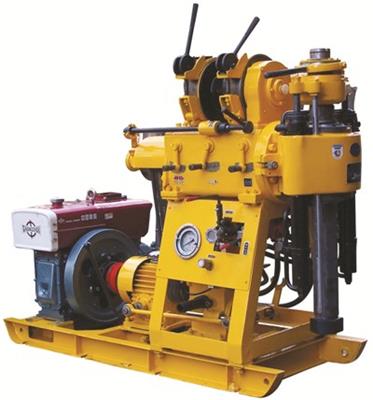

It can be configured with either a ZS1105 Diesel Engine (rated at 12.1KW / 2200rpm) or a Y160M-4 Electrical Motor (rated at 11KW / 1460rpm), giving you flexibility depending on field conditions.
The XY-1B model measures 1433*697*1273mm and weighs 525kg. The XY-1B-1 measures 1750*780*1273mm and weighs 595kg. The XY-1B-2 measures 1780*697*1650mm and weighs 700kg (weights do not include the power unit).
