High-Quality SPL800 Hydraulic wall Breaker Supplier, Exporters

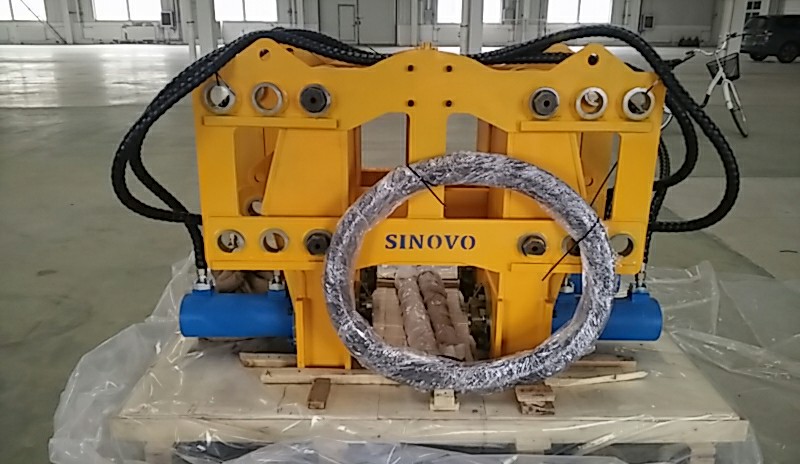

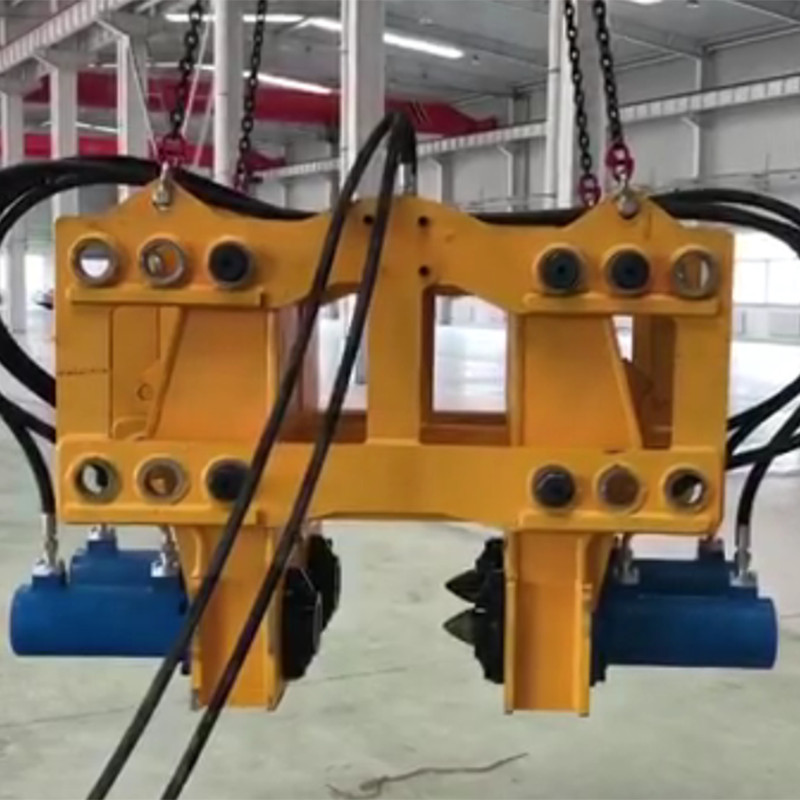

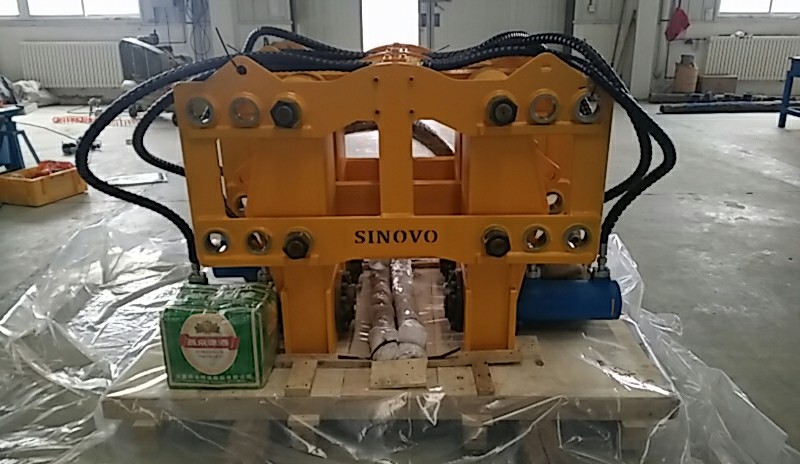

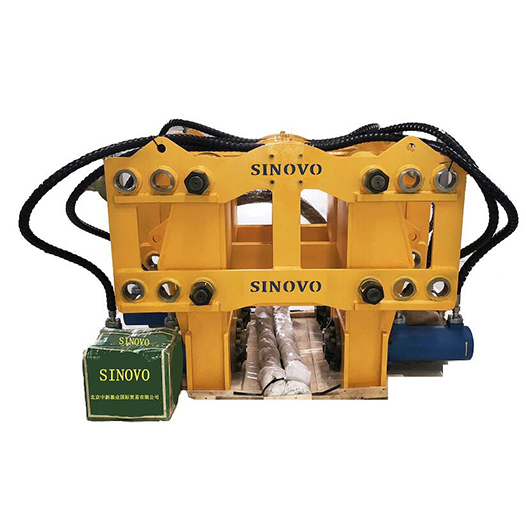

SPL800 Hydraulic Breaker for Wall Cutting is an advanced, efficient and time-saving wall breaker. It breaks wall or pile from both ends simultaneously by hydraulic system. The pile breaker is suitable for cutting off contiguous pile walls in high-speed rail, bridge and civil construction pile.

Send Inquiry

Product Description

The pile breaker feature at high efficiency and works continuously.

The wall breaker adopts hydraulic drive, can even be used in suburb due to its almost silent operation.

The main components are made of special materials and production processes, ensuring the long service lift of the breaker.

Operation and maintenance are very easy, and does not require special skills.

The operation safety is high. The breaking operation is mainly operated by the construction manipulator. No workers are needed near the breaking to ensure the construction safety.

Technical Specifications

Model	SPL800
Cut wall width	300-800mm
Maximum drill rod pressure	280kN
Maximum stroke of cylinder	135mm
Maximum pressure of cylinder	300bar
Maximum flow of single cylinder	20L/min
Number of cylinders on each side	2
Wall dimension	400*200mm
Supporting the digging machine tonnage (excavator)	≥7t
Wall breaker dimensions	176012701180mm
Total wall breaker weight	1.2t

Product Overview

This pile breaker needs to be mounted on fixed pump station or other movable construction machinery like an excavator. Generally speaking, the hydraulic breaker usually connects to a pump station in pile foundation construction of high-rise buildings. The total investment of equipment in this way is small. It is convenient for movement, which is suitable for the breaking of group of piles.

In other projects, this pile breaker is often connects to an excavator as the excavator attachments. Remove the bucket of excavator and make the hoisting chain of the hydraulic breaker is suspended at the connecting shaft between bucket and arm. Connect the two kinds of equipment, and then the hydraulic oil path of any cylinder of the excavator is connected to the pile breaker through the balance valve, drive the cylinder of pile breaker.

The combined pile breaker is easy to move and can operate in a wide area. It is suitable for the construction projects with scattered piles and long operation line.

Frequently Asked Questions

What applications is the SPL800 Hydraulic Breaker suitable for?

The SPL800 is ideal for cutting off contiguous pile walls in high-speed rail, bridge construction, and civil construction pile projects.

What is the range of cut wall width for the SPL800?

The equipment can handle a cut wall width ranging from 300mm to 800mm.

How is the pile breaker powered and operated?

It adopts a hydraulic drive system that breaks the wall or pile from both ends simultaneously. It can be connected to either a fixed pump station or movable construction machinery like an excavator.

What size of excavator is required to support this wall breaker?

It supports excavators with a minimum tonnage requirement of 7 tons or greater (≥7t).

Is the operation of the hydraulic breaker noisy?

No. The hydraulic drive allows for an almost silent operation, making it suitable for use even in suburban areas.

How is construction safety ensured during the breaking process?

The breaking operation is mainly managed by a construction manipulator, meaning no workers need to be near the immediate breaking area, maximizing safety.
