CE Certification SNR500 Water Well Drilling Rig Factories, Exporters

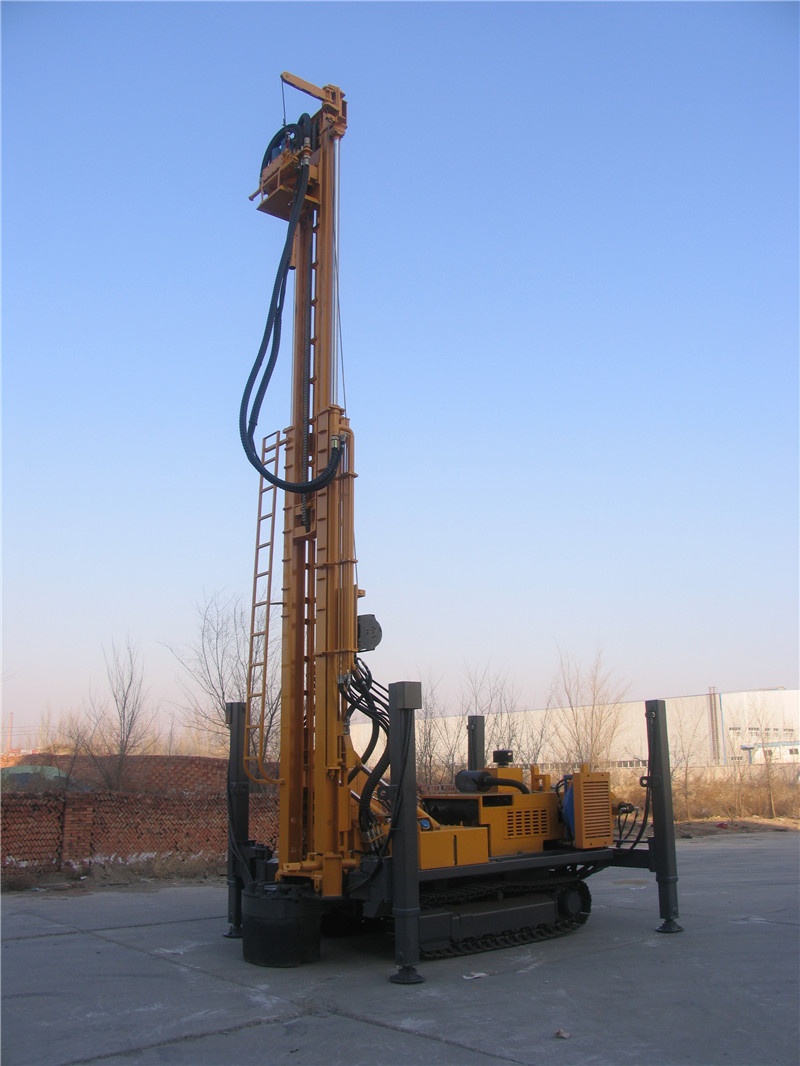

SNR500 drilling rig is a kind of medium and high efficient full hydraulic multifunctional water well drill rig for drilling up to 500m and is used for water well, monitoring wells, engineering of ground-source heat pump air-conditioner, blasting hole, bolting and anchor cable, micro pile etc. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. It can meet the drilling demand in different geological conditions and other vertical holes.
SNR500 drilling rig is a kind of medium and high efficient full hydraulic multifunctional water well drill rig for drilling up to 500m and is used for water well, monitoring wells, engineering of ground-source heat pump air-conditioner, blasting hole, bolting and anchor cable, micro pile etc. Compactness and solidity are the main characteristics of the rig which is designed to work with several drilling method: reverse circulation by mud and by air, down the hole hammer drilling, conventional circulation. It can meet the drilling demand in different geological conditions and other vertical holes.
The drilling machine is driven by diesel engine, and rotary head is equipped with international brand low-speed and large-torque motor and gear reducer, feeding system is adopted with advanced motor -chain mechanism and adjusted by double speed. Rotating and feeding system are controlled by hydraulic pilot control which can achieve step-less speed regulation. Breaking out and in drill rod, leveling the whole machine, winch and other auxiliary actions are controlled by hydraulic system. The structure of rig is designed to reasonable, which is easy to operate and maintenance.
Key Features & Advantages
1. Full Hydraulic Control
The speed, torque, thrust axial pressure, reverse axial pressure, thrust speed and lifting speed of the drilling rig can be adjusted at any time to meet the requirements of different drilling conditions and different construction technologies.
2. Top Drive Rotary Propulsion
It is convenient to take over and unload the drill pipe, shorten the auxiliary time, and is also conducive to follow-up drilling.
3. Multi-Function Drilling
All kinds of drilling techniques can be used, such as DTH, air/mud reverse circulation, cutting, cone, and pipe following drilling. It can install mud pump, foam pump, generator, and hoists based on client needs.
4. High Efficiency & Low Cost
Due to full hydraulic drive and top drive rotary propulsion, it has fast drilling speed and short auxiliary time. The down the hole hammer drilling technology in rock ensures high operation efficiency and lower single meter cost.

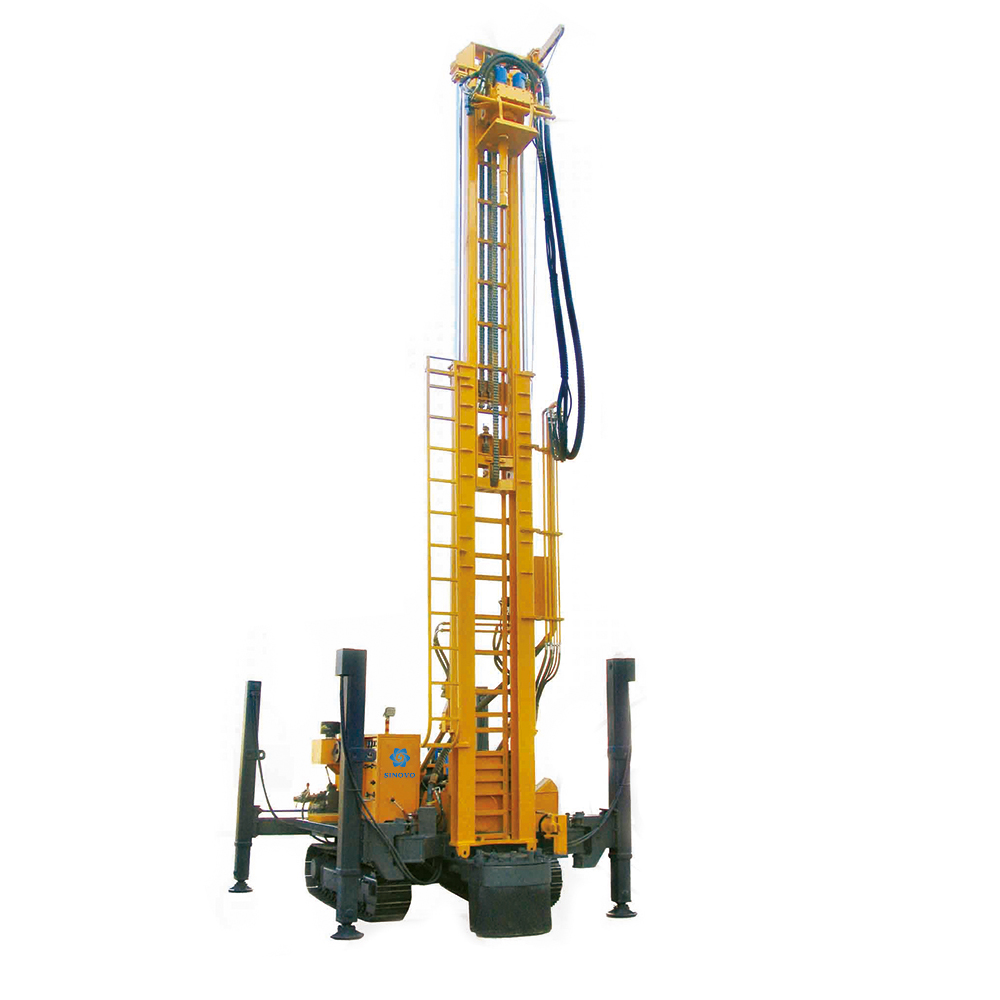

5. High Leg Crawler Chassis
The high outrigger is convenient for loading and transportation, allowing direct loading without a crane. Crawler walking is exceptionally suited for movement in muddy fields.
6. Oil Mist Eliminator
Equipped with an efficient and durable oil mist device and pump, ensuring that the high-speed running impactor is lubricated constantly to significantly extend its service life.
7. Adjustable Axial Pressure
Positive and negative axial pressure valves can be adjusted to ensure that the impactor obtains optimal matching pressure as drill pipe weight increases, maintaining higher impact efficiency.
8. Optional Rig Chassis

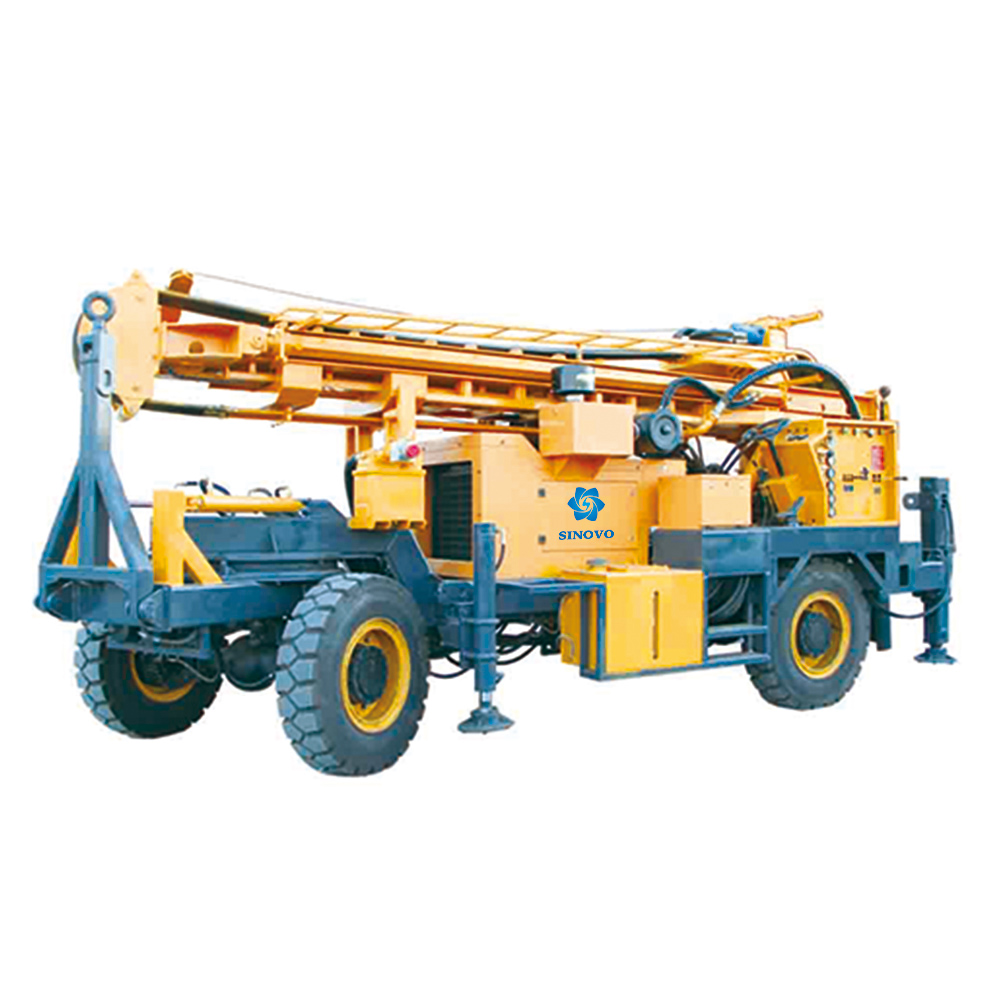

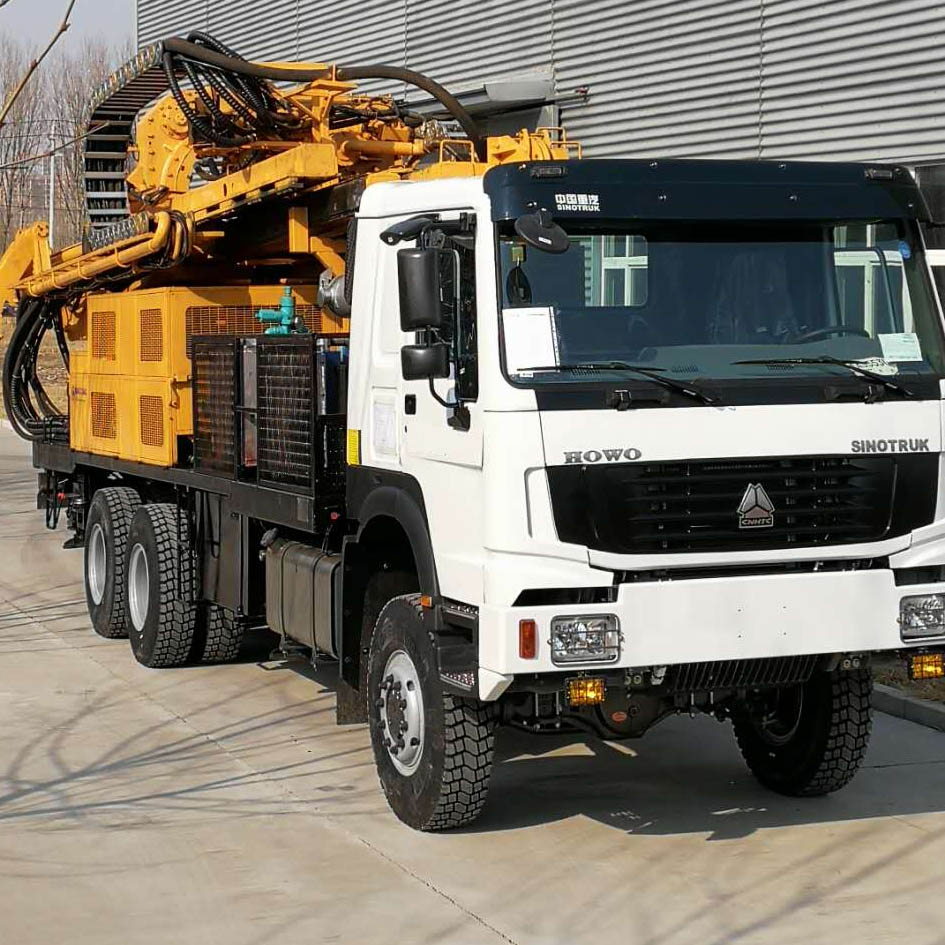

To fit different transport scenarios, the drilling rig chassis can be optionally mounted on crawler chassis, truck chassis, or trailer chassis.
Item
Unit
SNR500SL
Max drilling depth
m
500
Drilling diameter
mm
105-400
Air pressure
Mpa
1.2-3.5
Air consumption
m³/min
16-55
Rod length
m
6
Rod diameter
mm
102
Main shaft pressure
T
6
Lifting force
T
28
Fast lifting speed
m/min
29
Fast forwarding speed
m/min
48
Max rotary torque
N.m
10000/5000
Max rotary speed
r/min
75/150
Big secondary winch lifting force
T
－
Small secondary winch lifting force
T
1.5
Jacks stroke
m
1.6
Drilling efficiency
m/h
10-35
Moving speed
Km/h
3
Uphill angle
°
21
Weight of the rig
T
10.5
Dimension
m
6.2*1.85*2.55
Working condition
Unconsolidated formation and Bedrock
Drilling method
Top drive hydraulic rotary and pushing, hammer or mud drilling
Suitable hammer
Medium and high air pressure series
Optional accessories
Mud pump, Centrifugal pump, Generator, Foam pump
Frequently Asked Questions (FAQ)
Q: What applications is the SNR500 drilling rig suitable for?
A: The SNR500 is used for water wells, monitoring wells, ground-source heat pump air-conditioners, blasting holes, bolting, anchor cables, and micro piles.
Q: What is the maximum drilling depth and diameter of the SNR500?
A: It can drill up to a maximum depth of 500 meters, with a drilling diameter range of 105mm to 400mm.
Q: What drilling methods can be utilized with this rig?
A: The rig supports several methods, including reverse circulation by mud and by air, down the hole (DTH) hammer drilling, and conventional circulation.
Q: How does the top drive rotary propulsion system benefit operations?
A: It simplifies the loading and unloading of drill pipes, reduces auxiliary operation times, and aids in follow-up drilling processes.
Q: What chassis configurations are available?
A: The rig can be configured on a crawler chassis, a truck chassis, or a trailer chassis depending on job site requirements.
Q: Can it be fitted with additional accessories?
A: Yes, options like a mud pump, foam pump, centrifugal pump, and generator can be installed according to the needs of the user.
