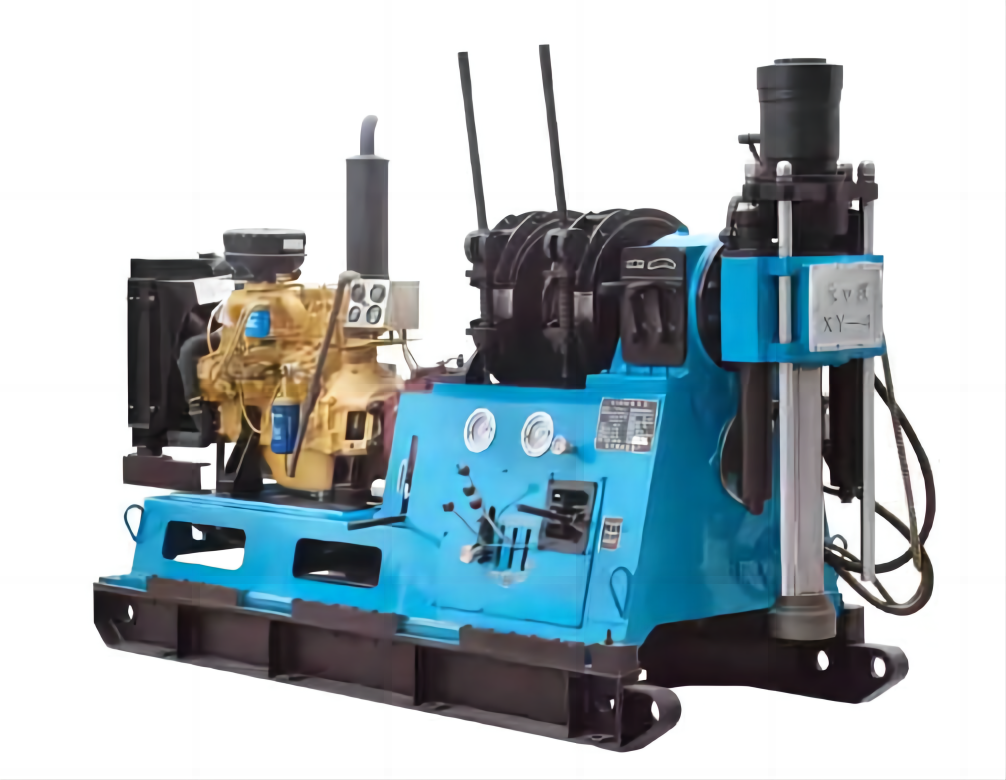

Introducing the XY-4 core drill rig, a cutting-edge solution for geological exploration and coring projects. This innovative drill rig is designed to deliver reliable, efficient performance in a variety of drilling applications, making it the perfect choice for geologists, mining companies and construction companies.
The XY-4 core drilling rig is equipped with advanced features and capabilities to ensure precise, accurate drilling results. It is powered by a high-performance engine that delivers the power and torque needed to drill through the toughest geological formations. The gear also features a durable and sturdy construction, making it suitable for use in remote and challenging environments.
Can be used for geological exploration, mineral exploration, and environmental monitoring. It handles diamond and tungsten carbide coring with high adaptability.
Equipped with advanced drilling technology for precise positioning and depth control, ensuring accuracy for geological research and resource assessment.
Features a user-friendly control panel and ergonomic design to minimize fatigue. Integrated automatic shut-off and emergency stop buttons protect operators.
Its efficient drilling system and high-speed rotation capabilities reduce drilling time and maximize overall project productivity.
In short, the XY-4 core drilling rig is the ultimate solution for geological exploration and coring. The rig's versatility, precision and efficiency make it the perfect choice for any drilling project, from mineral exploration to environmental monitoring. Its advanced features and capabilities make it an indispensable tool for geologists, mining companies and construction companies seeking superior drilling results. Choose the XY-4 core drill rig for your next drilling project and experience the difference it can make in your operations.
| 1, Drilling Capacity | ||||
| Core drilling | ||||
| Drilling rod type | Drilling rod size | Drilling depth | ||
| Drilling rod (China) | Inner thicken drilling rod | 42mm Drilling rod | 900m | |
| 50mm Drilling rod | 700m | |||
| 60mm Drilling rod | 550m | |||
| Wireline drilling rods | 55.5mm Drilling rod | 750m | ||
| 71mm Drilling rod | 600m | |||
| 89mm Drilling rod | 480m | |||
| DCDMA Drilling rod | Wireline drilling rods | BQ Drilling rod | 800mm | |
| NQ Drilling rod | 600mm | |||
| NQ Drilling rod | 450mm | |||
| PQ Drilling rod | 250mm | |||
| 2, Spindle Turnable Angle | 0°-360° | |||
| 3, Power | Model | Power | R.Speed | Weight |
| Electric motor | Y225S-4 | 37KW | 1480 r/min | 300kgs |
| Diesel engine | YCD4K11T-50 | 37KW | 2200 r/min | 300kgs |
| 4, Rotary Table | ||||
| Type | Double-cylinder feeding and mechanical rotation | |||
| Spindle diameter | Φ8mm | |||
| Spindle speed | Forward(r/min) 48 87 150 230 327 155 280 485 745 1055 | |||
| Reverse(r/min) 52 170 | ||||
| Max. torque | 5757N·m | Feeding travel of spindle | 600mm | |
| Max. uplifting force of spindle | 80KN | Max. feeding force of spindle | 60KN | |
| 5, Hoist | ||||
| Type | Planetary gear transmission system | |||
| Diameter of wire rope | Φ15.5mm | |||
| Bobbin capacity | 89m(seven layers) | |||
| Max. hoisting force (Single rope) | 48KN | |||
| Lifting speed | Hoisting velocity(third layer) 0.46 0.83 1.44 2.21 3.15 | |||
| 6, Clutch | ||||
| Type | A typical 130-type vehicle-specific dry single-disc friction clutch | |||
| 7, Hydraulic system | ||||
| System pressure | ||||
| Rated pressure | 8Mpa | Maximum Pressure | 10Mpa | |
| Oil pump | With Diesel engine | With electric motor | ||
| Oil gear pump | CB-E25 | CB-E40 | ||
| Displacement | 25mL/r | 40mL/r | ||
| Rated speed | 2000r/min | 2000r/min | ||
| Rated pressure | 16Mpa | 16Mpa | ||
| Maximum Pressure | 20Mpa | 20Mpa | ||
| 8, Frame | ||||
| Type | Sliding type(with base frame) | |||
| Movable travel of drill | 460mm | Distance between drill and hole-opening | 260mm | |
| 9, Drill dimension (LxWxH) | 2850x1050x1900mm | |||
| 10, Rig weight (Engine is not included) | 1600kgs | |||
Q1: What are the primary applications for the XY-4 core drill rig?
A: The XY-4 core drill rig is highly versatile and suitable for geological exploration, mineral exploration, and environmental monitoring projects.
Q2: What is the maximum drilling capacity of the XY-4 rig?
A: The drilling capacity reaches up to 900 meters using 42mm Chinese drilling rods and up to 800 meters using BQ DCDMA wireline drilling rods.
Q3: What types of power engines are compatible with the XY-4?
A: The rig can be configured with either a Y225S-4 Electric motor (37KW, 1480 r/min) or a YCD4K11T-50 Diesel engine (37KW, 2200 r/min).
Q4: Does the spindle on the XY-4 support angle drilling?
A: Yes, the spindle features a turnable angle range of 0° to 360°, allowing for flexible orientation options during drilling campaigns.
Q5: What safety features are integrated into the XY-4 core drill rig?
A: Operator safety is ensured through an ergonomic design, a user-friendly control panel, automatic shut-off systems, and easily accessible emergency stop buttons.
Q6: What is the physical size and weight of the XY-4 drill rig?
A: Excluding the engine, the rig weighs 1600 kgs and has dimensions of 2850 x 1050 x 1900 mm (LxWxH).
