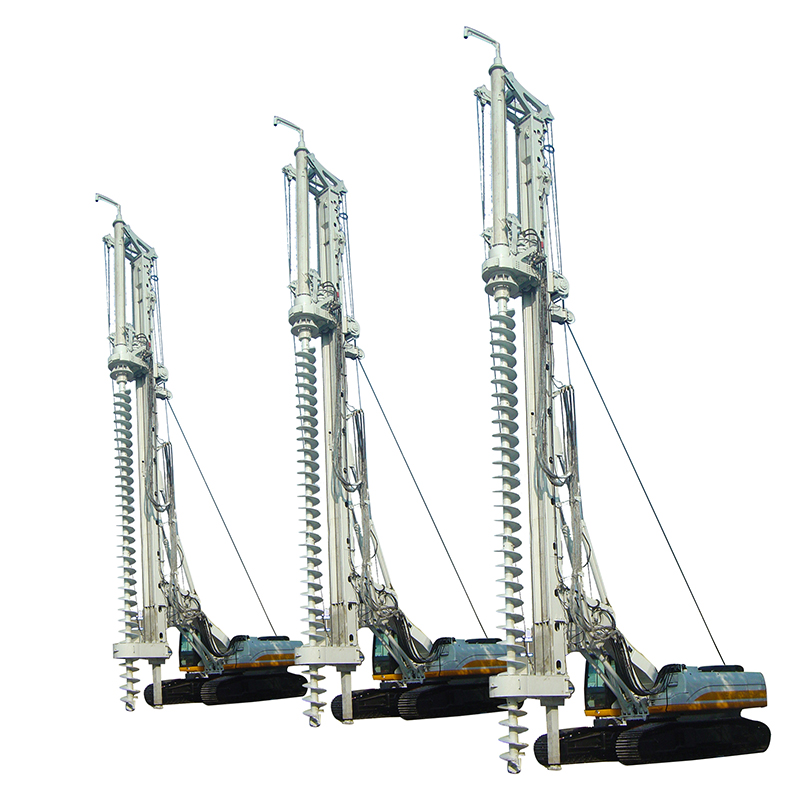

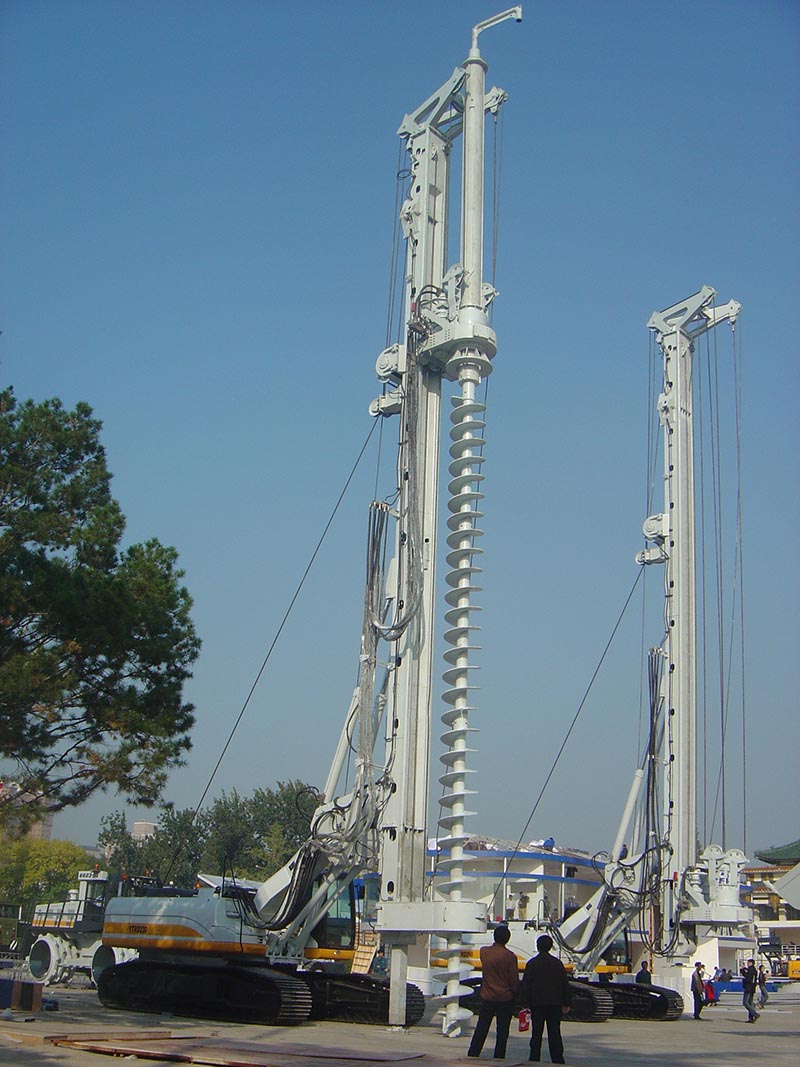

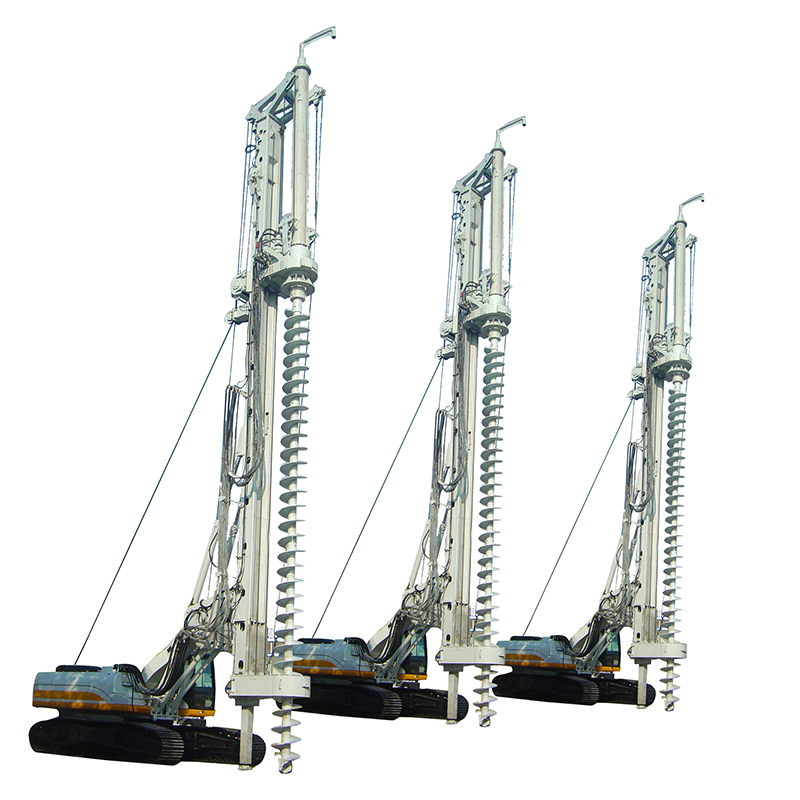

CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles. CFA piles continue the advantages of the driven piles and the bored piles, which are versatile and require no removal of soil. This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formation like tuff, loamy clays, limestone clays, limestone and sandstone etc, The maximum diameter of piling reaches 1.2 m and max. depth achieves 30 m, helping overcome problems formerly connected to project and execution of pilings.
Key Performance Features
-
1
The leading self-propelled hydraulic long spiral drilling rig, can change transport state into working state rapidly;
-
2
High-performance hydraulic system and control system, which is developed by Tianjin University CNC Hydraulic Institute of technology, ensure the machine efficient construction and real-time monitor;
-
3
With concrete volume display system, can realize the precise construction and measurement;
-
4
The innovative depth measurement system has higher precision than ordinary rig;
-
5
All-hydraulic power head construction, the output torque is stable and smooth;
-
6
Power head can change torque according to the needs of construction, which ensures higher efficiency;
-
7
Mast automatically adjusts the vertical to enhance the accuracy of the hole;
-
8
The innovative design Wind-fire Wheels ensures work safer in nighttime;
-
9
The Humanized rear design can increase storage space effectively;
Technical Specifications
| Specifications |
Euro Standards |
U.S. Standards |
| Max drilling depth |
20m |
66 ft |
| Max drilling diameter |
1000mm |
39in |
| Engine model |
CAT C-9 |
CAT C-9 |
| Rated power |
213KW |
286HP |
| Max torque for CFA |
100kN.m |
73730lb-ft |
| Rotating speed |
6～27rpm |
6～27rpm |
| Max crowd force of winch |
210kN |
47208lbf |
| Max extraction force of winch |
210kN |
47208lbf |
| Stroke |
13500mm |
532in |
| Max pulling force of main winch (the first layer) |
200kN |
44960lbf |
| Max pulling speed of main winch |
78m/min |
256ft/min |
| Wire line of main winch |
Φ28mm |
Φ1.1in |
| Undercarriage |
CAT 330D |
CAT 330D |
| Track shoe width |
800mm |
32in |
| width of crawler |
3000-4300mm |
118-170in |
| Whole machine weight |
65T |
65T |
Frequently Asked Questions
What are the primary applications and benefits of CFA drilling equipment?
CFA (Continuous Flight Auger) drilling equipment is mainly used in construction to create concrete piles. It combines the advantages of driven and bored piles, making it highly versatile while requiring no soil removal.
What kinds of geological conditions can this equipment excavate?
This equipment can excavate a wide variety of soils (both dry or water-logged, loose or cohesive) and penetrate soft rock formations such as tuff, loamy clays, limestone clays, limestone, and sandstone.
What is the maximum drilling performance in terms of depth and diameter?
The system can achieve a maximum piling diameter of 1.2 m and a maximum depth of 30 m, which helps overcome complex project execution challenges. Note that specific configuration standards show a 20m depth and 1000mm diameter.
How is construction precision ensured during drilling?
Precision is maintained through an integrated concrete volume display system for exact measurement, an innovative high-precision depth measurement system, and a mast that automatically adjusts the vertical to improve hole accuracy.
What safety and design innovations are included?
The equipment features "Wind-fire Wheels" for safer nighttime operations, an all-hydraulic power head construction for stable torque output, and a humanized rear design that effectively increases storage space.
