Best YTQH450B Dynamic compaction crawler crane Quotes, Company

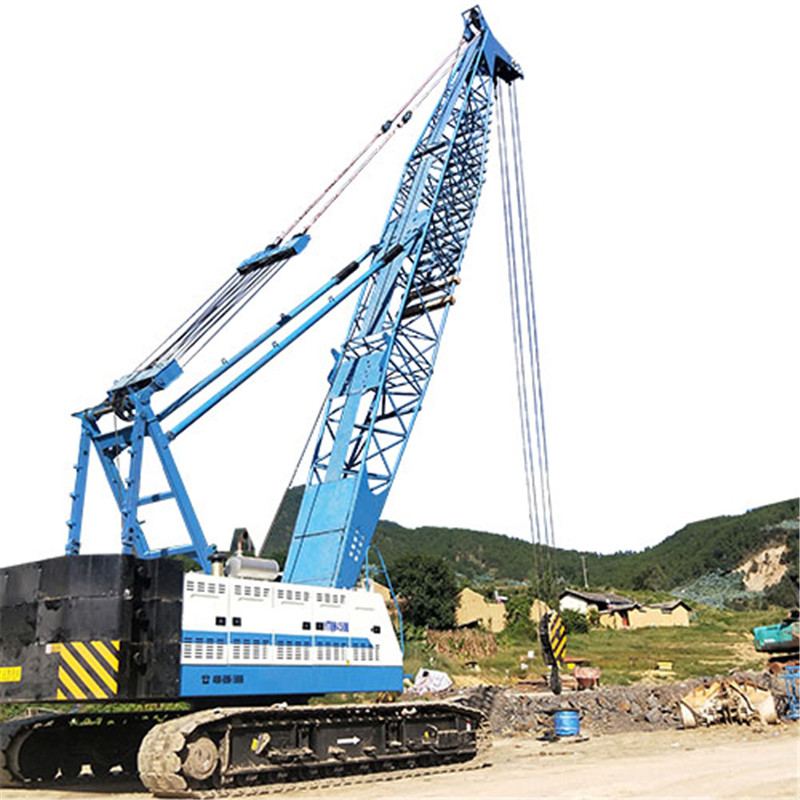

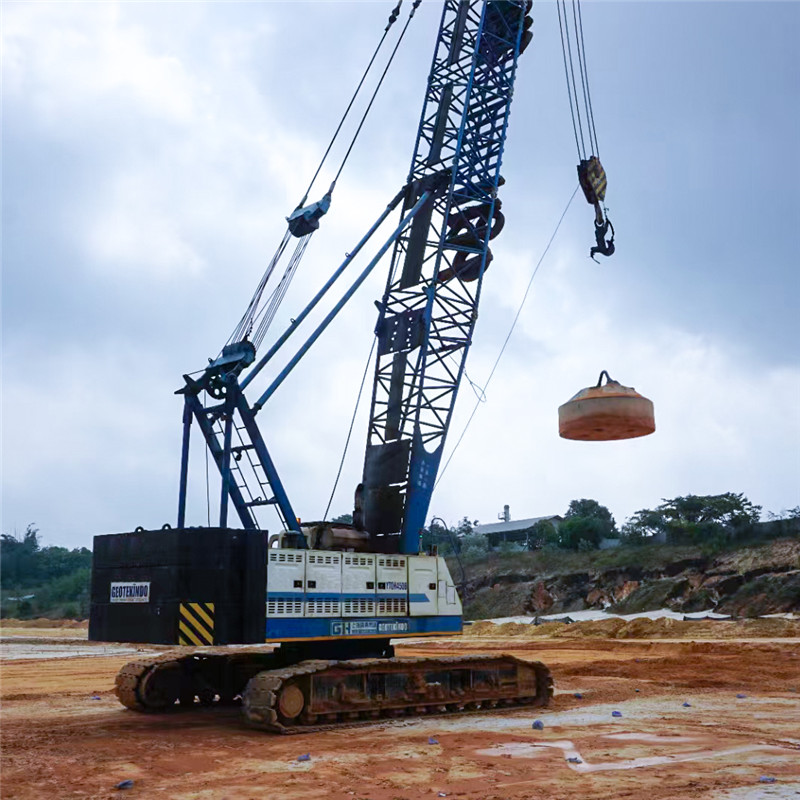

YTQH450B dynamic compaction crawler crane is the specialized full slewing & truss & full hydraulic dynamic compaction and lifting equipment independently developed according to the market demand basing on the several years’ expe1ience of manufacturing the engineering hoisting, compacting and dynamic compaction equipment. The model has high performance, high reliability and beautiful appearance，fully meets the dynamic compaction condition. Widely used in industrial and civil construction, warehouses, road, piers and other foundation consolidation, dynamic compaction construction work.

Send Inquiry

Product Description

Specifications

Item	Unit	YTQH450B
Compaction capacity	t.m	450(800)
Hammer weight permit	t.m	22.5
Wheel tread	mm	5300
Chassis width	mm	3360(4890)
Track width	mm	800
Boom length	mm	19-25(28)
Working angle	°	60-77
Max.lift height	mm	25.96
Working radius	mm	6.5-14.6
Max. pull force	t.m	10-14
Lift speed	m/min	0-110
Slewing speed	r/min	0-1.8
Travel speed	km/h	0-1.4
Grade ability		35%
Engine power	kw	242
Engine rated revolution	r/min	1900
Total weight	t.m	66.8
Counter weight	t.m	21.2
Main body weight	t.m	38
Dimension (LxWxH)	mm	8010x3405x3420
Ground pressure ratio	M.pa	0.073
Rated pull force	t.m	8
Lift rope diameter	mm	28

Key Advantages & Features

The pulling force of the hoisting single rope is large.

The operation is light and flexible.

It can work for a long time and with high power.

High security configuration.

Comfortable operation system.

Convenient transportation features.

Frequently Asked Questions

Q What is the compaction capacity of the YTQH450B?

The YTQH450B delivers a robust compaction capacity of 450(800) t.m, designed for high-performance ground foundation projects.

Q What type of engine configuration powers this equipment?

It is powered by a high-output 242 kW engine with a rated revolution of 1900 r/min, ensuring consistent power for long-duration operations.

Q What are the dimensions and total weight of the YTQH450B?

The overall dimensions of the machine are 8010x3405x3420 mm (LxWxH) with a total operational weight of 66.8 t.m (including a 21.2 t.m counter weight).

Q What makes the YTQH450B dynamic compactor safe and easy to operate?

The machine features a design focused on high security standards, light and flexible operations, and an ergonomic cabin layout for comfortable handling.

Q What is the climbing capacity and working range of this equipment?

The YTQH450B has a grade ability of 35% with a dynamic working radius range of 6.5 to 14.6 meters, offering excellent structural flexibility on different terrains.
