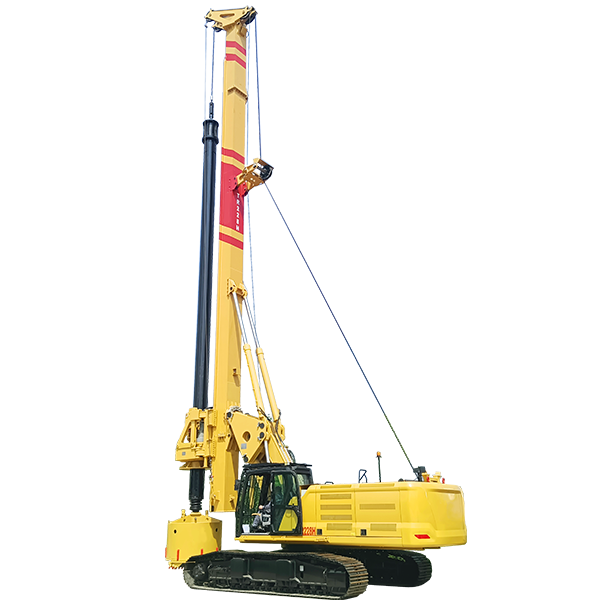

High-Quality TR228H ROTARY DRILLING RIG Manufacturer, Companies

TR228H is a stare industrial and civil construction rig, which is suitable for Pile foundation of urban subway, middle and high-rise buildings, etc. This model can achieve low headroom and is suitable for special construction scenarios such as low factory buildings and bridges.

Send Inquiry

Product Description

Main parameters	Parameter	Unit
Pile
Max. drilling diameter	1900	mm
Max. drilling depth	76	mm
Rotary drive
Max. output torque	240	KN-m
Rotary speed	6~27	rpm
Crowd system
Max. crowd force	210	KN
Max. pulling force	270	KN
Stroke of crowd system	5000	mm
Main winch
Lifting force (the first layer)	240	KN
Wire-rope diameter	32	mm
Lifting speed	65	m/min
Auxiliary winch
Lifting force (the first layer)	100	KN
Wire-rope diameter	18	mm
Mast inclination angle
Left/right	5	°
Forward	4	°
Chassis
Chassis model	CAT330NGH	-
Engine manufacturer	卡特彼勒CAT	CATERPILLAR
Engine model	C-7.1e	-
Engine power	195	KW
Engine power	2000	rpm
Chassis overall length	4920	mm
Track shoe width	800	mm
Tractive force	510	KN
Overall machine
Working width	4300	mm

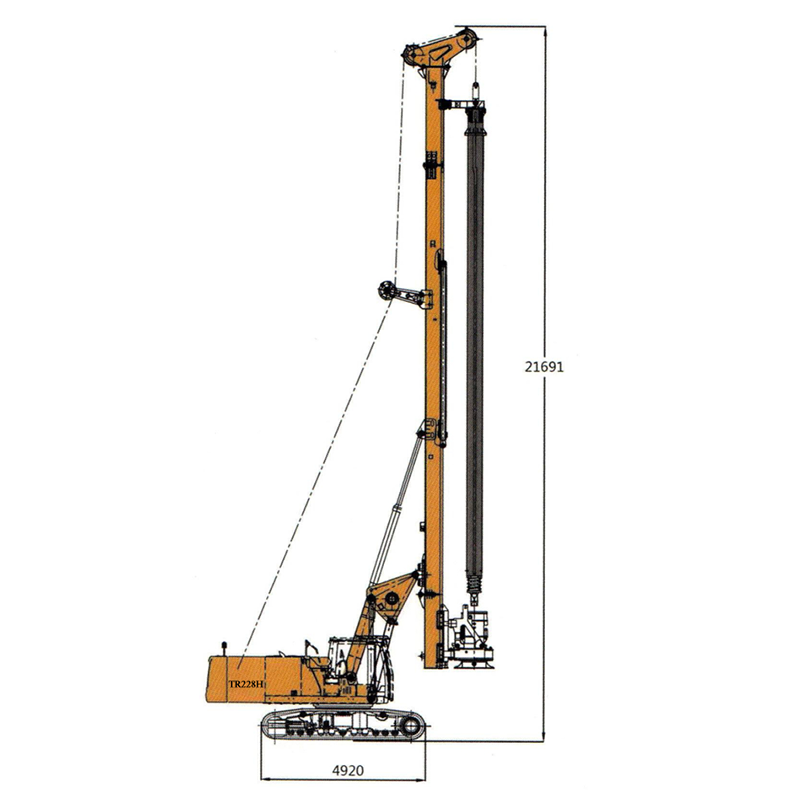

Working height	21691	mm

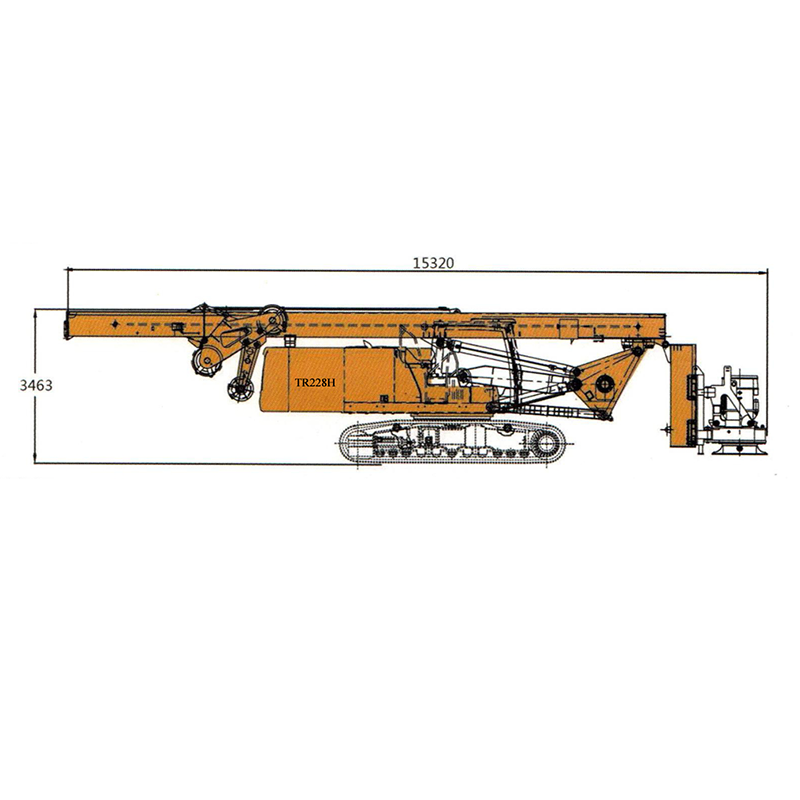

Transport length	15320	mm
Transport width	3000	mm
Transport height	3463	mm
Total weight (with kelly bar)	64.5	t
Total weight (without kelly bar)	54.5	t

NEW GENERATION ROTARY DRILLING RIG

1. ALL-electric control technology

Innovative design of the industry’s first all-electric control technology, which is controlled by electrical signals throughout the entire process, subverts the traditional control method of rotary drilling rigs, and possesses super-generation technical advantages.

2. Core component upgrade

A new layout of the vehicle structure; The latest Carter rotary excavator chassis; A new generation of power heads, high-strength torsion resistant drill pipes; hydraulic components such as main pumps and motors are all equipped with large displacement.

3. Positioning high-end

Guided by market demand and guided by technological innovation, it is positioned to develop high-quality pile foundation construction machinery to solve the problems of low construction efficiency, high construction cost and severe pollution of ordinary drilling rigs, and to provide high-end quality products for construction enterprises.

4. Smart solutions

It is positioned to provide customers with overall construction solutions, especially in complex application environments and geological conditions, to improve the construction revenue of construction projects and achieve win-win cooperation with customers. Realize win-win cooperation with customers.

Specification for standard Kelly bar

Friction Kelly bar: ∅440-6*14

Interlock Kelly bar: ∅440-4*14

Frequently Asked Questions (FAQ)

What is the maximum drilling diameter and depth of this rotary drilling rig?

The equipment features a maximum drilling diameter of 1900 mm and a maximum drilling depth of 76 mm.

Which chassis and engine are configured in this machine?

This drilling rig is configured with a high-performance CAT330NGH chassis and a CATERPILLAR C-7.1e engine, delivering a rated power of 195 KW at 2000 rpm.

What are the advantages of the all-electric control technology?

It represents an innovative design controlled entirely by electrical signals. This subverts the traditional control methods of rotary drilling rigs, offering super-generation technical advantages.

What are the dimensions and weights for transport?

For transport, the length is 15320 mm, the width is 3000 mm, and the height is 3463 mm. The total weight is 64.5 tons with the Kelly bar, and 54.5 tons without the Kelly bar.

What standard Kelly bars are supported by this rig?

It supports two standard options: Friction Kelly bar (∅440-6*14) and Interlock Kelly bar (∅440-4*14).

How much output torque does the rotary drive deliver?

The rotary drive delivers a maximum output torque of 240 KN-m with a operating rotary speed range of 6 to 27 rpm.
