The whole machine is transported without removing the drill pipe, which reduces the logistics cost and improves the transfer efficiency. Some models are equipped with the crawler telescopic function when they get off the vehicle. After the maximum extension, it can ensure the transportation efficiency.
The stability of the whole machine during construction is ensured.
The power system adopts domestic or international well-known brands, including Cummins, Mitsubishi, Yangma, Weichai, etc., with stable, efficient, environmental protection. At the same time, it is quiet and economical, and meets the troubleshooting requirements of the national IL stage.
The power head is equipped with domestic first-line brands and all major engine plants in the industry, which has the advantages of high torque, reliable performance and convenient maintenance.
The hydraulic parts are mainly made of Rexroth, Brevini, German wormwood and Doosan. Combined with the international concept, the pump valve is completely in accordance with the product characteristics of rotary drilling rig. Specially designed, the auxiliary system uses the load sensitive system to realize the flow on-demand distribution.
The electrical control system, the main parts are imported brand, the cable adopts aviation connector, sealed waterproof, stable performance, large screen.

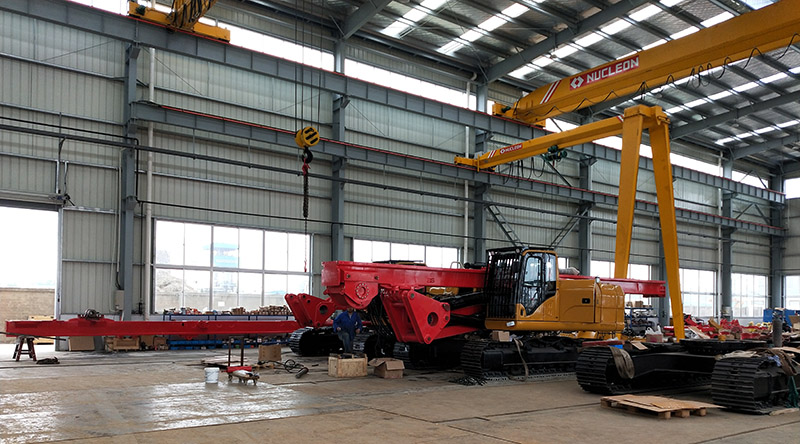

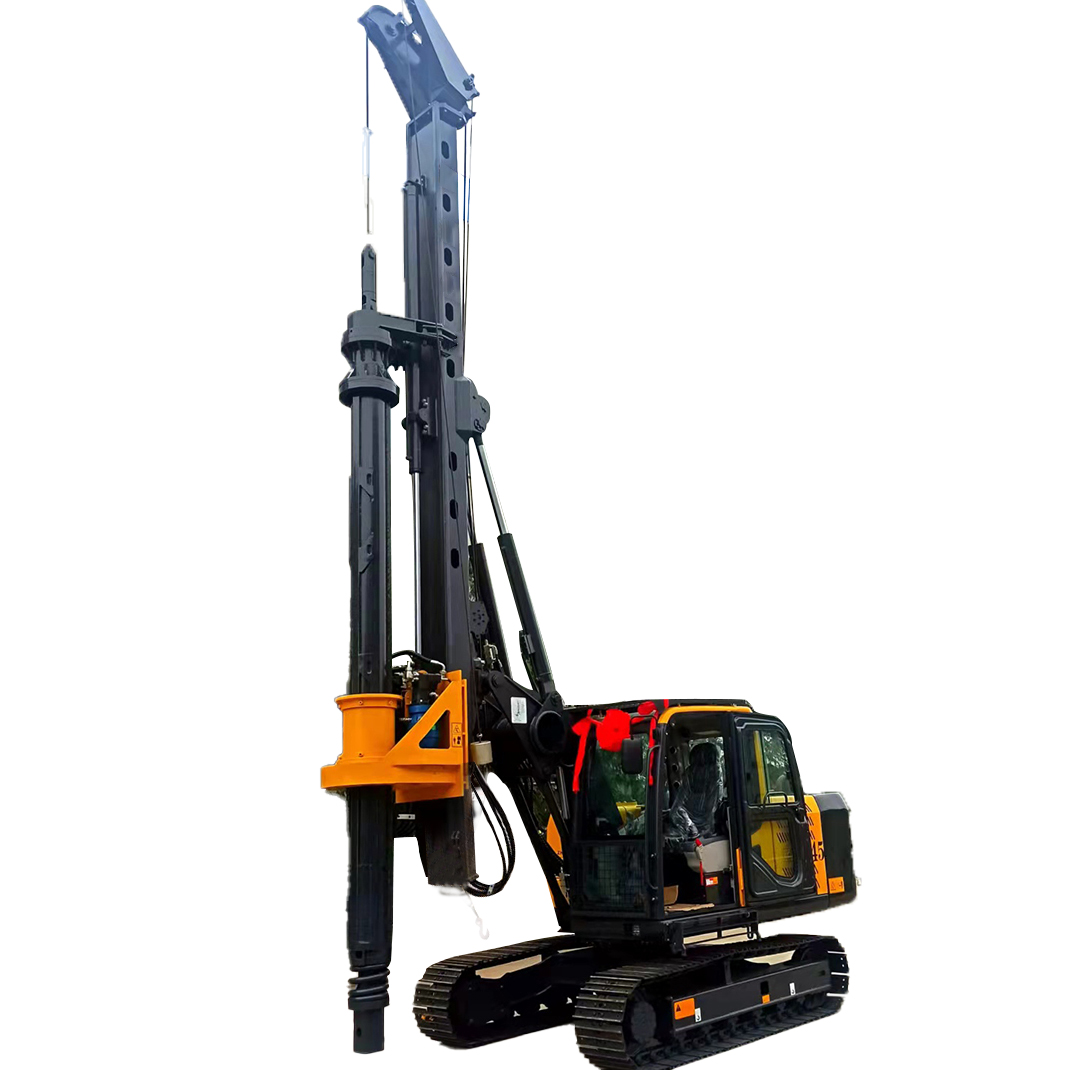

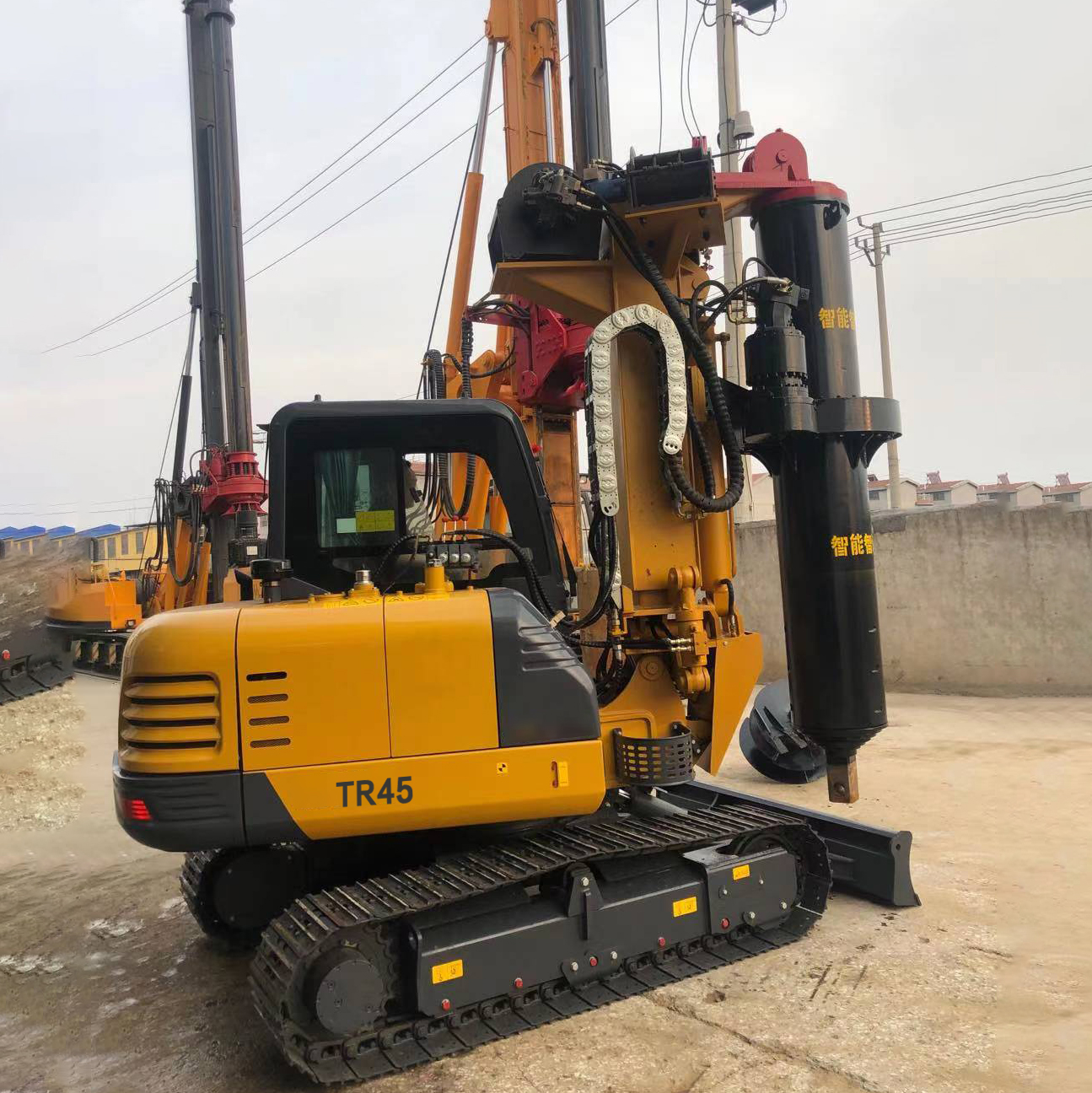

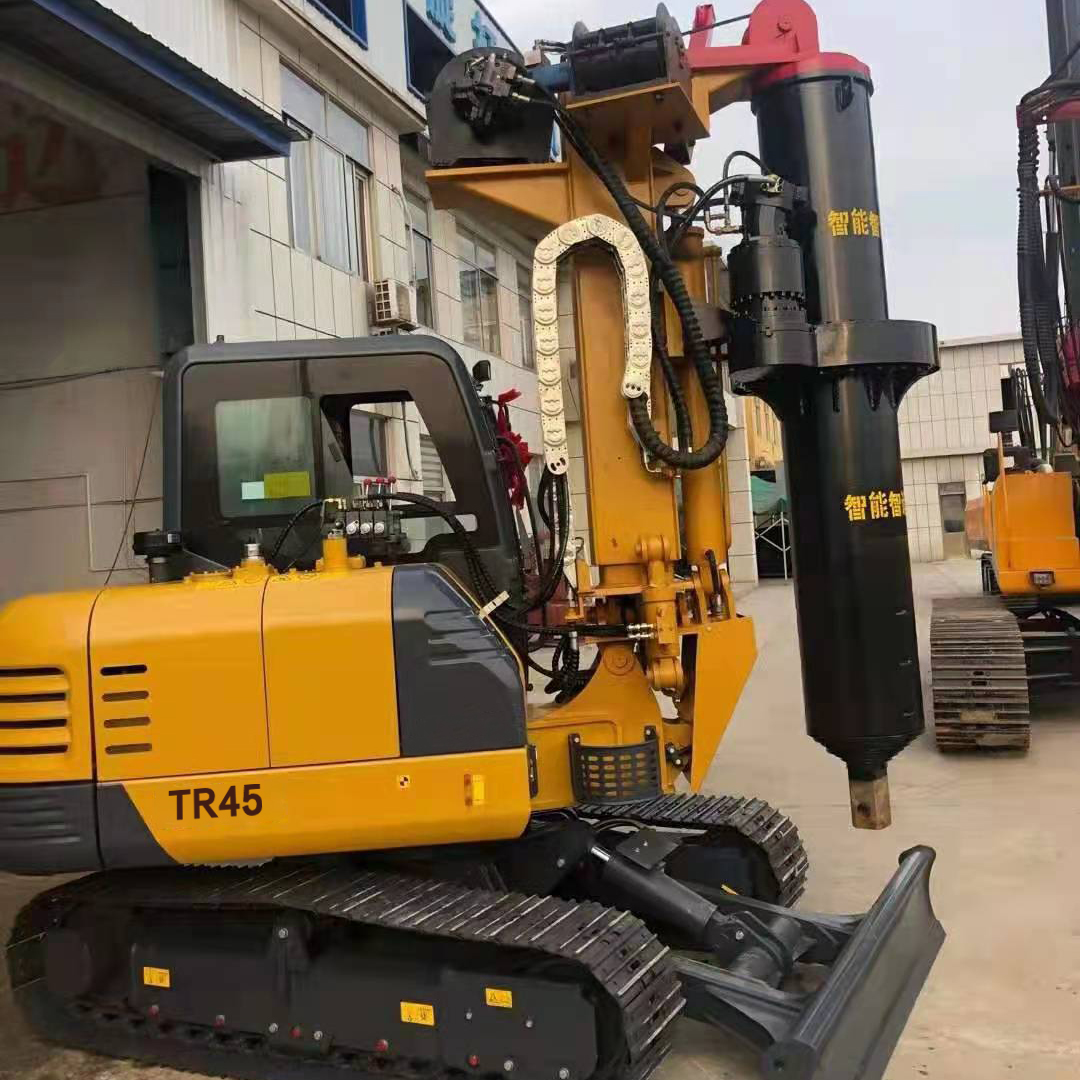

| TR45 Rotary drilling rig Specifications | |||
|---|---|---|---|
| Engine | Model | — | — |
| Rated power | kw | 56.5 | |
| Rated speed | r/min | 2200 | |
| Rotary head | Max.output torque | kN·m | 50 |
| Drilling speed | r/min | 0-60 | |
| Max. drilling diameter | mm | 1000 | |
| Max. drilling depth | m | 15 | |
| Crowd cylinder system | Max. crowd force | Kn | 80 |
| Max. extraction force | Kn | 60 | |
| Max. stroke | mm | 2000 | |
| Main winch | Max. pull force | Kn | 60 |
| Max. pull speed | m/min | 50 | |
| Wire rope diameter | mm | 16 | |
| Auxiliary winch | Max. pull force | Kn | 15 |
| Max. pull speed | m/min | 40 | |
| Wire rope diameter | mm | 10 | |
| Mast inclination Side/ forwards/ backwards | ° | ±4/5/90 | |
| Interlocking Kelly bar | — | ɸ273*4*4.4 | |
| Undercarrige | Max. traveling speed | km/h | 1.6 |
| Max. rotation speed | r/min | 3 | |
| Chassis width | mm | 2300 | |
| Tracks width | mm | 450 | |
| Working Pressure of Hydraulic System | Mpa | 30 | |
| Total weight with kelly bar | kg | 13000 | |
| Dimension | Working (Lx Wx H) | mm | 4560x2300x8590 |
| Transportation (Lx Wx H) | mm | 7200x2300x3000 | |
The layout of the platform on the whole machine is reasonable, which is convenient for the subsequent maintenance of the equipment. Operation control is simple, beautiful, and achieves high recognition.
The structure is designed according to parallelogram, and the hoisting cloth is placed on the mast or boom, which is convenient for observing the direction of steel wire rope. In case of disordered rope, it can be found and rolled in time.
The simple use of double broken line design can realize multi-layer winding of steel wire rope without rope biting, reduce mushroom damage and improve the service life of steel wire rope.
No, the whole machine is transported without removing the drill pipe, which reduces logistics costs and improves transfer efficiency.
The power system adopts domestic or international well-known brands, including Cummins, Mitsubishi, Yangma, and Weichai, which meet national IL stage requirements.
The TR45 has a maximum drilling diameter of 1000 mm and a maximum drilling depth of 15 meters.
It features parts from Rexroth, Brevini, German wormwood, and Doosan, utilizing a load-sensitive auxiliary system to distribute flow on demand.
The machine uses a simple double broken line design that enables multi-layer winding of the steel wire rope without biting, which reduces damage and extends its service life.
The total weight with the Kelly bar is 13000 kg. Its working dimensions are 4560x2300x8590 mm, and its transportation dimensions are 7200x2300x3000 mm.
