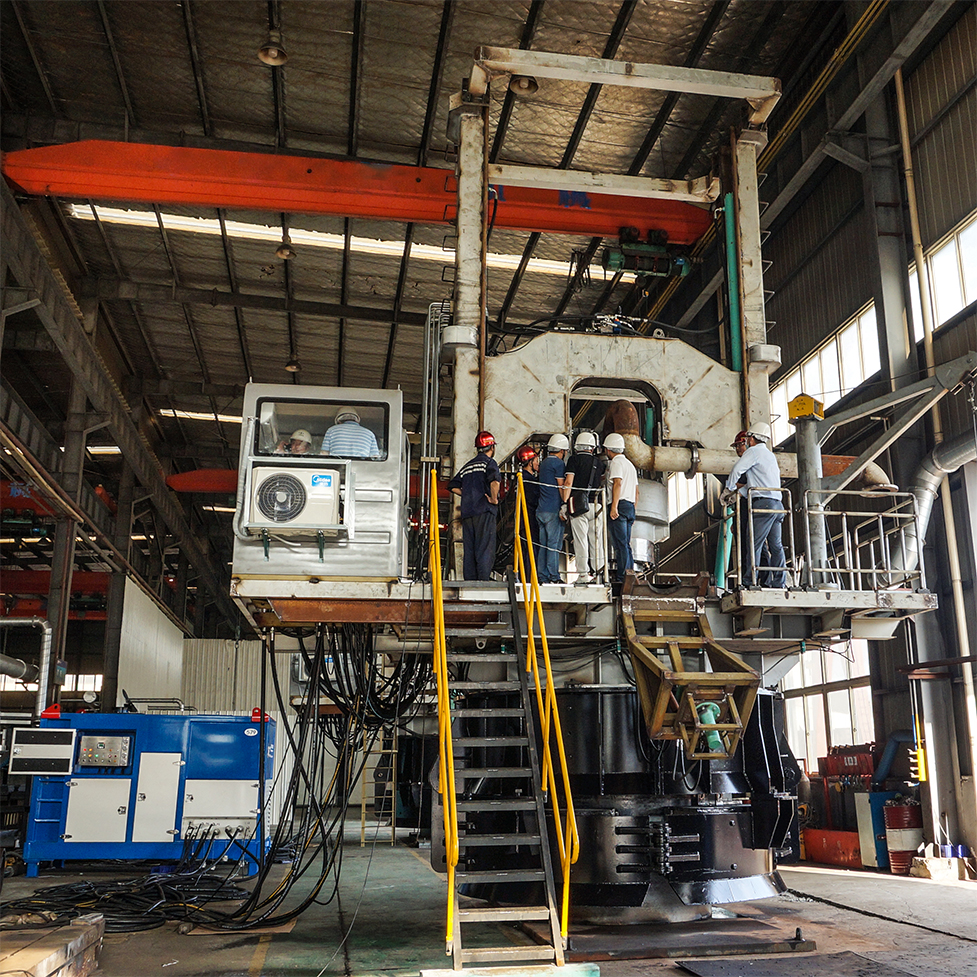

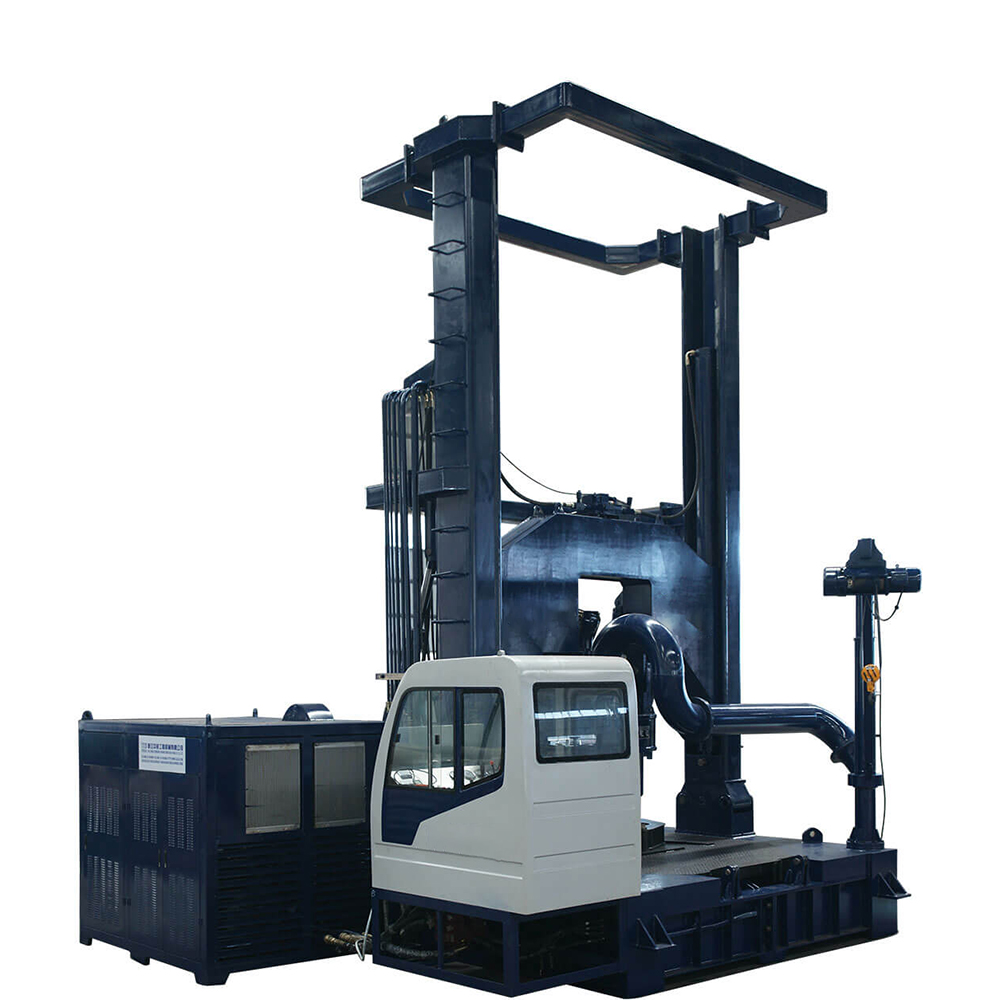

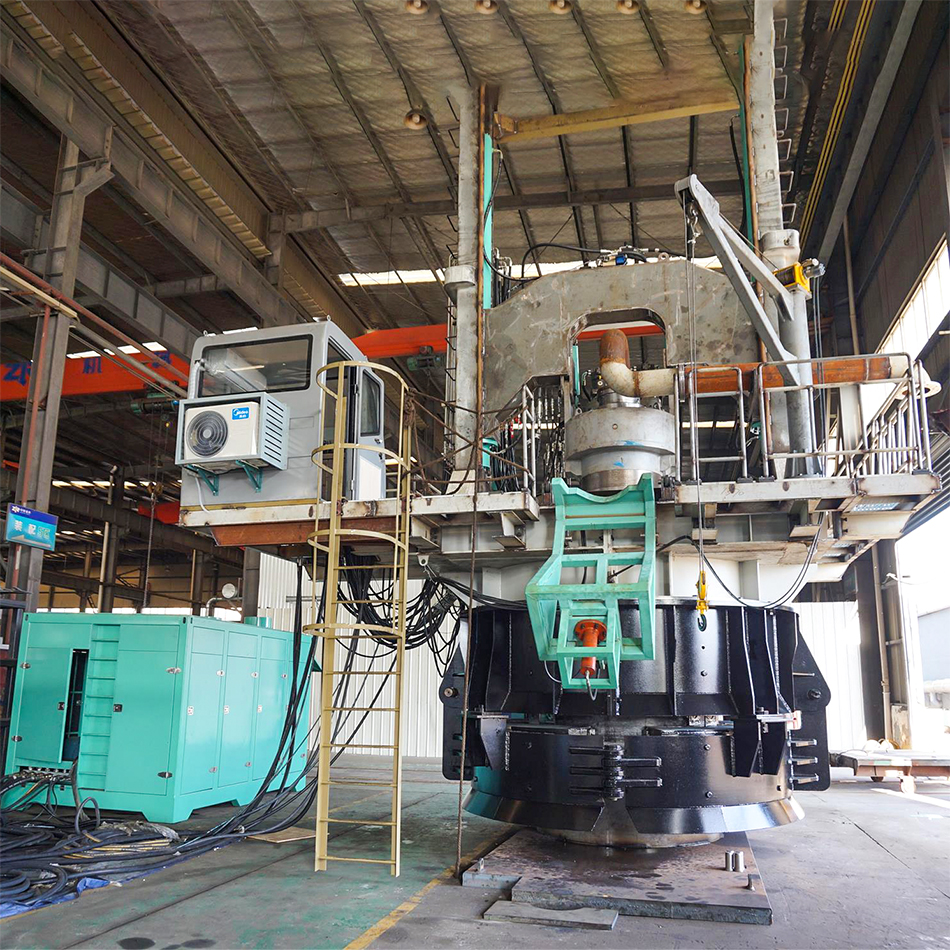

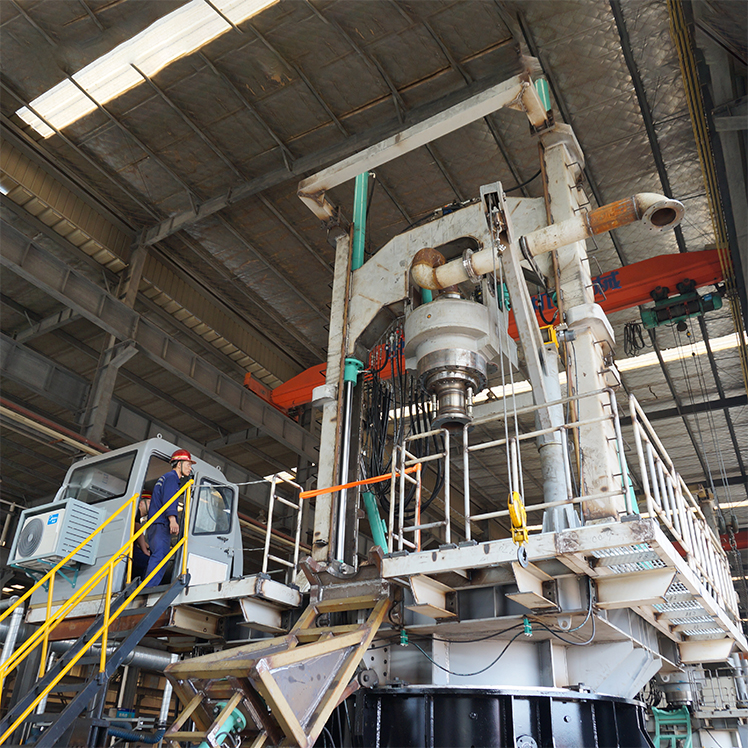

ZJD series full hydraulic drilling rigs are mainly used for the drilling construction of pile foundations or shafts in complex formations such as large diameter, large depth or hard rock. The maximum diameter of this series of drilling rigs is 5.0 m, and the deepest depth is 200m. The maximum strength of the rock can reach 200 Mpa. It is widely used in the drilling of large-diameter pile foundations such as large-scale land buildings, shafts, port wharfs, rivers, lakes, and sea bridges. It is the first choice for large-diameter pile foundation construction.
| Item |
Name |
Description |
Unit |
Data |
Remark |
| 1 |
Basic parameters |
Size |
|
ZJD2800/280 |
|
| Max Diameter |
mm |
Φ2800 |
|
| Rated power of engine |
Kw |
298 |
|
| Weight |
t |
31 |
|
| Downforce of cylinder |
KN |
800 |
|
| Lifting fore of cylinder |
KN |
1200 |
|
| Cylinder stroke |
mm |
3750 |
|
| Max speed of rotary head |
rpm |
400 |
|
| Min speed of rotary head |
rpm |
11 |
Constant torque at low speed |
| Min speed torque |
KN.m |
280 |
| Length of hydraulic hose |
m |
40 |
|
| Max load of pile cap |
KN |
600 |
|
| Engine power |
Kw |
298 |
|
| Engine model |
|
QSM11/298 |
|
| Max flow |
L/min |
780 |
|
| Max working pressure |
bar |
320 |
|
| Dimension |
m |
6.2x5.8x9.2 |
|
| 2 |
Other parameters |
Inclination angle of rotary head |
deg |
55 |
|
| Max Depth |
m |
150 |
|
| Drill rod |
|
Φ351*22*3000 |
Q390 |
| Inclination angle of guide frame |
deg |
25 |
|
Key Features & Technical Advantages
- Full hydraulic continuously variable transmission is equipped with imported transmission components, which has reliable and stable transmission performance, adopts frequency conversion motor, which is efficient and energy saving. Reasonable optimization of power configuration, strong and powerful, high work efficiency, fast hole formation.
- The hydraulic and electrical dual-circuit control system increases the reliability of equipment operation. The electrical control system adopts PLC, monitoring screen, wireless communication module and combines manual control to form a dual-circuit control method, which can be remotely controlled by remote control or can be manually completed operation.
- Full hydraulic power rotating head, providing large torque and large lifting force to overcome complex formations such as gravel and rocks and hard rock formations.
- The operating system is a combination of wireless remote control, manual and automatic operation.
- Optional counterweight to pressurize the bottom of the hole to ensure the verticality of the hole and improve the drilling efficiency.
- A dual-mode operating system with intelligent operation and wireless operation. The intelligent system uses advanced sensor technology to display real-time operating parameters of equipment, real-time storage and printing of construction data, multi-point video monitoring system combined with GPS positioning, GPRS remote real-time transmission and monitoring of drilling rig site operations happening.
- It is relatively small in size and light in weight. It is easy to disassemble the drilling rig. All electrical and hydraulic connectors involved in disassembly and assembly use aviation plugs or quick connectors, and structural parts have disassembly and assembly signs.

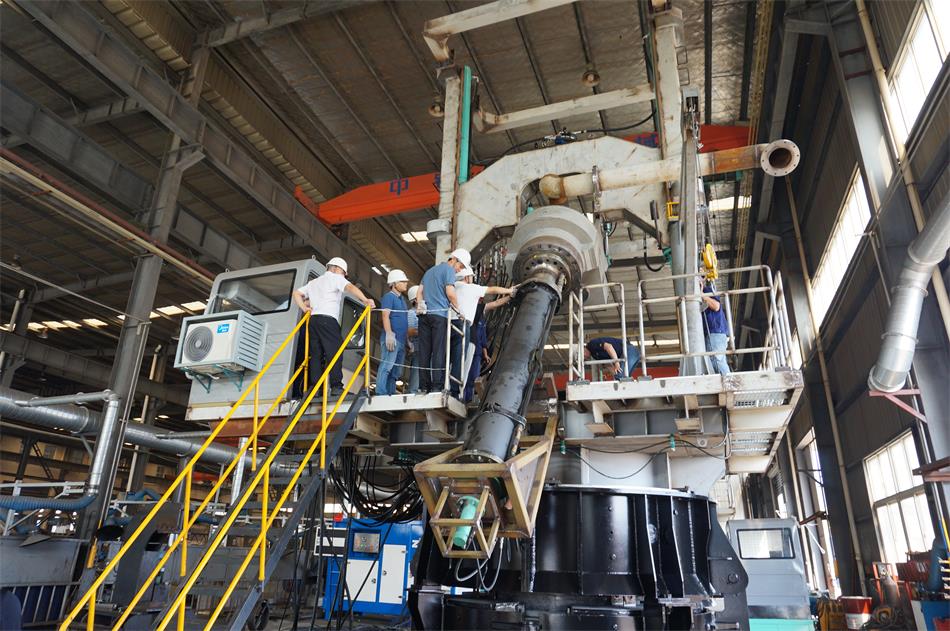

- Tilting suspension power head and tilting frame, combined with hydraulic auxiliary crane, compact and reasonable structure, safe and convenient to disassemble and assemble drill pipe and drill bit.
- Large-diameter drill pipes and double-walled drill pipes adopt high-pressure gas lift sealing device and advanced RCD construction method to achieve fast footage.
- The operation room is installed on the working platform, which is convenient for operation and comfortable environment. The temperature adjustment equipment can be installed on your own.
- Optional stabilizer to assist drilling to control the verticality and hole accuracy and reduce drill tool wear.
- The equipment configuration function can be selected according to actual construction needs, with specific efficiency and diversified choices:
- A. Install inclined platform feet for inclined pile construction;
- B. Drill rod auxiliary crane with hydraulically driven telescopic boom and hydraulic hoist;
- C. The mobile walking system of the drilling rig (walking or crawler);
- D. Electric drive system or diesel power drive system;
- E. Combined drilling tool system;
- F. Set of counterweight drill pipe counterweight or integral flange connection counterweight;
- G. Drum type or split type stabilizer (centralizer);
- H. The user can specify brand imported components.
Frequently Asked Questions (FAQ)
What are the main applications of ZJD series drilling rigs?
ZJD series full hydraulic drilling rigs are primarily designed for pile foundation or shaft drilling in complex formations. They are highly suitable for large-diameter, deep-hole, or hard rock conditions found in land buildings, port wharfs, and bridges.
What is the maximum drilling capacity of this series?
The ZJD series features a maximum drilling diameter of up to 5.0 meters, a maximum depth capacity of 200 meters, and can drill through hard rock formations with strengths up to 200 Mpa.
How does the dual-circuit control system improve operations?
The combination of electrical (PLC, wireless module, monitoring screen) and hydraulic dual-circuit controls ensures reliable operations. Users can control the drilling rig either manually or via a wireless remote control.
Is the ZJD drilling rig easy to transport and assemble?
Yes. The rig is designed with a relatively small footprint and light weight. It utilizes aviation plugs and hydraulic quick-connectors alongside clear markings to make disassembly and on-site mobilization efficient and straightforward.
What optional configurations are available for custom project needs?
Custom configurations include crawler or walking mobile systems, diesel or electric drive options, stabilizers, counterweight setups, auxiliary cranes, and specialized platform feet for inclined pile construction.
