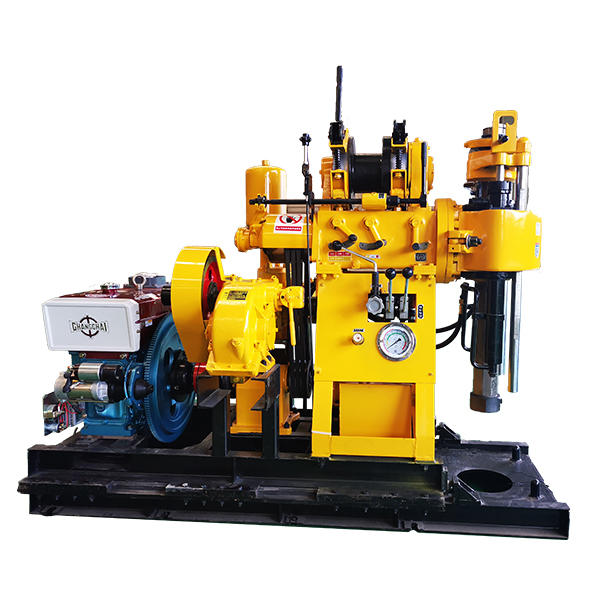

The XY-200 series core drilling rig is a light type drilling rig with large torque and feed by oil pressure, which was developed on the basis of XY-1B, and also has the function of reverse rotation of the gear. Users can choose the machine by considering if the drilling rig is equipped with a mud pump or mounted on a skid.
1. Application Range
Railway, Water & Electricity, transportation, bridge, dam foundation and other buildings for engineering geological exploration.
Geological core drilling, Physical exploration.
Drilling for small grout holes and blast holes.
2. Main Features
Oil pressure feeding: Improving drilling efficiency, reducing labor intensity.
Top ball clamping structure & hexagonal kelly bar: Can realize Non-stop recheck. High working efficiency, easy operation, safe and reliable.
Pressure gauge at the bottom of hole: Convenient to monitor and know the situation inside the hole.
Centralized handles: Compact control layout makes the machine easy to operate.
Compact & Light: Easy to disassemble and move, suitable to work on both plain and mountain areas.
Eight-side spindle structure: Expanded spindle diameter can enter Kelly bars with larger diameter, transmitting large torque.
Electric start: Diesel engine adopts electric start for easy operations.
3. Fundamental Parameters
| Parameter Item |
Unit |
XY-200 Specification |
| Drilling depth |
m |
200 |
| Drilling diameter |
mm |
75 |
| Active drill rod |
mm |
53X59X4200 |
| Drilling rod diameter |
mm |
50 |
| Drilling angle |
° |
90-75 |
| Overall dimension (L*W*H) |
mm |
1750x850x1300 |
| Rig weight (Excluding power) |
kg |
550 |
| Moving stroke |
mm |
350 |
| Distance away from hole |
mm |
300 |
| Rotate speed of vertical (4 position) |
r/min |
66, 180, 350, 820 |
| Spindle stroke |
mm |
450 |
| Maximum upward movement speed of spindle axis without load |
m/s |
0.05 |
| Maximum downward movement speed of spindle axis without load |
m/s |
0.067 |
| Maximum spindle feed force |
KN |
15 |
| Maximum spindle lifting capacity |
KN |
25 |
| Maximum output torque of spindle axis |
KN.m |
1.8 |
| Brake diameter |
mm |
278 |
| Barrier width |
mm |
50 |
| Winch System |
| Maximum lifting capacity (single rope) |
KN |
25 |
| Roll circumference linear velocity (second layer) |
m/s |
0.17, 0.35, 0.75, 1.5 |
| Rotate speed of drum |
r/min |
20, 40, 90, 180 |
| Rotate diameter of drum |
mm |
140 |
| Wire rope diameter |
mm |
9.3 |
| Wire rope length |
m |
40 |
| Oil Pump Specification |
| Model |
- |
YBC-12/125 |
| Nominal pressure |
Mpa |
12.5 |
| Flow |
ml/r |
8 |
| Nominal speed |
r/min |
800-2500 |
| Type |
- |
Horizontal single cylinder double acting |
| Maximum displacement (electric motor) |
L/min |
95(77) |
| Maximum working pressure |
Mpa |
1.2 |
| Rated working pressure |
Mpa |
0.7 |
| Diameter of liner |
mm |
80 |
| Stroke of piston |
mm |
100 |
| Power Engine Options |
| Diesel engine model |
- |
ZS1115 |
| Rated power (Diesel) |
KW |
16.2 |
| Rated speed (Diesel) |
r/min |
2200 |
| Motor model |
- |
Y160-4 |
| Rated power (Motor) |
KW |
11 |
| Rated speed (Motor) |
r/min |
1460 |
Frequently Asked Questions (FAQ)
What is the maximum drilling capacity of the XY-200 drilling rig?
The XY-200 core drilling rig features a maximum drilling depth of 200 meters and a standard drilling diameter of 75mm.
What power source options are available for the XY-200?
You can configure the rig with either a ZS1115 diesel engine rated at 16.2 KW (2200 r/min) or a Y160-4 electric motor rated at 11 KW (1460 r/min).
What are the primary applications of the XY-200 core drilling rig?
It is primarily designed for engineering geological explorations in railways, transportation, water and electricity, bridges, and dam foundations, as well as core drilling, physical exploration, blast hole drilling, and small water well drilling.
How does the oil pressure feeding system improve operations?
The oil pressure automatic feeding mechanism optimizes feeding force, improves drilling efficiency, and significantly reduces the manual labor intensity of operators.
Is the XY-200 drilling rig easy to transport to remote areas?
Yes. The rig features a compact structure, small volume, and a lightweight design (550 kg excluding power) that is easy to disassemble and move, making it ideal for plains and mountain areas.
Does the XY-200 rig support reverse rotation?
Yes, the XY-200 series includes a reverse gear rotation function to assist in drilling operations and rod handling.
