CE Certification 450-2000mm pile diameter hydraulic pile breaker Factories, Companies

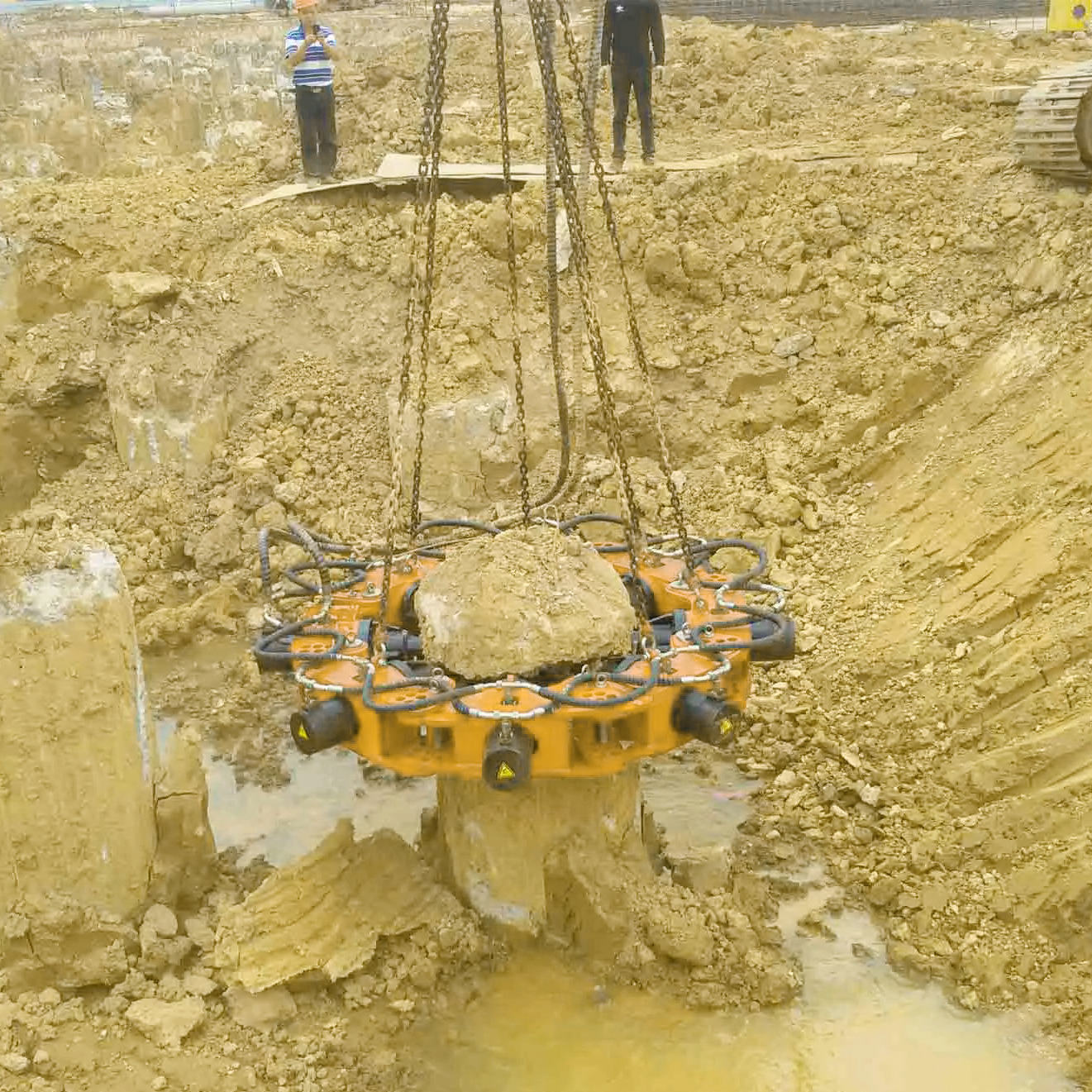

SPA series hydraulic pile breaker will not generate pressure wave, no vibration, noise and dust, and will not damage the pile foundation when breaking concrete piles. The machine has many advantages such as safety, high efficiency and energy saving in the field of concrete pile removal. With modular design, each module has a separate oil cylinder and drill rod, and the oil cylinder drives the drill rod to achieve linear motion. Multiple modules are combined to adapt to the construction of different pile diameters, and are connected in parallel through hydraulic pipelines to achieve synchronous action. The pile body is squeezed at multiple points on the same section at the same time, and the pile body at this section is broken.
The hydraulic pile breaker is also called the hydraulic pile cutter. The construction of modern buildings requires foundation piling. In order to better connect the foundation piles with the ground concrete structure, the foundation piles generally extend out of the ground by 1 to 2 meters, so that the steel bars are completely preserved. On the ground, artificial air pick crushers are generally used for crushing, which is not only slow in efficiency but also high in cost.

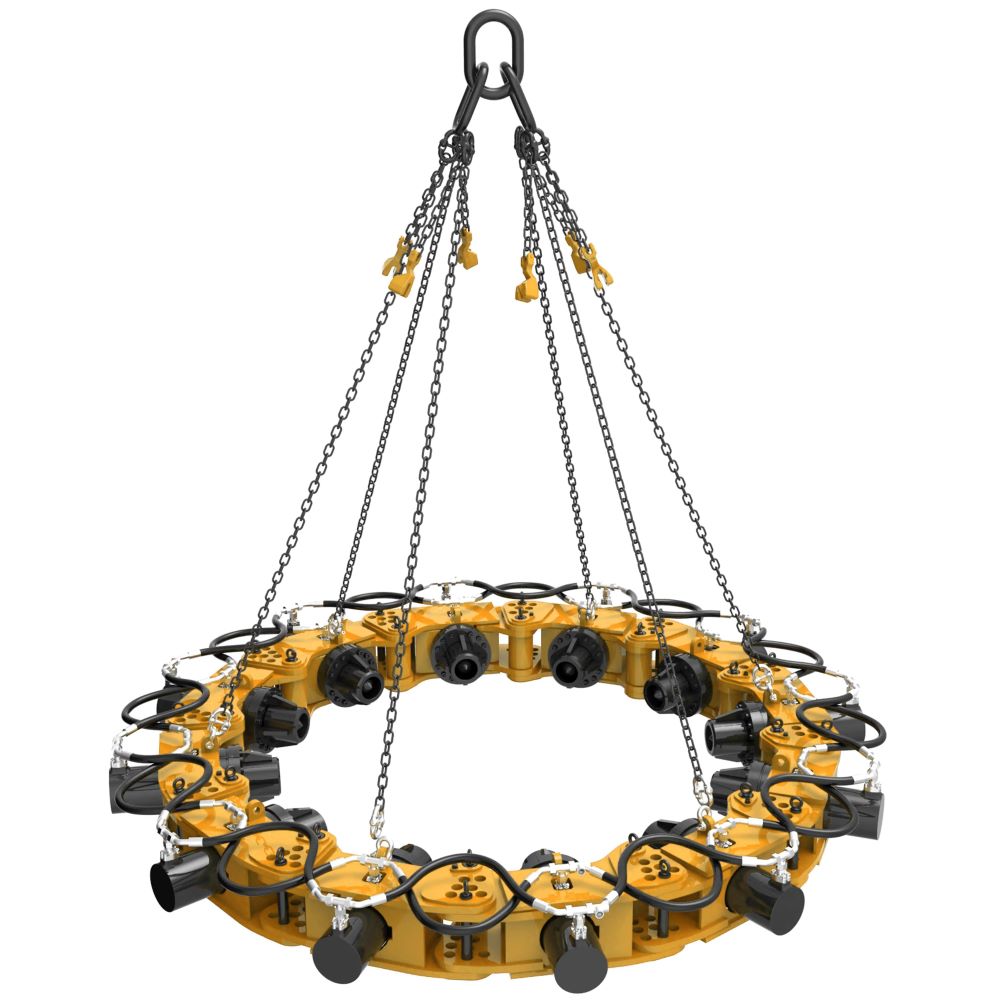

Through continuous research and development experiments, the brand-new SPA series hydraulic pile breaker has been launched. The SPA series hydraulic pile breaker provides pressure to multiple oil cylinders of the pile breaker through the power source. Pile head cut off. During the construction of the pile breaker, the hydraulic pile breaker has the advantages of simple operation, high construction efficiency, low noise and low cost, and is suitable for pile group construction projects. SPA series hydraulic pile breaker adopts a highly modular combination. Through the pin-shaft connection module, it can be combined with different modules to cut off the diameter of the pile head within a certain range, including the square pile and the round pile.
Most of the traditional pile head breaking methods use methods such as hammer blowing, manual drilling or air pick removal; however, these traditional methods have many disadvantages such as shock damage to the internal structure of the pile head, and now hydraulic concrete pile breakers have been It is a new, fast and efficient concrete structure demolition tool invented by combining the advantages of the above-mentioned various demolition equipment and the characteristics of the concrete structure itself. Greatly reduce the labor intensity of workers and improve work efficiency. Combined with the demolition method of the concrete pile breaker, it takes only a few minutes to cut off a pile head.
SPA series hydraulic pile breaker will not generate pressure wave, no vibration, noise and dust, and will not damage the pile foundation when breaking concrete piles. The machine has many advantages such as safety, high efficiency and energy saving in the field of concrete pile removal. With modular design, each module has a separate oil cylinder and drill rod, and the oil cylinder drives the drill rod to achieve linear motion. Multiple modules are combined to adapt to the construction of different pile diameters, and are connected in parallel through hydraulic pipelines to achieve synchronous action. The pile body is squeezed at multiple points on the same section at the same time, and the pile body at this section is broken.
Technical Specifications (Module Parameters)
Module numbers
The diameter range (mm)
Platform weight(t)
Total pile breaker weight(kg)
Height of single crush pile(mm)
6
450-650
20
2515
300
7
600-850
22
2930
300
8
800-1050
26
3345
300
9
1000-1250
27
3760
300
10
1200-1450
30
4175
300
11
1400-1650
32.5
4590
300
12
1600-1850
35
5005
300
13
1800-2000
36
5420
300
Model Specifications
Model
SPA8
Range of Pile diameter (mm)
Ф1800-Ф2000
Maximum Drill rod pressure
790kN
Maximum stroke of hydraulic cylinder
230mm
Maximum pressure of hydraulic cylinder
31.5MPa
Maximum flow of single cylinder
25L/min
Cut the number of pile/8h
30-100 pcs
Height for cutting pile each time
≦300mm
Supporting the digging machine Tonnage (excavator)
≧36t
One-piece module weight
410kg
One-piece module size
930x840x450mm
Work status dimensions
Ф3700x450
Total pile breaker weight
5.5t
Frequently Asked Questions
What is a hydraulic pile breaker?
A hydraulic pile breaker, also known as a hydraulic pile cutter, is a modern concrete demolition tool. It uses hydraulic pressure to squeeze and cut off foundation pile heads efficiently and safely, replacing slow and high-cost manual air pick crushing.
What are the advantages of using the SPA series pile breaker compared to traditional methods?
Unlike traditional hammering or manual drilling, the SPA series hydraulic pile breaker provides simple operation, high efficiency, lower construction costs, low noise, and zero dust. It avoids causing structural shock damage to the remaining pile head.
Can the modular pile breaker cut different pile diameters and shapes?
Yes. The SPA series features a highly modular design using pin-shaft connections. By combining different numbers of modules, it can be adjusted to cut round and square piles of various diameters.
How does the machine perform synchronization during concrete crushing?
The modules are connected in parallel through hydraulic pipelines. Each module is equipped with an independent cylinder that drives its drill rod. They work synchronously to squeeze the pile body at multiple points on the same section at the same time to break it cleanly.
How long does it take to cut off a single pile head?
Using the SPA series hydraulic pile breaker dramatically speeds up operations. It takes only a few minutes to cut off a single pile head, greatly reducing manual labor and scaling overall site productivity.
