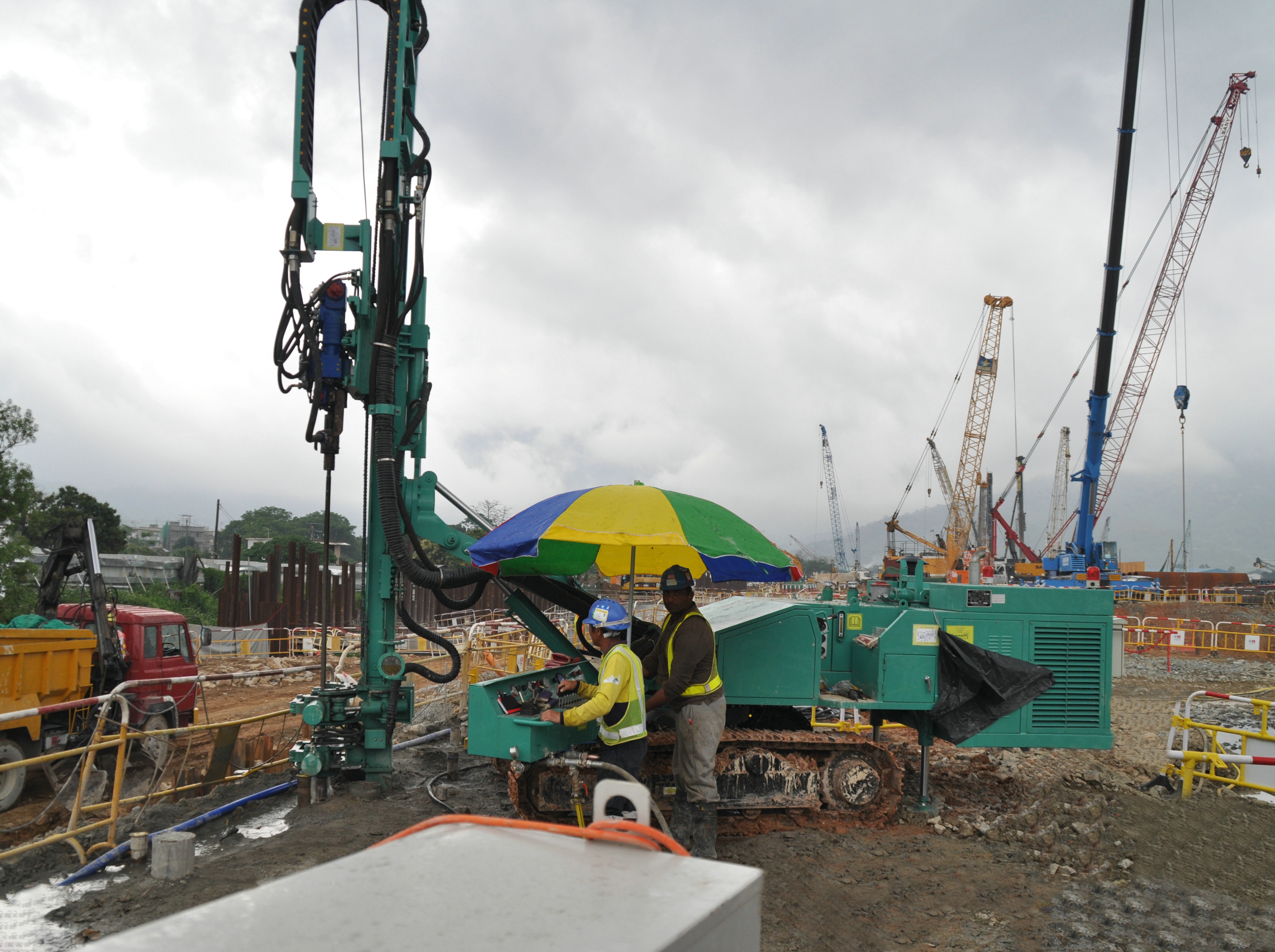

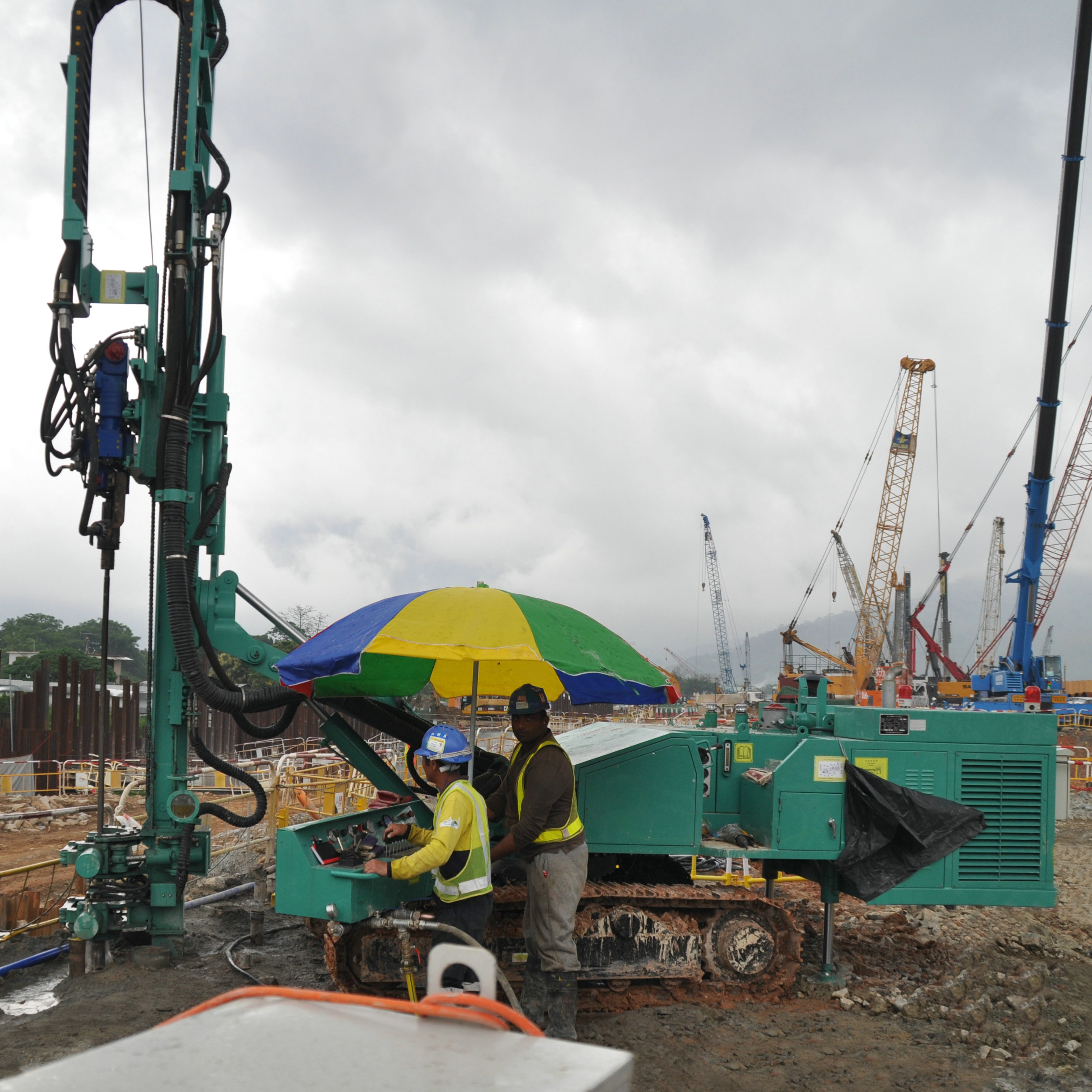

SM1800 A/B hydraulic crawler drills ,uses new hydraulic technology,with low air consumption , large rotary torque , and easy for variable-bit-shift hole.It is mainly suitable for open mining ,water conservancy and other blasting hole projects.
SM1800 A/B hydraulic crawler drills, uses new hydraulic technology, with low air consumption, large rotary torque, and easy for variable-bit-shift hole. It is mainly suitable for open mining, water conservancy and other blasting hole projects.
1. It is with 0-180° rotating ability of drilling rig’s frame, make a positioning drill coverage of 26.5 squaremeters, greatly improve the efficiency of the rig's arrangement of holes and the ability to deal with complicated working condition.
2. Drilling rig adopted high efficiency Kaishan brand screw air compressor, environmental protection and energy saving, with completely independent intellectual property rights.
Specification
Unit
SM1800A
SM1800B
Power
Diesel Engine Model
Cummins 6CTA8.3-C240
Rated Output & Speed
kw/rpm
180/2200
Hydraulic sys. Pressure
Mpa
20
Hydraulic sys.Flow
L/min
135,135,53
Rotary Head
work model
Rotation,percussion
Rotation
type
HB50A
XW400
max torque
N.m
13000
40000
max rotating speeding
r/min
80
44
Percussion Frequency
min-1
1200 1900 2400
/
Percussion Energy
Nm
835 535 420
Feed Mechanism
Feeding Force
KN
57
Extraction Force
KN
85
Max .Feeding Speed
m/min
56
Max. Pipe Extract Speed
m/min
39.5
Feed Stroke
mm
4100
Traveling Mechanism
Grade Ability
25°
Traveling Speed
km/h
4.1
Winch Capacity
N
20000
Clamp Diameter
mm
Φ65-225
Φ65-323
Clamp Force
kN
157
Slide stroke of mast
mm
1000
Total weight
kg
17000
Overall Dimensions(L*W*H)
mm
8350*2260*2900
3. Drilling rig's power unit cross at the end of the upper rotary frame, as opposed to the drill arm and push beam. No matter drill arm and push beam in any direction all have the effect of mutual balance.
4. Drilling rig's motion, crawler levelling and frame rotary can optional wireless remote control to operate outside the cab.
