Cheap SPA5 Hydraulic Pile Breaker Factory, Exporter

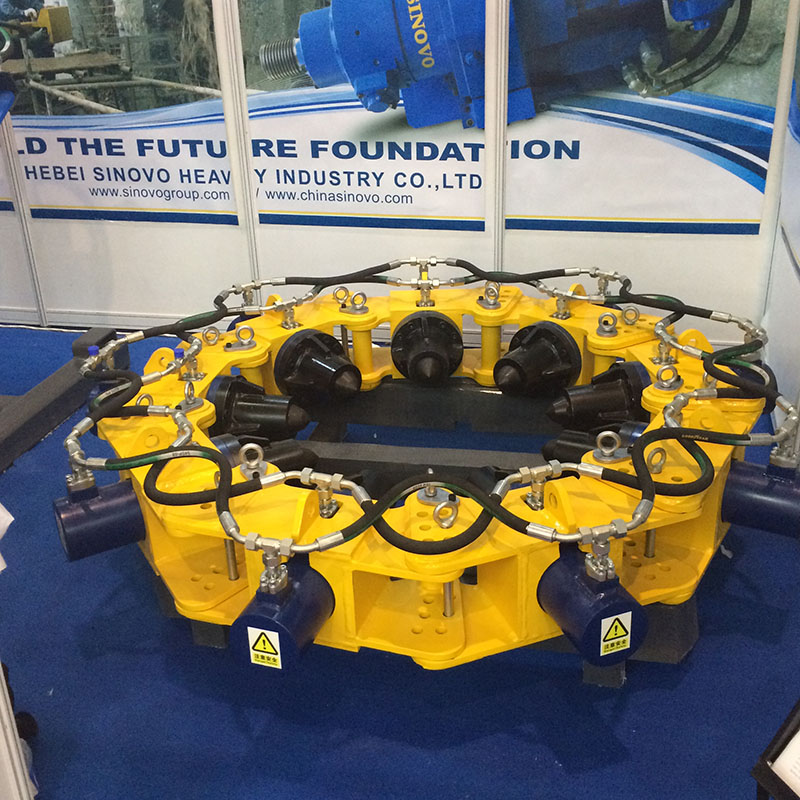

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies. Due to the modular design the pile breaker can be used for breaking different sizes of piles. Equipped with the chains. it can work with different equipment to break piles.

Send Inquiry

Product Description

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design the pile breaker can be used for breaking different sizes of piles. Equipped with the chains, it can work with different equipment to break piles.

Key Advantages

1. Environment-friendly

Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.

2. Low-cost

The operating system is easy and convenient. Fewer operating workers are required to save cost for labor and machines maintenance during construction.

3. Small volume

It's light for convenient transportation.

4. Safety

Contact-free operation is enabled and it can be applied for construction on complex land form.

5. Universal property

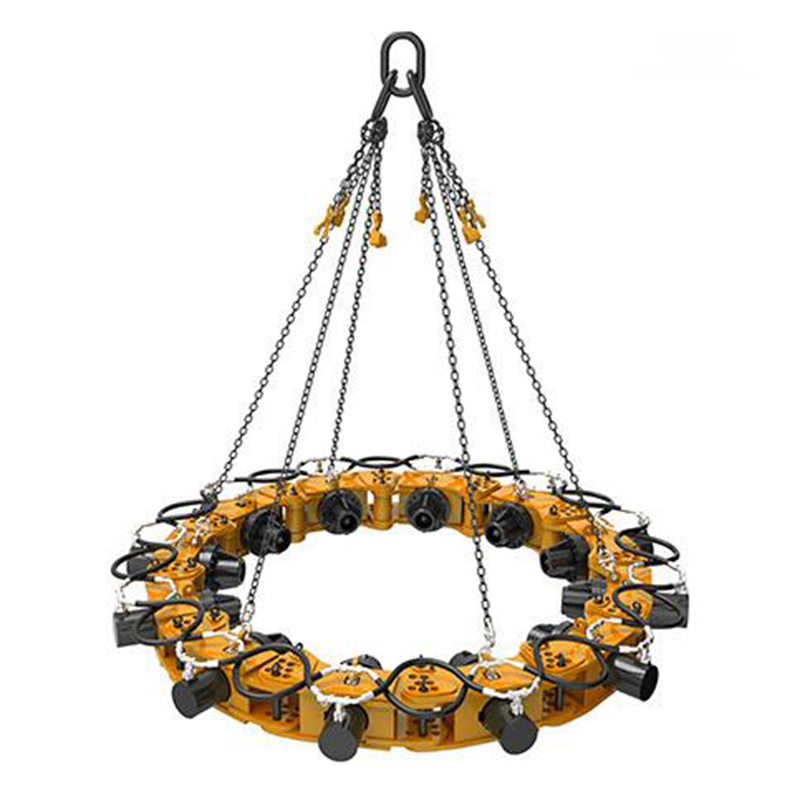

It can be driven by diverse power sources and is compatible with excavators or hydraulic system according to the construction sites conditions. It is flexible to connect multiple construction machines with universal and economical performance. The telescopic sling lifting chains meet the requirements of various land forms.

6. Long service life

It is made of military material by first-class suppliers with reliable quality, extending its service life.

7. Convenience

It’s small for convenient transportation. Replaceable and changeable module combination makes its applicable for piles with various diameters. The modules can be assembled and disassembled easily and conveniently.

Operational Process

According to pile diameter, with reference to the construction reference parameters corresponding to the number of modules, directly connect the breakers to the work platform with a quick change connector.

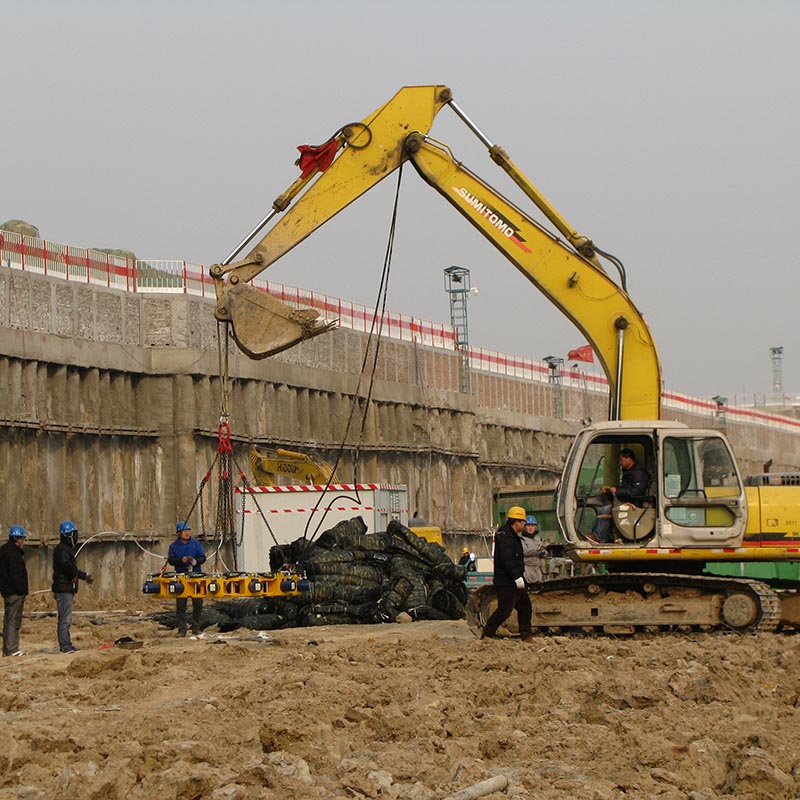

The working platform can be excavator, lifting device and hydraulic pump station combination, the lifting device can be truck crane, crawler cranes, etc.

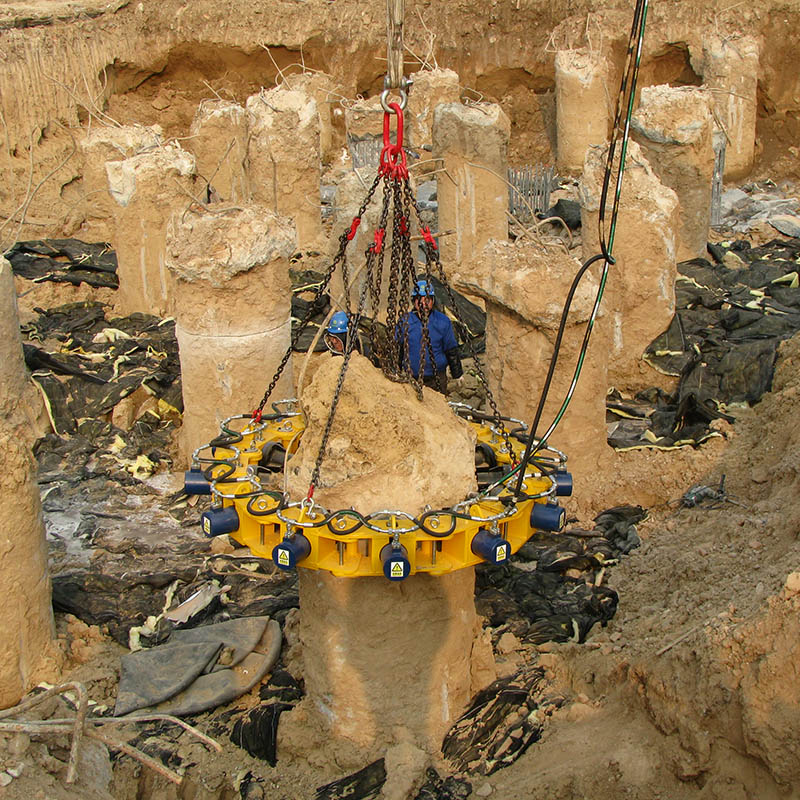

Move the pile breaker to the working pile head section.

Adjust the pile breaker to the suitable height (please refer to construction parameter list when crushing the pile, otherwise the chain may be broken), and clamp the pile position to be cut.

Construction Parameters

Module numbers	The diameter range (mm)	Platform weight (t)	Total pile breaker weight (kg)	Height of single crush pile (mm)
7	300-400	12	920	300
8	450-500	13	1030	300
9	550-625	15	1140	300
10	650-750	18	1250	300
11	800-900	21	1360	300
12	950-1050	26	1470	300

Hydraulic pile breaker working process detail

Adjust the excavator's system pressure according to the concrete strength, and pressurize the cylinder until the concrete pile breaks under high pressure.

After the pile is crushed, hoist the concrete block.

Move the crushed pile to the designated position.

The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.

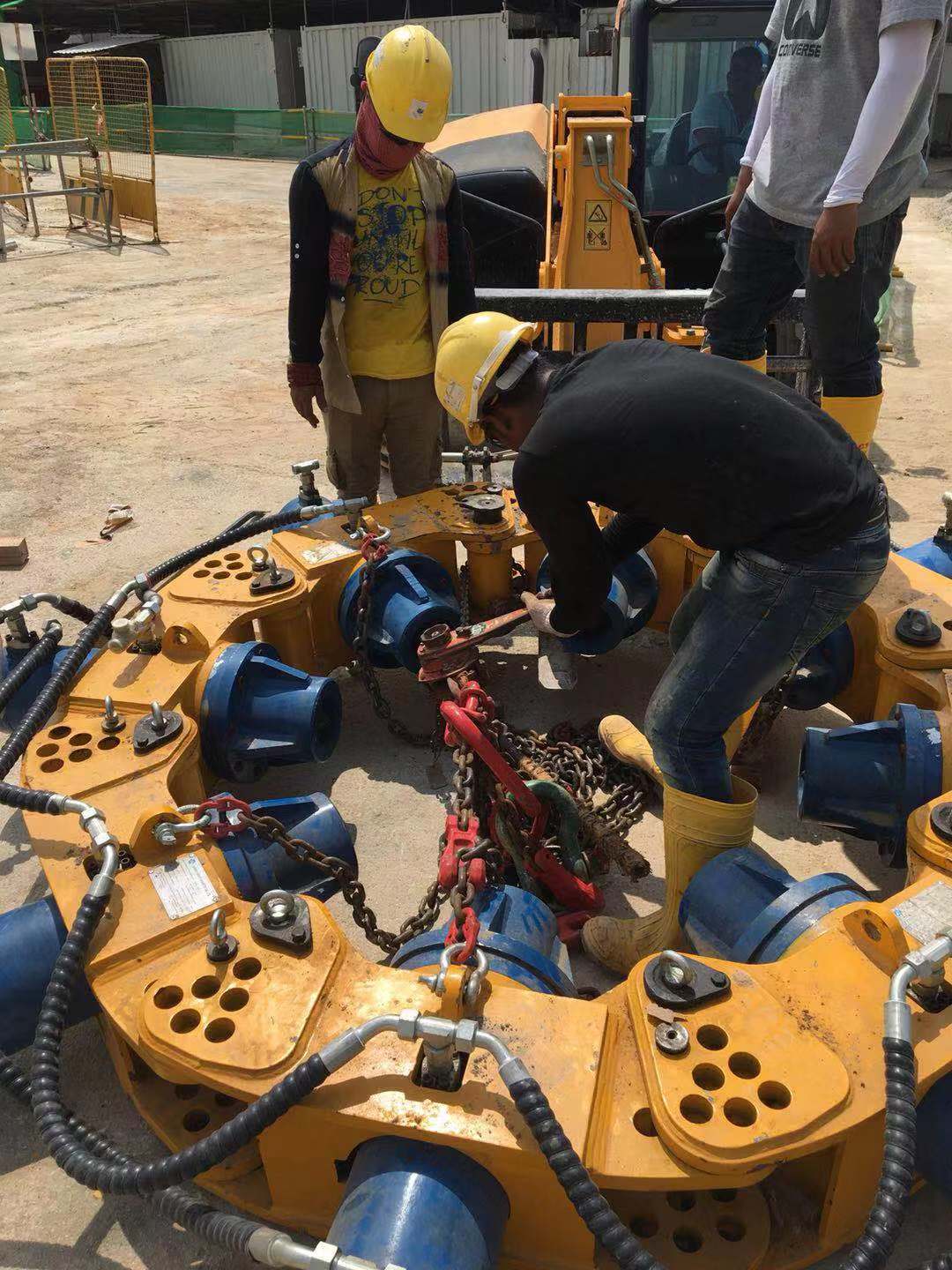

Hydraulic pile breaker product specifications image

Specification (Group of 12 Modules)

Model	SPA5
Range of Pile diameter (mm)	Ф950-Ф1050
Maximum Drill rod pressure	320kN
Maximum stroke of hydraulic cylinder	150mm
Maximum pressure of hydraulic cylinder	34.3MPa
Maximum flow of single cylinder	25L/min
Cut the number of pile/8h	60pcs
Height for cutting pile each time	<= 300mm
Supporting the digging machine Tonnage (excavator)	>= 20t
One-piece module weight	110kg
One-piece module size	604 x 594 x 286mm
Work status dimensions	Ф2268 x 2500
Total pile breaker weight	1.5t

Frequently Asked Questions (FAQ)

How does the modular design benefit different pile breaking tasks?

The modular design allows the pile breaker to adapt easily to various pile diameters. By changing the combination and number of modules (for example, from 7 to 12 modules), operators can break piles ranging in diameter from 300 mm to 1050 mm.

What equipment can be used as the working platform for the pile breaker?

It is highly versatile and can be connected directly to excavators, lifting devices combined with hydraulic pump stations, truck cranes, or crawler cranes using quick change connectors.

Does the pile breaking process damage the foundation pile's parent body?

No. The hydraulic pile breaker operates smoothly without imposing impact force on the parent body of the pile. It has no negative influence on the structural integrity or bearing capacity of the pile.

What is the average output efficiency of the SPA5 hydraulic pile breaker?

The SPA5 model can reliably cut up to 60 concrete piles within an 8-hour shift, significantly shortening the construction schedule compared to traditional methods.

Is this equipment safe for complex geological terrains?

Yes. Contact-free operation is enabled, making it highly secure and applicable for complex landforms. Additionally, the telescopic sling lifting chains accommodate varying terrain profiles.
