ODM XY-2B Core Drilling Rig Supplier, Pricelist

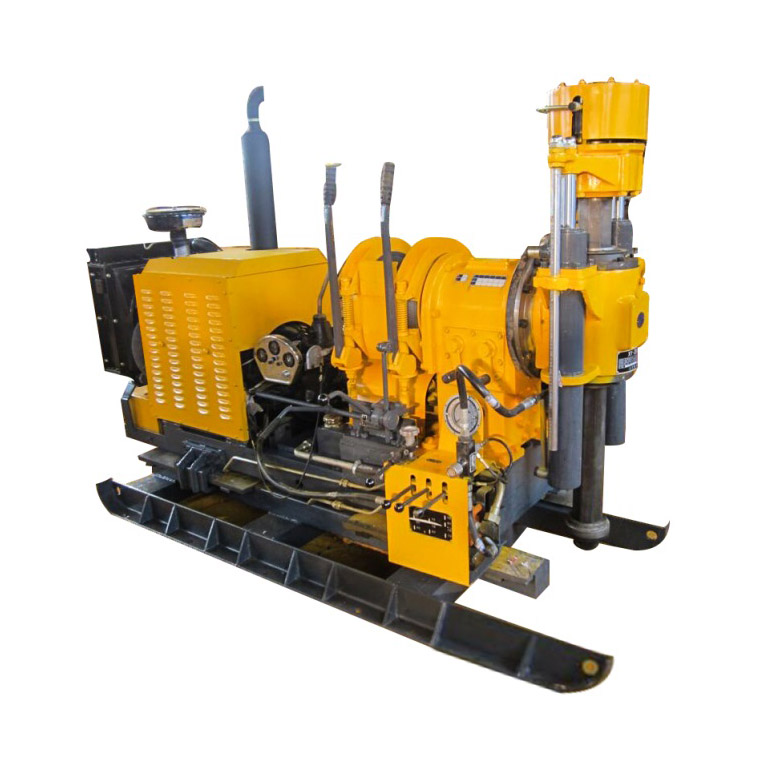

XY-2B drilling rig is type of vertical shaft drill, which can be powered by diesel engine or electric motor. It is mainly used for diamond bit drilling and carbide bit drilling of solid bed. It also can be used in exploring drilling and base or pile hole drilling.

Send Inquiry

Product Description

Compact size and light in weight of mechanical transmission, major diameter of vertical shaft, long distance of support span and good rigidity, hexagonal Kelly ensure the torque transfer.

High speed and suitable range of speed to meet varies need of small diameter diamond bit drilling, big carbide bit drilling and all kinds of the engineering holes.

In hydraulic system, feeding pressure and speed can be adjusted while drilling to suitable for various stratums.

Through hydraulic oil pressure gauge at the hole-bottom, obtain information about feeding pressure.

Using the transmission and clutch of automobile to achieve the good generalization, easy repairing and maintenance.

Close levers, convenient operation.

The spindle has the octagon section so give more torque.

Drilling Rig Technical Parameter Illustration

Fundamental parameters	Drilling depth		Ф76mm	300m
			Ф219mm	150m
			Ф500mm	50m
	Diameter of drilling rod			50,60mm
	Angle of drilling			70°-90°
Rotation unit	Co-rotation			70,146,179,267,370, 450,677,1145r/min
	Reverse rotation			62,157r/min
	Spindle stroke			550mm
	Spindle pulling force			68KN
	Spindle feeding force			46KN
	Max. output torque			2550N.m
Hoist	Lifting speed			0.64,1.33,2.44m/s
	Lifting capacity			25,15,7.5KN
	Cable diameter			15mm
	Drum diameter			200mm
	Brake diameter			350mm
	Brake band width			74mm
Frame moving device	Frame moving stroke			410mm
	Distance away from hole			300mm
Hydraulic oil pump	Type			CBW-E320
	Rated pressure			8Mpa
	Rated flow			40L/min
Power unit	Type of diesel (N458Q)	Rated power		24.6KW
		Rated speed		1800r/min
	Type of electrical motor(Y180L-4)	Rated power		22KW
		Rated speed		1450r/min
Overall dimension				250011001700mm
Rig weight	with diesel engine			1550kg
	with electric motor			1450kg

Frequently Asked Questions

What is the maximum drilling depth of this rig?

The drilling depth varies based on the hole diameter. It reaches up to 300 meters for a Φ76mm hole, 150 meters for a Φ219mm hole, and 50 meters for a Φ500mm hole.

What power options are available for this drilling rig?

This rig is highly adaptable and can be powered by either a diesel engine (Type N458Q with 24.6KW rated power at 1800r/min) or an electrical motor (Type Y180L-4 with 22KW rated power at 1450r/min).

How does the hydraulic feeding system assist during operation?

The hydraulic system allows feeding pressure and speed to be adjusted dynamically during drilling. Real-time feedback on feeding pressure is monitored via a hydraulic pressure gauge at the bottom of the hole.

What are the spindle performance characteristics?

The spindle features an octagonal section for higher torque capacity. It provides a spindle stroke of 550mm, a maximum output torque of 2550N.m, a spindle pulling force of 68KN, and a spindle feeding force of 46KN.

Why does this rig use automobile transmission components?

By utilizing a standard automobile transmission and clutch, the rig benefits from high generalization. This design ensures that replacement parts are easy to source, facilitating simple repairs and routine maintenance.

What is the physical size and weight of the drilling rig?

The overall dimensions are 2500*1100*1700mm. The rig weight is 1550kg when configured with the diesel engine, and 1450kg when equipped with the electric motor.
