| Engine Power | 110/2200KW |
| Max Thrust force | 200KN |
| Max Pullback force | 200KN |
| Max Torque | 6000N.M |
| Max Rotary speed | 180rpm |
| Max Moving speed of power head | 38m/min |
| Max Mud pump flow | 250L/min |
| Max Mud pressure | 8+0.5Mpa |
| Main machine size | 5880x1720x2150mm |
| Weight | 7T |
| Diameter of drilling rod | φ60mm |
| Length of drilling rod | 3m |
| Max diameter of pullback pipe | φ150~φ700mm |
| Max construction length | ~ 500m |
| Incidence Angle | 11~20° |
| Climbing Angle | 14° |
Classic H-beam structure, steel track, strong adaptability and high reliability; walking reducer has stable and reliable performance; The anti shear sleeve leg structure can protect the oil cylinder from transverse force.
Single all-weather rotatable cab, easy to operate and comfortable.
Turbine torque increasing stage II engine, with large power reserve and small displacement, to ensure drilling power and emergency needs.
Closed energy-saving circuit is adopted for rotation, and open system is adopted for other functions. Load sensitive control, electro-hydraulic proportional control and other advanced control technologies are adopted. Imported components are of reliable quality.
Advanced intelligent control technology, CAN technology and imported high reliability controller are applied. Optimized instrument display positions with larger monitors. Stepless speed regulation via wire control. Comprehensive monitoring alarm for engine speed, water temperature, oil pressure, hydraulic level, and filters.
High strength drilling frame, suitable for 3m drill pipe; It can slide the drill frame and adjust the angle easily.
Detachable gripper and truck mounted crane make it easy to load and unload drill pipe.
Easy to operate, high and low speed adjustable.
Engine, hydraulic pressure, filter and other parameters monitoring alarm, effectively protect the safety of the machine.
Equipped with manual operation system to cope with special circumstances and protect construction safety.

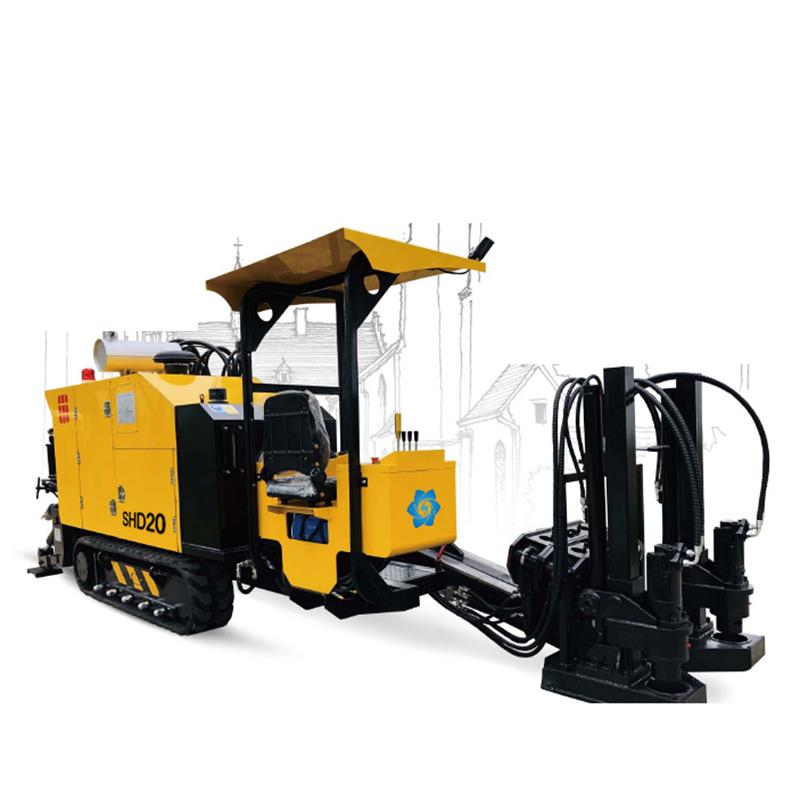

This horizontal directional drilling machine features a maximum thrust force and pullback force of 200KN, ensuring robust drilling performance.
The machine is powered by a 110/2200KW turbine torque increasing stage II engine, designed with a large power reserve and small displacement to handle both standard drilling and emergency needs.
The rig is optimized for drilling rods with a diameter of φ60mm and a length of 3 meters.
It supports a maximum construction length of approximately 500 meters, and can handle a maximum pullback pipe diameter ranging from φ150 to φ700mm.
It features a comprehensive wire-controlled electrical monitoring system with alarms for engine speed, water temperature, oil pressure, hydraulic level, and filter states, along with a manual emergency operation system to protect the machinery and operators.
