ODM SPA8 PLUS Hydraulic Pile Breakers Factory, Product

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation plies. Due to the modular design, the pile breaker can be used for breaking different sizes of pile. Equiped with the chains, it can work with different equipments to break piles.

Send Inquiry

Product Description

The leading hydraulic pile breaker with five patented technologies and adjustable chain, it is the most efficient equipment to break the foundation piles. Due to the modular design, the pile breaker can be used for breaking different sizes of pile. Equipped with the chains, it can work with different equipments to break piles.

Key Features

The hydraulic pile breaker has the following features: easy operation, high efficiency, low cost, less noise, more safety and stability. It imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile, and shortens the construction period greatly. It is applicable for pile-group works and is recommended strongly by the construction department and the supervision department.

High Efficiency

Optimized modular system ensures rapid pile breaking and shortens construction cycles.

No Impact Damage

Imposes no impact force on the parent body and preserves the bearing capacity of the pile.

Eco-Friendly Design

Engineered for low noise operation and high stability, improving job site safety.

Cost-Effective

Ensures low maintenance costs and highly efficient operational performance.

Technical Parameters

SPA8 PLUS截桩机各工况施工参考参数/Construction's Parameters
模块数量	使用桩径/mm	最小挖机吨位/t	整机重量/kg	单次截桩最大高度/mm
Module numbers	The diameter range	Platform weight	weight	Height of single crush pile
6	450-600	20	2400	300
7	650-800	22	2800	300
8	850-1000	26	3200	300
9	950-1200	27	3600	300
10	1150-1400	30	4000	300
11	1350-1600	32	4400	300
13	1650-1800	35	5200	300
14	1850-2100	35	5600	300
15	2050-2300	40	6000	300
16	2250-2500	40	6400	300

Project & Delivery Gallery

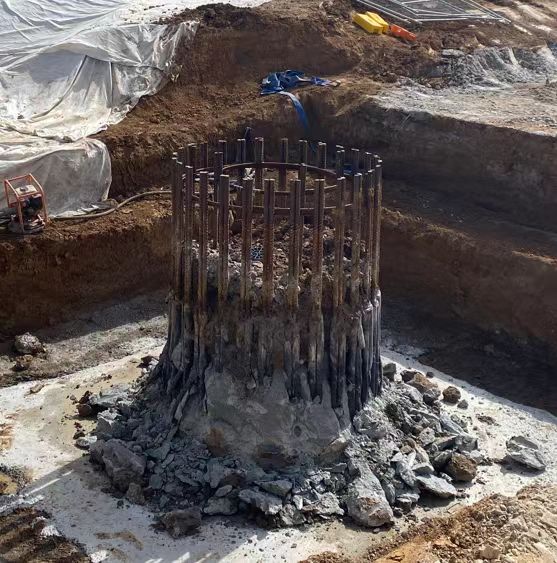

Construction photograph

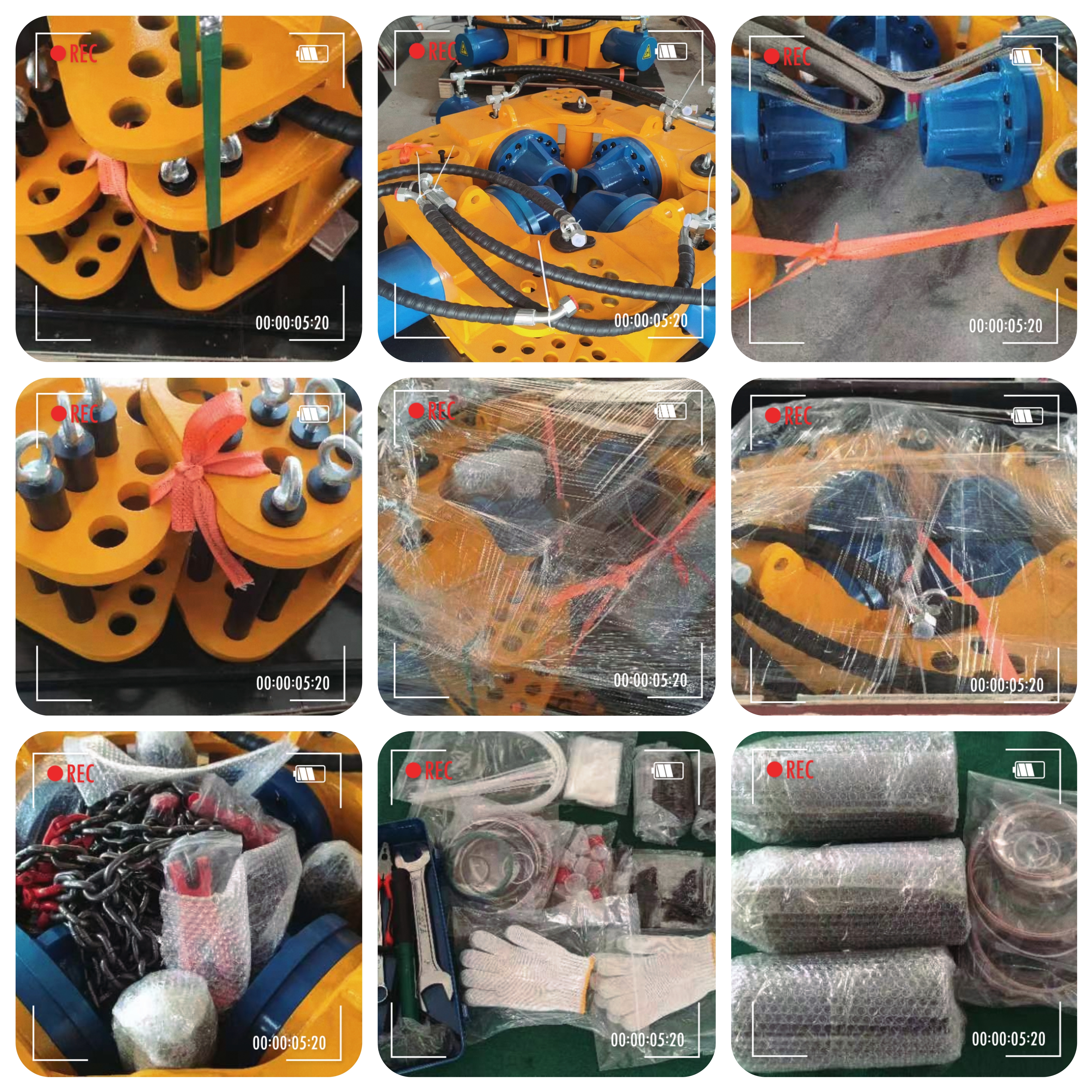

Delivery photo

Frequently Asked Questions (FAQ)

Q How does the modular design benefit the pile breaking process?

The modular design allows the hydraulic pile breaker to adjust and scale to break foundation piles of different sizes. By altering the number of module segments, you can customize the machine diameter to match specific pile requirements.

Q Will using this equipment damage the main body or bearing capacity of the pile?

No. The hydraulic pile breaker operates smoothly and imposes no impact force on the parent body of the pile. This ensures that the pile's bearing capacity remains completely unaffected during the crushing process.

Q What carrier equipment can be paired with this pile breaker?

Equipped with lifting chains, the pile breaker can work flexibly with various construction machinery. The matching equipment requirements, such as minimum excavator tonnage, depend on the number of modules selected (e.g., ranging from 20t to 40t).

Q What are the major structural benefits of this machine?

It features five patented technologies that guarantee high working efficiency, easy operation, low overall operational cost, reduced noise pollution, and enhanced stability and safety during group-pile construction projects.

Q What is the maximum crush height achieved in a single operation?

Across all model configurations (from 6 to 16 modules), the maximum height of a single crush pile is consistently maintained at 300 mm.

Q Why is this hydraulic pile breaker recommended by construction departments?

It drastically shortens the overall construction period compared to traditional methods. Furthermore, it operates safely with low noise and high predictability, making it highly recommended by both construction and supervision authorities.
