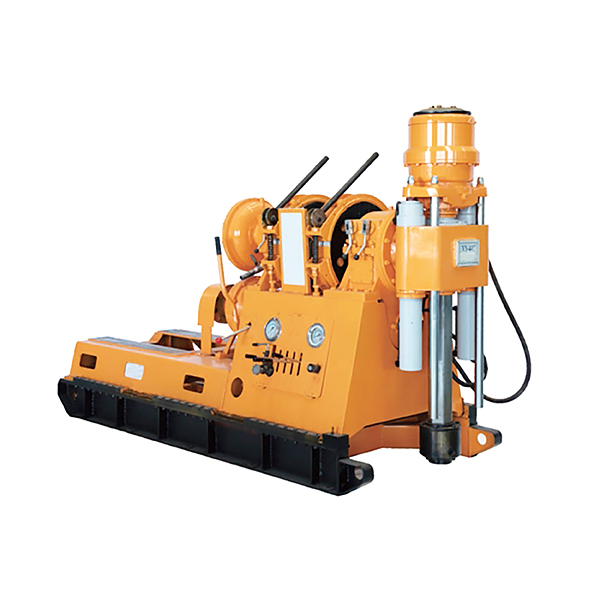

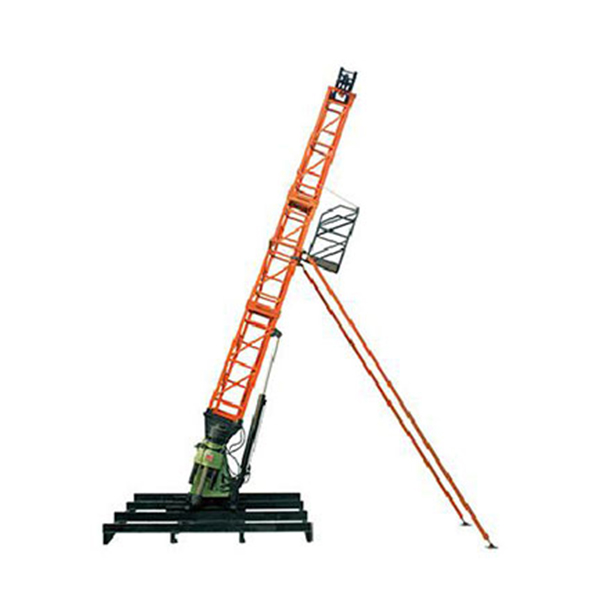

XY-44 drilling rig is mainly adapted to diamond bit drilling and carbide bit drilling of solid bed. It can also be used for engineering geology and groundwater exploration; shallow layer oil and natural gas exploitation, even hole for sap ventilation and sap drain. The drilling rig has compact, simple and suitable construction. It is light, and can be assembled and disassembled conveniently. The appropriate range of rotation speed gives the drill a high drilling efficiency.

Send Inquiry

Product Description

Key Features & Advantages

Versatile Rotation Speed: Features 8 rotation speed series with an appropriate range, providing low speed with high torque. Ideal for alloy core drilling, diamond core drilling, engineering geological exploration, water wells, and foundation hole drilling.

Large Spindle Diameter: Equipped with a large spindle inner diameter (Ф93mm), double hydraulic feeding cylinder, and a long stroke up to 600mm. Highly adaptable for wire-line coring of large diameter drill pipes, improving drilling efficiency and reducing hole accidents.

Deep Drilling Capacity: Exhibits powerful drilling capabilities, reaching a maximum rated drilling depth of 1000 meters using a Ф71mm wire-line drill rod.

Lightweight & Modular: Net weight of 2300 kg. The main machine can be disassembled into 10 components for convenient transport, assembly, and disassembly, making it highly flexible for mountainous terrains.

Hydraulic Chuck System: Adopts one-way oil supply, spring clamping, and hydraulic release. Provides strong, stable chuck clamping force for safe operations.

Deep Hole Safety Brake: Equipped with a robust water brake, ensuring smooth and safe operations during deep hole drilling.

Stable Hydraulic System: Utilizes a single gear oil pump for simple installation, ease of use, low power consumption, low oil system temperature, and stable execution. Includes a backup manual oil pump to safely retrieve drilling tools if the engine fails.

Compact & Low Maintenance: Rational overall layout makes maintenance and repair highly straightforward while maintaining a compact operational footprint.

Excellent Stability: Designed with a low center of gravity and a long skid stroke, establishing rigid fixation for outstanding stability during high-speed operations.

Intelligent Monitoring: Equipped with a long-life, shockproof instrument panel to grasp real-time downhole conditions easily. Uses fewer control levers for responsive and reliable operation.

Technical Specifications

Fundamental parameters	Max. Drilling Depth	Core drilling	Ф55.5mm * 4.75m		1400m
			Ф71mm * 5m		1000m
			Ф89mm * 5m		800m
			BQ		1400m
			NQ		1100m
			HQ		750m
		Hydrological drilling	Ф60mm(EU)	200mm	800m
			Ф73mm(EU)	350mm	500m
			Ф90mm(EU)	500mm	300m
		Foundation stake drilling (rod: 89mm EU)		Unconsolidated formation: 1000mm	100m
				Hard rock formation: 600mm	100m
	Angle of drilling				0°-360°
Rotation unit	Type				Mechanical rotary type, hydraulic feeding by double cylinder
	Inner diameter of spindle				93mm
	Spindle speed	Speed			1480 r/min (used for core drilling)
		Co-rotation	Low speed		83, 152, 217, 316 r/min
			High speed		254, 468, 667, 970 r/min
		Reverse rotation			67, 206 r/min
	Spindle stroke				600mm
	Max. pulling up force				12t
	Max. feeding force				9t
	Max. output torque				4.2 KN.m
Hoist	Type				Planetary gear transmission
	Diameter of the wire rope				17.5, 18.5mm
	Content of winding Drum	Ф17.5mm wire rope			110m
		Ф18.5mm wire rope			90m
	Max. lifting capacity (single wire)				5t
	Lifting speed				0.70, 1.29, 1.84, 2.68 m/s
Frame moving device	Type				Slide drill (with slide base)
	Frame moving stroke				460mm
Hydraulic oil pump	Type				Single gear oil pump
	Max. pressure				25 Mpa
	Rated pressure				10 Mpa
	Rated flow				20 mL/r
Power unit (option)	Type of diesel (R4105ZG53)	Rated power			56 KW
		Rated rotating speed			1500 r/min
	Type of electrical motor (Y225S-4)	Rated power			37 KW
		Rated rotating speed			1480 r/min
Overall dimension					3042 * 1100 * 1920mm
Total weight (including power unit)					2850kg

Frequently Asked Questions

What is the maximum drilling depth of this rig?

The maximum drilling depth depends on the drilling configuration. For core drilling using a Ф55.5mm rod, it can reach up to 1400 meters. For Ф71mm wire-line drill rods, it has a rated depth capacity of 1000 meters.

What are the advantages of the spindle design?

The spindle features a large inner diameter of Ф93mm and a double hydraulic cylinder for feeding, paired with a long stroke of 600mm. This is highly suitable for large-diameter wire-line coring, increasing overall drilling efficiency and minimizing downhole accidents.

Is this drilling rig portable enough for mountain work?

Yes. The main machine has a net weight of 2300 kg and can be easily disassembled into 10 components. This modular design makes transportation, handling, and assembly convenient in challenging mountain terrains.

What safety measures are built into this drilling rig?

The rig is equipped with an integrated water brake to ensure smooth and safe performance during deep hole drilling. Additionally, it features a shockproof instrument panel to accurately monitor the condition inside the hole.

What happens to the drilling tools if the engine stops working?

The hydraulic system features a single gear oil pump design equipped with a manual backup oil pump. Even if the primary engine fails to run, operators can use the manual oil pump to retrieve the drilling tools safely.

What power options are available for this rig?

The rig can be powered by either a diesel engine (model R4105ZG53, rated at 56KW at 1500r/min) or an electrical motor (model Y225S-4, rated at 37KW at 1480r/min), depending on your job site requirements.
