Best XY-1A Core Drilling Rig Factory, Companies

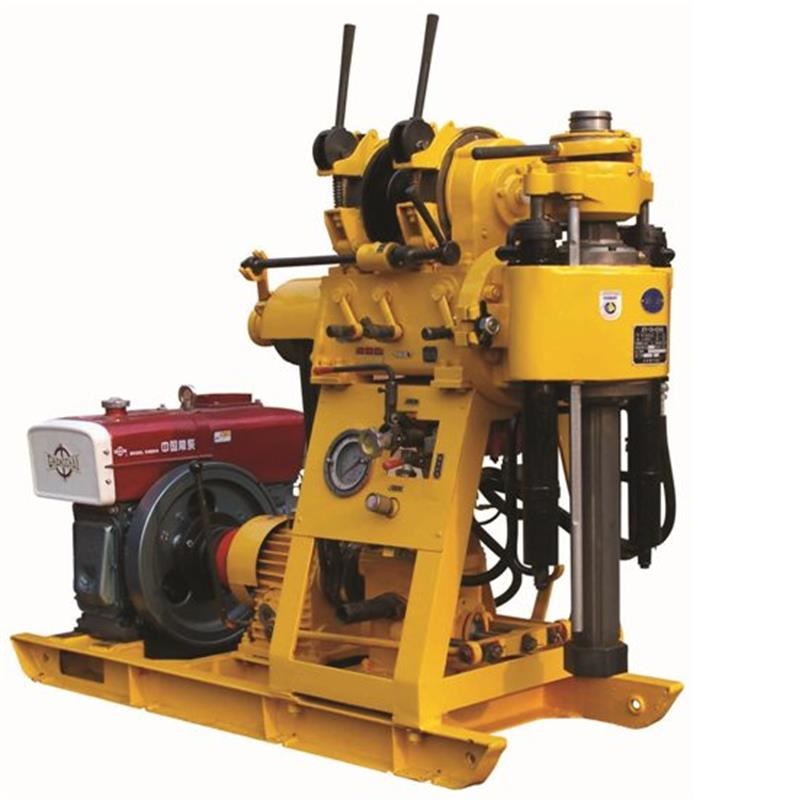

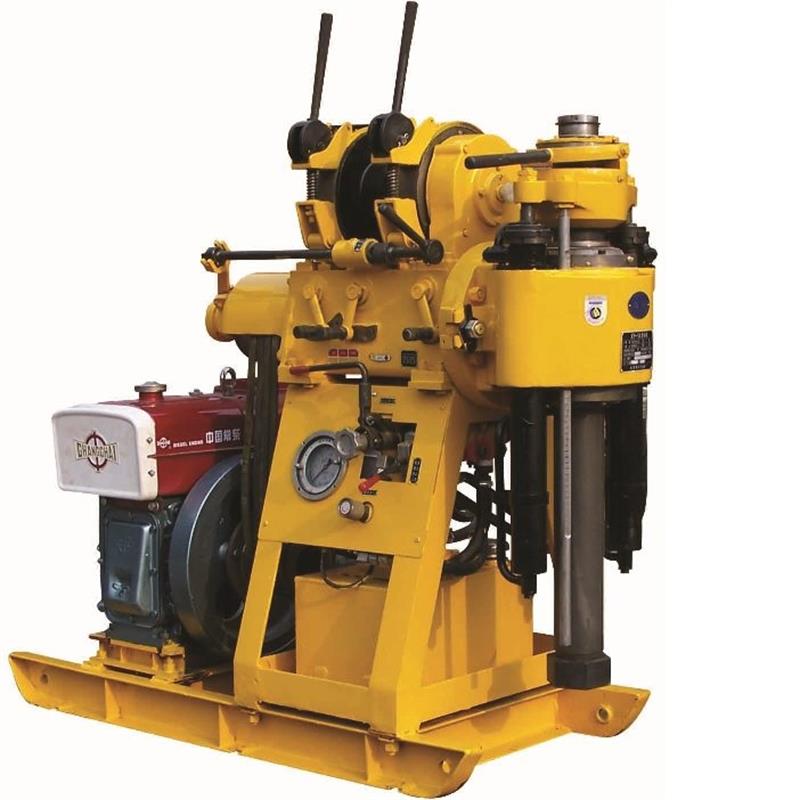

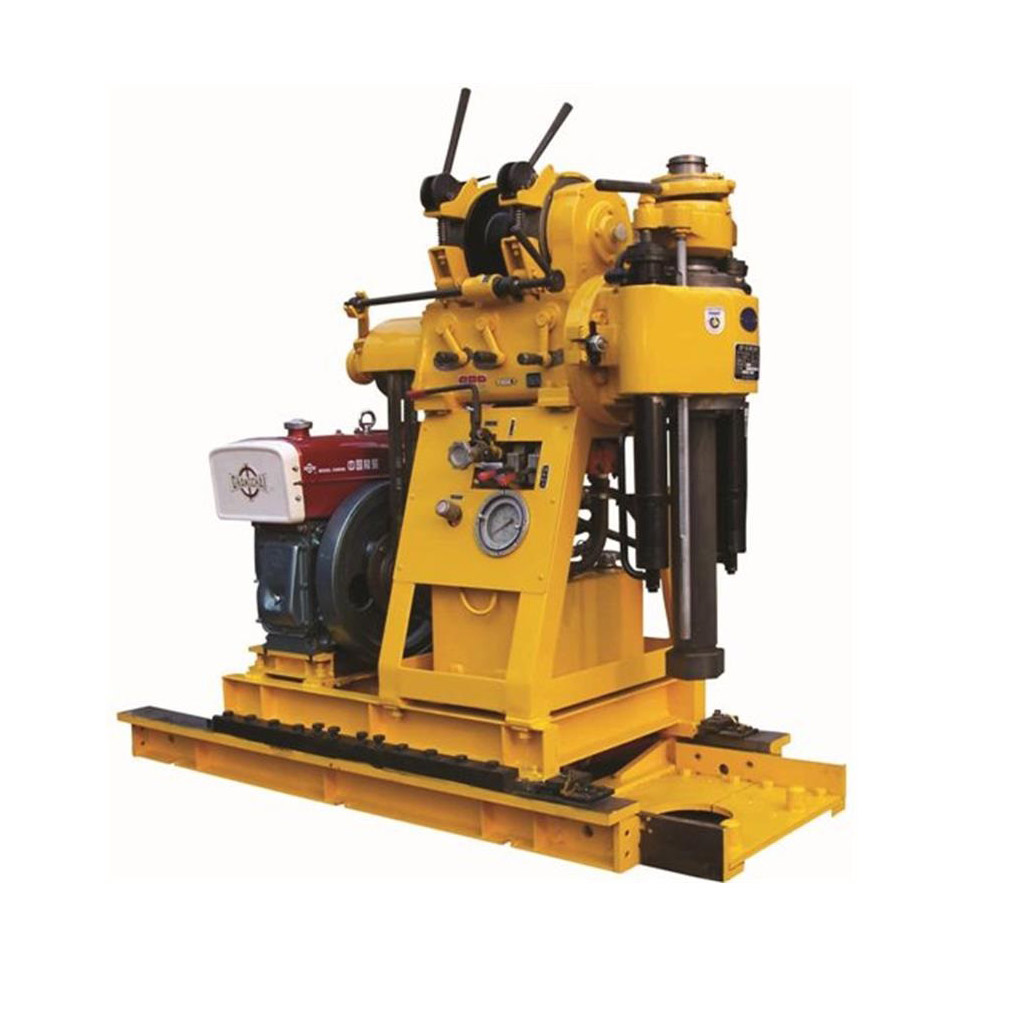

XY-1A drill is a portable hydraulic rig which on high speed. To meet the needs of different customers with widely practical use, we advance XY-1A(YJ) Model drill, which is added with travel lower chuck; And a advance XY-1A-4 Model drill, which is added with water pump; rig, water pump and diesel engine installed on same base.

Send Inquiry

Product Description

Applications & Scope

Geological exploration, engineering geology investigation and kinds of survey holes in concrete structures.

Diamond bits, hard metal bits and steel-shot bits could be selected to different layers.

The rated drilling depth is 100m using dia. 75mm bit, and 180m using dia. 46mm bit. The drilling depth cannot exceed 110% of its capacity. The allowable maximum diameter of initial hole is 150mm.

Key Advantages & Features

✔

Easy operation and high efficiency with the hydraulic feeding

✔

Close levers, convenient to operate, safe and reliable

✔

The octagon shape section spindle can give more torque.

✔

The pressure indicator of bottom hole can be observed and the well conditions controlled easily

✔

As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relit

✔

Compact size and light in weight, easy to assemble, disassemble and transport, suitable for plains and mountain area

Technical Specifications

Fundamental parameters	Drilling depth		100,180m
	Max. Diameter of the initial hole		150mm
	Diameter of the final hole		75,46mm
	Diameter of drilling rod		42,43mm
	Angle of drilling		90°-75°
Rotation unit	Spindle speed (5 positions)		1010,790,470,295,140rpm
	Spindle stroke		450mm
	Max. feeding pressure		15KN
	Max. lifting capacity		25KN
Hoisting	Single wire lifting capacity		11KN
	Rotation speed of drum		121,76,36rpm
	Drum circumferential velocity (two layers)		1.05,0.66,0.31m/s
	Diameter of the wire rope		9.3mm
	Drum capacity		35m
Hydraulic oil pump	Model		YBC-12/80
	Nominal pressure		8Mpa
	Flow		12L/min
	Nominal speed		1500rpm
Power unit	Type of diesel (S1100)	Rated power	12.1KW
		Rated rotating speed	2200rpm
	Type of electrical motor (Y160M-4)	Rated power	11KW
		Rated rotating speed	1460rpm
Overall dimension		XY-1A	14336971274mm
		XY-1A-4	17007801274mm
		XY-1A(YJ)	16209701560mm
Total weight (not include power unit)		XY-1A	420kg
		XY-1A-4	490kg
		XY-1A(YJ)	620kg

Frequently Asked Questions

What are the primary applications for this drilling rig?

This rig is designed for geological exploration, engineering geology investigation, and drilling various survey holes in concrete structures.

Which types of drill bits are compatible with this equipment?

Depending on the geological layer conditions, you can select diamond bits, hard metal bits, or steel-shot bits.

What is the drilling depth capability of the system?

The rated drilling depth is 100m when using a 75mm diameter bit, and 180m when using a 46mm diameter bit. Note that actual drilling depth should not exceed 110% of the rig's capacity.

What are the power options for this drilling rig?

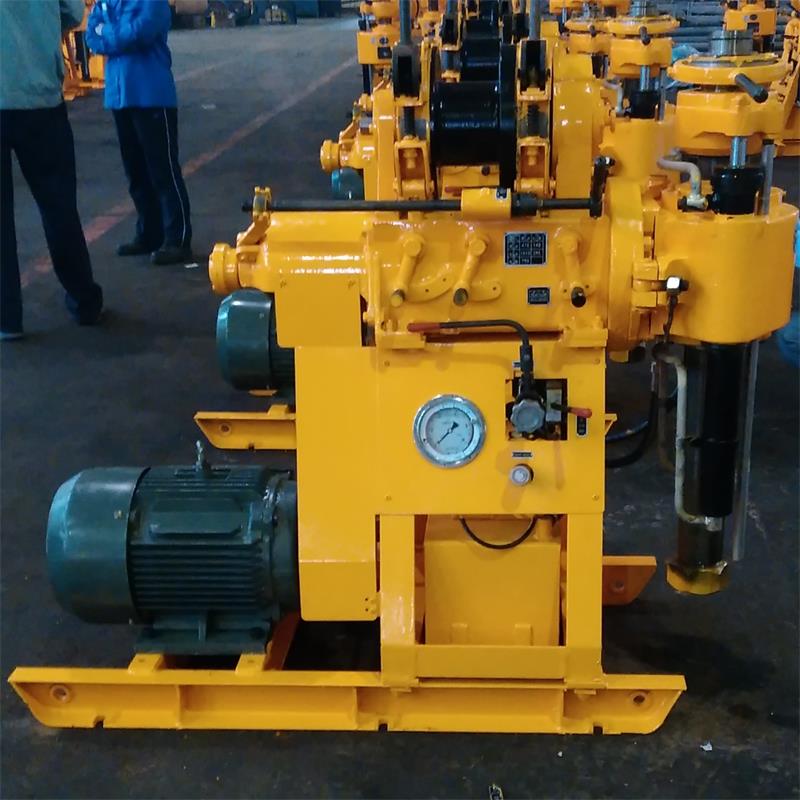

It can be configured with either a diesel engine (Model S1100, 12.1KW at 2200rpm) or an electrical motor (Model Y160M-4, 11KW at 1460rpm).

How does the hydraulic feeding system benefit operations?

The hydraulic feeding system ensures easy operation, higher working efficiency, and allows real-time observation of bottom hole pressure to control well conditions easily.

Is this equipment easy to transport in mountainous areas?

Yes. The rig is compact in size and lightweight, making it easy to assemble, disassemble, and transport, which is ideal for both plains and mountain areas.
