Wholesale Mud Pump Manufacturer, Exporter

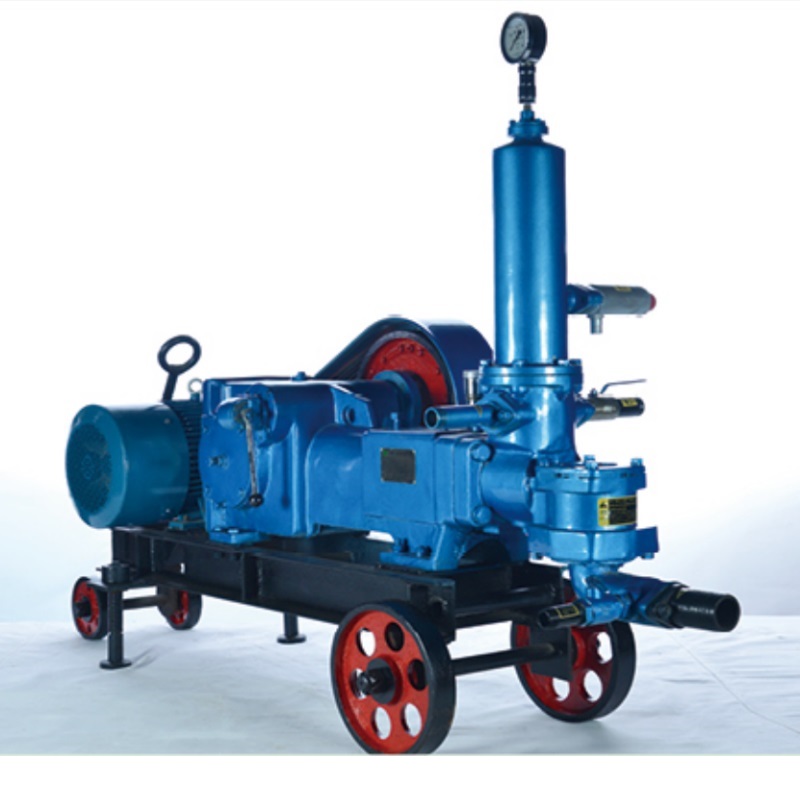

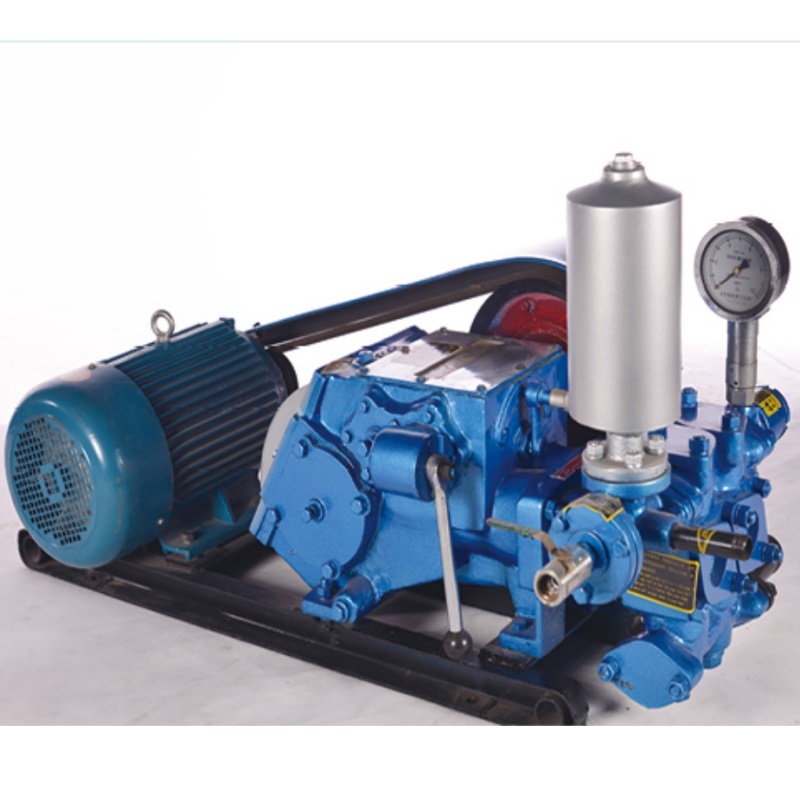

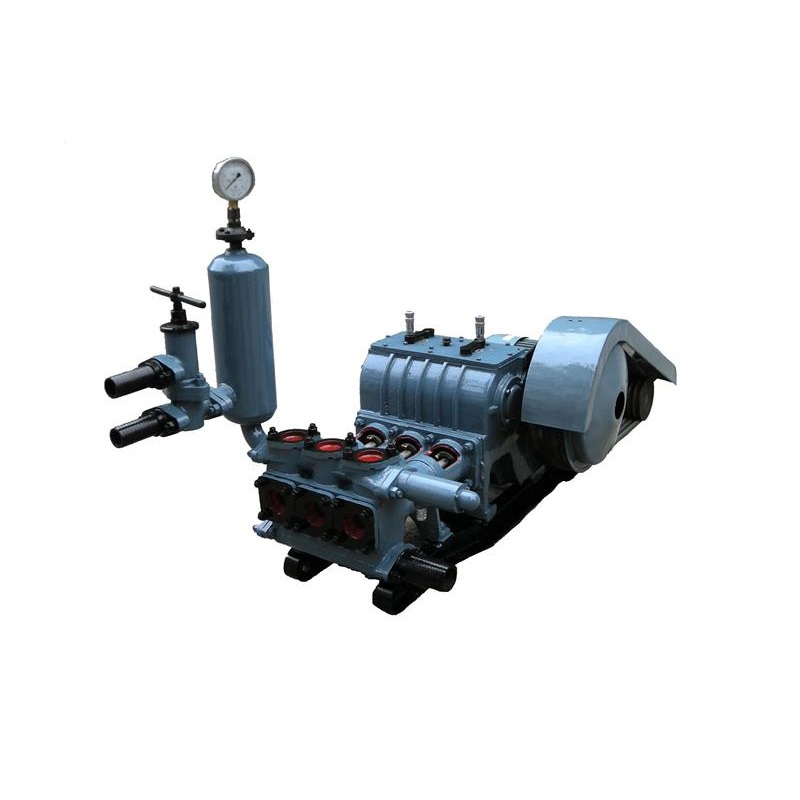

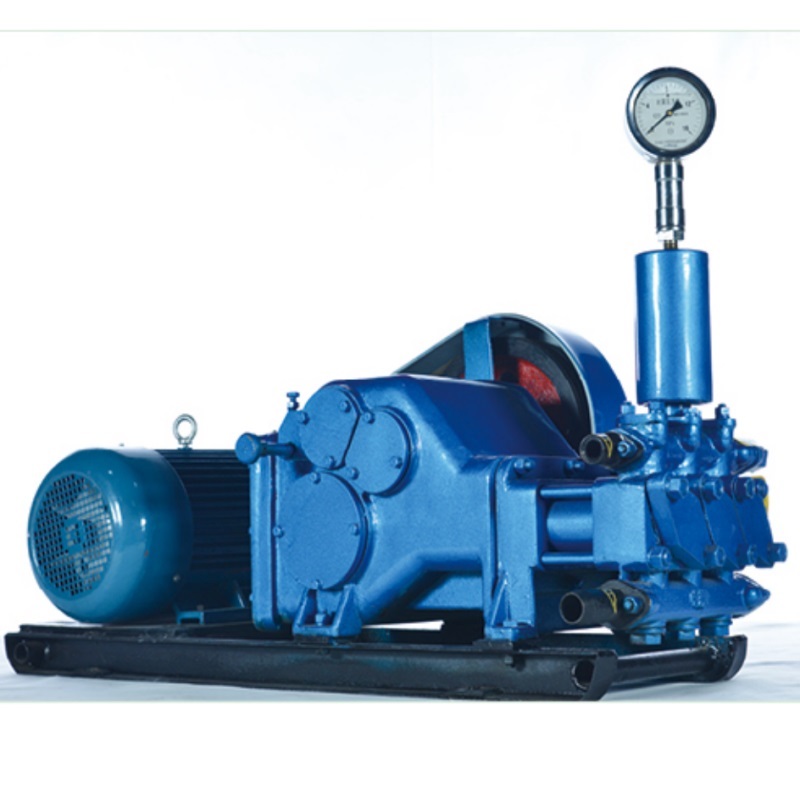

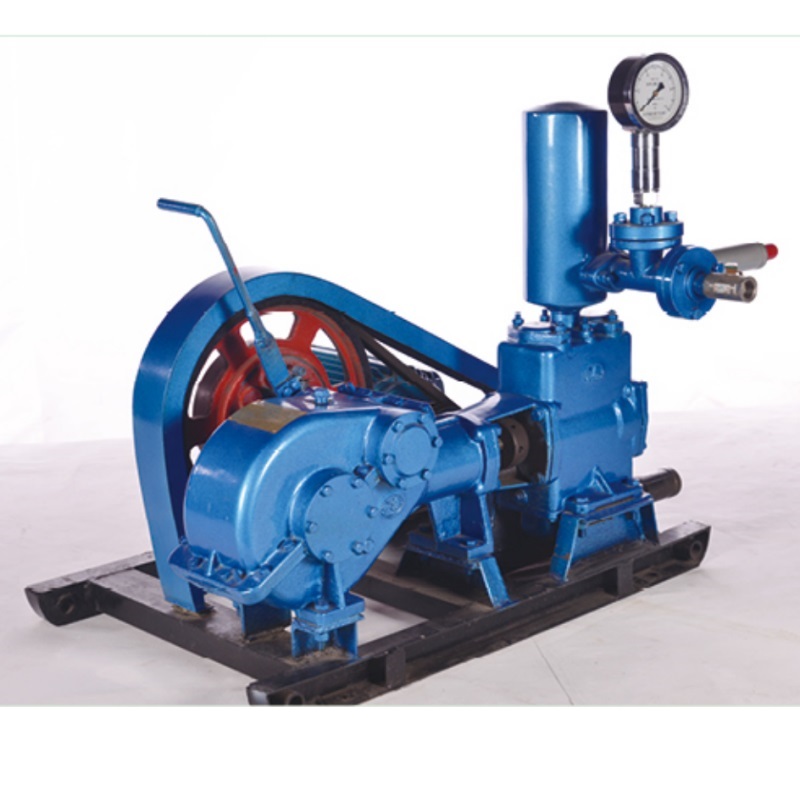

BW Series Pumps feature a structure of horizontal piston pump with single, double, and triplex-piston, single and double-acting respectively. They are mainly used for conveying mud and water in the drilling of core. Engineering exploration, hydrology and water well, oil and gas well. They can also be used for conveying different liquids in petroleum, chemistry and food processing industries.

Send Inquiry

Product Description

Triplex Piston Design

Features robust single-acting and double-acting configurations engineered for uniform flow and exceptional durability.

Versatile Stroke Capabilities

Wide stroke and speed variation options designed to easily handle diverse pressure and fluid displacement demands.

Deep Hole Operations

Capable of supporting intensive diamond core and conventional core drilling projects up to 3000 meters deep.

Model		BW-150	BW-250		BW-320		BW-300/12
Type		Single-Acting Triplex-Piston					Double-Acting Triplex-Piston
Stroke(mm)		70	100		110		110
Liner Dia(mm)		70	80	65	80	60	75
Pump Speed(min^-1)		222,130,86,57, 183,107,71,47	200,116, 72,42	200,116, 72,42	214,153, 109,78	214,153, 109,78	206,151, 112,82
Displacement(L/min)		150,90,58,38, 125,72,47,32	250,145, 90,52	166,96, 60,35	320,230, 165,118	190,130, 92,66	300,220, 160,120
Pressure(Mpa)		1.8,3.2,4.8,7.0 2.3,4.0,6.0,7.0	2.5,4.5, 6.0,6.0	4.0,6.0, 7.0,7.0	4.0,5.0, 6.0,8.0	6.0,8.0, 9.0,10.0	6.0,8.0, 10.0,12.0
Input Power(KW)		7.5	15		30		45
Suction Pipe Dia(mm)		50	75				76
Discharge pipe dia(mm)		32	50				51
Mass(kg)	Pump	-	500		650		750
	Group	516 (with motor)	-		1000 (with diesel)		-
Drilling hole depth(m)		Diamond Core Drilling < 1500m	Diamond Core Drilling < 1500m Conventional Core Drilling < 1000m		Diamond Core Drilling < 3000m Conventional Core Drilling < 2000m Drilling < 1000m		Diamond Core Drilling < 1500m Conventional Core Drilling < 1000m Directional Drilling
Dimensions(mm)		1840795995	1100995650		1280855750		20139401130

Frequently Asked Questions

What are the primary differences between the BW-150 and BW-250 models?

The BW-150 operates with a stroke length of 70mm, 7.5 KW input power, and reaches displacements up to 150 L/min. The BW-250 offers a longer 100mm stroke, requires 15 KW input power, and delivers larger displacement configurations (up to 250 L/min or 166 L/min depending on the liner size).

Which BW pump model is suitable for deepest diamond core drilling?

The BW-320 is the most capable model for ultra-deep holes, supporting diamond core drilling depths up to 3000 meters and conventional core drilling up to 2000 meters, powered by a 30 KW system.

How does liner diameter affect pump pressure and displacement?

A larger liner diameter increases displacement (flow rate) but yields lower maximum pressures. For example, in the BW-250, an 80mm liner delivers up to 250 L/min flow at max 6.0 Mpa, while a smaller 65mm liner yields up to 166 L/min flow but reaches higher pressures up to 7.0 Mpa.

What makes the BW-300/12 different from the other models?

Unlike the single-acting design of the BW-150, 250, and 320, the BW-300/12 features a double-acting triplex-piston design. It supports high-intensity directional drilling, uses a 45 KW input, and achieves a maximum pressure of 12.0 Mpa.

What power options and configurations are available for the mass groups?

The equipment weights vary depending on configuration: the BW-150 group weighs 516 kg (with an electric motor), and the BW-320 group weighs 1000 kg (equipped with a diesel engine), accommodating diverse job site power requirements.
