CE Certification Jet-Grouting Drilling Rig With Crawler Base SGZ-150S Suppliers, Pricelist

The drilling rig is suitable for urban underground space, subway, highway, bridge, roadbed, dam foundation and other industrial and civil building foundation reinforcement projects, water blocking and leakage prevention projects, soft ground treatment and geological disaster management projects. The drilling rig can be used for drilling pipe diameter of 89~142mm multi-tube vertical/horizontal construction, but also can be used for general rotary jet (swing spray, fixed spray) engineering construction. Equipped with a 3-ton crane arm, it can effectively reduce labor intensity.

Send Inquiry

Product Description

Swing Angle of automatic spraying device: can be set arbitrarily.
The lower holder is a floating four-kick, which has uniform clamping force and does not damage the drill pipe.
Suitable for construction under bridge and in tunnel, and convenient to move the machine to the hole.
Hydraulic leg step performance: 4-point hydraulic leg support.
Visual interface, which can adjust the attitude according to the construction parameters and set the rotary/raising speed of the power head in real time.
Equipped with a 3-ton crane arm, which can effectively reduce labor intensity.

Parameters and names	Multi-tube horizontal rotary drilling rig SGZ-150S
Spindle bore	150 mm
Main shaft speed	High speed 0~48 rpm and low speed 0~24 rpm
Main shaft torque	High speed 6000 N·m / low speed 12000 N·m
Feed travel	1000 mm
Feed rate	0~2 m/min when rising and 0~4 m/min when falling
The center of the power head is high	1850 mm (above ground level)
Maximum feed force of the power head	50 kN
Maximum lifting force of the power head	100 kN
Power of motor	45 kW+11kW
Maximum lifting weight of the boom	3.2 T
Maximum boom extension	7.5 m
Cantilever rotation Angle	360°
Outline dimension	480022003050 mm (including boom)
Overall weight	9 T

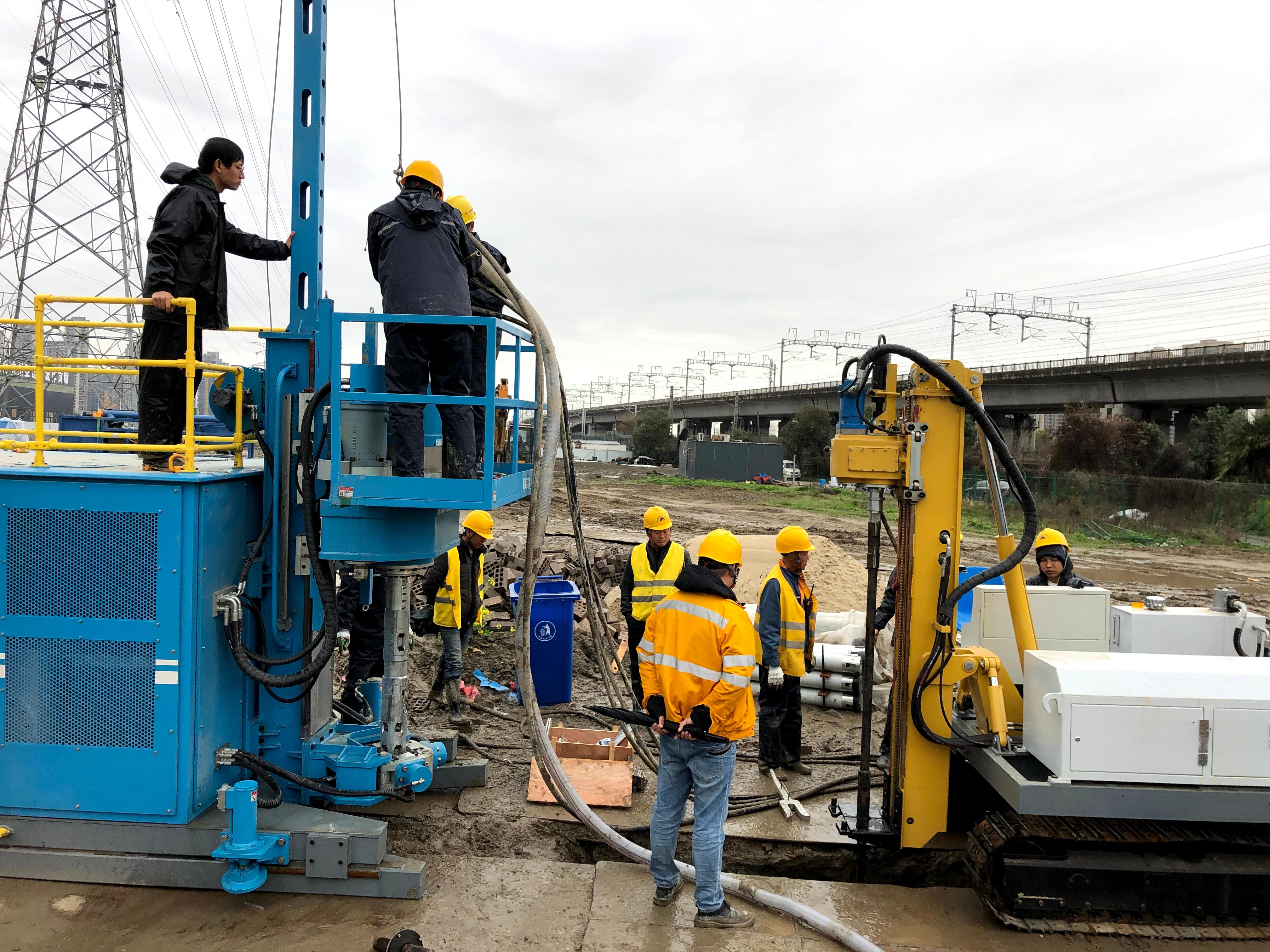

Multi-tube horizontal rotary drilling rig SGZ-150S details 1

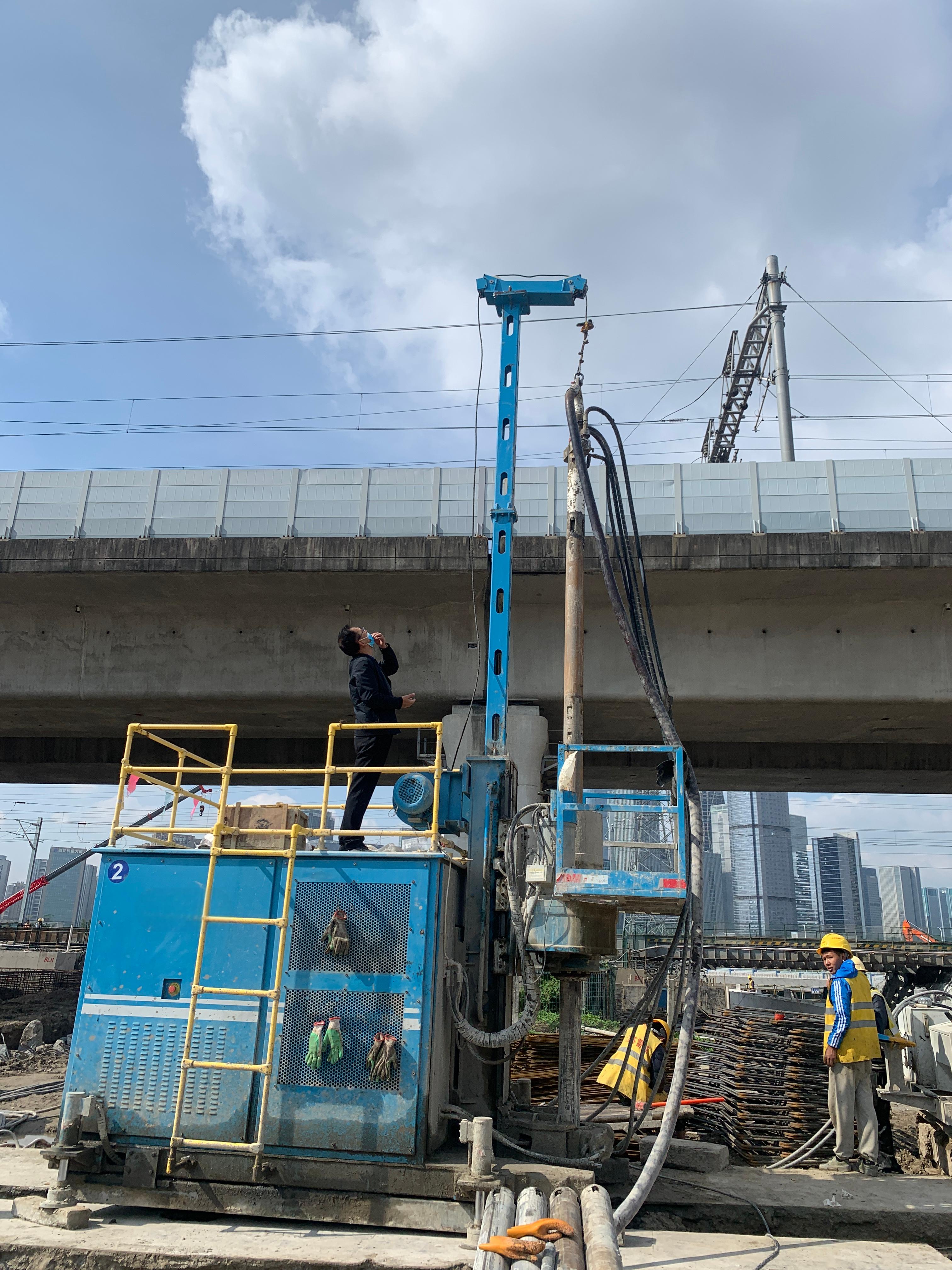

Multi-tube horizontal rotary drilling rig SGZ-150S details 2

Frequently Asked Questions

What is the spindle bore size of the SGZ-150S drilling rig?

The SGZ-150S multi-tube horizontal rotary drilling rig features a spindle bore size of 150 mm.

How does the automatic spraying device work on this machine?

The automatic spraying device is highly adjustable, allowing the swing angle to be set arbitrarily based on specific construction requirements.

Is the SGZ-150S suitable for confined space operations?

Yes, it is specifically designed for construction under bridges and inside tunnels, with features that make moving the machine to the hole highly convenient.

What is the maximum torque capability of the main shaft?

The main shaft offers a dual-speed configuration: reaching up to 6000 N·m at high speed (0-48 rpm) and 12000 N·m at low speed (0-24 rpm).

Does this model feature any crane capabilities?

Yes, the machine is equipped with a 3-ton crane arm (with a maximum lifting capacity of 3.2 T and a 7.5 m maximum extension) which effectively reduces labor intensity.
