The SPL 800 hydraulic pile breaker cuts the wall with a width of 300-800mm and a rod pressure of 280kn.
SPL800 hydraulic pile breaker adopts multiple hydraulic cylinders to squeeze and cut off the wall from different points at the same time. Its operation is simple, efficient and environment-friendly.

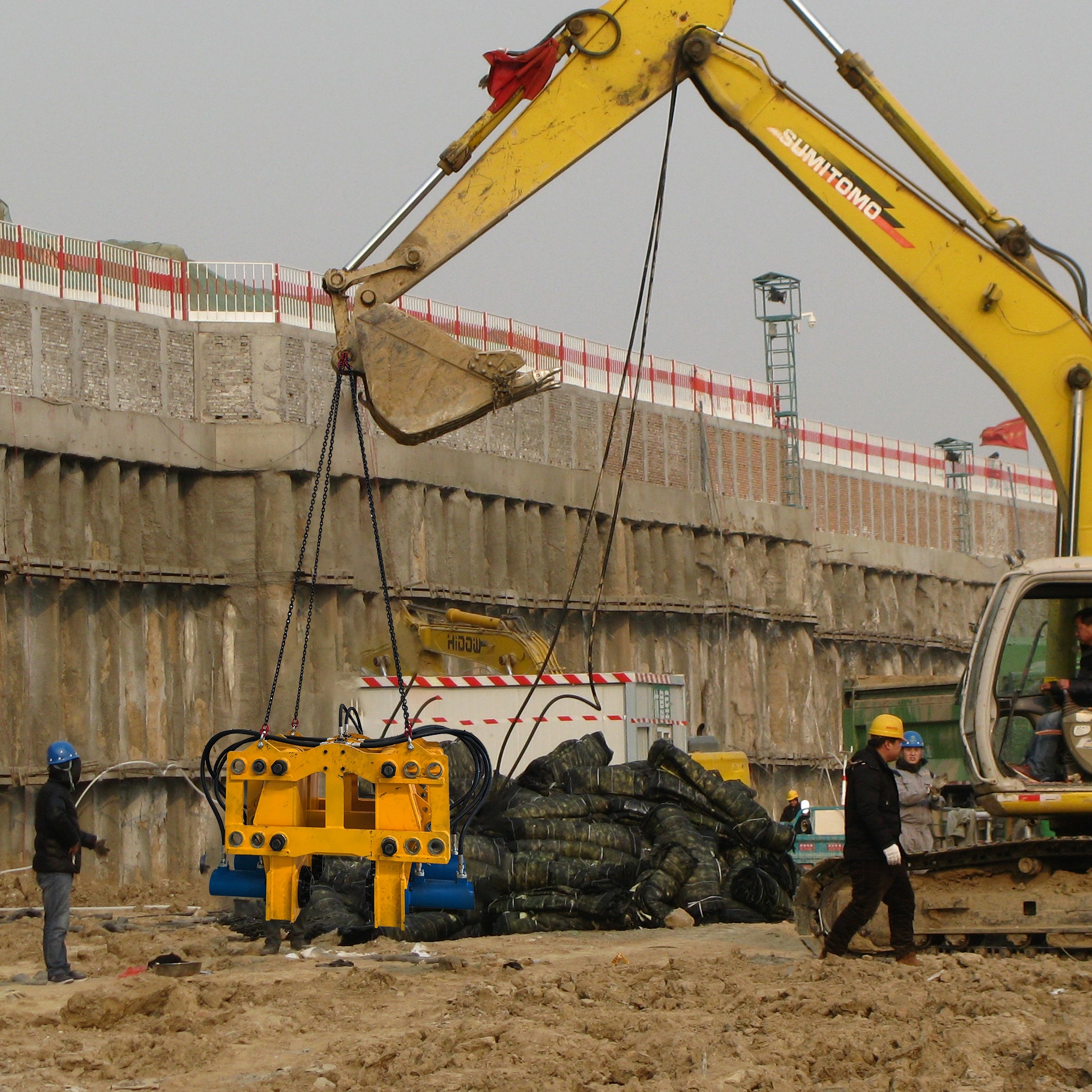

The equipment operation needs to be connected to the power source, which can be fixed pump station or other mobile construction machinery and equipment. Generally, the pump station is used in the pile construction of high-rise buildings, and the mobile excavator is used as the power source in other buildings.
| Name |
Hydraulic Pile Breaker |
| Model |
SPL800 |
| Cut wall width |
300-800mm |
| Maximum drill rod pressure |
280kN |
| Maximum stroke of cylinder |
135mm |
| Maximum pressure of cylinder |
300bar |
| Maximum flow of single cylinder |
20L/min |
| Number of cylinders on each side |
2 |
| Wall dimension |
400*200mm |
| Supporting the digging machine tonnage (excavator) |
≥7t |
| Wall breaker dimensions |
1760*1270*1180mm |
| Total wall breaker weight |
1.2t |
1
Environmental protection of SPL800 pile breaker: fully hydraulic drive, low operating noise and no impact on the surrounding environment.
2
Low cost of SPL800 pile breaker: the operating system is simple and convenient, requiring fewer operators during construction, saving labor and machine maintenance costs.
3
Small volume: SPL800 pile breaker has small volume, convenient transportation and light weight.
4
Safety of SPL800 pile breaker: non-contact operation, suitable for construction in complex terrain.
5
Universality of SPL800 pile breaker: it can be driven by a variety of power sources and can be compatible with excavator or hydraulic system according to the situation of construction site. The connection of various construction machinery is flexible, universal and economical. The telescopic chain can meet the construction requirements of various terrains.
6
Long service life of SPL800 pile breaker: it is manufactured by professional military material suppliers with reliable quality and long service life.
7
High flexibility: SPL800 pile breaker is small in size and convenient for transportation; The module is easy to disassemble, replace and combine, and is suitable for piles of various diameters.
SPL800 hydraulic pile breaker is easy to move and has a wide working face. It is suitable for construction projects with long piles and long lines.
Frequently Asked Questions
Q: What wall widths can the SPL800 hydraulic pile breaker cut?
The SPL800 hydraulic pile breaker is specifically designed to cut walls with a width ranging from 300mm to 800mm.
Q: What are the requirements for the power source to operate the SPL800?
The equipment can be connected to either a fixed pump station (commonly used for pile construction in high-rise buildings) or mobile construction machinery such as an excavator (tonnage ≥7t).
Q: How does the SPL800 operate to break the concrete?
It utilizes multiple hydraulic cylinders to squeeze and cut off the concrete wall from different points at the same time, making the process highly efficient and simple to control.
Q: Is the SPL800 hydraulic pile breaker suitable for residential areas or strict environmental regulations?
Yes. The SPL800 is fully hydraulic driven, which generates low operating noise and avoids heavy impact vibration, minimizing the disturbance to the surrounding environment.
Q: Can the SPL800 be adjusted for different pile diameters?
Yes. The modules of the SPL800 pile breaker are easy to disassemble, replace, and combine, which makes it highly adaptable to piles of various diameters.
