| Parameter | Specification Details |
|---|---|
| Model | SPC500 Coral type pile breaker |
| Range of Pile diameter (mm) | Φ1500-Φ2400 |
| Cut the number of pile / 9h | 30-50 |
| Height for cut pile each time | ≤300mm |
| Supporting the digging machine Tonnage (excavator) | ≥46t |
| Work status dimensions | Φ3200X2600 |
| Total pile breaker weight | 6t |
| Maximum Drill rod pressure | 790kN |
| Maximum stroke of hydraulic cylinder | 500mm |
| Maximum pressure hydraulic cylinder | 35MPa |
As a long-established drilling rig manufacturer, we do business with reputation and word of mouth. We are dedicated to provide customers perfect service. To make customers feel secure in using our products, we establish a complete after-sales service system, and provide a one-year warranty for our drilling rigs. During the warranty period, we provide free debugging, operator training and maintenance service. As our main components are imported from world renowned companies, our overseas customers can maintain these components easily.

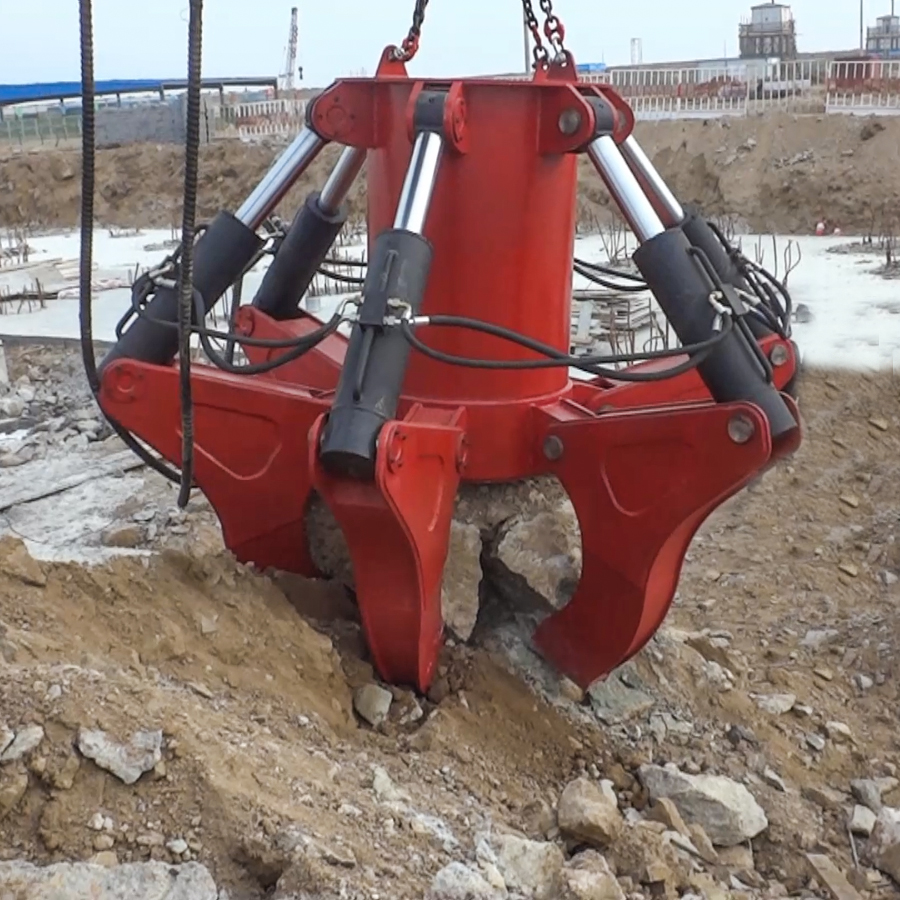

The SPC500 is a coral-shaped machine specifically designed for efficiently cutting concrete pile heads with diameters ranging from 1500mm to 2400mm.
It can be powered by a hydraulic power station or a mobile excavator. When using an excavator, a machine tonnage of 46 tons or greater is required.
The pile cutting efficiency of the SPC500 is highly optimized, allowing it to cut approximately 30 to 50 piles within a 9-hour work duration.
The SPC500 pile breaker can cut up to a maximum height of 300mm or less per individual cutting operation.
A complete after-sales service system is provided, including a one-year equipment warranty. During the warranty period, customers receive free debugging, operator training, and maintenance services.
Yes. Because the primary components of our equipment are imported from world-renowned brands, international users can easily find parts and perform maintenance locally.
