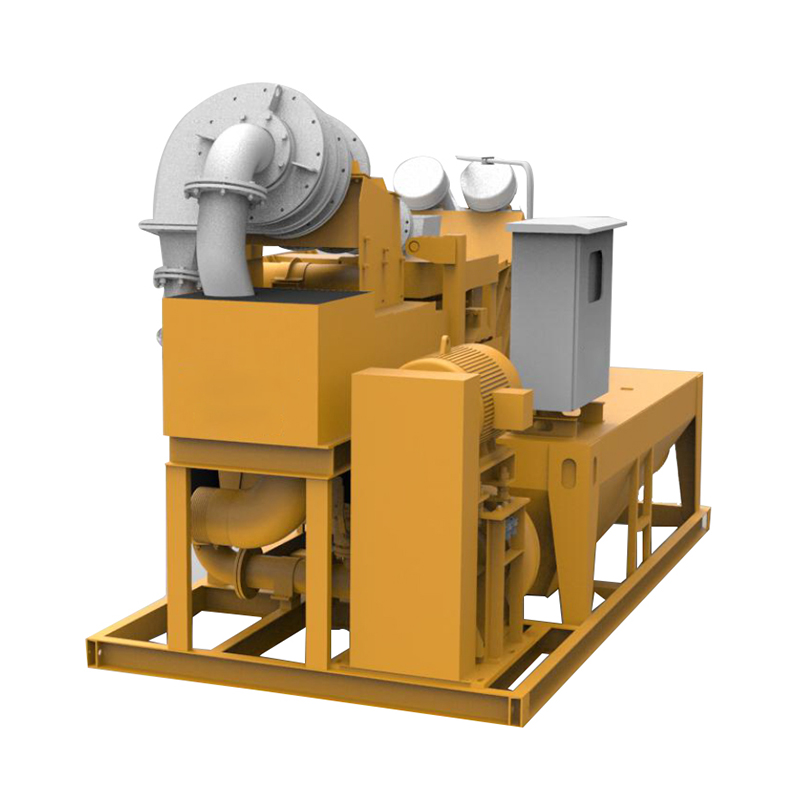

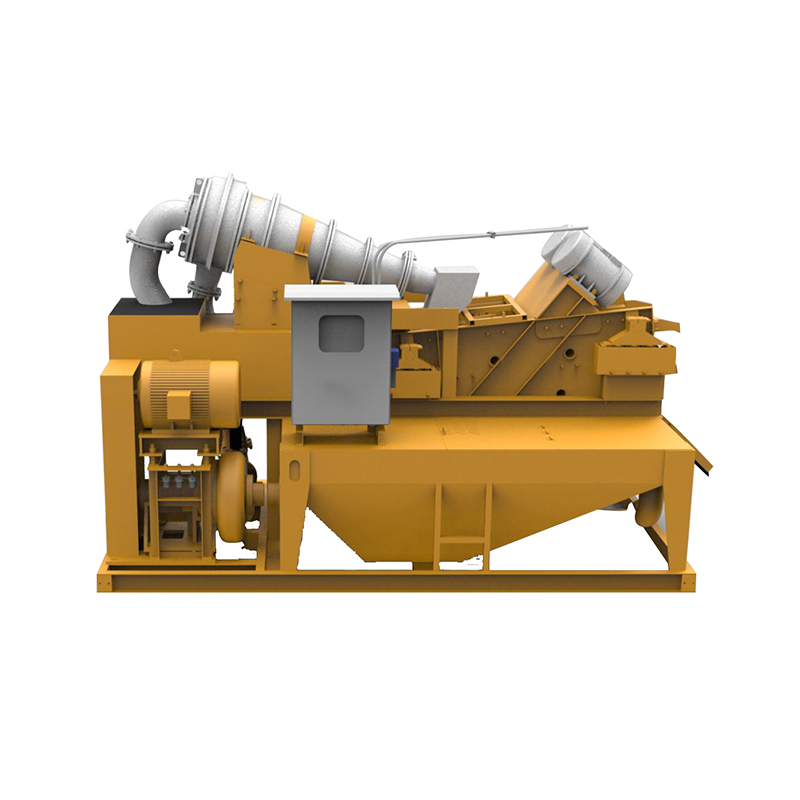

SD-200 Desander is a mud purification and treatment machine developed for wall mud used in construction, bridge pile foundation engineering, underground tunnel shield engineering and non excavation engineering construction. It can effectively control the slurry quality of construction mud, separate solid-liquid particles in mud, improve the pore forming rate of pile foundation, reduce the amount of bentonite and reduce the cost of slurry making. It can realize the environmental transport and slurry discharge of mud waste and meet the requirements of environmental protection construction.
In terms of economic benefits, the SD-200 Desander has a large processing capacity per unit time, which can greatly save the cost of waste slurry treatment, greatly reduce the outward processing capacity of waste slurry, save engineering expenses, and significantly improve the modern construction level of civilized construction and environmental protection construction.
Increased separation capacity in the fine sand fraction bentonite supported grad work for pipes and diaphragm walls micro tunneling.
| Type | SD-200 |
|---|---|
| Capacity (slurry) | 200m³/h |
| Cut point | 60μm |
| Separation capacity | 25-80t/h |
| Power | 48KW |
| Dimension | 3.54x2.25x2.83m |
| Total weight | 1700000kg |
The SD-200 Desander is a mud purification and treatment system designed for wall mud cleaning in bridge pile foundation projects, construction, underground tunnel shield engineering, and non-excavation construction work.
It features a processing capacity of 200m³/h and a solid-liquid separation capacity ranging between 25 and 80 tons per hour.
By efficiently separating solid particles from the mud, it controls slurry quality, increases the pile foundation pore-forming rate, saves on waste slurry treatment costs, and reduces overall bentonite consumption.
The SD-200 Desander has a standard cut point of 60μm, allowing for precise control and high efficiency in separating fine sand fractions.
We offer comprehensive global sales and technical services including laboratory testing, custom solution design, assembly, commissioning, and technical training conducted by professional engineers.
