Diamond Core Drill Bit For Metal Drilling And Core drilling

Send Inquiry

Product Description

Quality Guarantee & Settlement Policy

Products	Problems	Settlement
Diamond core bit	1. Size, and/ or technical parameters (matrix etc.) are different from the requirements of client's purchase order.	Replace
	2. Thread can not fit clients barrel.	Repair or replace
	3. Break down a piece from matrix, and the volume of the piece exceed 2mm x 2mm x 2mm, and such break is not caused by drilling.	Replace
	4. Matrix falling not caused by drilling.	Replace or return
	5. Groove on matrix caused by manufacturer.	Replace or return
	6. Drilling speed is obvious slower than congener products caused by manufacturer.	Replace Each item quantity does not exceed 3 pieces.
	7. Bit life is obvious short caused by manufacturer.	Replace Each item quantity does not exceed 3 pieces.
	8. Breaking down of matrix, falling matrix, groove and short bit life caused by operating reasons- drill rod sticking, premature failure of the bit crown and hole bottom not to be cleaned.	Be excluded from Quality Guarantee
	9. Short bit life and abrasion caused by drilling machine, drilling techniques or parameters.
	10. Properly worn and the matrix is finished.
	11. Thread damaged and distortion made by operator.
	12. Body crack in drill.	Replace or return

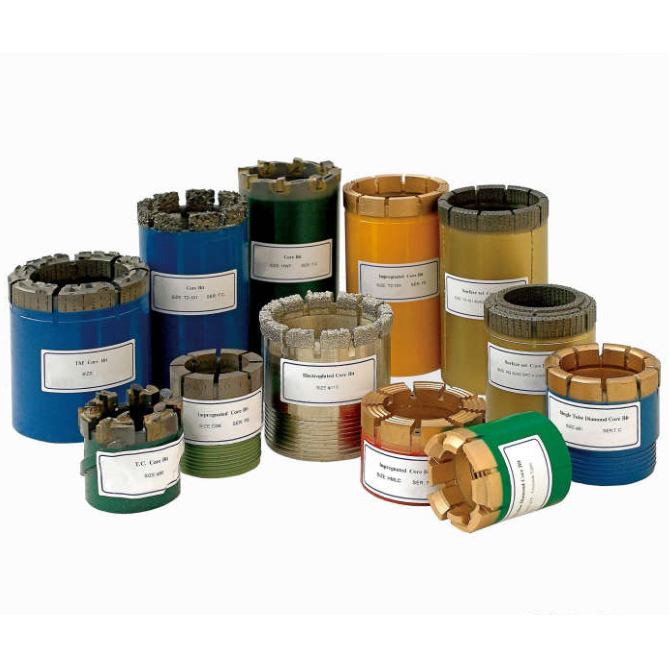

Diamond Core Bit Classification

1. Imp.

Impregnated Diamond Type

2. S.S.

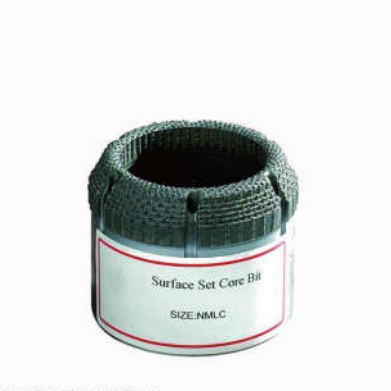

Surface Set Diamond Type

3. T.C.

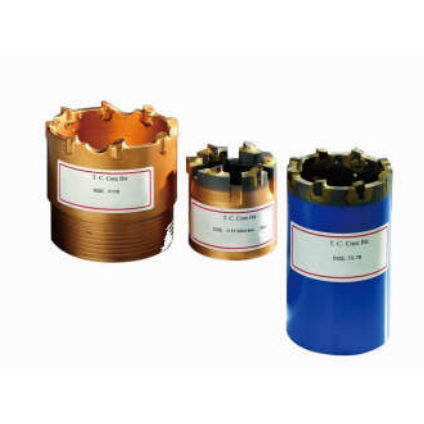

Tungsten Carbide Type

4. PDC.

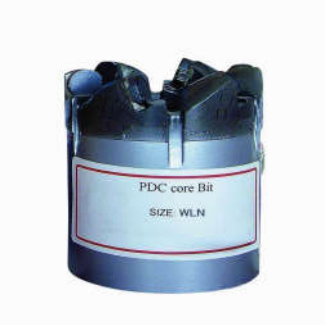

Polycrystalline Diamond Compact Type

5. TSP.

Thermally Stable Diamond Polycrystalline

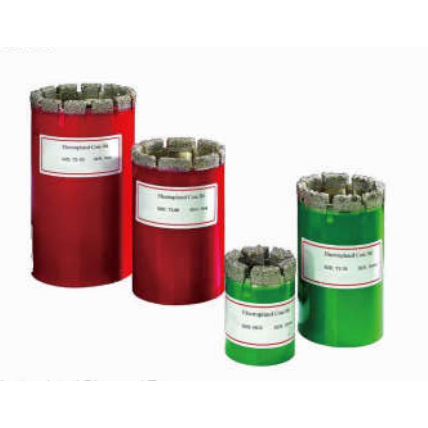

6. E.P.

Electroplated Diamond Type

Gauge Core Bits Specifications

Size	Outside diameter		Inside diameter		Availability
Size	inch	mm	inch	mm	IMP.	S.S.	P.C.	PDC	TSP	E.P.
A-Gauge Core Bits
WLA	1.880/1.870	47.75/47.50	1.607/1.057	27.10/26.85	Yes	Yes	Yes	Yes	Yes	Yes
WLA-RSG	1.895/1.885	48.13/47.88	1.067/1.057	27.10/26.85	Yes	Yes	Yes	Yes	Yes	Yes
AWG, AX	1.880/1.870	47.75/47.50	1.190/1.180	30.23/29.97	Yes	Yes	Yes	Yes	Yes	Yes
AWM	1.880/1.870	47.75/47.50	1.190/1.180	30.23/29.97	Yes	Yes	Yes	Yes	Yes	Yes
AWT	1.880/1.870	47.75/47.50	1.286/1.276	32.66/32.41	Yes	Yes	Yes	Yes	Yes	Yes
LTK48	1.880/1.870	47.75/47.50	1.394/1.384	35.40/35.15	Yes	Yes	Yes	Yes	Yes	Yes
B-Gauge Core Bits
WLB	2.350/2.340	59.69/59.44	1.438/1.428	36.52/36.27	Yes	Yes	Yes	Yes	Yes	Yes
WLB-RSG	2.365/2.355	60.07/59.82	1.438/1.428	36.52/36.27	Yes	Yes	Yes	Yes	Yes	Yes
WLB-2.400	2.045/2.395	61.09/60.83	1.438/1.428	36.52/36.27	Yes	Yes	Yes	Yes	Yes	Yes
WLB3	2.350/2.340	59.69/59.44	1.325/1.315	33.65/33.40	Yes	Yes	Yes	Yes	Yes	Yes
BWG, BX	2.350/2.340	59.69/59.44	1.660/1.650	42.16/41.91	Yes	Yes	Yes	Yes	Yes	Yes
BWM	2.350/2.340	59.69/59.44	1.660/1.650	42.16/41.91	Yes	Yes	Yes	Yes	Yes	Yes
BWT	2.350/2.340	59.69/59.44	1.755/1.745	44.58/44.32	Yes	Yes	Yes	Yes	Yes	Yes
LTK60	2.350/2.340	59.69/59.44	1.742/1.732	44.25/44.00	Yes	Yes	Yes	Yes	Yes	Yes
TBW	2.350/2.340	59.69/59.44	1.785/1.775	45.34/45.09	Yes	Yes	Yes	Yes	Yes	Yes
N-Gauge Core Bits
WLN	2.970/2.960	75.44/75.19	1.880/1.870	47.75/47.50	Yes	Yes	Yes	Yes	Yes	Yes
WLN-RSG	2.985/2.975	75.82/75.57	1.880/1.870	47.75/47.50	Yes	Yes	Yes	Yes	Yes	Yes
WLN-3.032	3.037/3.027	77.14/76.89	1.880/1.870	47.75/47.50	Yes	Yes	Yes	Yes	Yes	Yes
WLN2	2.970/2.960	75.44/75.19	2.000/1.990	50.80/50.55	Yes	Yes	Yes	Yes	Yes	Yes
WLN2-RSG	2.985/2.975	75.82/75.57	2.000/1.990	50.80/50.55	Yes	Yes	Yes	Yes	Yes	Yes
WLN3, NWLTT	2.970/2.960	75.44/75.19	1.780/1.770	45.21/44.96	Yes	Yes	Yes	Yes	Yes	Yes
WLN3-RSG	2.985/2.975	75.82/75.57	1.780/1.770	45.21/44.96	Yes	Yes	Yes	Yes	Yes	Yes
WLN3-3.032	3.037/3.027	77.14/76.89	1.780/1.770	45.21/44.96	Yes	Yes	Yes	Yes	Yes	Yes
NMLC	2.970/2.960	75.44/75.19	2.052/2.042	52.12/51.87	Yes	Yes	Yes	Yes	Yes	Yes
NWG, NX	2.970/2.960	75.44/75.19	2.160/2.150	54.86/54.61	Yes	Yes	Yes	Yes	Yes	Yes
NWM	2.970/2.960	75.44/75.19	2.160/2.150	54.86/54.61	Yes	Yes	Yes	Yes	Yes	Yes
NWT	2.970/2.960	75.44/75.19	2.318/2.308	58.87/58.62	Yes	Yes	Yes	Yes	Yes	Yes
TNW	2.970/2.960	75.44/75.19	2.394/2.384	60.80/60.55	Yes	Yes	Yes	Yes	Yes	Yes
H-Gauge Core Bits
WLH	3.770/3.755	95.76/95.38	2.505/2.495	63.63/63.38	Yes	Yes	Yes	Yes	Yes	Yes
WLH-RSG	3.790/3.755	96.27/95.89	2.505/2.495	63.63/63.38	Yes	Yes	Yes	Yes	Yes	Yes
WLH-3.830	3.840/3.825	97.54/97.16	2.505/2.495	63.63/63.38	Yes	Yes	Yes	Yes	Yes	Yes
WLH-3.895	3.897/3.882	98.98/98.60	2.505/2.495	63.63/63.38	Yes	Yes	Yes	Yes	Yes	Yes
WLH3, WLHTT	3.770/3.755	95.76/95.38	2.411/2.401	61.24/60.99	Yes	Yes	Yes	Yes	Yes	Yes
WLH3-RSG	3.790/3.755	96.27/95.89	2.411/2.401	61,24/60.99	Yes	Yes	Yes	Yes	Yes	Yes
WLH3-3.830	3.840/3.825	97.54/97.16	2.411/2.401	61.24/60.99	Yes	Yes	Yes	Yes	Yes	Yes
WLH3-3.895	3.897/3.882	98.98/98.60	2.411/2.401	61.24/60.99	Yes	Yes	Yes	Yes	Yes	Yes
HMLC	3.897/3.882	98.98/98.60	2.505/2.495	63.63/63.38	Yes	Yes	Yes	Yes	Yes	Yes
HWF-Long	3.912/3.897	99.36/98.98	3.005/2.995	76.33/76.08	Yes	Yes	Yes	Yes	Yes	Yes
HWF-Short	3.897/3.882	98.98/98.60	3.005/2.995	76.33/76.08	Yes	Yes	Yes	Yes	Yes	Yes
HWG, HX	3.897/3.882	98.98/98.60	3.005/2.995	76.33/76.08	Yes	Yes	Yes	Yes	Yes	Yes
HWM	3.897/3.882	98.98/98.60	3.005/2.995	76.33/76.08	Yes	Yes	Yes	Yes	Yes	Yes
HWT	3.897/3.882	98.98/98.60	3.192/3.182	81.08/80.82	Yes	Yes	Yes	Yes	Yes	Yes
P-Gauge Core Bits
WLP	4.815/4.795	122.30/121.8	3.350/3.340	85.09/84.84	Yes	Yes	Yes	Yes	Yes	Yes
WLP3	4.815/4.795	122.30/121.8	3.275/3.265	83.18/82.93	Yes	Yes	Yes	Yes	Yes	Yes
PWF-Long	4.755/4.740	120.78/120.4	3.635/3.620	92.33/91.95	Yes	Yes	Yes	Yes	Yes	Yes
PWF Short	4.735/4.715	120.27/119.7	3.635/3.620	92.33/91.95	Yes	Yes	Yes	Yes	Yes	Yes
S-Gauge Core Bits
SWF-Long	5.755/5.740	146.18/145.8	4.447/4.432	112.95/112.5	Yes	Yes	Yes	Yes	Yes	Yes
SWF-short	5.735/5.715	145.67/145.1	4.447/4.432	112.95/112.5	Yes	Yes	Yes	Yes	Yes	Yes
U-Gauge Core Bits
UWF-Long	6.880/6.860	174.75/174.2	5.515/5.495	140.08/139.5	Yes	Yes	Yes	Yes	Yes	Yes
UWF-Short	6.855/6.825	174.12/173.3	5.515/5.495	140.08/139.5	Yes	Yes	Yes	Yes	Yes	Yes
Z-Gauge Core Bits
ZWF-Long	7.880/7 .860	200.15/199.6	6.515/6.495	165 48/164.9	Yes	Yes	Yes	Yes	Yes	Yes
ZWF-Short	7.855/7.825	199.52/198.7	6.515/6.495	165.48/164.9	Yes	Yes	Yes	Yes	Yes	Yes

Frequently Asked Questions (FAQ)

What is the settlement policy for core bits with unmatched thread sizes?

If the core bit thread cannot properly fit the client's barrel, the manufacturer will provide repair or replacement services.

Under what circumstances will matrix breakdown be covered for replacement?

A replacement is guaranteed if a piece exceeding 2mm x 2mm x 2mm breaks down from the matrix, provided that the breakdown is not caused by active drilling operations.

What issues are excluded from the core bit Quality Guarantee?

Problems arising from operating reasons (such as drill rod sticking, premature failure of the bit crown, uncleared hole bottoms), incorrect drilling parameters/techniques, thread damage by the operator, and normal matrix wear are excluded from the quality guarantee.

What types of diamond core bits are available?

We offer several types including Impregnated Diamond Type (Imp.), Surface Set Diamond Type (S.S.), Tungsten Carbide Type (T.C.), Polycrystalline Diamond Compact Type (PDC), Thermally Stable Diamond Polycrystalline (TSP), and Electroplated Diamond Type (E.P.).

What size gauges are included in the specifications?

The core bit specifications cover A-Gauge, B-Gauge, N-Gauge, H-Gauge, P-Gauge, S-Gauge, U-Gauge, and Z-Gauge. Detailed measurements for outside and inside diameters in both inches and millimeters are listed in our technical specification table.
