High-Quality SHY Series Full Hydraulic Core Drilling Rig Suppliers, Factory

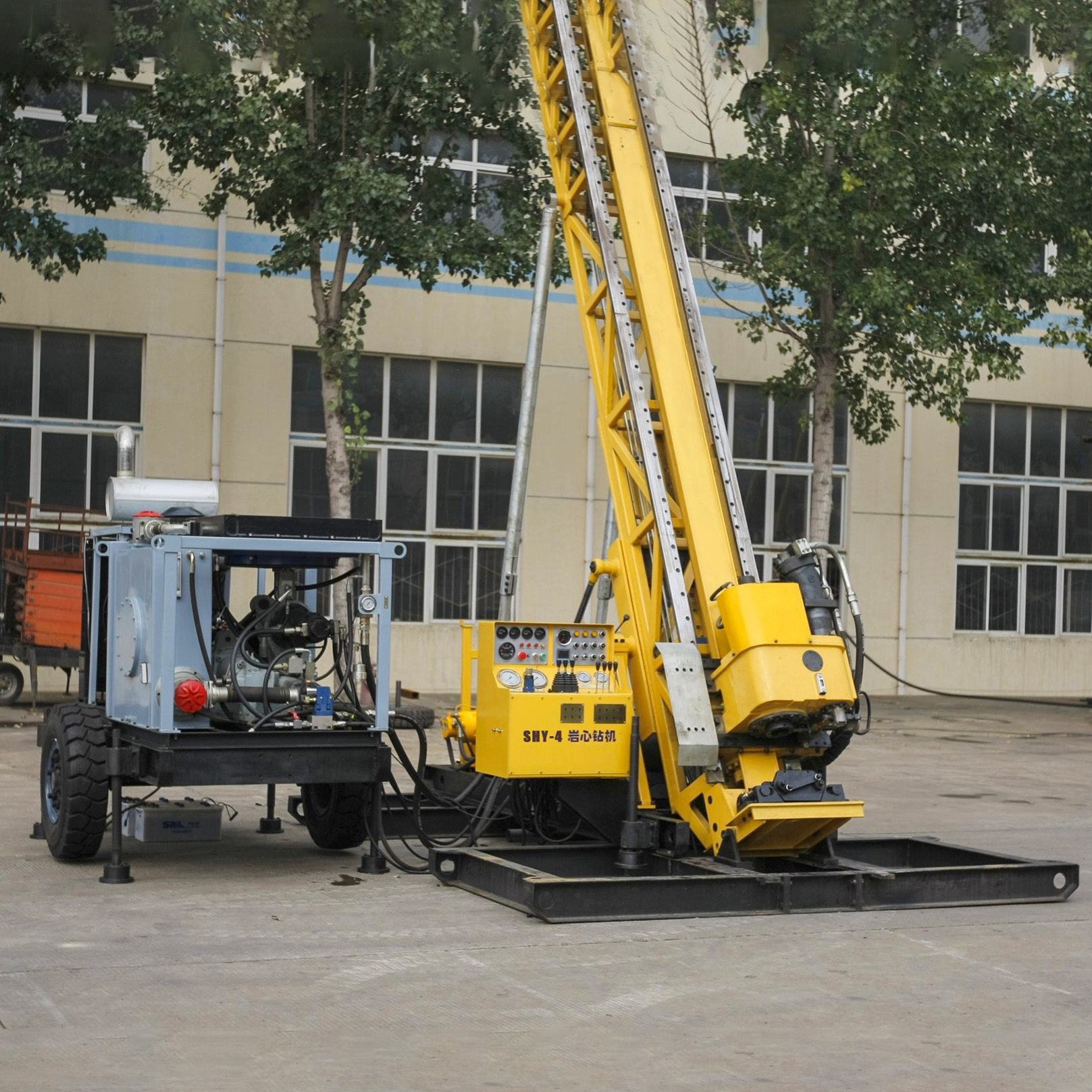

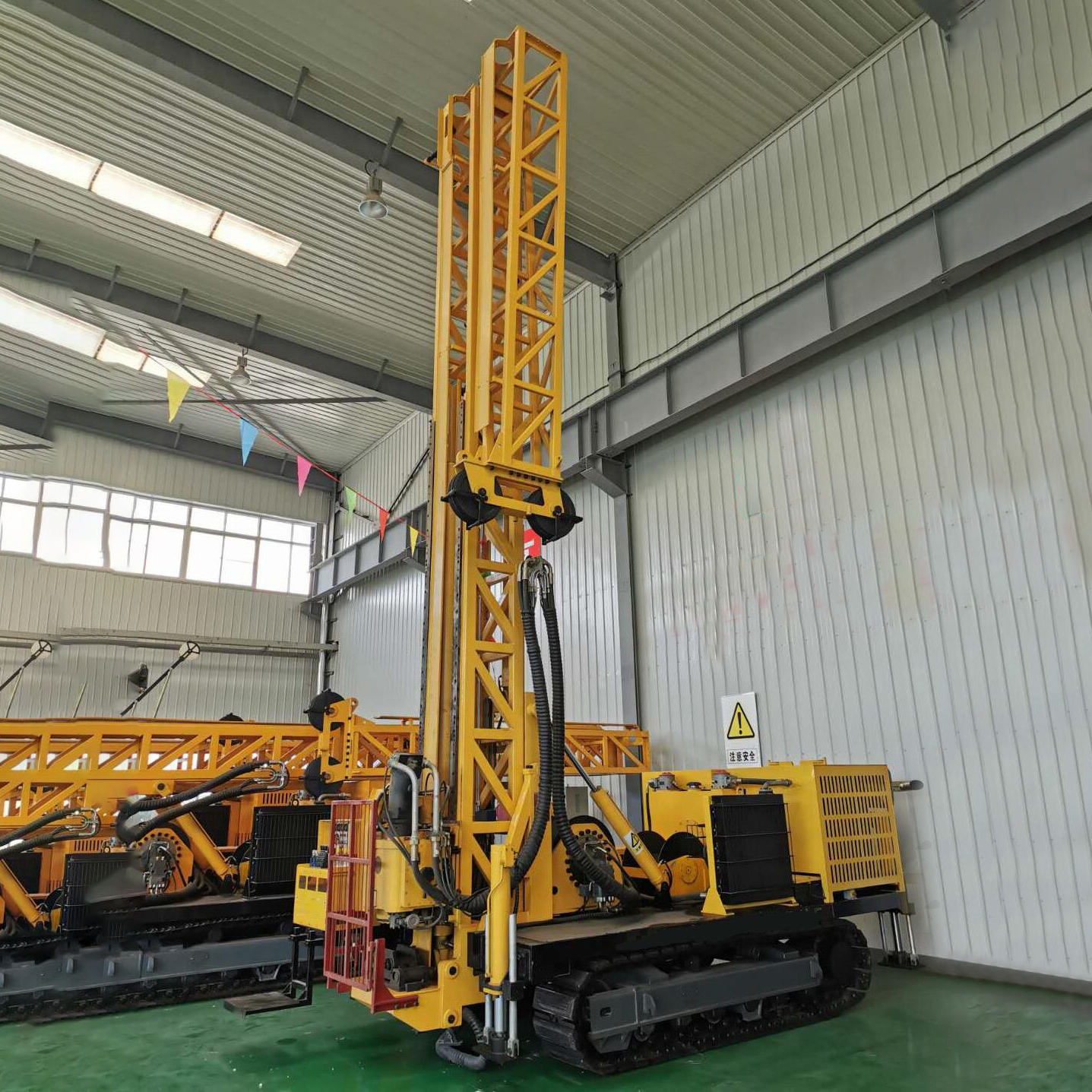

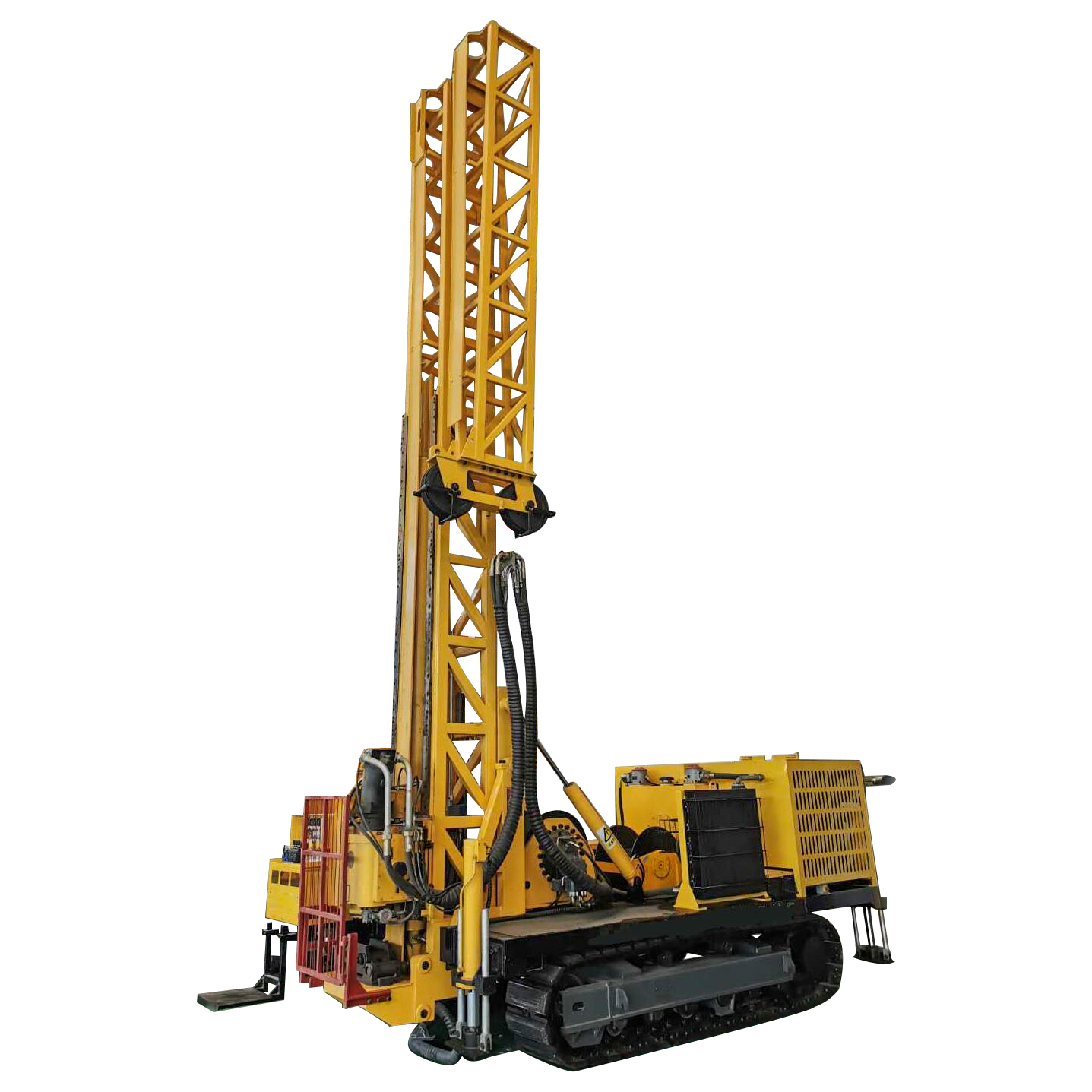

SHY-4/6 is a compact diamond core drill rig that has been designed with modular sections. This allows for the rig to be disassembled into smaller parts, improving mobility, whereby the access for the sites are difficult or limited (ie. Mountainous Terrains).

Send Inquiry

Product Description

Diamond core drilling

Directional drilling

Reverse circulation continuous coring

Percussion rotary

Geo-tech

Water bores

Anchorage

1

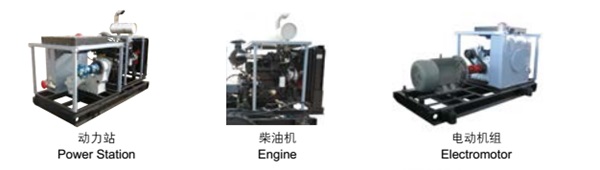

The rig being comprised from modular components, can be disassembled into smaller and more transportable sections. With the heaviest components weighing less than 500kg/760kg. Switching the power pack between Diesel or Electric is quick and effortless even when on site.
2

The rig offers a smooth hydraulic transmission, operating at low noise levels. Whilst providing convenience to the operation is labor saving and focuses on promoting work safety on site.
3

The rotation head (Patent NO.: ZL200620085555.1) is a step-less speed transmission, offering a wide range of speeds and torque (up to 3 speeds), the rotation head can be side racked via hydraulic rams for added convenience and efficiency especially during rod trips.
4

Hydraulic chuck jaws and foot clamps (Patent NO.: ZL200620085556.6) offers a fast clamping action, designed to be reliable, neutral. The foot clamps are designed to suit various different drill rod sizes via the use of different size slip jaws.
5

Feed stroke at 3.5 meters, reduces operation time, improves drilling efficiency and reduces inner tube core blockages.
6

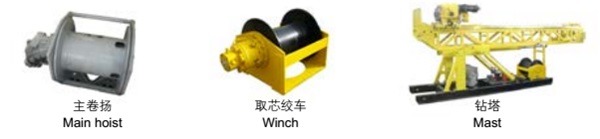

Braden main winch (USA) features a stepless speed transmission from Rexroth. Single rope hoist capacity up to 6.3t (13.1t on double). Wireline winch is also equipped with a stepless speed transmission, offering a wide speed range. The rig benefits from a tall mast, which allows for the operator to pull rods at up to 6m lengths, making rod trips faster and more efficient.
7

Equipped with all the essential gauges, including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque gauge, Water pressure gauge. Enabling the driller to oversee the entire operation of the drill rig at a simple glance.

	Item	SHY-4	SHY-6
Drilling capacity	Ф55.5mm(BQ)	1500m	2500m
	Ф71mm(NQ)	1200m	2000m
	Ф89mm(HQ)	500m	1300m
	Ф114mm(PQ)	300m	600m
Rotator Capacity	RPM	40-920rpm	70-1000rpm
	Max Torque	2410N.m	4310N.m
	Max Feeding Power	50kN	60kN
	Max Lifting Power	150kN	200kN
	Diameter of Chuck	94mm	94mm
	Feed stroke	3500mm	3500mm
Capacity of Main Hoist	Hoisting Force(single wire/dual wire)	6300/12600kg	13100/26000kg
	Main hoist speed	8-46m/min	8-42m/min
	Steel Wire Diameter	18mm	22mm
	Steel Wire Length	26m	36m
Capacity of Steel Wire Hoist	Hoisting Force	1500kg	1500kg
	Main hoist speed	30-210m/min	30-210m/min
	Steel Wire Diameter	6mm	6mm
	Steel Wire Length	1500m	2500m
Mast	Mast Height	9.5m	9.5m
	Drilling Angle	45°- 90°	45°- 90°
	Mast Mode	Hydraulic	Hydraulic
Motivity	Mode	Elect/ Engine	Elect/ Engine
Motivity	Power	55kW/132Kw	90kW/194Kw
Main Pump Pressure		27Mpa	27Mpa
Chuck Mode		Hydraulic	Hydraulic
Clamp		Hydraulic	Hydraulic
Weight		5300kg	8100kg
Transport Way		Tyre Mode	Tyre Mode

Frequently Asked Questions

Q1: Can the drill rig components be easily transported to remote sites?

Yes. The drill rig consists of modular components that can be quickly disassembled into smaller, easily transportable sections. The heaviest module weighs less than 500kg or 760kg depending on the model configuration.

Q2: How easy is it to switch between diesel and electric power packs?

Switching the power pack between Diesel and Electric configurations is designed to be quick and effortless, allowing operators to make the transition directly on site without extensive downtime.

Q3: What are the benefits of the 3.5-meter feed stroke?

The generous 3.5-meter feed stroke minimizes operational steps, improves core-drilling efficiency, and significantly reduces the occurrence of inner tube core blockages.

Q4: Does the rig support multiple rod sizes and speed configurations?

Yes. The foot clamps adjust to various drill rod sizes using different size slip jaws. Additionally, the rotation head features a step-less speed transmission offering a wide range of speeds and torque with up to 3 speeds.

Q5: What safety features and operating gauges are built into the rig?

The rig is built for safe site operations with low noise levels and smooth hydraulic transmission. It includes a comprehensive control panel containing essential gauges for Rotation Speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque, and Water Pressure for quick visual monitoring.

Q6: What is the benefit of the tall mast system?

The tall mast system allows operators to pull drill rods at lengths up to 6 meters. This makes rod trips significantly faster and enhances the efficiency of the entire drilling operation.
