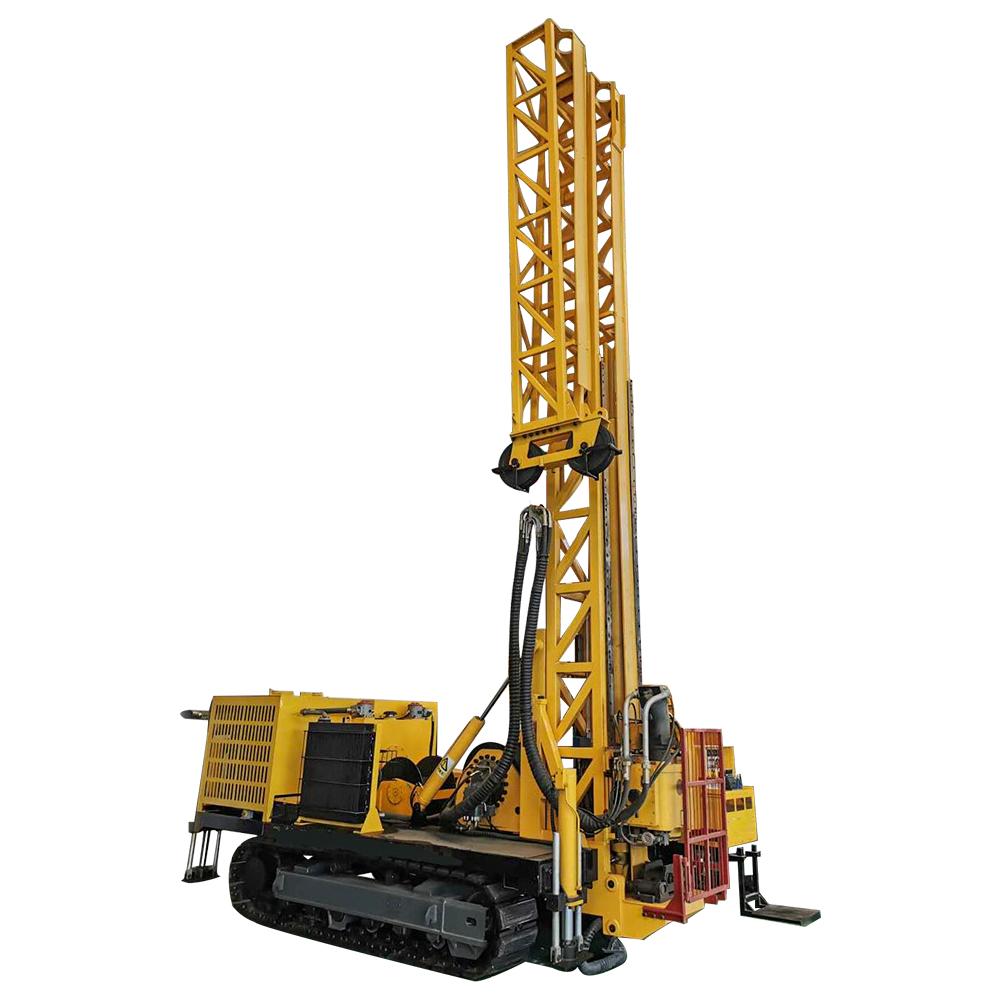

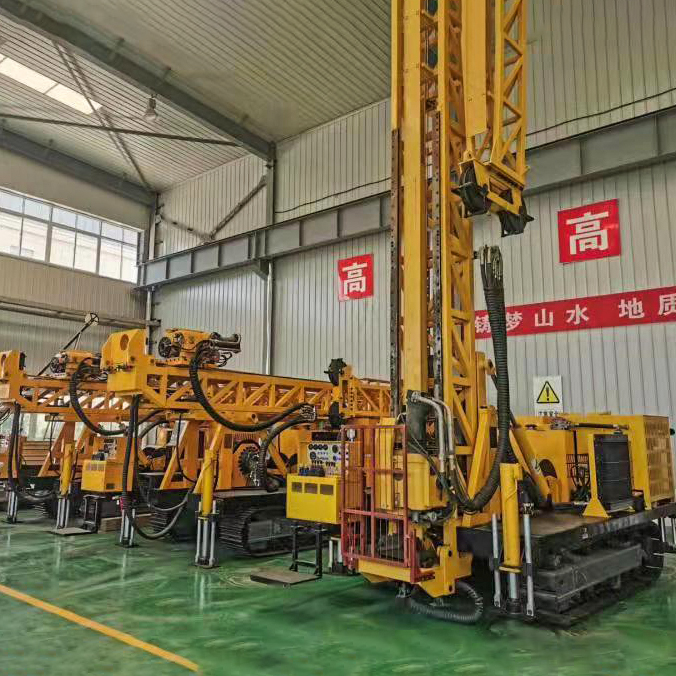

SHY-5A is a hydraulic compact diamond core drilling rig that has been designed with modular sections. This allows for the rig to be disassembled into smaller parts, improving mobility.
| Model | SHY-5A | |
|---|---|---|
| Diesel Engine | Power | 145kw |
| Drilling Capacity | BQ | 1500m |
| NQ | 1300m | |
| HQ | 1000m | |
| PQ | 680m | |
| Rotator Capacity | RPM | 0-1050rpm |
| Max. Torque | 4650Nm | |
| Max. Lifting Capacity | 15000kg | |
| Max. Feeding Power | 7500kg | |
| Foot Clamp | Clamping Diameter | 55.5-117.5mm |
| Main hoister lifting force (Single rope) | 7700kg | |
| Wire hoister lifting force | 1200kg | |
| Mast | Drilling Angle | 45°-90° |
| Feeding Stroke | 3200mm | |
| Slippage Stroke | 1100mm | |
| Other | Weight | 8500kg |
| Transport Way | Crawler | |

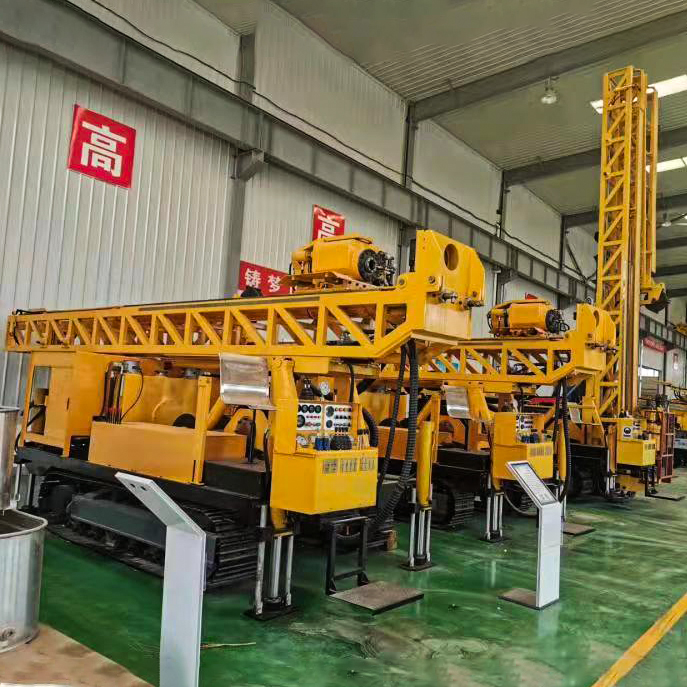

Adopt full hydraulic driving, moving with crawlers itself.
Drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure.
Rotator is fed and driven with a system connecting the spindle and oil cylinder with chain.
Mast could be adjusted for its drilling hole with a low center of gravity and good stability.
Big torque, powerful driving force, rational and practical design, lower noisy advanced controlling mode, external appearance, a compacted structure, a reliable function, and a flexible operating system.
Diesel engine, hydraulic pump, main valves, motors, crawler reducers and key hydraulic spare parts are all adapted famous brands products which are easy to buy and maintenance.
Rig provides operator with a nice field of vision and wide and comfortable working condition.
Diamond core drilling
Directional drilling
Reverse circulation continuous coring
Percussion rotary
Geo-tech
Water bores
Anchorage
The SHY-5A has different capacities depending on the drilling standard: BQ standard up to 1500m, NQ standard up to 1300m, HQ standard up to 1000m, and PQ standard up to 680m.
The modular section design allows the rig to be fully disassembled into smaller components, greatly improving mobility and transport convenience in challenging terrains.
It features a powerful 145kw diesel engine paired with full hydraulic driving. It moves independently using its crawler transport setup.
Yes, the mast can be adjusted for drilling angles ranging from 45° to 90°, allowing for flexible operation while maintaining a low center of gravity and excellent stability.
The SHY-5A is highly versatile and is used for diamond core drilling, directional drilling, reverse circulation continuous coring, percussion rotary, geotechnical exploration, water bore construction, and anchorage projects.
The rotator has a speed range of 0-1050rpm, max torque of 4650Nm, maximum lifting capacity of 15000kg, and maximum feeding power of 7500kg.
